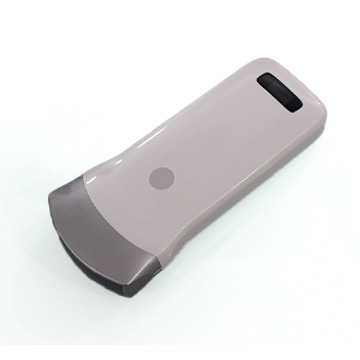

CW-3C Waterproof Wireless Convex Ultrasound Probe Scanner
Overview

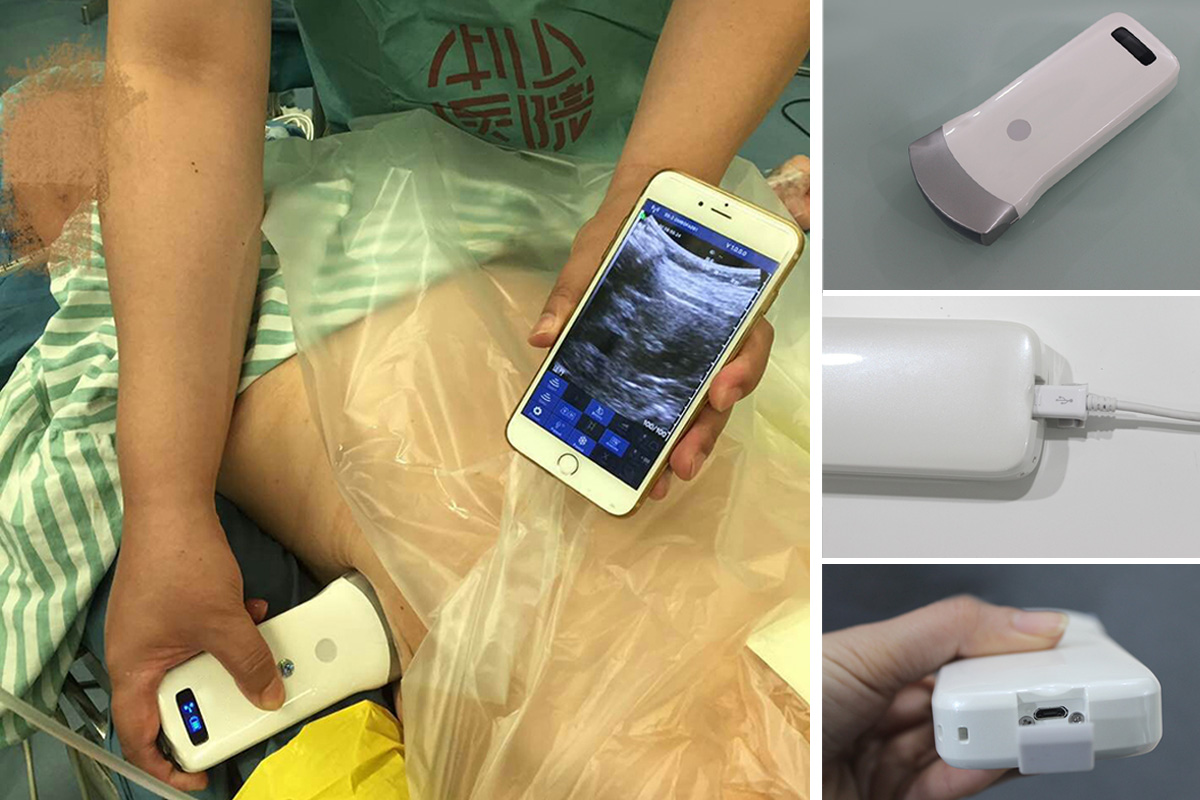

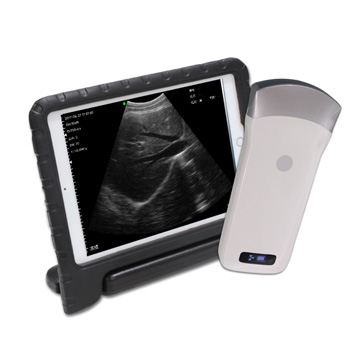

The Wireless Probe is a miniature ultrasound scanner without a screen. We have minimized the components of a conventional ultrasound scanner by integrating them into a small circuit board built into the probe and displaying the image on a smartphone/tablet/computer via WiFi transmission (no internet access required). The image can be displayed on both the screen and the tablet. The image is transmitted via WiFi inside the probe, no external WiFi signal is required
Product Parameter
|
Type |
CW-3C |
|
|
Scanning mode |
Electronic array |
|
|
Detection depth (mm) |
≥140mm |
|
|
Resolution (mm) |
Lateral |
≤1(depth≤60） |
|
|
Axial |
≤1(depth≤80) |
|
Dead zone (mm) |
≤3 |
|
|
Geometric position accuracy (%) |
Horizontal |
≤5 |
|
|
Axial |
≤5 |
|
Working system |
Apple iOS and Android, Windows |
|
|
Element |
80 |
|
|
Channel |
8 |
|
|
Scanning mode |
B, BM |
|
|
Probe frequency |
3.5MHz convex probe |
|
|
Depth |
90~200mm |
|
|
Image Adjust |
BGain, TGC, DYN, Focus, Depth |
|
|
Cineplay |
auto and manual, frames can set as 100/200/500/1000 |
|
|
Measure |
Length, Area, Angle, heart rate, Obstetrics |
|
|
Image save |
jpg, avi and DICOM format |
|
|
Image frame rate |
18 frames / second |
|
|
Battery charge |

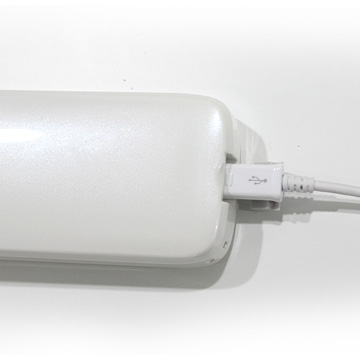

by USB charge or wireless charge, take 2 hours |
|
|
Battery |
3000mAh |
|
|
Working time |
≥3h |
|
|
Wifi type |
802.11g/20MHz/5G/450Mbps |
|
|
N.W. |
260g |
|
|
Size |
165*68*26mm |
|
Product Advantage

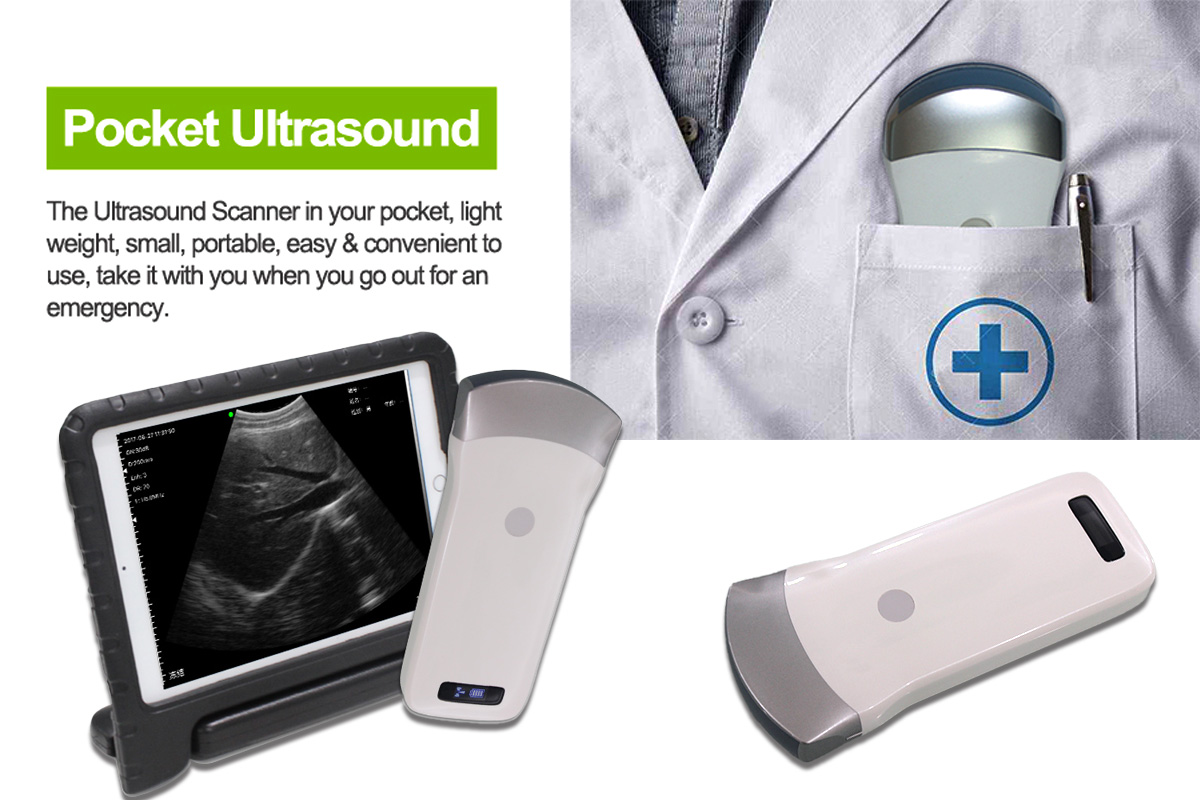

It’s very flexible in the image display screen collocation, according to the needs of different screen sizes of mobile phones, tablets, computers.
● Waterproof design, convenient for sterilization.
● Remote diagnosis convenience, capable for images transfer to doctors.
● Applicable in emergency, clinic, outdoor and vet inspection.
Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing.
Product Configuration
Standard Configuration: Wireless Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc,Carrying Bag or Aluminium Suitcase(options)x 1pc.
Optional: Stainless Steel Puncture Guide, Android or iOS Phone/Tablet, Windows PC, Wireless Power Bank, Tablet Bracket, Trolley.
Application directions
1.Visualization tools: invasive intervention guide, surgical and therapy guidance.
2.Emergency inspection: ER, ICU, Wild First Aid, battlefield rescue.
3.Preliminary examination: Ward Inspection, primary clinic examination medical examination, health screening,home care, family planning, etc.
4.Remote diagnosis, consultation, training: works on smart phone or tablet, easy telecommunications.
