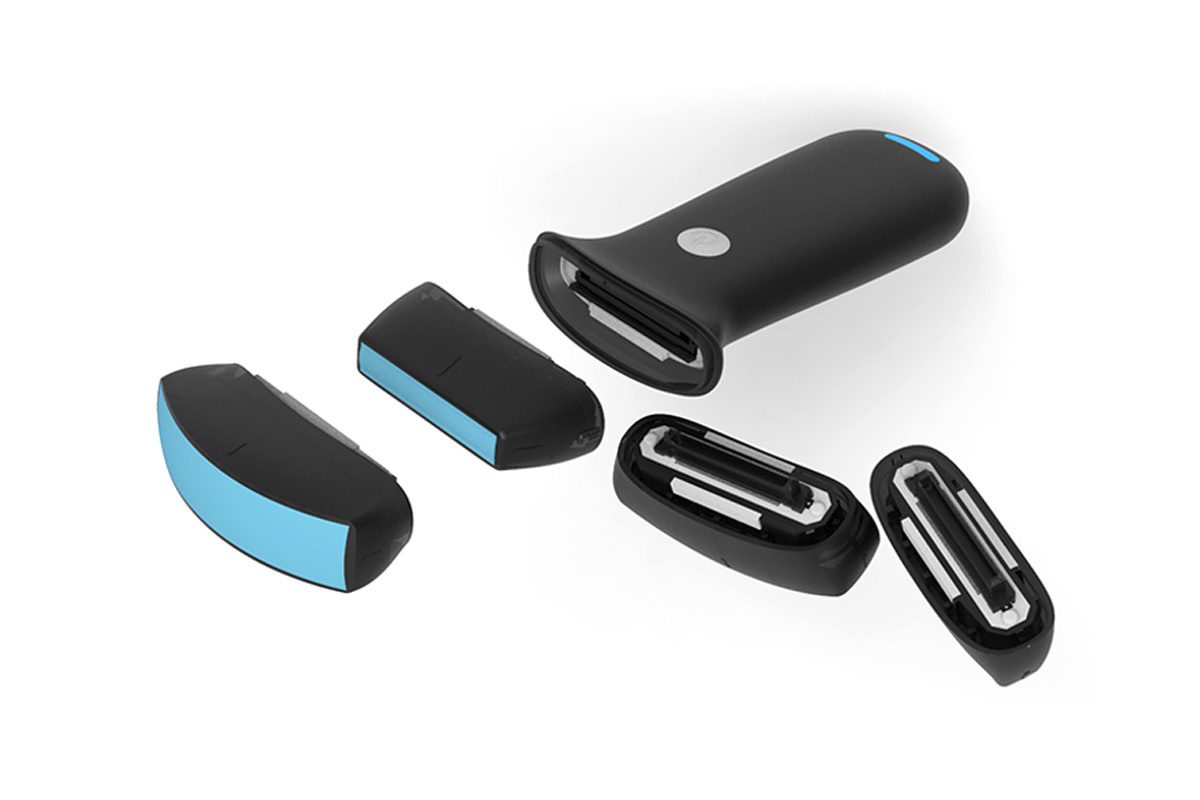

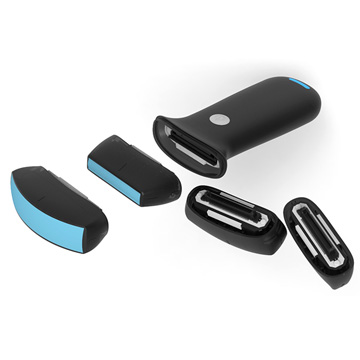

CW-3CL Hand-held Wireless Doppler Ultrasound Scanner
Overview
Technical Parameter
|
Type |
CW-3CL |
|
|
Scanning mode |
Electronic array |
|
|
Detection depth (mm) |
≥140mm |
|
|
Resolution (mm) |
Lateral |
≤1(depth≤60） |
|
|
Axial |
≤1(depth≤80) |
|
Dead zone (mm) |
≤3 |
|
|
Geometric position accuracy (%) |
Horizontal |
≤5 |
|
|
Axial |
≤5 |
|
Working system |
Apple iOS and Android, Windows |
|
|
Element |
80 |
|
|
Channel |
16 |
|
|
Scanning mode |
B, B/M, B+Color, B+PDI, B+PW |
|
|
Probe frequency |
Convex 3.2MHz/4MHz, Linear 7.5MHz/10MHz |
|
|
Depth |
Convex: 90/160/200/240mm Linear: 20/40/60/80mm |
|
|
Image adjust |
BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
|
|
Puncture assist function
|
the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement. |
|
|
Cine-loop |
auto and manual, frames can set as 100/200/500/1000 |
|
|
Measure |
Length, Area, Angle, heart rate, Obstetrics |
|
|
Image save |
jpg, avi and DICOM format |
|
|
Image frame rate |
18 frames/s |
|
|
Battery charge |
by USB charge or wireless charge, take 2 hours |
|
|
Working time |
≥3h |
|
|
Wifi type |
802.11g/20MHz/5G/450Mbps |
|
|
N.W. |
120g |
|
|
Size |
110*60*20mm |
|
