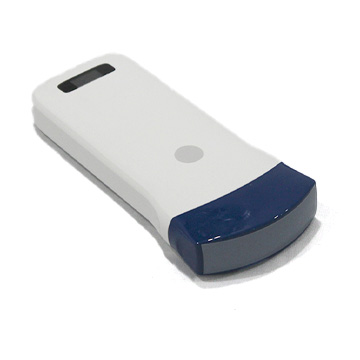

CW-5C 128 Elements Smart WiFi Ultrasound Probe
Overview

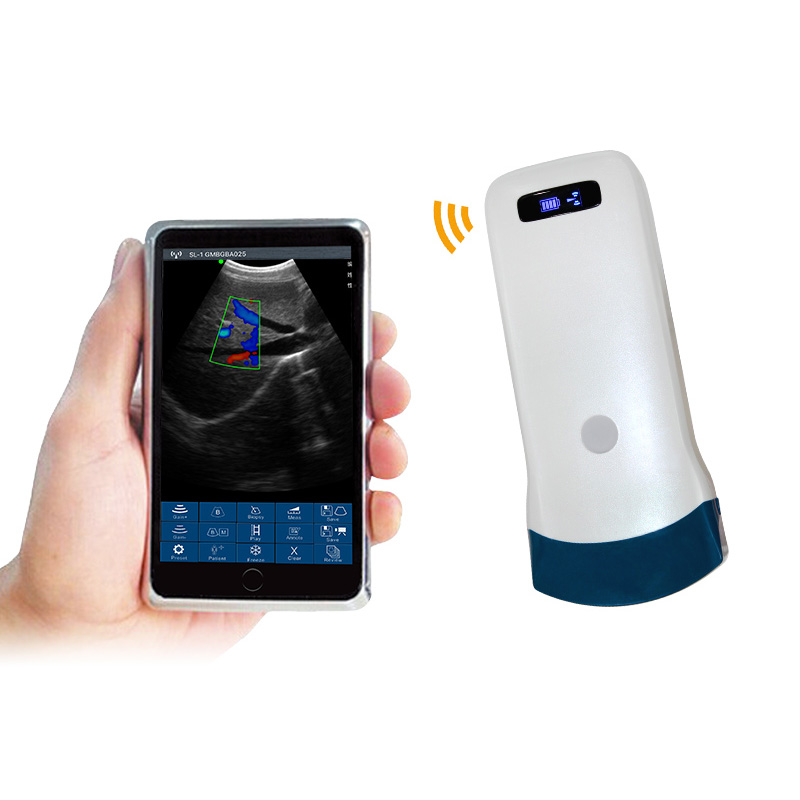

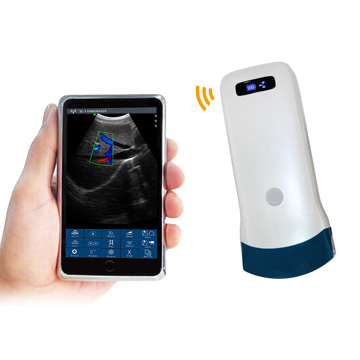

The Wireless Probe is a miniature ultrasound scanner without a screen. We have minimized the components of a conventional ultrasound scanner by integrating them into a small circuit board built into the probe and displaying the image on a smartphone/tablet/computer via WiFi transmission (no internet access required). The image can be displayed on both the screen and the tablet. The image is transmitted via WiFi inside the probe, no external WiFi signal is required.
Product Parameter
|
Type |
CW-5C |
|
|
Scan mode |
Electronic convex array scanning |
|
|
Detection depth (mm) |
≥140mm |
|
|
Resolution (mm) |
Lateral |
≤1(depth≤60） |
|
|
Axial |
≤1(depth≤80) |
|
Dead zone (mm) |
≤3 |
|
|
Geometric position accuracy (%) |
Horizontal |
≤5 |
|
|
Axial |
≤5 |
|
Working system |
iOS, Android, Windows |
|
|
Element |
128 |
|
|
Channel |
8 |
|
|
Scanning mode |
B, BM, Color, PDI, PW |
|
|
Probe frequency |
3.3-5.0MHz convex probe |
|
|
Depth |
90~305mm |
|
|
Image gray scale |
256 |
|
|
Dynamic range |
40/50/60/70/80/90/100/110 |
|
|
Measure |
distance, area, obstetrics and other |
|
|
Gain |
30db-105db |
|
|
Image save |
Store on mobile phones |
|
|
Battery |
4200mAh |
|
|
Working time |
≥3h |
|
|
Wifi type |
802.11g/20MHz/5G/450Mbps |
|
|
N.W. |
250g |
|
|
Size |
156*60*20mm |
|
Product Advantage
The wireless ultrasound probe is very flexible in matching the image display screen to the different screen sizes of cell phones, tablets and computers.
● Waterproof design for easy rinsing and sterilization
● Convenient for remote diagnosis, images can be transmitted from cell phone to doctor for diagnosis.

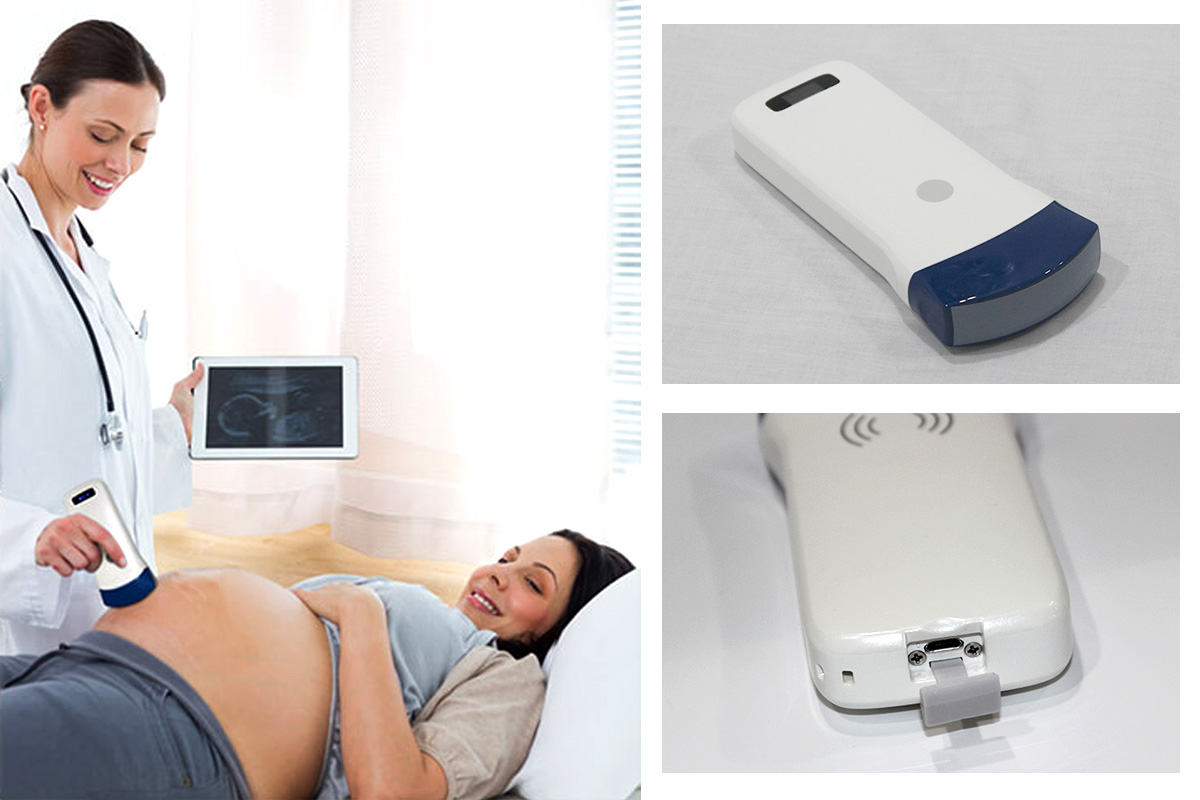

● Suitable for emergency, clinic, outdoor diagnosis, home..
● Intelligent terminal platform with storage, communication, printing and other extended functions.
Application Range
● In emergency clinical, hospital ward inspection, community clinical and outdoor inspect, an easy carried & operated compact ultrasound such as wireless probe is desired.
● In addition, the wireless probe can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
● Also for powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.
