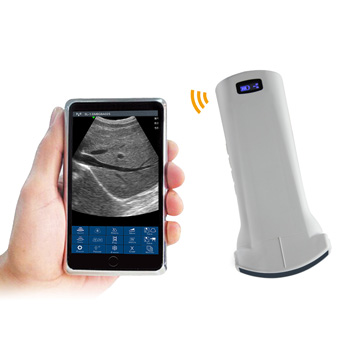

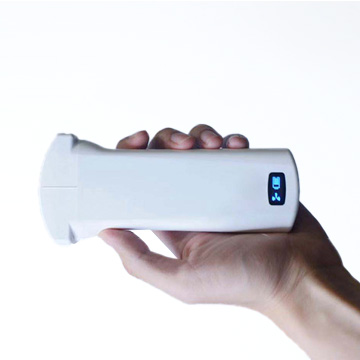

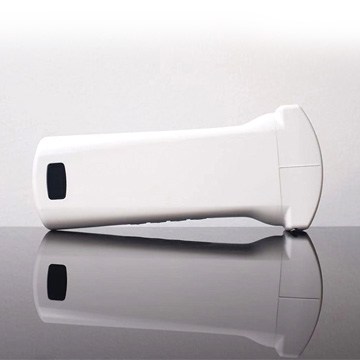

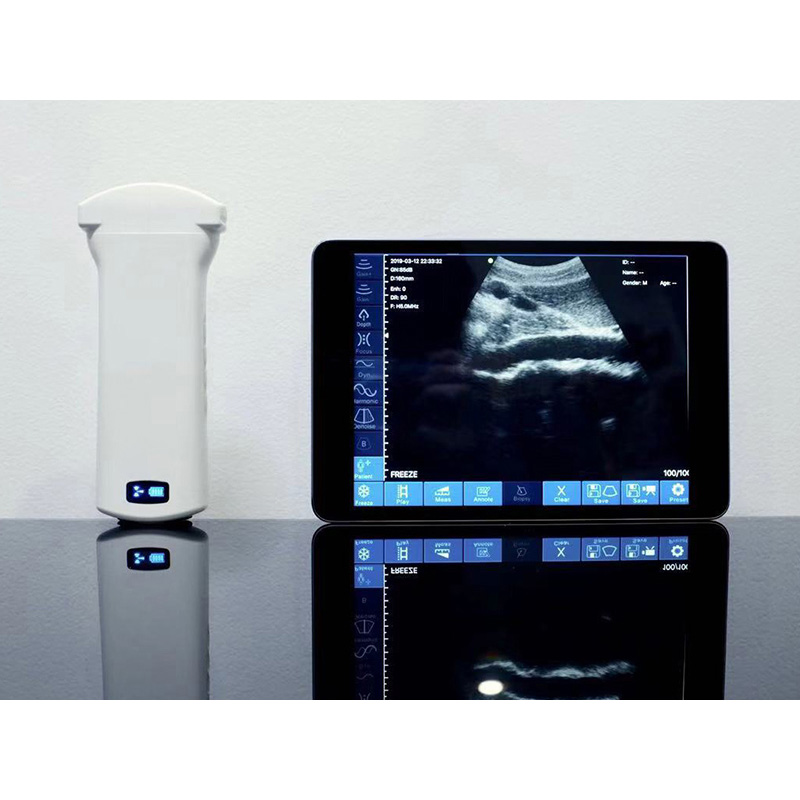

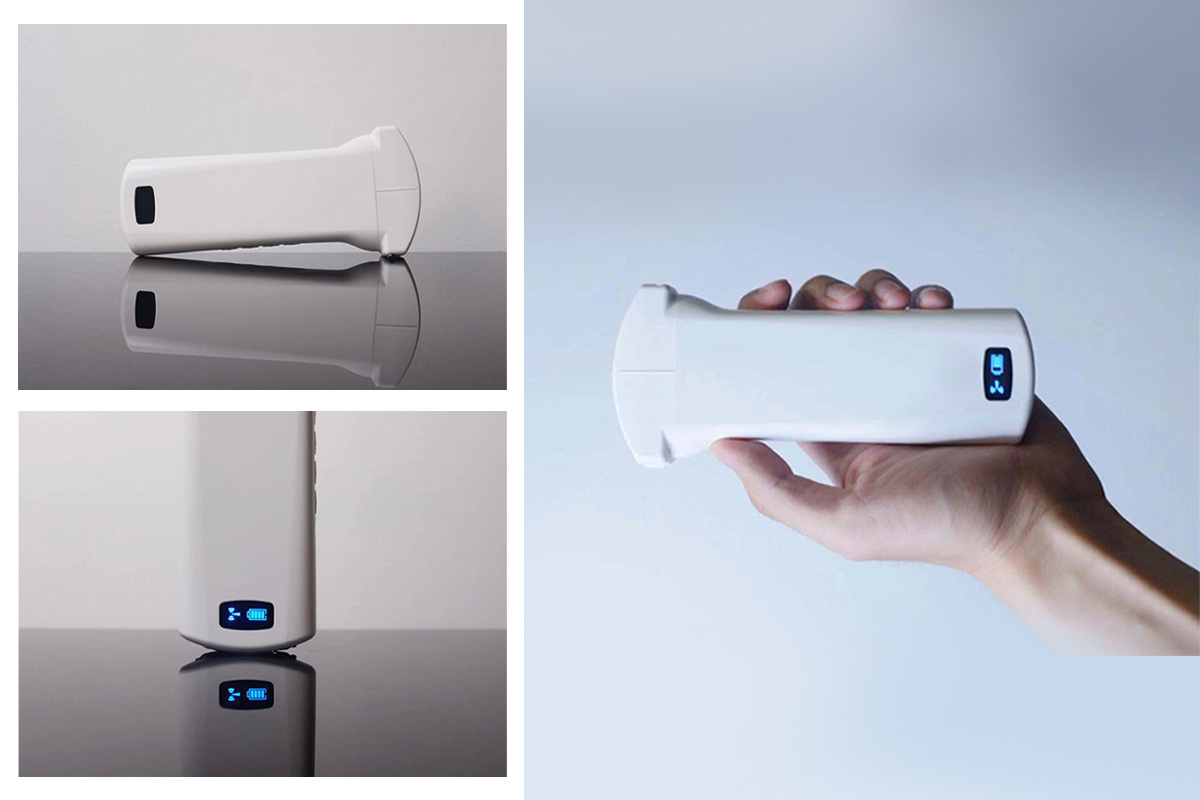

CW-6C Convex Wireless Handheld Ultrasound Probe
Description
● Easy to sanitize with wireless technology, get rid of extra wires and cables. The Handheld Ultrasound Scanner supports fully wireless operation for easy sterilization in a short period of time.
● IPX7 Waterproof, wash and rinse the probe under a faucet.
● Hematology(blood) Monitor, real-time dynamic monitoring of endovascular access post-procedure improvement and blood flow levels in each hemodialysis patient.

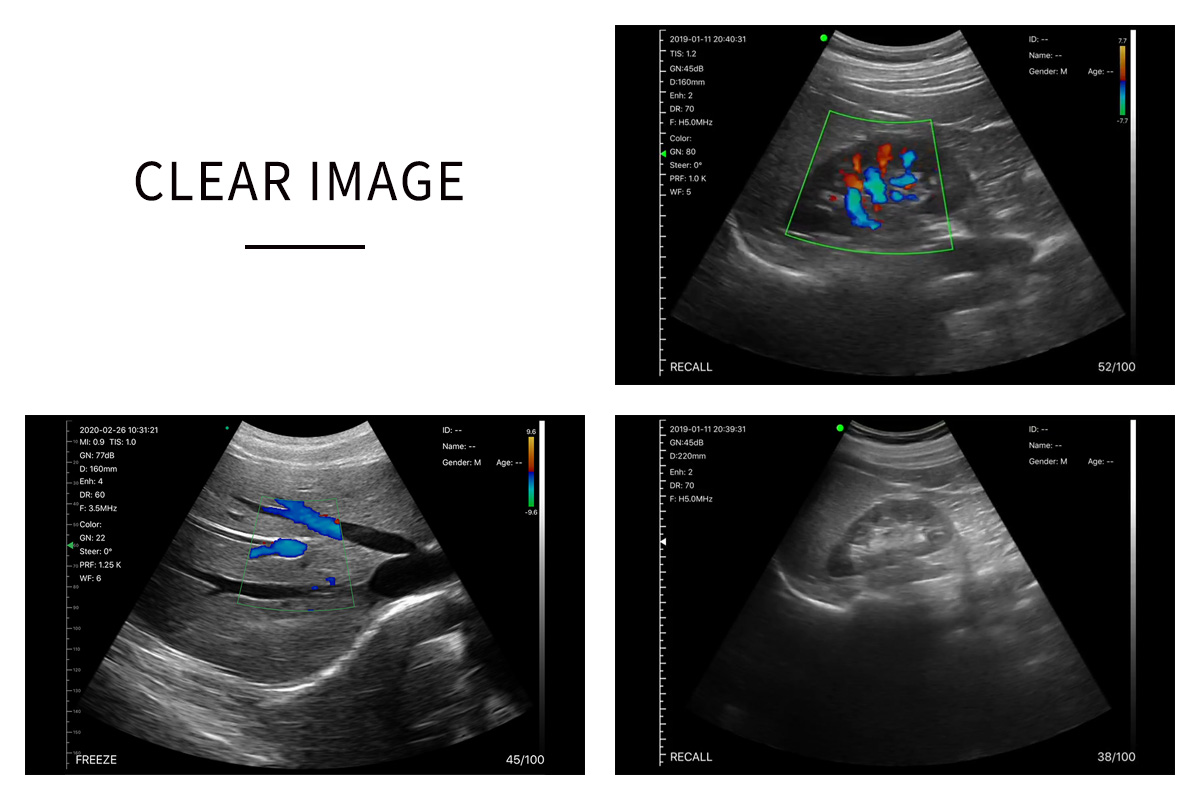

● Palm Ultrasound Probe with high-quality images, with a high speed of 20 frames per second on your hand, you can get your image with maximum clarity for a quick diagnostic imaging and see patient's health issues in HD.
Product Parameter
|
Type |
CW-6C |
|
|
Scan mode |
Electronic convex array scanning |
|
|
Detection depth (mm) |
≥140mm |
|
|
Resolution (mm) |
Lateral |
≤1(depth≤60） |
|
|
Axial |
≤1(depth≤80) |
|
Dead zone (mm) |
≤3 |
|
|
Geometric position accuracy (%) |
Horizontal |
≤5 |
|
|
Axial |
≤5 |
|
Working system |
iOS, Android, Windows |
|
|
Element |
192 |
|
|
Scanning mode |
B, B/M, Color, PDI, PW |
|
|
Probe frequency |
3.2-5.0MHz convex probe |
|
|
Field of view |
Convex R60 |
|
|
Depth |
90~305mm, adjustable |
|
|
Noise reduction |
0-4 |
|
|
Image gray scale |
256 |
|
|
Dynamic range |
40/50/60/70/80/90/100/110 |
|
|
Measure |
distance, area, obstetrics and other |
|
|
Gain |
30db-105db |
|
|
Image storage |
Store on mobile phones |
|
|
Battery |
5600mAh |
|
|
Working time |
≥5h |
|
|
N.W. |
250g |
|
|
Size |
156*60*20mm |
|
Application
Applicable to abdomen, obstetrics, etc.
Mainly used for primary medical & public health service, military health & emergency medicine, ward inspection & critical situation, athletic injuries and field rescue.
