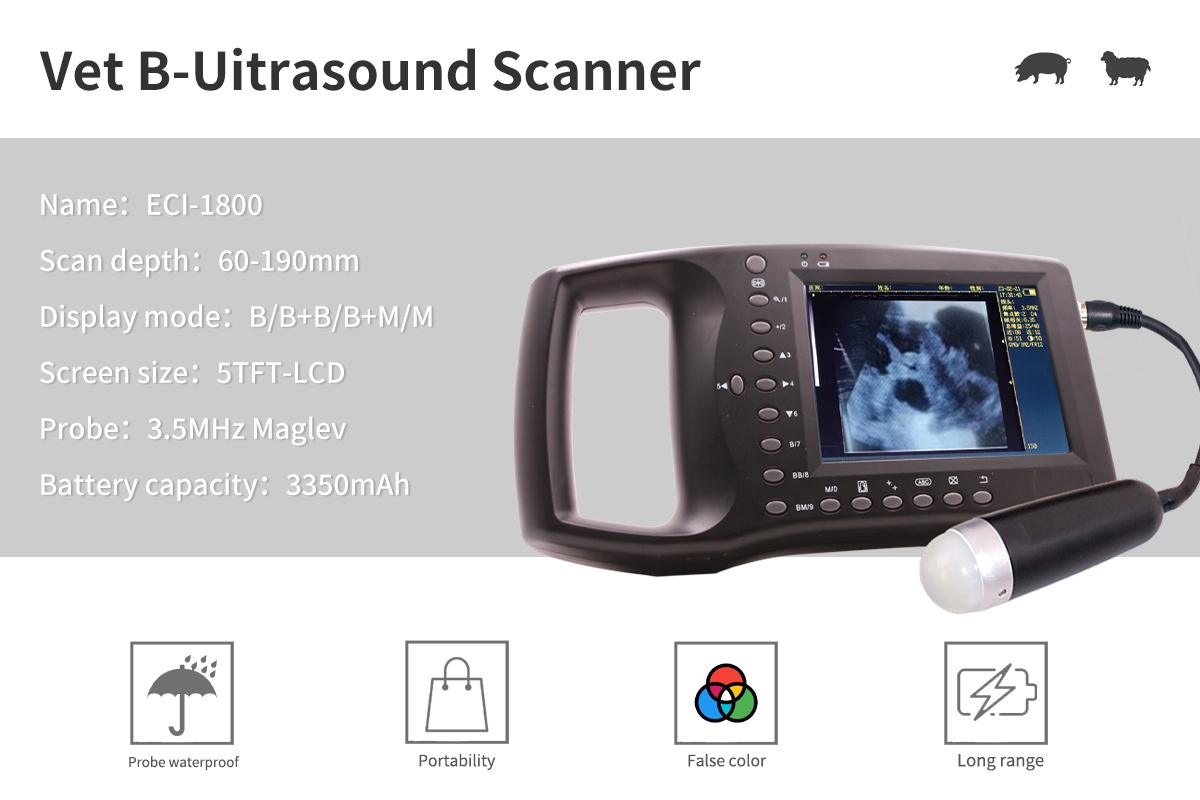

ECI-1800 Portable Veterinary Ultrasound Scanner for Pregnancy Diagnosis
Description

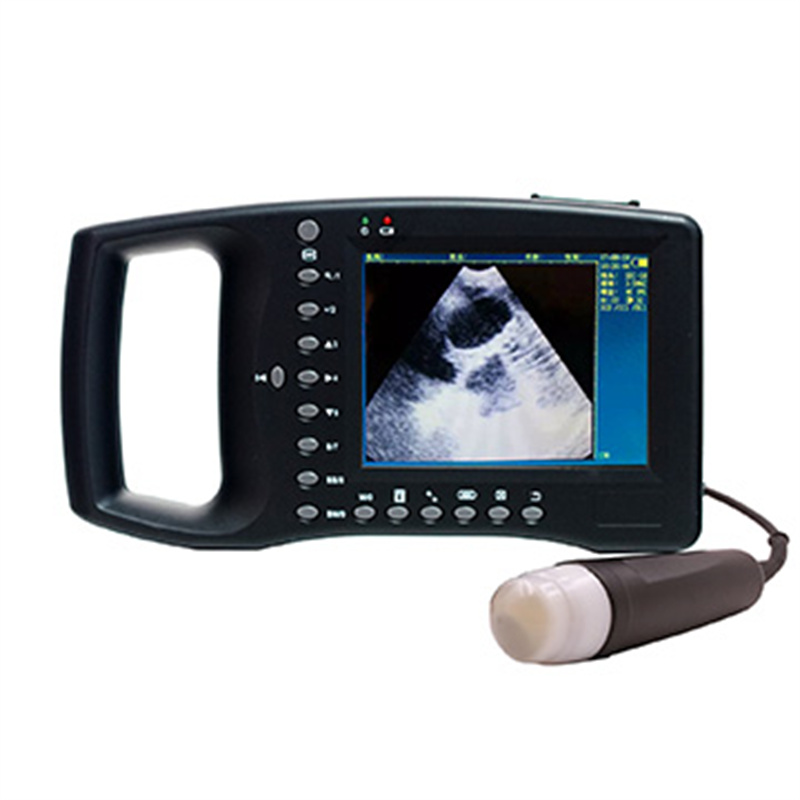

The ECI-1800 Veterinary Ultrasound Diagnostic Instrument is a lightweight, portable device designed for pig and sheep reproduction management. The device utilizes magnetic levitation probe technology for longer life. The 3.5MHz ultrasound penetrates tissues at a depth of 60-190mm, and the 5.6-inch HD screen supports 4 levels of image zoom from 1-2x. The real-time image detects pregnancy status (embryos over 20 days old can be recognized), which helps farmers precisely adjust feed ratios and breeding plans, reduce the rate of empty pregnancies, and improve breeding efficiency and breeding benefits. 3350mAh battery provides more than 6 hours of battery life. The whole machine weighs only 700g, which is easy to use and carry.
Technical Specification
| Type | ECI-1800 | |
| Maximum detection depth (mm) | ≥100 | |
| Resolution(mm) | Lateral | ≤4(depth≤80) ; 5≤(depth≤130) |
| Axial | ≤2(depth≤80) | |
| Dead Zone(mm) | ≤8 | |
| Geometric position accuracy | Horizontal | ≤20 |
| Axial | ≤10 | |
| Probe | 3.5MHz maglev probe | |
| Display | 5.0-inch HD screen | |
| Screen Resolution | 960*640 | |
| Mode | B, M, BB, BM | |
| Depth | 60~190mm | |
| Standby | ≥4 hours | |
| Storage | 128fps | |
| Cine-loop | 400fps | |
| Image Gray Scale | 256 | |
| Measurement | Back-fat thickness | |
| Battery | 3350mAh | |
| Image Magnification | adjustable (1-2x) | |

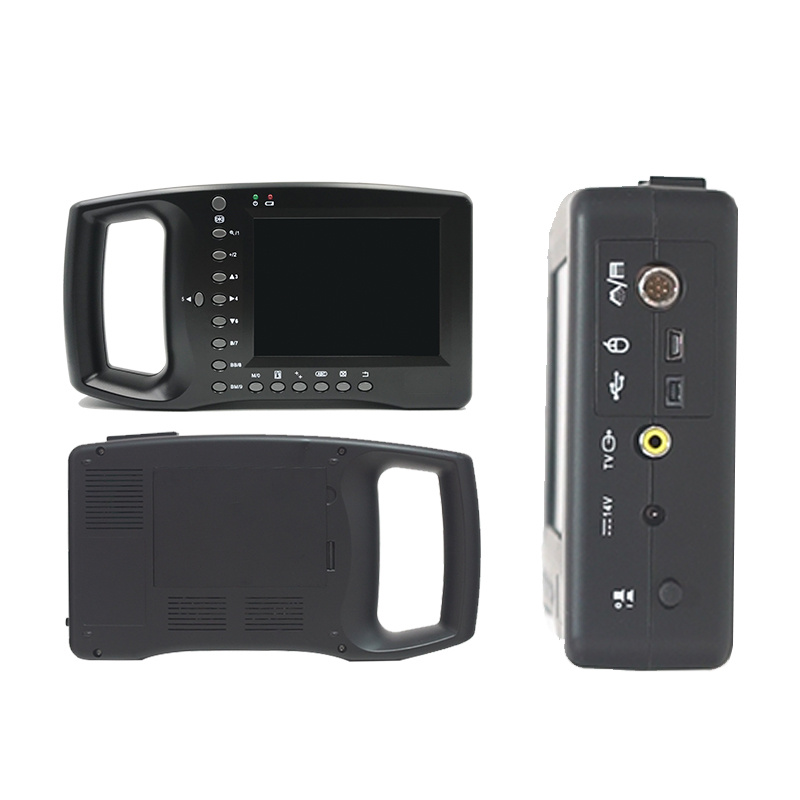

| Size | 230*120*38mm | |
| Weight | 700g | |
Product Advantages
1. It can accurately predict the condition of pregnant animals and shorten ineffective feeding time. It is the best choice for animal breeding bases and veterinary clinics for sheep, pigs.
2. Easy to carry，small size, light weight and handheld. The compact body is perfect for testing on your livestock.
3. It is widely used in farm,home,pet hospital,grassland and so on. Realizing image real-time, freeze, memory, calling up and large capacity cine loop; possessing functions such as multi-level scanning depth, dynamic range, focus number, focus distance, focus position adjusting, etc.

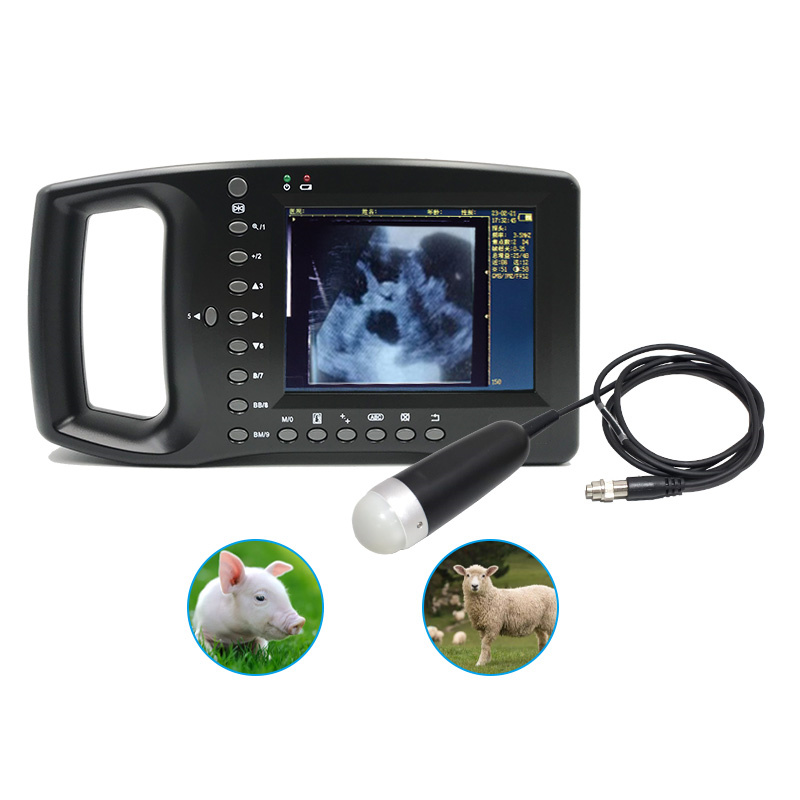

4. It is perfect for pregnancy test on animals like pigs, sheep.
5. The product supports Chinese, English.
Product Packaging

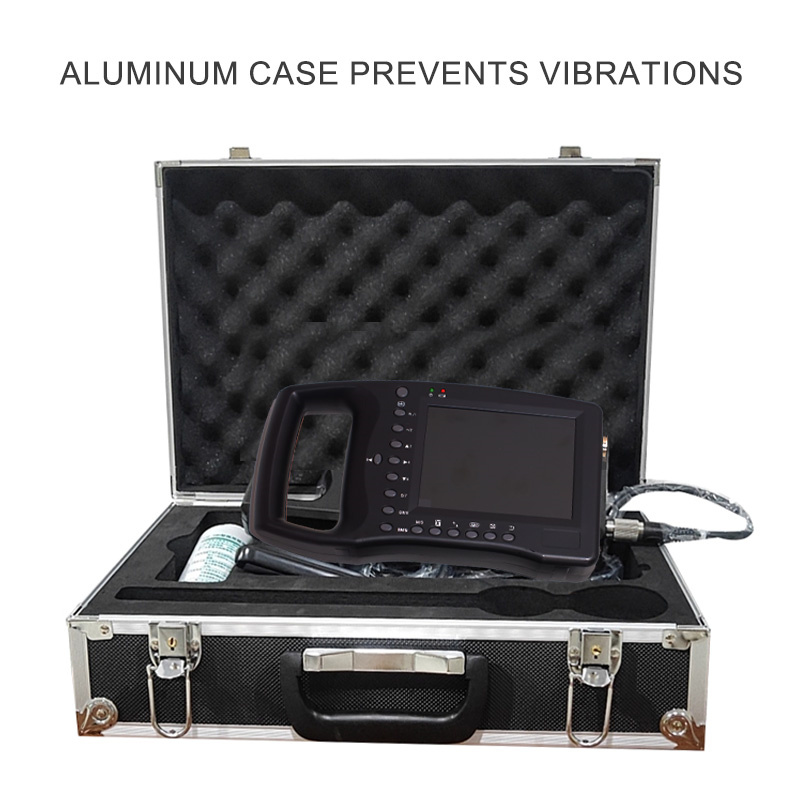

The whole machine and all accessories are packed in an aluminum case. The aluminum case prevents vibrations during transportation.
Package size of one unit: 430*320*160mm
Package weight of one unit: 4.1kg
Packing size of 5 units: 820*440*355mm
Package weight of 5 units: 21kg
Each aluminum box contains a main unit, a magnetic levitation probe, a manual, a charger.
