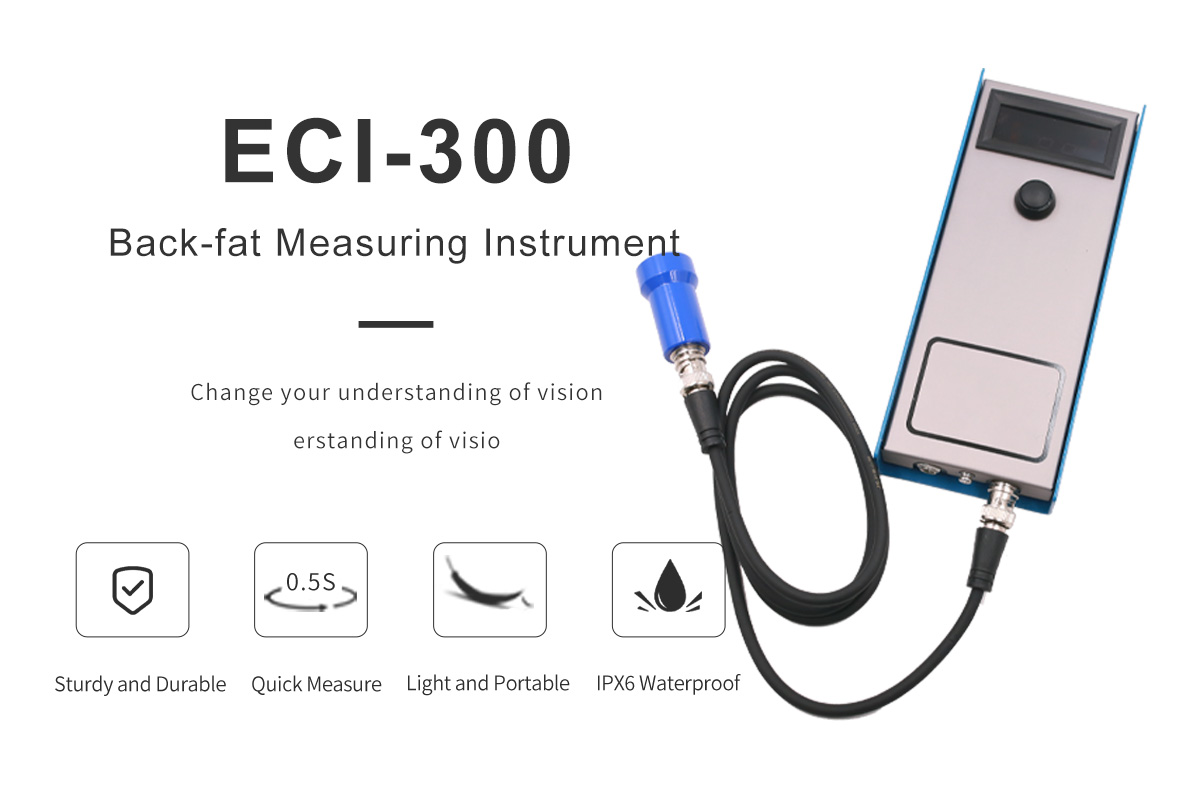

ECI-300 Animal Back-fat Measuring Instrument for Pigs Back-fat Testing

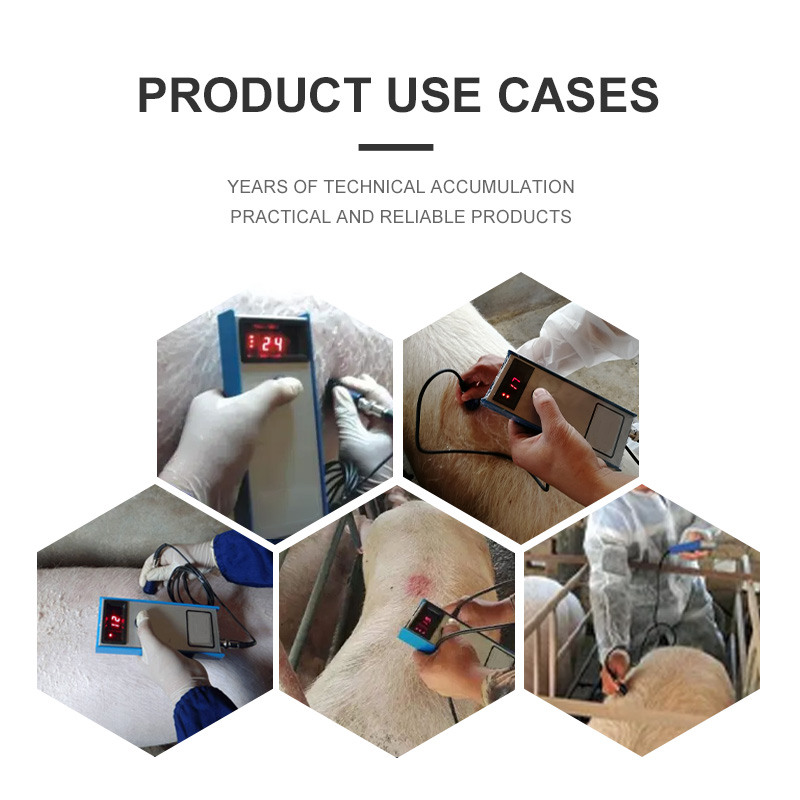

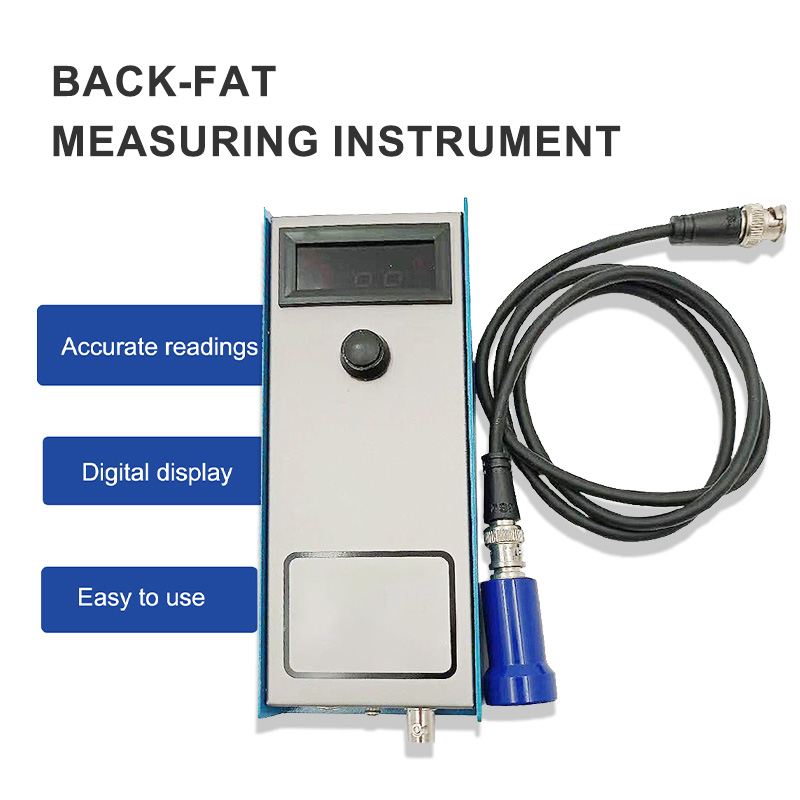

ECI-300 Animal Back-fat Measuring Instrument is a portable device designed for pig farms. The full-metal body with one-button measurement function and 10 hours of ultra-long battery life are suitable for high-intensity work, which helps scientific feeding management. 1mm resolution can identify the subtle fat changes, and regular calibration with the calibration column guarantees the accuracy of the data. Measurement results help farmers to quantitatively assess the degree of animal fattening and thinning, such as back-fat thickness > 18mm suggests the need to adjust the feed energy ratio to avoid excessive fattening. It is primarily used to measure the back fat in swine but can also be used to measure fat in cattle, sheep and other land animals, as well as blubber measurement in aquatic animals. Measurements are non-invasive—no piercing of the skin with the consequent danger of infection. The animals are neither hurt nor irritated.

The most accurate place to measure back-fat is to move your finger over the pig's ribcage to find the last rib, which will determine the front and back position, and 65mm (2.5 inches) on either side of the spine bone, which will determine the left and right positions.

1. The built-in battery of back-fat tester can drive the main unit to work outdoors for 10 hours.

2. Pocket design, easy to carry.

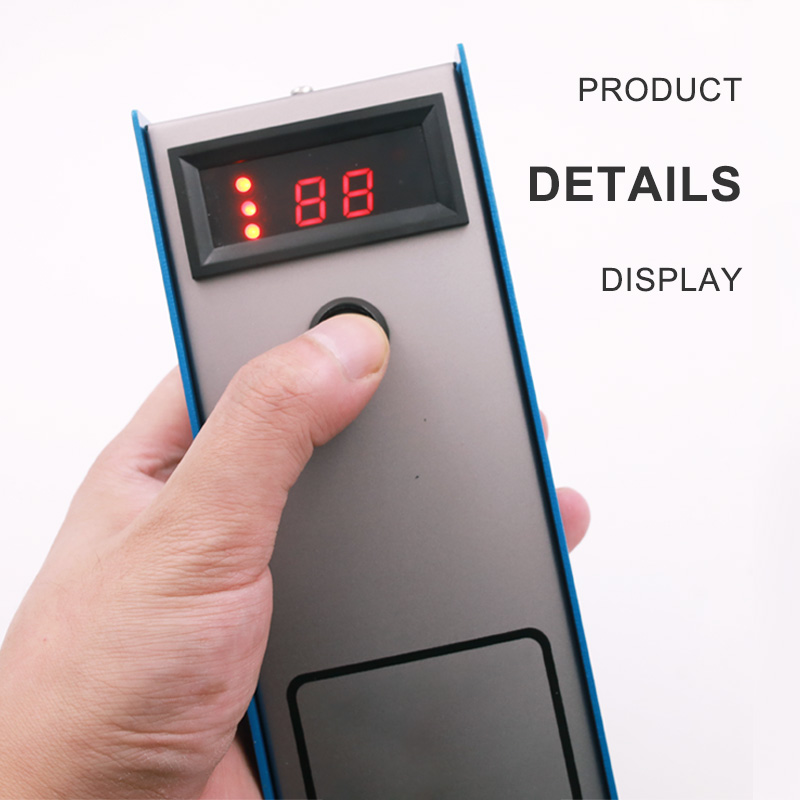

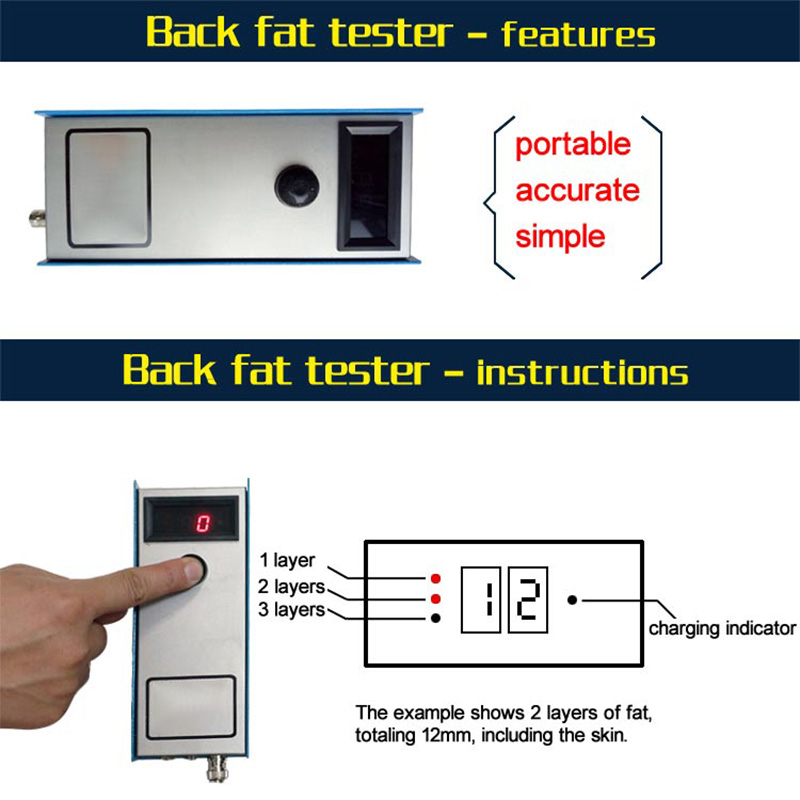

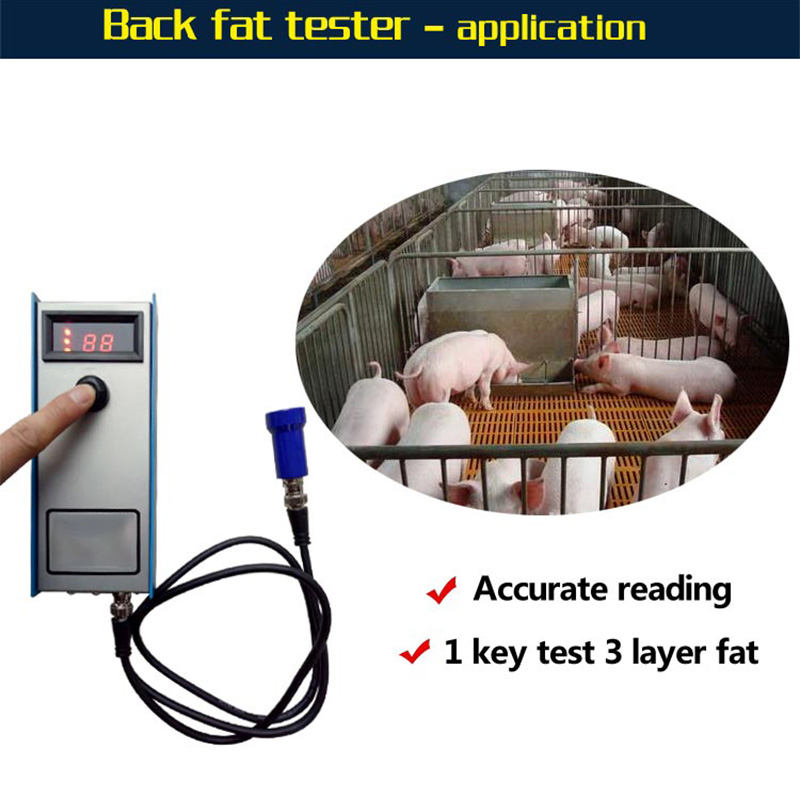

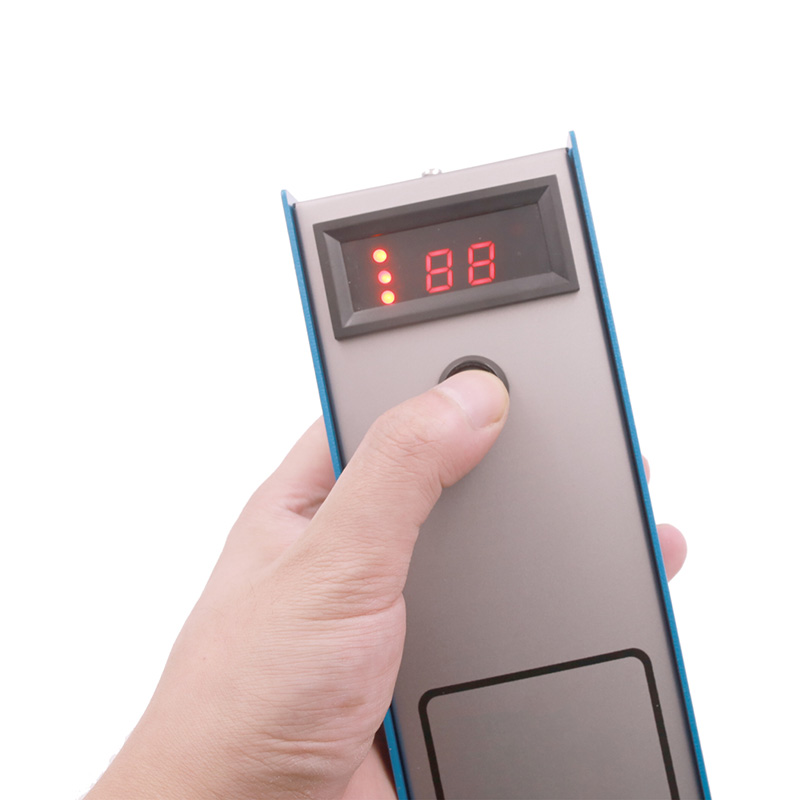

3. Simple operation, accurate and fast, one key to measure the thickness of 3 levels of back fat, only 1 second.

4. Measuring range 5-60mm, error 1mm.

5. The host is waterproof and washable.

6. Battery environmental protection. 2 minutes without measurement, the instrument automatically power off, which can ensure that even if the instrument is placed on the table, the button is pressed, will not continue to discharge.

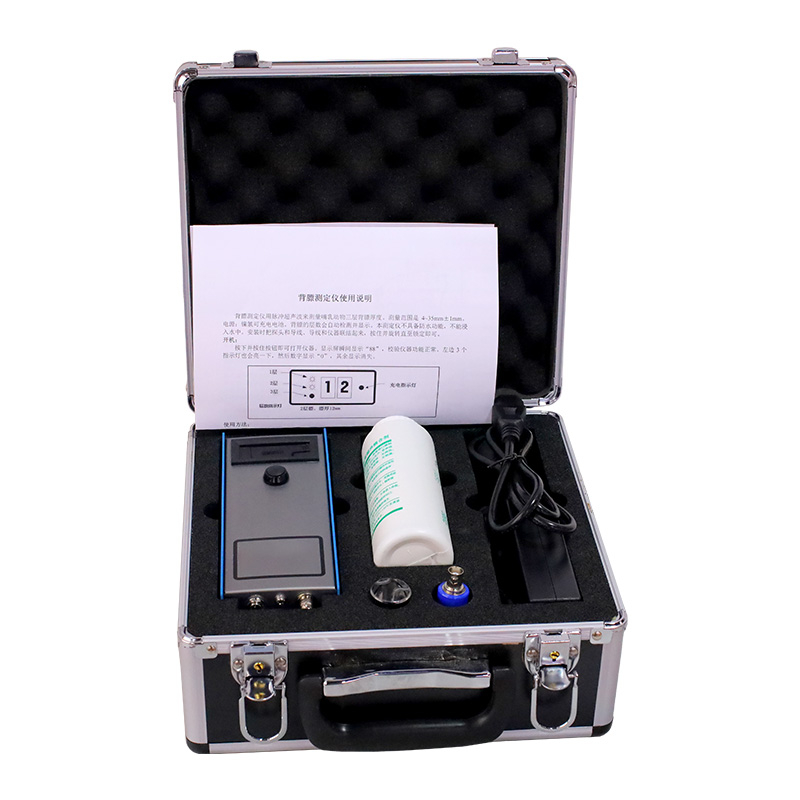

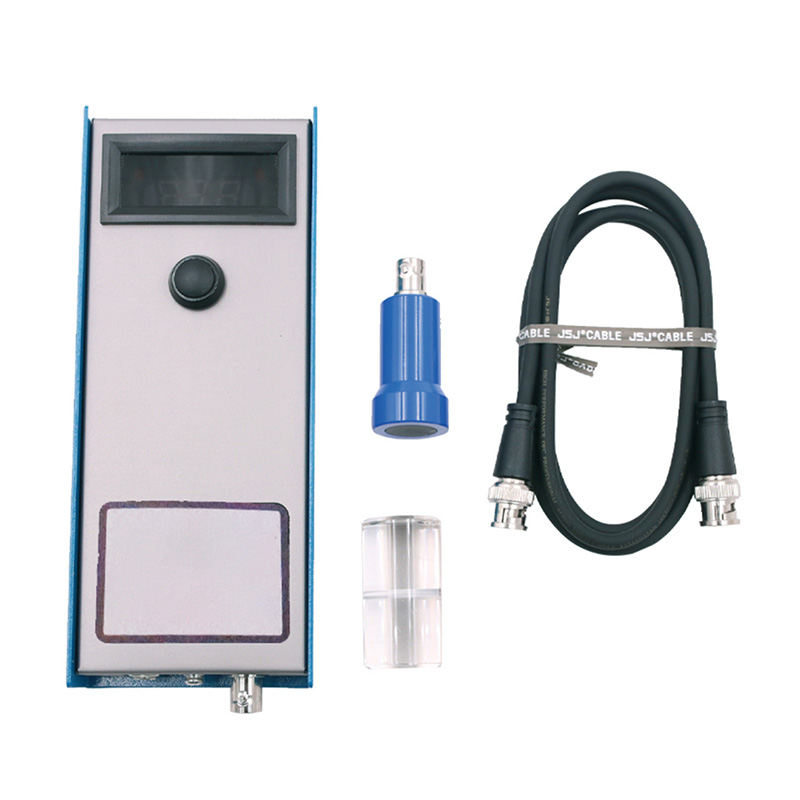

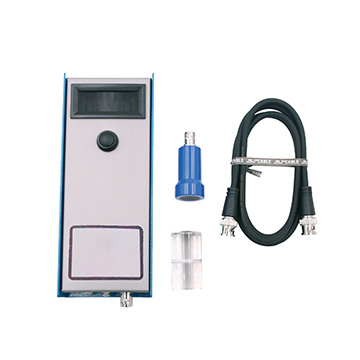

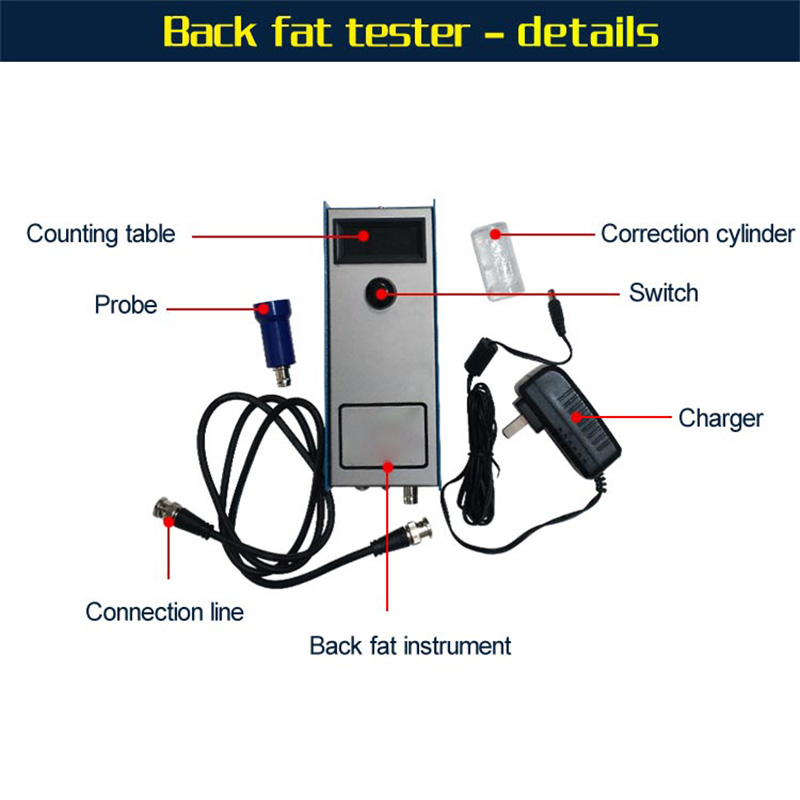

The product is packaged in a shockproof aluminum case. The box contains a set of back-fat tester, calibration column and charger.

Dimension: 280*150*300mm

Gross weight: 2.6kg
