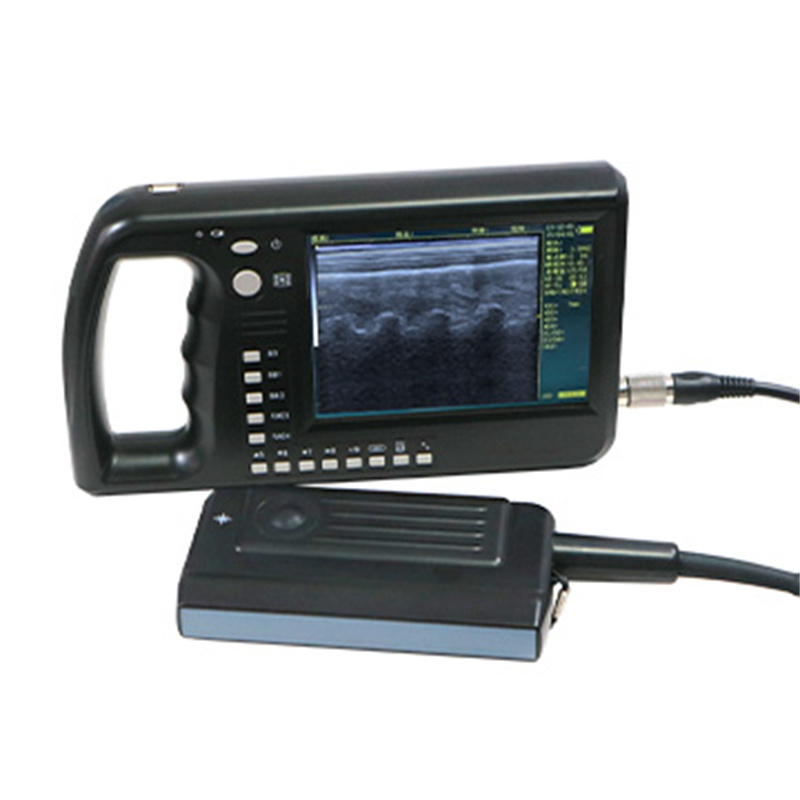

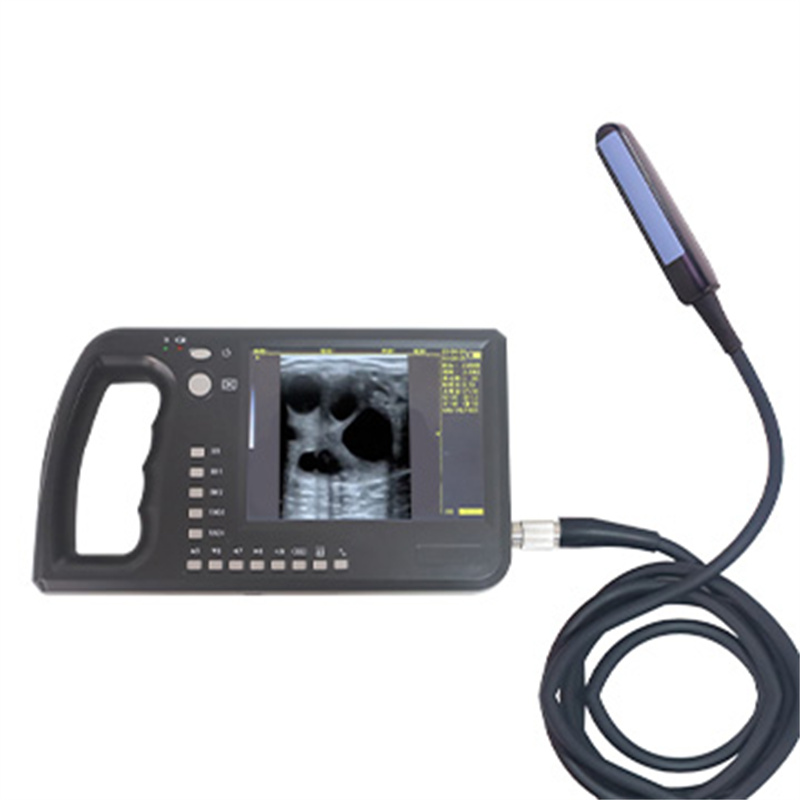

ECI-3000A Eye Muscle Area Ultrasound Imaging Machine
About ECI-3000A Veterinary ultrasound imaging machine

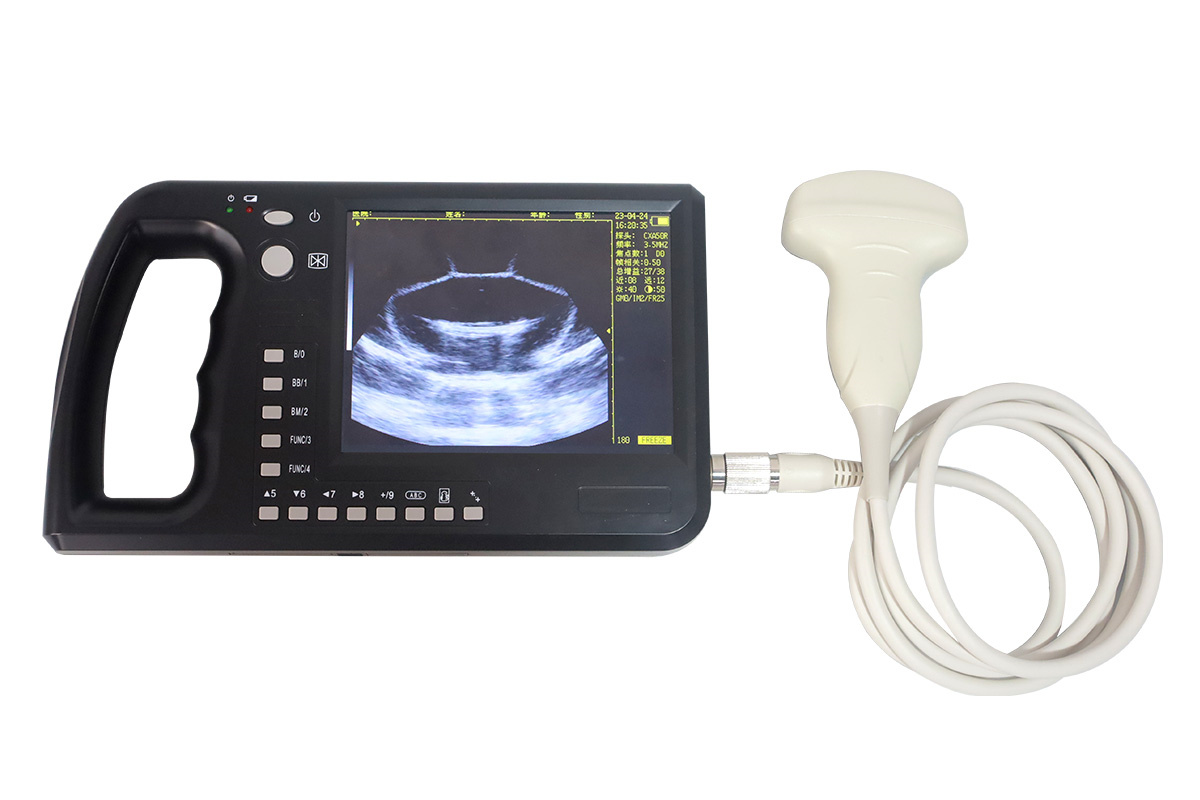

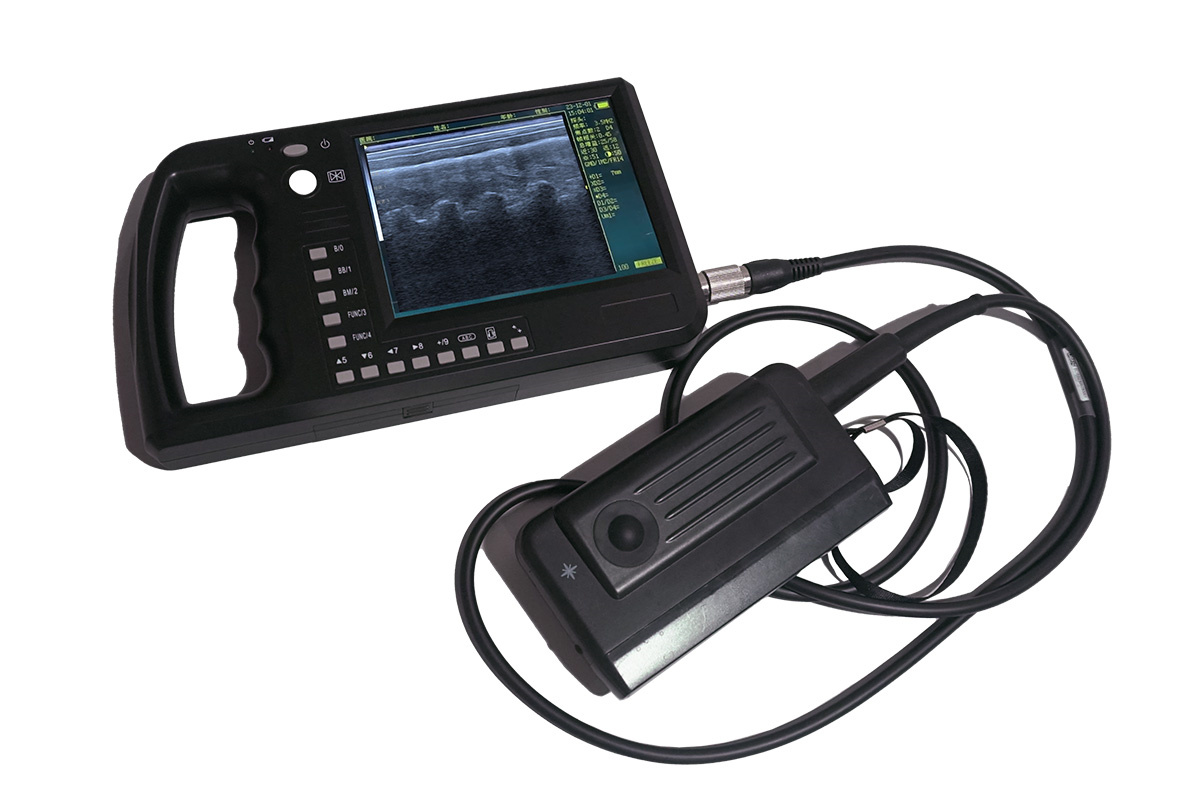

The ECI-3000A ultrasound imaging machine utilizes high-definition digital imaging technology and is specifically designed to support data analysis in livestock farming. In addition to traditional pregnancy detection probes, The ECI-3000A ultrasound imaging machine is equipped with specialized back-fat measurement probes and eye muscle area measurement probes. Convex probe is suitable for pregnancy detection in pigs and sheep. Rectal probe is used for pregnancy detection in cattle and horses. Micro-convex probe is suitable for pregnancy detection in cats, dogs, and other pets. The back-fat probe is primarily used to measure and calculate the back-fat thickness and eye muscle area of cattle. By switching between different probes, the device can monitor the reproductive processes of various economic animals.
Using video
ECI-3000A Parameter
| Type | ECI-3000A | ||
| Display | 7.0-inch HD screen | ||
| Element | 80 | ||
| Channel | 8 | ||
| Screen Resolution | 960*640 | ||
| Mode | B, M, BB, BM | ||
| Standby | ≥3.5 hours | ||
| Storage | 64fps | ||
| Cine-loop | 400fps | ||
| Image Gray Scale | 256 | ||
| Measurement | Back-fat thickness, Loin-eye muscle | ||
| Battery | 3350mAh | ||
| Pseudo-color | 16 kinds | ||
| Size | 270*155*45mm | ||
| Weight | 800g | ||
| Optional Veterinary Ultrasound Machine Probe | |||
| 7.5MHz Linear probe | 6.5MHz Rectal probe | 3.5MHz Convex probe | |
| L: 40mm Pitch: 0.5mm Element: 80 Frequency: 6.5-10.0MHz Depth: 60-240mm | L: 64mm Pitch: 0.8mm Element: 80 Frequency: 4.0-8.0MHz Depth: 60-240mm | R: 60mm Element: 80 Frequency: 2.0-5.0MHz Depth: 60-240mm | |
| 5.0MHz Micro-convex probe | 3.5MHz Loin-eye muscle probe | 6.5MHz Intracavitary probe (sheep) | |
| R: 20mm Element: 80 Frequency: 3.0-8.0MHz Depth: 60-240mm | L: 180mm Pitch: 2.3mm Element: 80 Frequency: 2.0-5.0MHz Depth: 60-240mm | L: 64mm Pitch: 0.8mm Element: 80 Frequency: 4.0-8.0MHz Depth: 60-240mm | |
Why choose the veterinary ultrasound machine?
1. A specialized probe designed specifically for measuring back fat and loin-eye muscle area. The probe is designed to conform to the shape of the animal's back, allowing it to make close contact with the animal's skin.
2. Different types of probes can be connected to meet different animal detection needs.
3. The eye muscle probe cover is made of highly penetrative material, which fits better on the animal's back without affecting the quality of the ultrasound image.

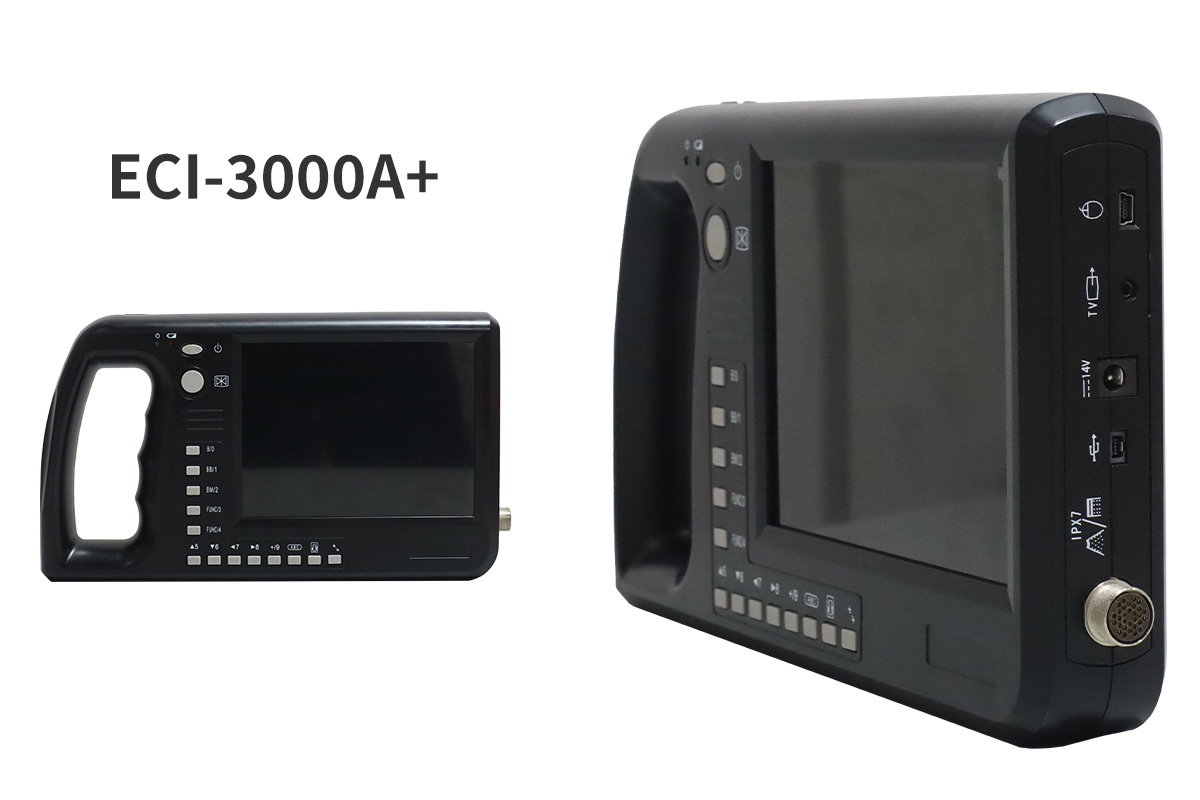

Related veterinary ultrasound Machines
