ECI-3000D Ultrasound Machine for Loin-eye Muscle Testing
Description
The ECI-3000D veterinary ultrasound device utilises high-definition digital imaging technology, specifically designed to provide data support for livestock farming processes. In addition to the traditional pregnancy detection probe, it is equipped with a dedicated probe for measuring back-fat and eye muscle area. The convex array probe is suitable for pregnancy detection in pigs and sheep. The rectal probe is used for pregnancy testing in cattle and horses. The micro-con vex probe is suitable for detecting pregnancy in cats, dogs, and other pets. The back-fat probe is primarily used for measuring and calculating back-fat and eye muscle area in cattle. By switching between different probes, the device can monitor the breeding processes of various economic animals.
Product Parameter
| Type | ECI-3000D | ||
| Display | 5.0-inch HD screen | ||
| Element | 80 | ||
| Channel | 8 | ||
| Screen Resolution | 960*640 | ||
| Mode | B, M, BB, BM | ||
| Standby | ≥4 hours | ||
| Storage | 64fps | ||
| Cine-loop | 400fps | ||
| Image Gray Scale | 256 | ||
| Measurement | Back-fat thickness | ||
| Battery | 3350mAh | ||
| Pseudo-color | 16 kinds | ||
| Size | 230*120*38mm | ||
| Weight | 700g | ||

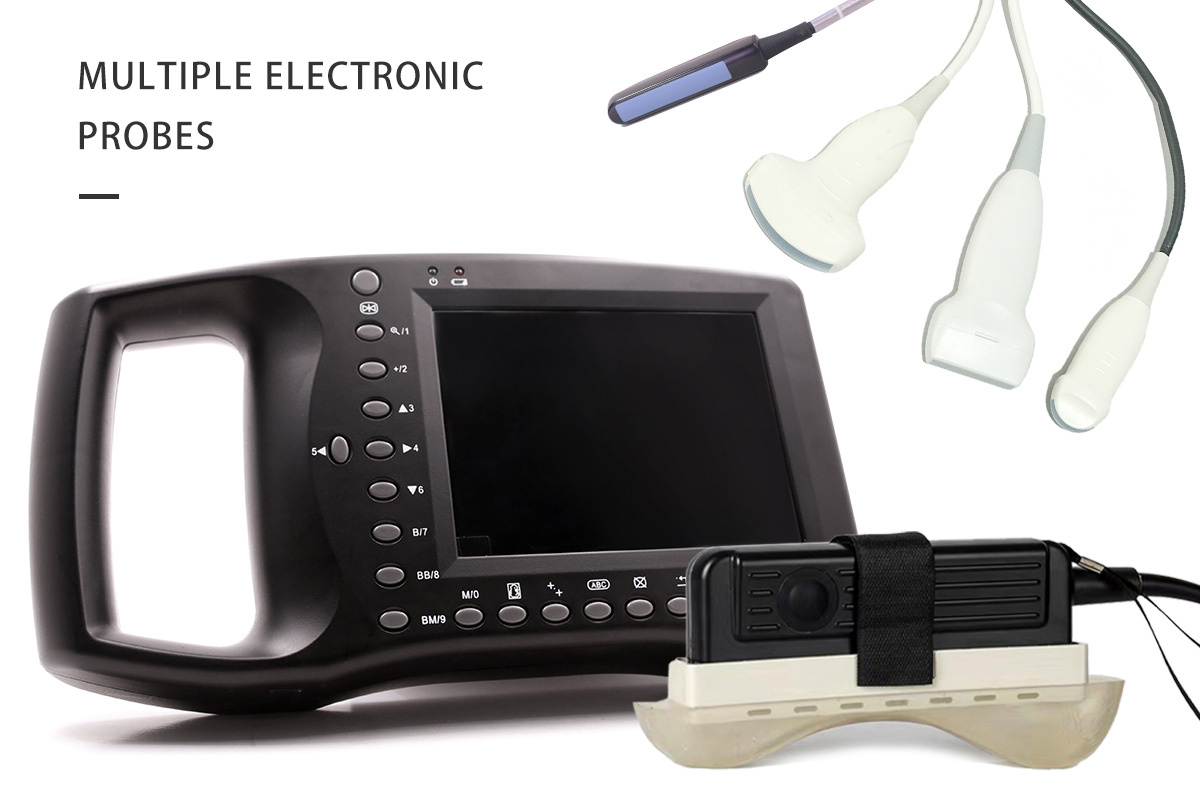

| Optional Probe | |||
| 7.5MHz Linear probe | 6.5MHz Rectal probe | 3.5MHz Convex probe | |
| L: 40mm Pitch: 0.5mm Element: 80 Frequency: 6.5-10.0MHz Depth: 60-240mm | L: 64mm Pitch: 0.8mm Element: 80 Frequency: 4.0-8.0MHz Depth: 60-240mm | R: 60mm Element: 80 Frequency: 2.0-5.0MHz Depth: 60-240mm | |
| 5.0MHz Micro-convex probe | 3.5MHz Loin-eye muscle probe | ||
| R: 20mm Element: 80 Frequency: 3.0-8.0MHz Depth: 60-240mm | L: 180mm Pitch: 2.3mm Element: 80 Frequency: 2.0-5.0MHz Depth: 60-240mm | ||
Why use it?

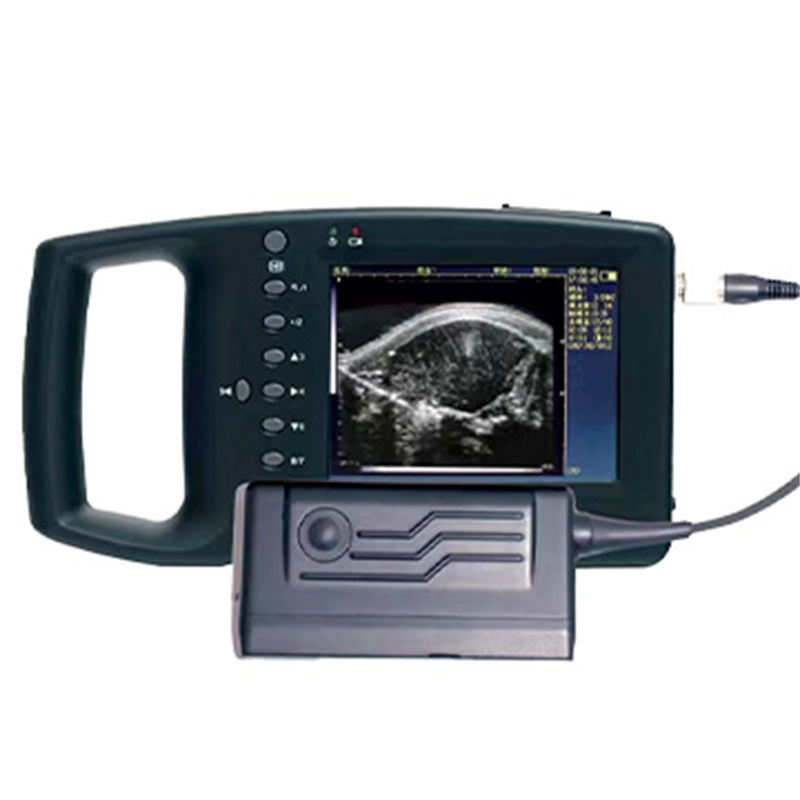

1. Special probe for measuring back-fat and eye muscle area. The probe is designed to fit the shape of the animal's back and can be placed in close contact with the skin.
2. Different probes can be connected to suit different animal detection needs.
3. The eye muscle probe cover is made of highly penetrative material, which fits better on the animal's back without affecting the ultrasound image.
4. By measuring the data on back-fat and eye muscle area, it is possible to better monitor whether animals meet the standards during growth and feed them scientifically.
