ECI-300S Veterinaey Ultrasound for Back-fat Measurement
about ECI-300S

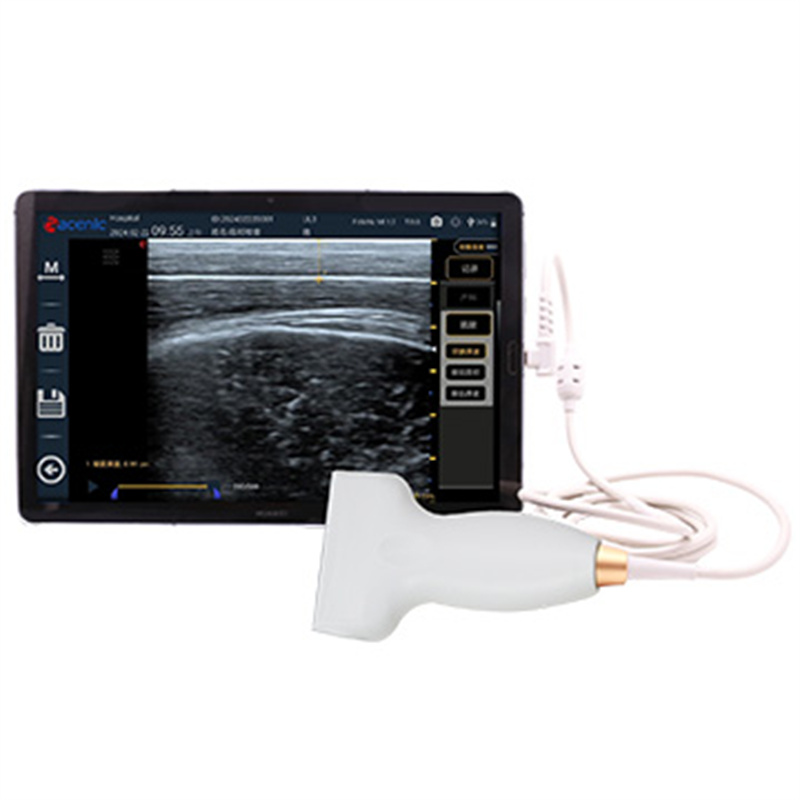

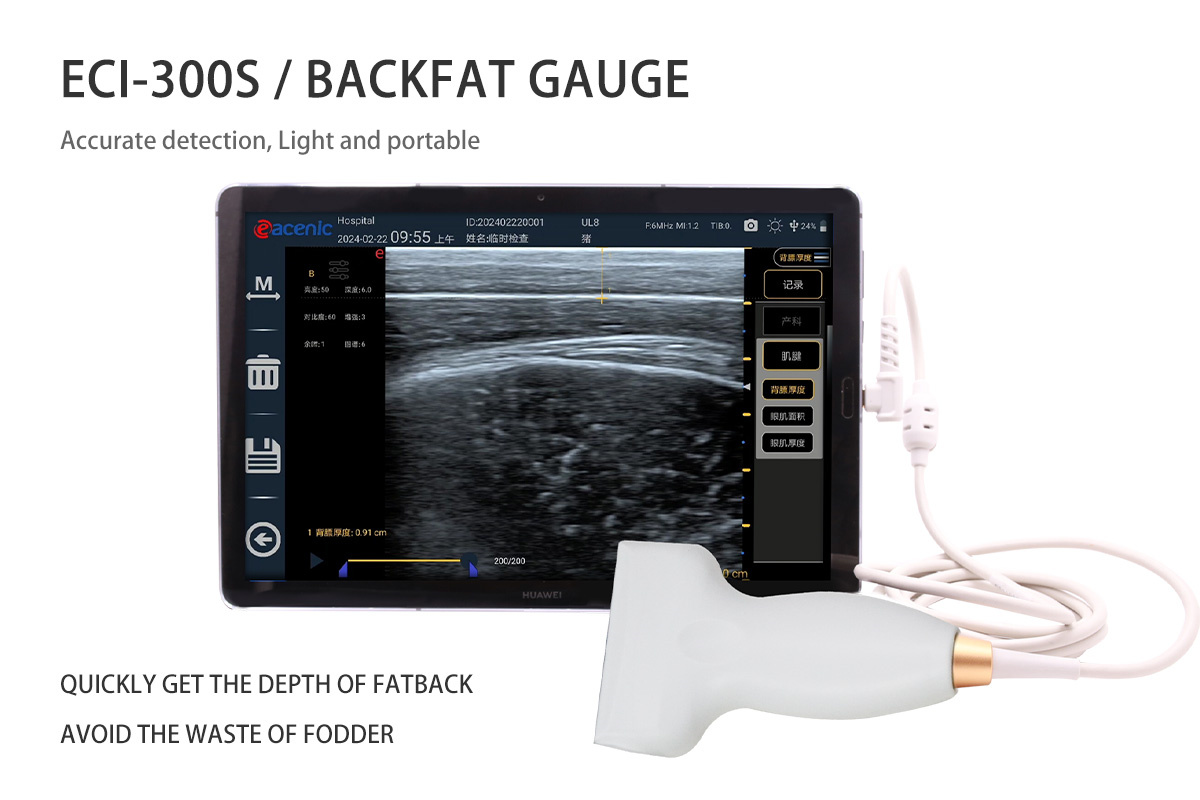

The handheld veterinary ultrasound linear probe and application software form a complete veterinary ultrasound for back-fat measurement. ECI-300S back-fat veterinary ultrasound employs advanced beam forming and image processing technologies. Its software supports multi-mode imaging, measurement, image storage, and management functions. Animal records can be stored and retrieved within the software system. Veterinary ultrasound imaging enables visual monitoring of animal backfat. Stored data facilitates better management of animal growth processes, achieving cost savings and efficiency improvements.
video of Backfat Measurement with Veterinary Ultrasound
Parameter of ECI-300S
| Type | ECI-300S |
| Probe | 7.5MHz veterinary ultrasound linear probe |
| Depth | 0~120mm |
| App | Android |
| Storage | Based on the memory of the connected device |
| Resolution | 0.1mm |
| Measurement | Back-fat thickness |
| Number of layers | 3 |
| Size | 3660*70*24mm |
| Weight | 250g |
Advantages of ECI-300S
1. The veterinary ultrasound linear probe can measure three layers of back fat. Through the App, you can clearly see the back fat and use the measurement tool to determine its thickness.

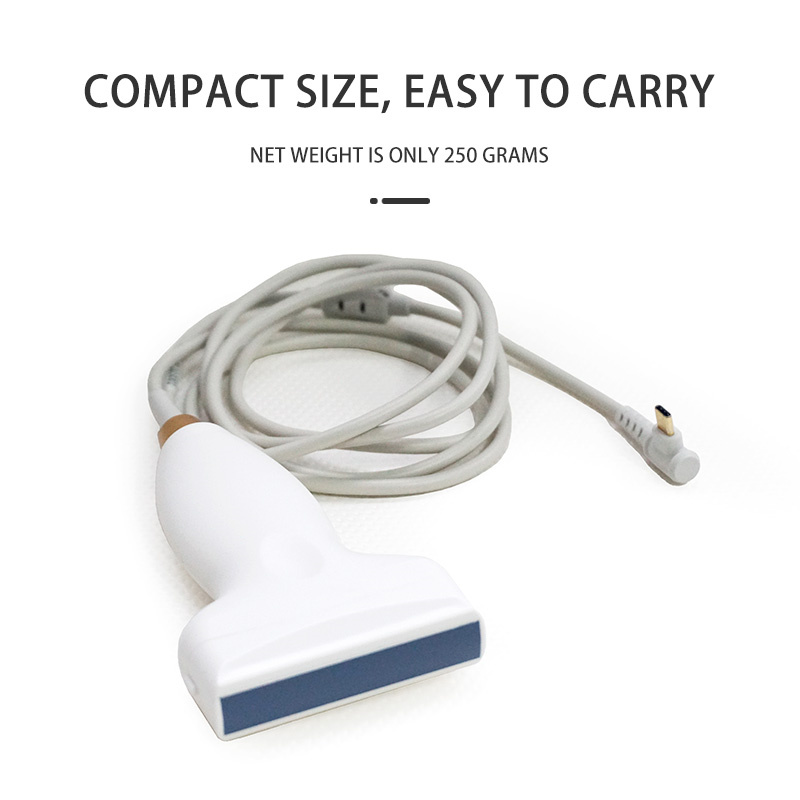

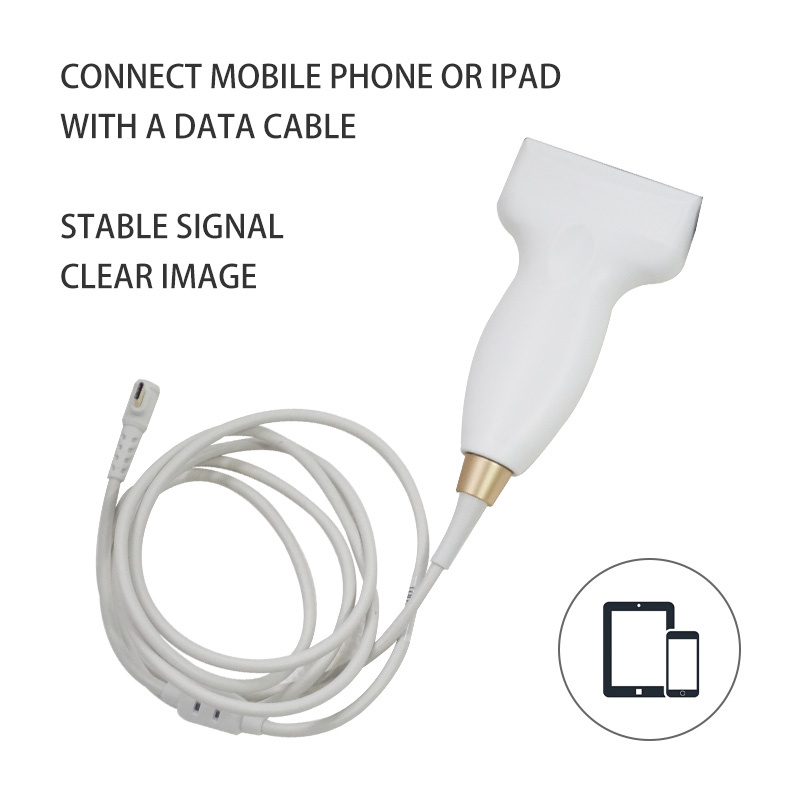

2. The entire veterinary ultrasound device consists of a single 250-gram probe, which connects to a smartphone or tablet via a data cable. As long as the smartphone or tablet has sufficient battery power, ECI-300S can be used without the need for additional charging. This makes it convenient for carrying outdoors and prolonged use.
3. The high-frequency veterinary ultrasound linear probe provides clearer ultrasound scan images with a shallower depth, making it ideal for scanning back fat.

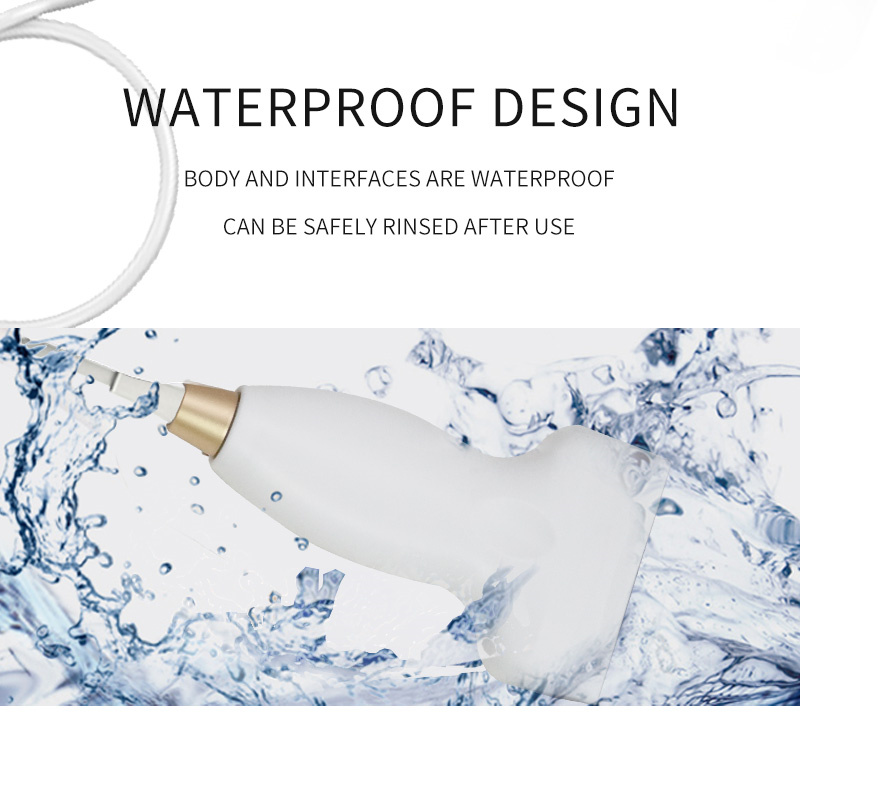

4. This veterinary ultrasound linear probe is IPX6 waterproof, facilitating easy cleaning after use.
5. Suitable for measuring back-fat on various animals
Packaging of eCI-300S
The packaging box includes a veterinary ultrasound linear probe, a paper manual, and a USB flash drive containing the App.
