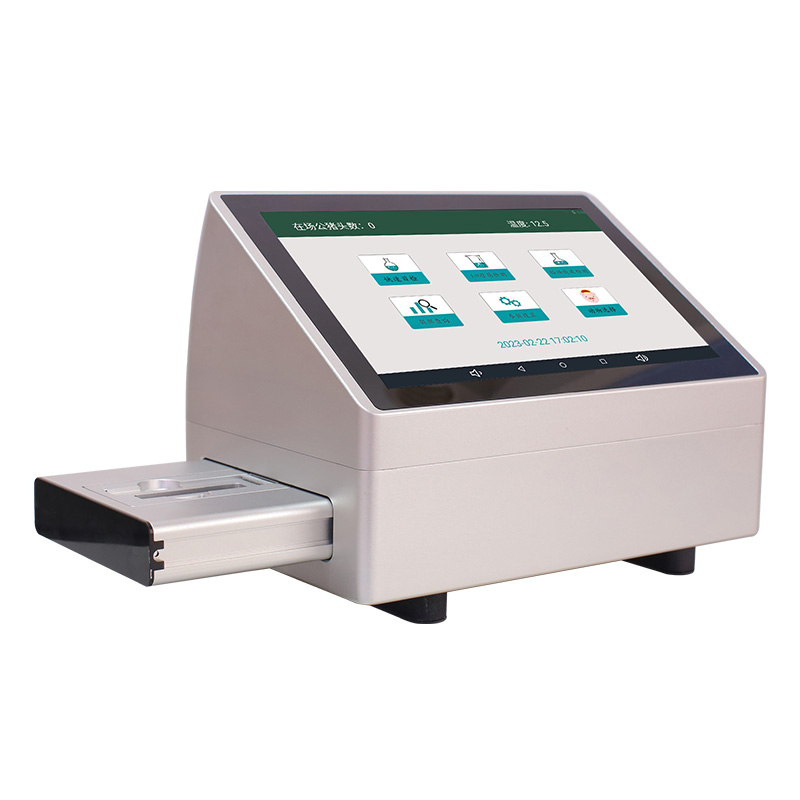

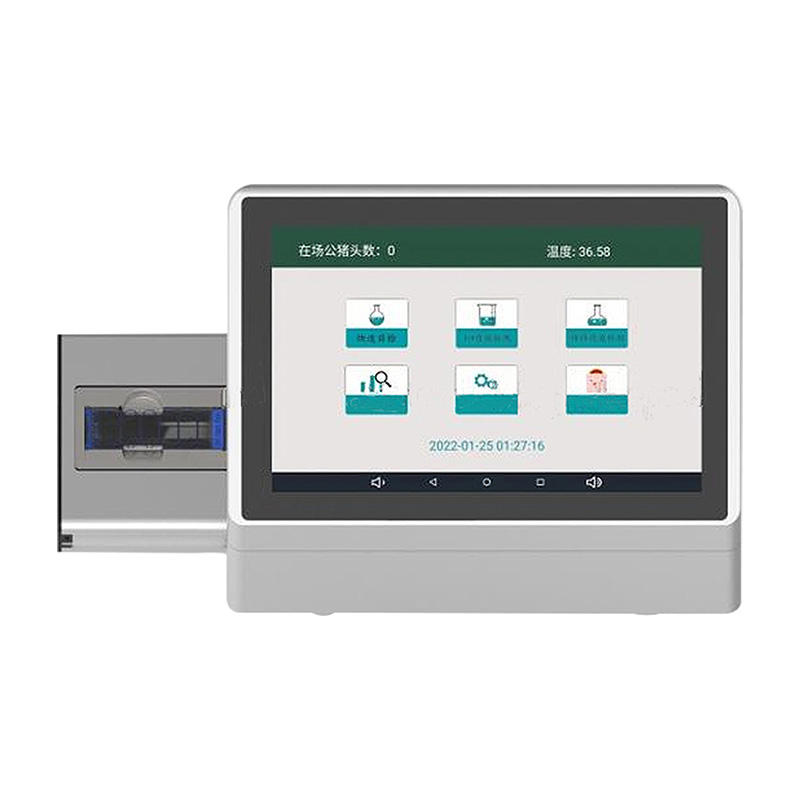

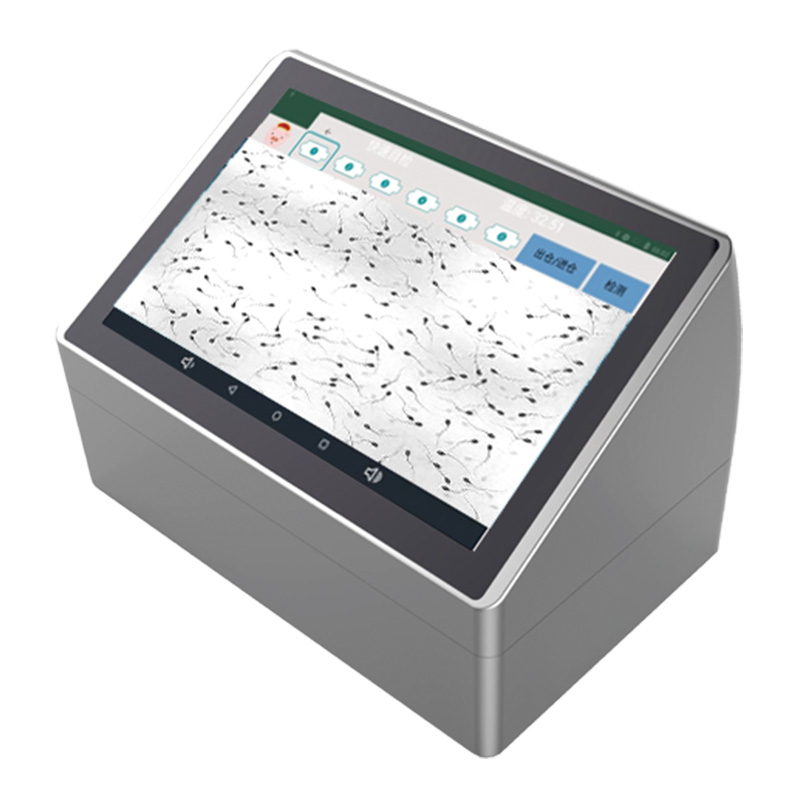

ECI-400S Animal Sperm Quality Analyzer With Built-in Printer
What is the Animal Sperm Quality Analyzer?
Animal sperm quality analyzer is an instrument for analyzing sperm density, motility and viability. Various dynamic and static parameters of sperm (including density, motility, effective sperm count, etc.) can be obtained through analysis, which can improve the efficiency of artificial insemination, increase the calving rate of sows, reduce semen loss and labor costs. It is equipped with a constant temperature heating table, sperm motility is not affected by temperature factors during detection, can generate animal semen analysis report, convenient for users to analyze.
Using video
Parameters of the Animal Sperm Quality Analyzer
|
Type |
ECI-400S |
|
Measuring range |
0~2bi/ml |
|
Resolution |
1µm |
|
Analysis time |
30s |
|
Storage |
64GB |
|
Temp. range |
36~39℃ |
|
Recordable Info. |
ID, variety, time, etc. |
|
Network |
WiFi |
|
Detection chamber |
6 |
|
Precision |
98% |
|
Vitality accuracy |
90% |
|
Detection speed |
0~250µm/s |
|
Measurement |
density, viability, deformity rate |
|
Storage capacity |
10000 |
|
Other function |
print label |
|
Screen |
10.1-inch |
|
Functions |
Quick check /1:9 Original sperm detection/Diluted semen test /Data query/Animal information /Settings /Animal selection |
|
Size |
26*18*20mm |
|
N.W. |
3.6kg |
why choose ECI-400S animal Sperm quality analyzer?
1. The Animal Sperm Quality Analyzer uses special customized optical lens, the image is clear.
2. The number of detected sperm in each group is more than 1000, which can effectively distinguish individual sperm and automatically filter out impurities.
3. Classification dilution algorithm, the density and viability of any dilution of the sample can be accurately detected.
4. ECI-400S Animal sperm quality analyzer equipped with a 37-degree constant temperature table (the temperature setting range is 35°~45°) to ensure the survival time of sperm outside and improve the detection error tolerance rate.
5. Fully intelligent electronic control, intelligent focusing, intelligent tracking, improve observation efficiency.
6. Intelligent algorithm, identify sperm accurately, effectively capture sperm movement trajectory.
7. Store its own database, which is convenient for management, can automatically print data reports, and the basic information is clear at a glance.
8. The operation is simple and fast, and the semen analysis is fast and accurate.
9. The overall structure is made of high-strength alloy, which is stable and beautiful. According to ergonomics, the tilt angle of the screen is set for easy observation.
10. The printing information is comprehensive, and the label paper can be pasted to facilitate statistical classification.
Exception handling
1. If the screen of the animal sperm quality analyzer does not light up, or there is no response to the boot, check whether the power cord is plugged in properly and whether the indicator light of the adapter is faultless.
2. If the sperm sample is found to be blurred and dark, check whether the slide is clean, and clean the dirty chamber surface with a cleaning rag before testing.
3. If there is a printing failure, check whether the label paper is installed correctly, and whether the printer indicator light is green and flashes indirectly.
4. If an abnormal phenomenon occurs during the detection, return to the main interface to initialize the host and perform the detection again.
5. If there is any irreparable problem, you can contact the online customer service.
