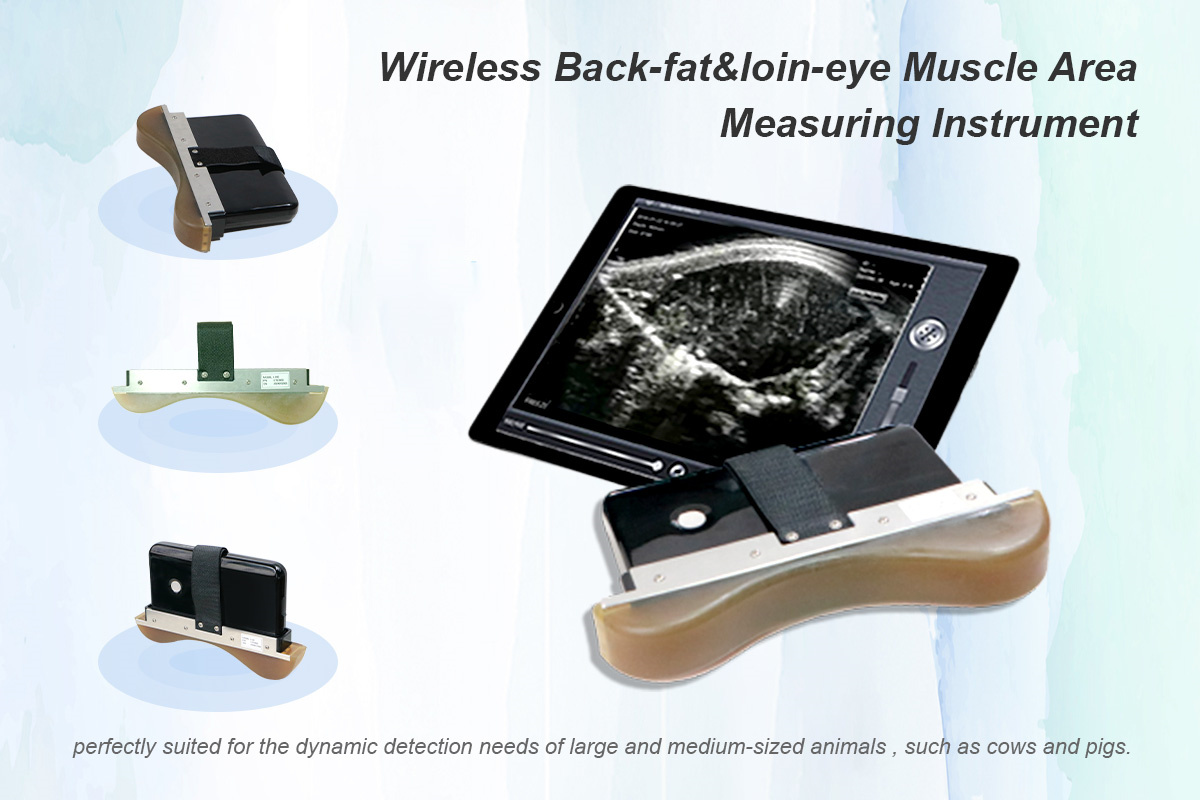

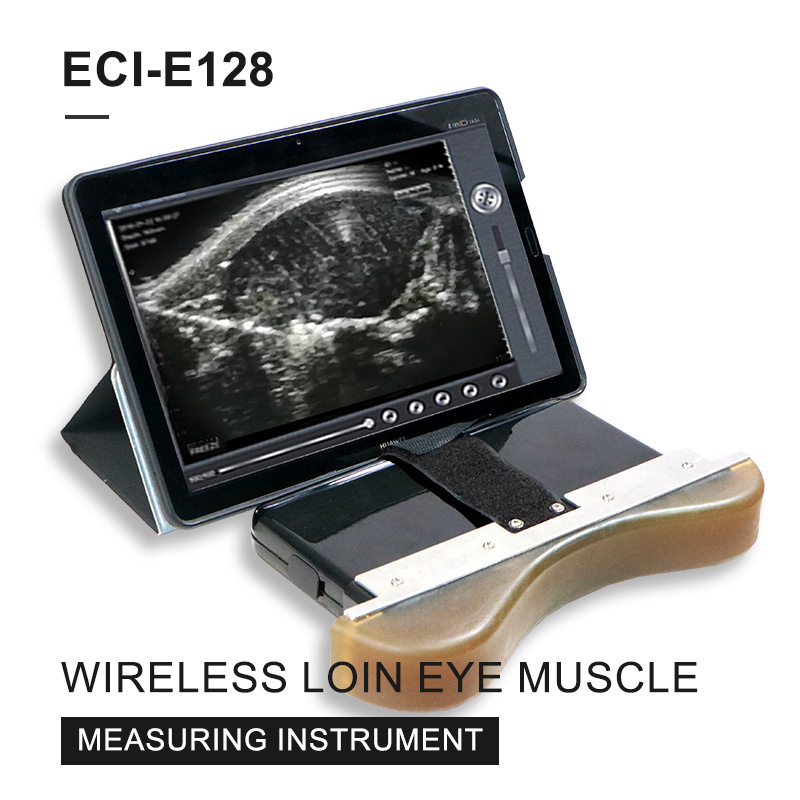

ECI-E128 Wireless Loin Eye Muscle Area Measuring Instrument
Brief Introduction
Wireless Loin Eye Muscle Area Measuring Instrument adopts the latest wireless data transmission technology and is the latest veterinary ultrasound imaging equipment. It is mainly applied to back-fat and eye muscle testing of pigs, cattle, sheep and other animals to achieve the result of reasonable feed allocation.

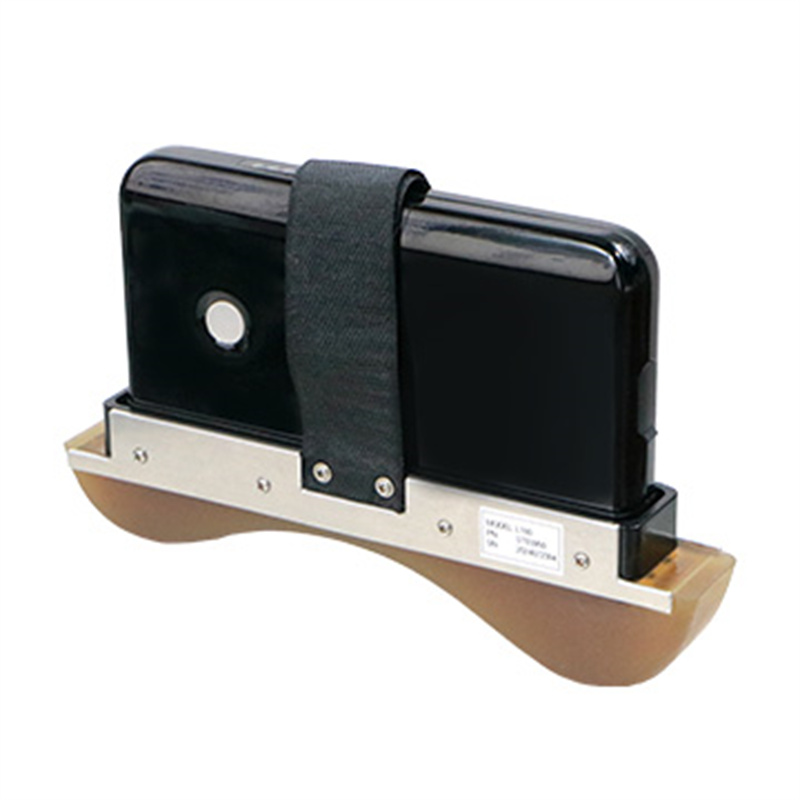

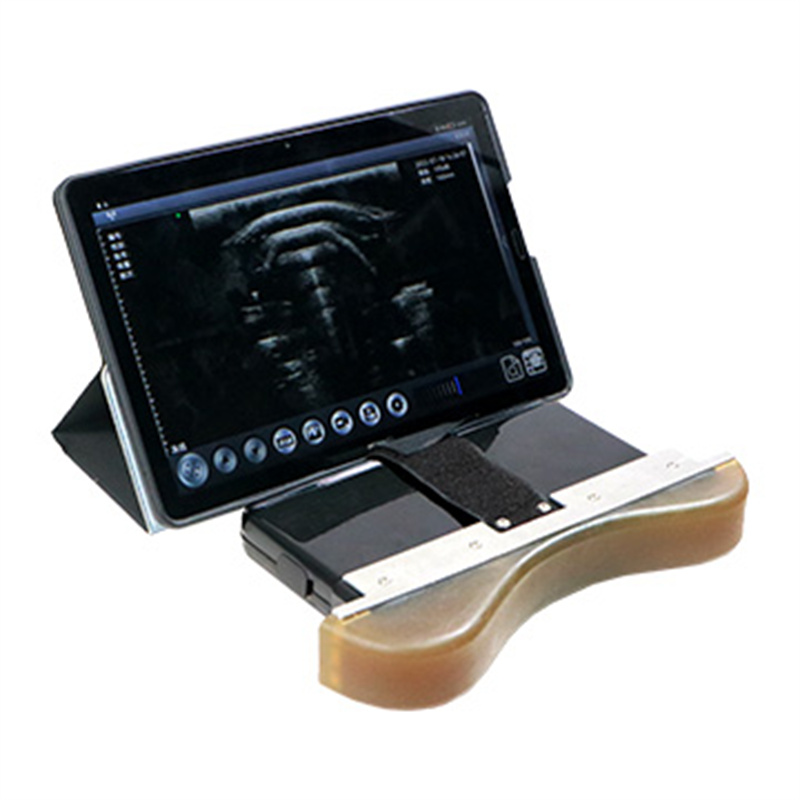

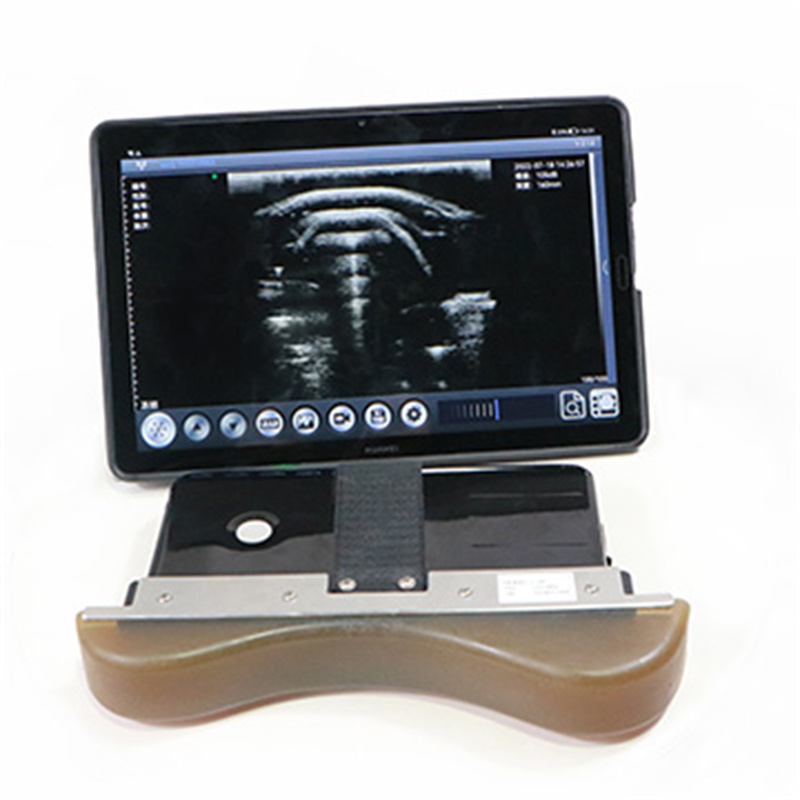

Wireless Loin Eye Muscle Area Measuring Instrument is a wireless ultrasound scanner with highly integrated ultrasound image processing, power management and host. The intelligent system adopts intelligent mobile terminal as the host, which is different from the host of traditional animal ultrasound equipment. The scanner is connected to the mobile terminal through WIFI. After the host is connected to the Pad, the measurement can be started by launching the APP.
Using video
Technical Specification
|
Type |
ECI-E128 |
|
Probe |
3.5MHz Transducer |
|
Scanning |
Linear Scanning |
|
App |
Android |
|
Connection |
WiFi |
|
Depth |
70-160mm |
|
Display mode |
B |
|
Gain |
30-105dB |
|
Gray Scale |
256 |
|
Working time |
≥4.5h |
|
Battery |
3200mAh |
|
Size |
200*120*34mm |
|
N.W. |
800g |
WiFi Connection
When the WIFI indicator light flashes at a slow frequency, it means that the WIFI is ready and waiting for the phone or tablet to connect. At this time, open APP, click WiFi in the cell phone setting function or the WiFi logo in the upper left corner of APP to connect. the WIFI name form is eciQ 1M2109001. the password is eci + the last 7 digits of the WIFI name, such as the password of eciQ 1M2109001 is eci2109001. the App can be operated after the connection is successful.
Function buttons
Freeze/Live: Click to switch between Freeze and Live.
Gain increase: click or long press to increase the gain, the upper limit is 105dB.
Gain decrease: click or long press to decrease the gain, the lower limit is 30dB.

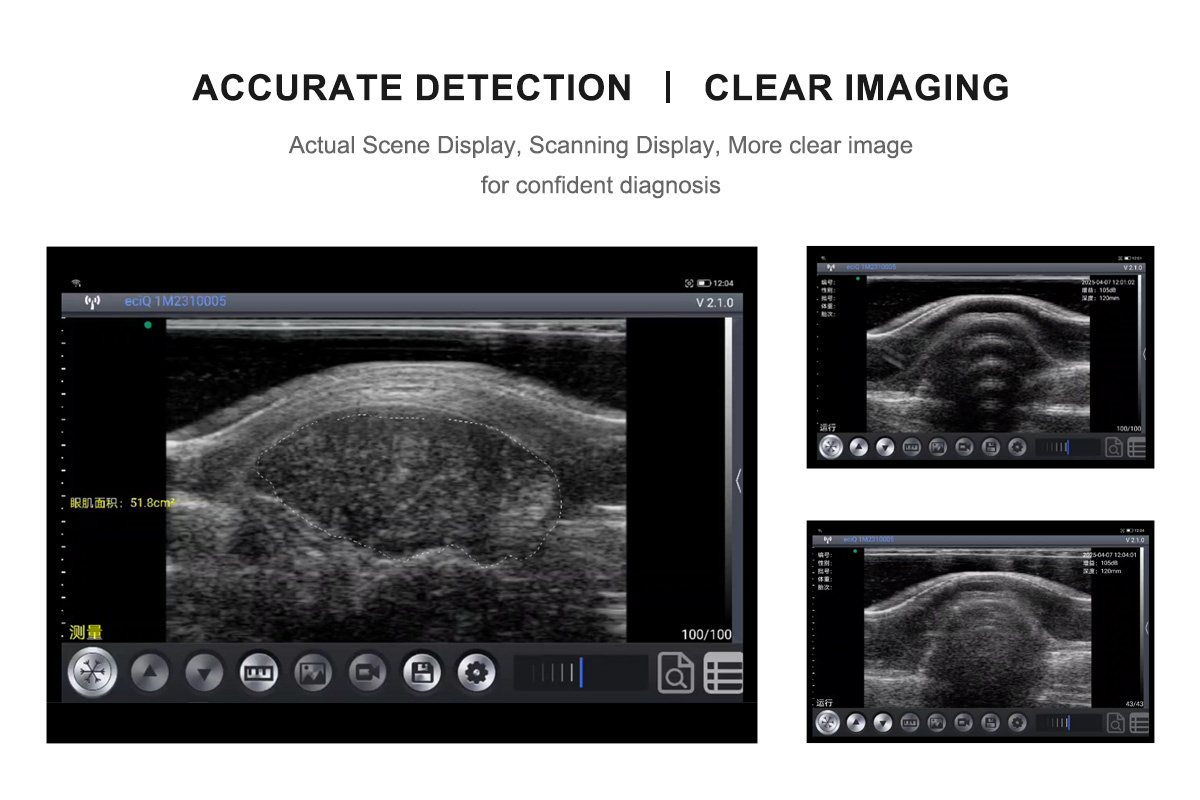

Measurement button: Measure back-fat thickness, eye muscle depth, back-fat and eye muscle area and flip the image left and right in frozen state.
Save image: save the image in the current frozen state.
Save record: Set the number when measuring, the measurement record will be saved in CSV file format.
Setting button: Increase or decrease the offset amount.
File view: View previously saved CSV file.
Record view: View the record of the current measurement

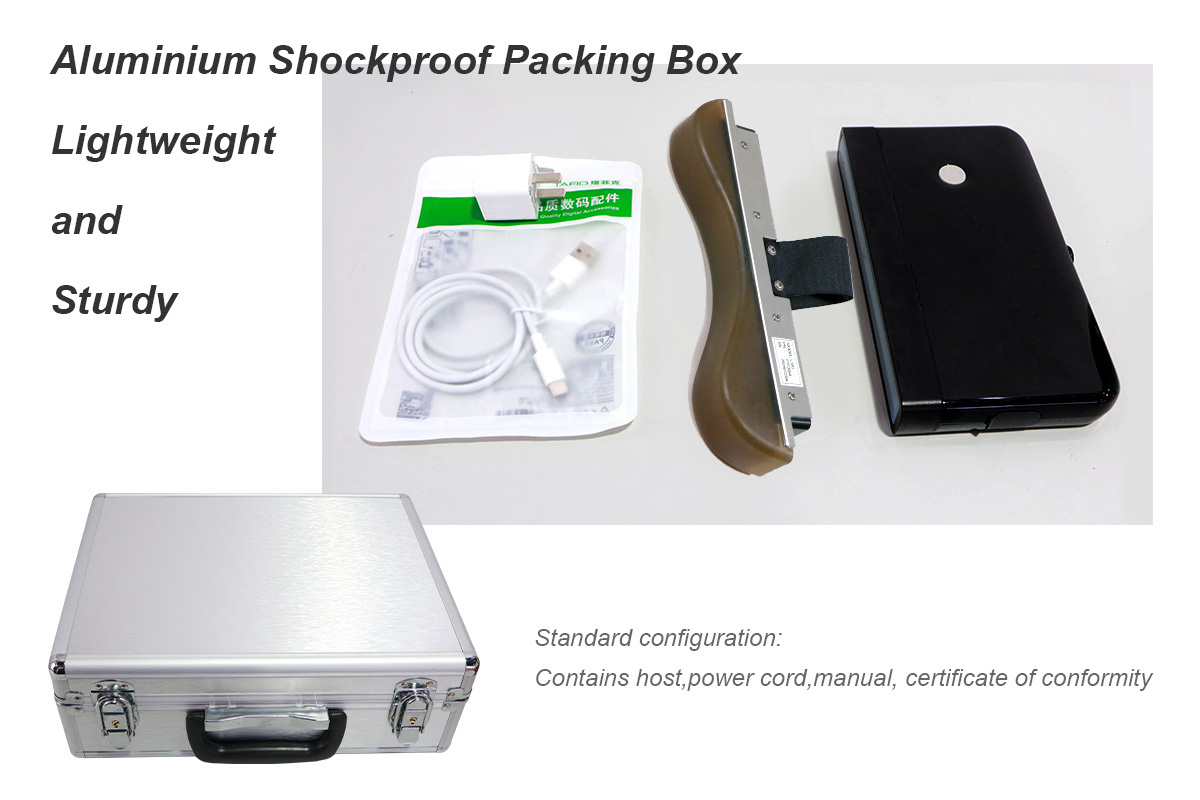

Package
Dimension: 430*320*160mm
Gross weight: 4.2kg
| Standard configuration | |
| Item | Quantity |
| 3.5MHz scanner | 1 |
| Adapter（5V1A） | 1 |
| USB power cable | 1 |
| User guide | 1 |
| Optional configuration | |
| iPad | |
| Bag | |
