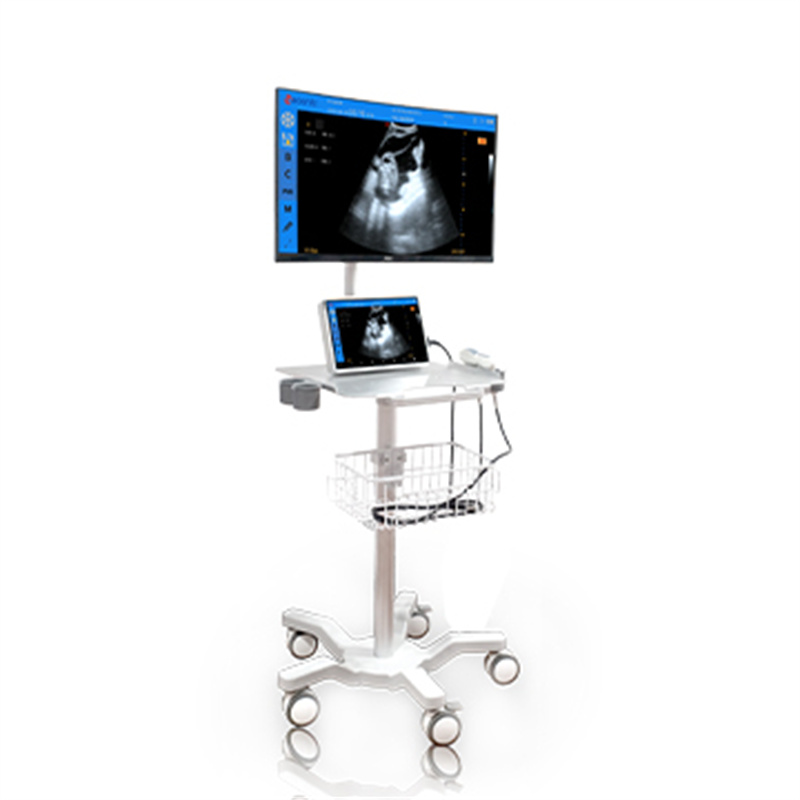

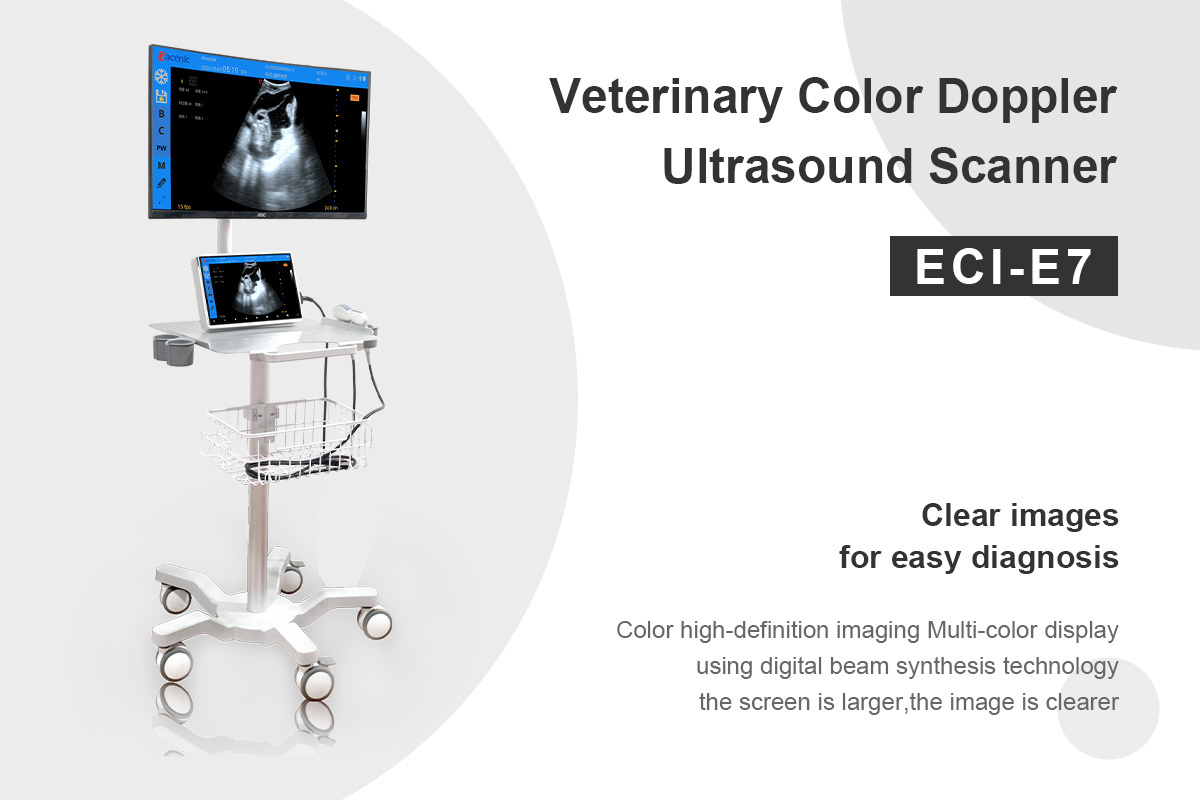

ECI-E7 Color Doppler Ultrasound Scanner for Pet Hospital with Trolley
Description

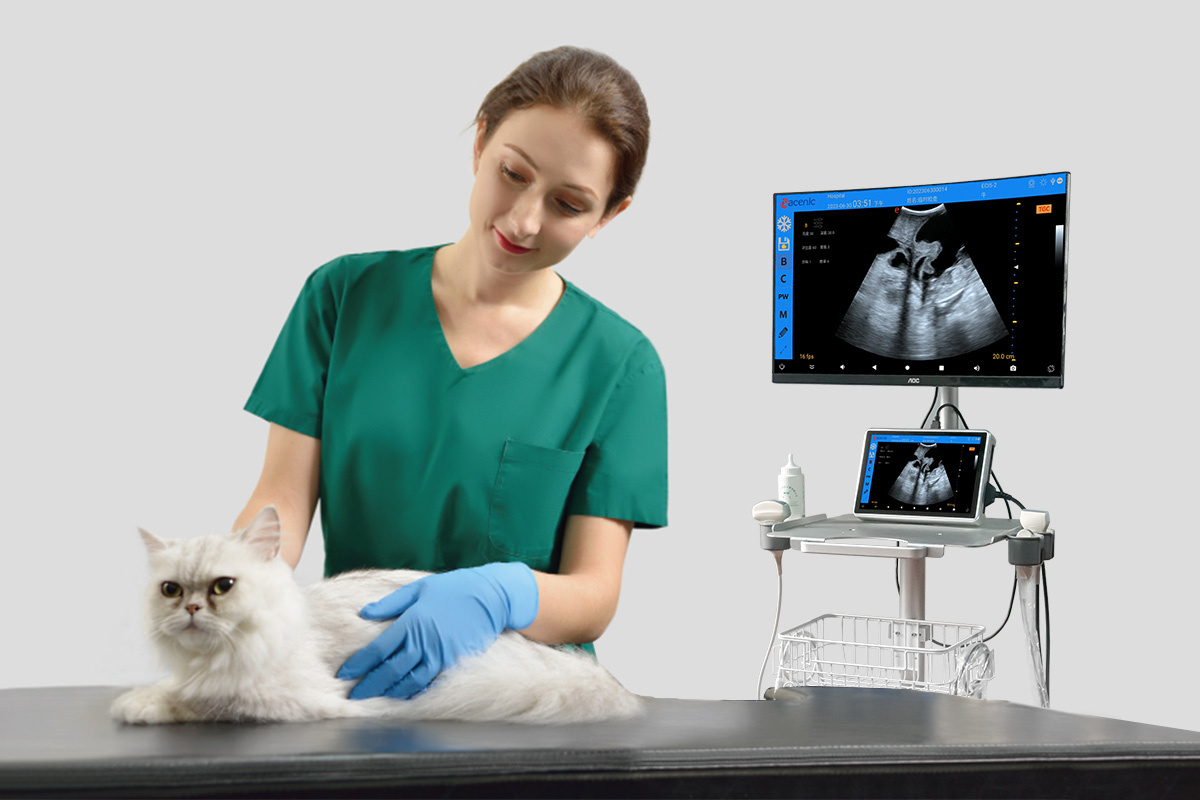

ECI-E7 Color Doppler veterinary ultrasound diagnostic instrument is an intelligent detection device designed for cats, dogs and other animals. Dual display (10.1 "touch screen + external 27" curved screen) for veterinary operation and customer simultaneous viewing. Radiation-free design ensures pet safety. Each charge supports 5 hours of detection, which adapts to the high-intensity operation needs of pet hospitals and helps precision treatment and health management. It is equipped with multiple frequency probes to improve the efficiency and accuracy of veterinary treatment.
Using video
Product Parameters
| Type | ECI-E7 | ||
| Display | 10.1-inch touch screen&27-inch curved screen | ||
| Frequency | 2.0~11.0MHz | ||
| Element | 128 | ||
| Channel | 32 | ||
| Mode | B, M, C, PW, BB, BC, BM | ||
| Depth | 60~240mm | ||
| Cine-loop | 400fps | ||
| Storage | 64G | ||
| Channel | 32 | ||
| Measurement | Back-fat thickness, Loin-eye muscle area, Perimeter, Diameter, Angle | ||
| Interface | USB, HDMI | ||
| Gain | adjustable (0~100dB) | ||
| Size | 1390*610*450mm | ||
| Weight | 16kg | ||
| Optional Probes | |||
| 6.5 MHz Rectal Probe | 3.5 MHz Convex Probe | 5.0 MHz Micro-convex Probe | 7.5 MHz Linear Probe |
| L: 64mm Pitch: 0.5mm Element: 128 Frequency: 5.5-7.5MHz Depth: 30-120mm | R: 60mm Element: 128 Frequency: 2.0-5.0MHz Depth: 60-240mm | R: 20mm Element: 128 Frequency: 3.0-8.0MHz Depth: 60-240mm | L: 40mm Pitch: 0.31mm Element: 128 Frequency: 6.5-10.0MHz Depth: 60-240mm |
Features

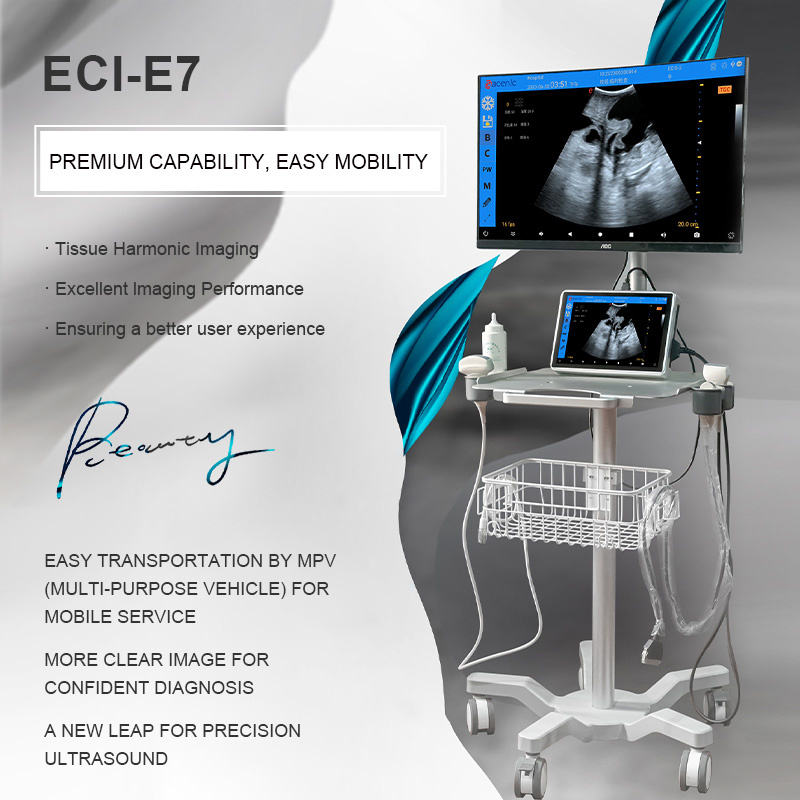

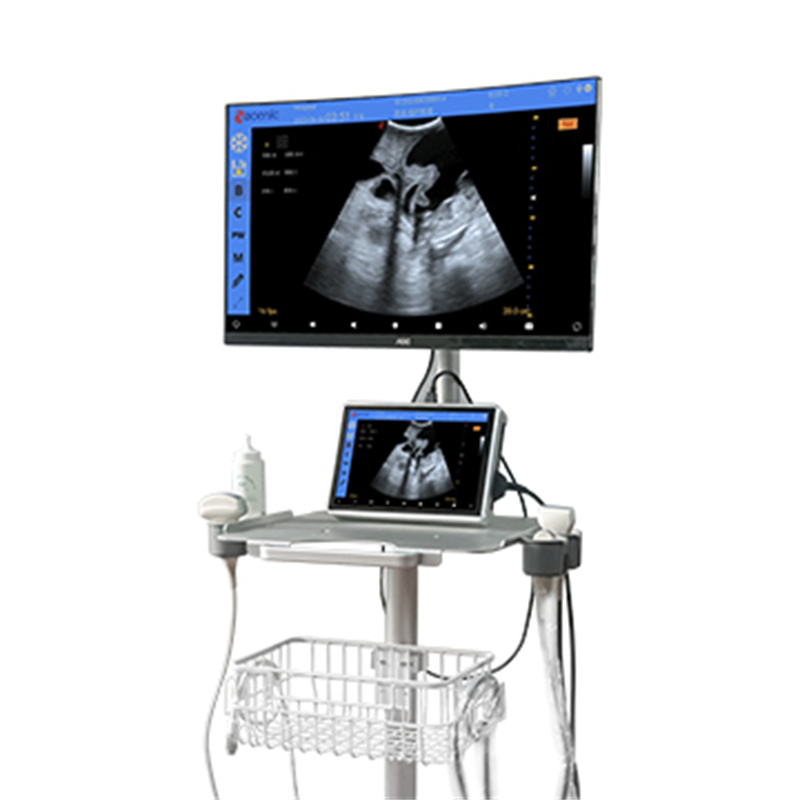

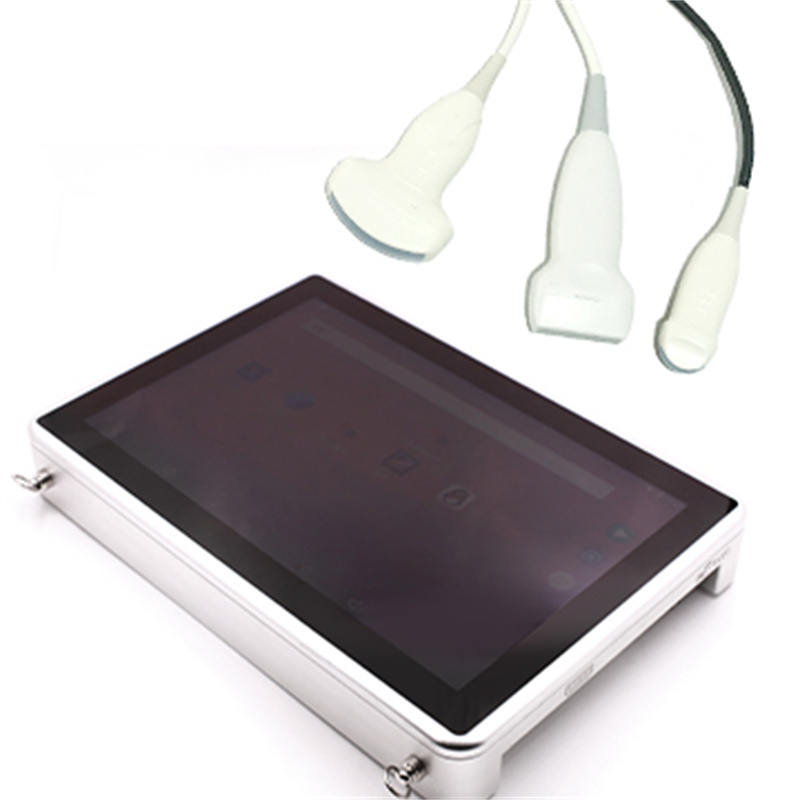

1. Dual display, the device comes with a 10.1-inch display can be used for outdoor diagnosis, easy to carry. The trolley comes with a 27-inch display for easy viewing of scanned images during diagnosis at the vet hospital.
2. Archival records that can be created within the device for each diagnosed animal, including name, sex, age, diagnosing physician, other descriptions, etc.
3. 128-elements 32-channel image transmission, with 1920*1080 screen resolution, the image is more clear.
4. 400fps video playback function to avoid missing the right image during the scanning process.
5. 64G image storage space. Wireless transfer function allows you to export and save images that have been stored in the device for a long time.

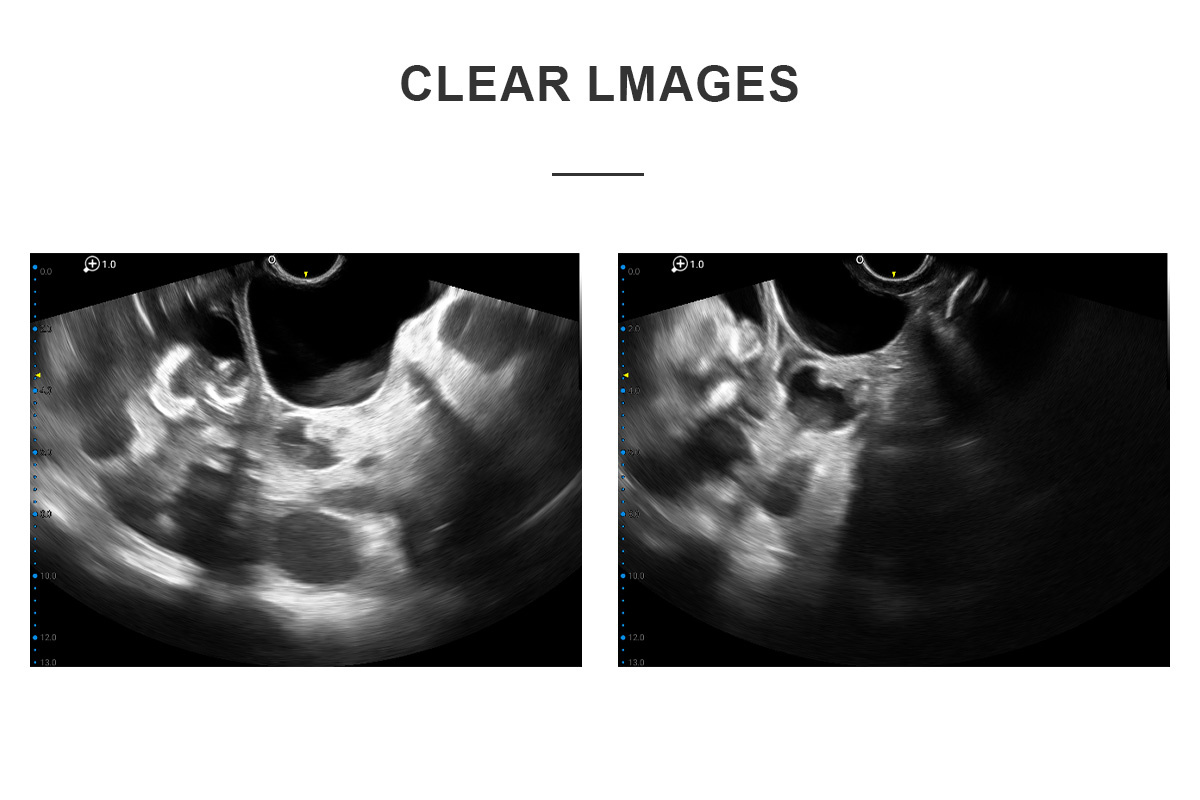

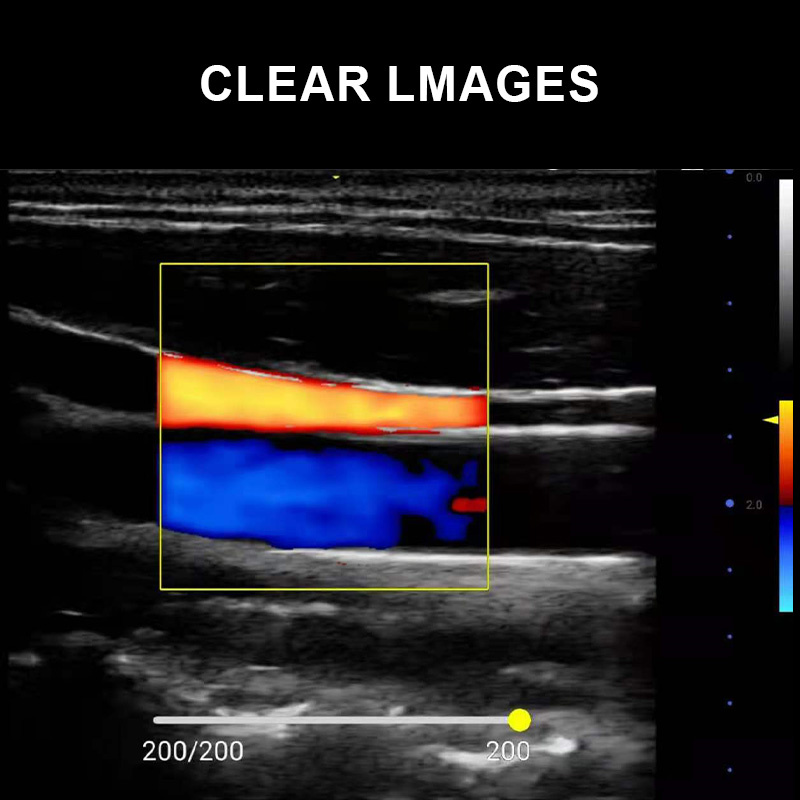

Clear Images
Some diagnostic images from a variety of animals are shown.
Standard Configurations
Mainframe*1
Convex probe*1
User guide*1
Adapter*1
Power cord*1
PVC case*1
