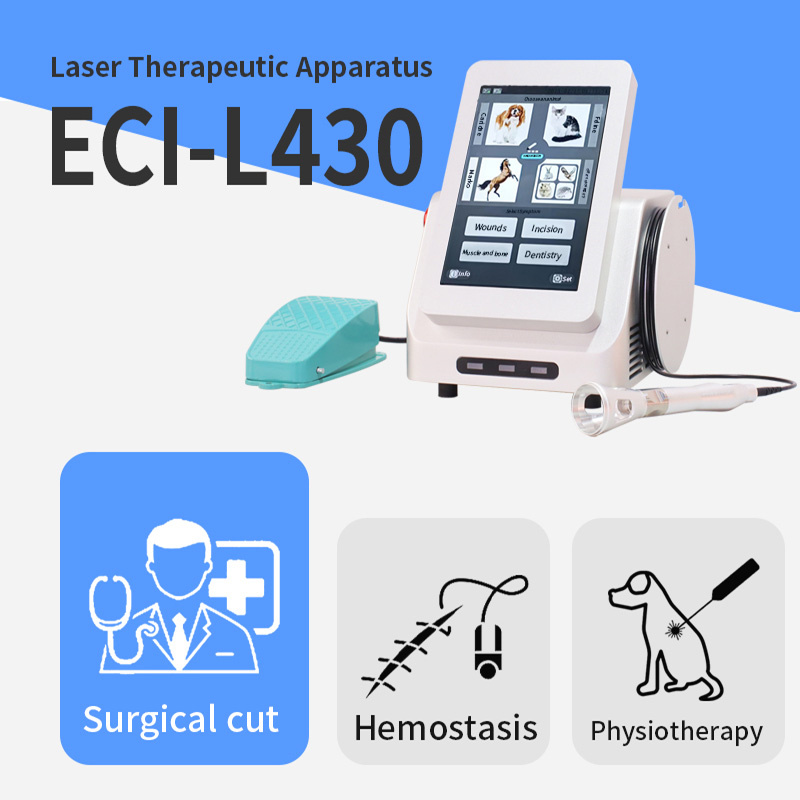

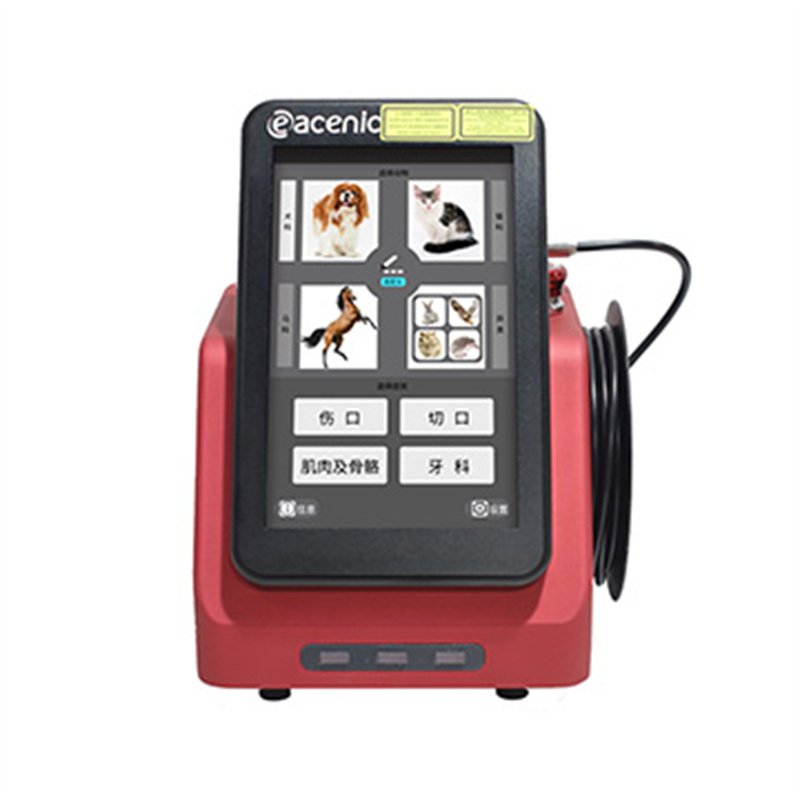

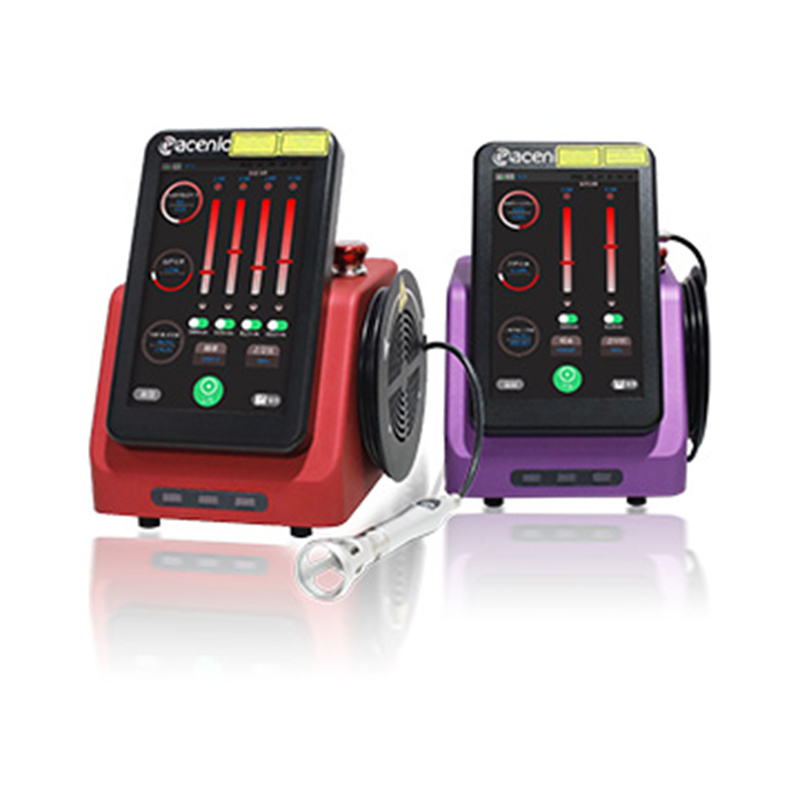

ECI-L430/230 2 and 4 Wavelength Veterinary Laser Therapeutic Apparatus
Description
Laser therapeutic apparatus is a kind of advanced technology therapy equipment. It presets a variety of therapeutic procedures to relieve pain in animals and achieve therapeutic goals. Veterinary laser therapeutic apparatus is limited to health care workers and related professionals, and its use requires appropriate clinical and technical training.

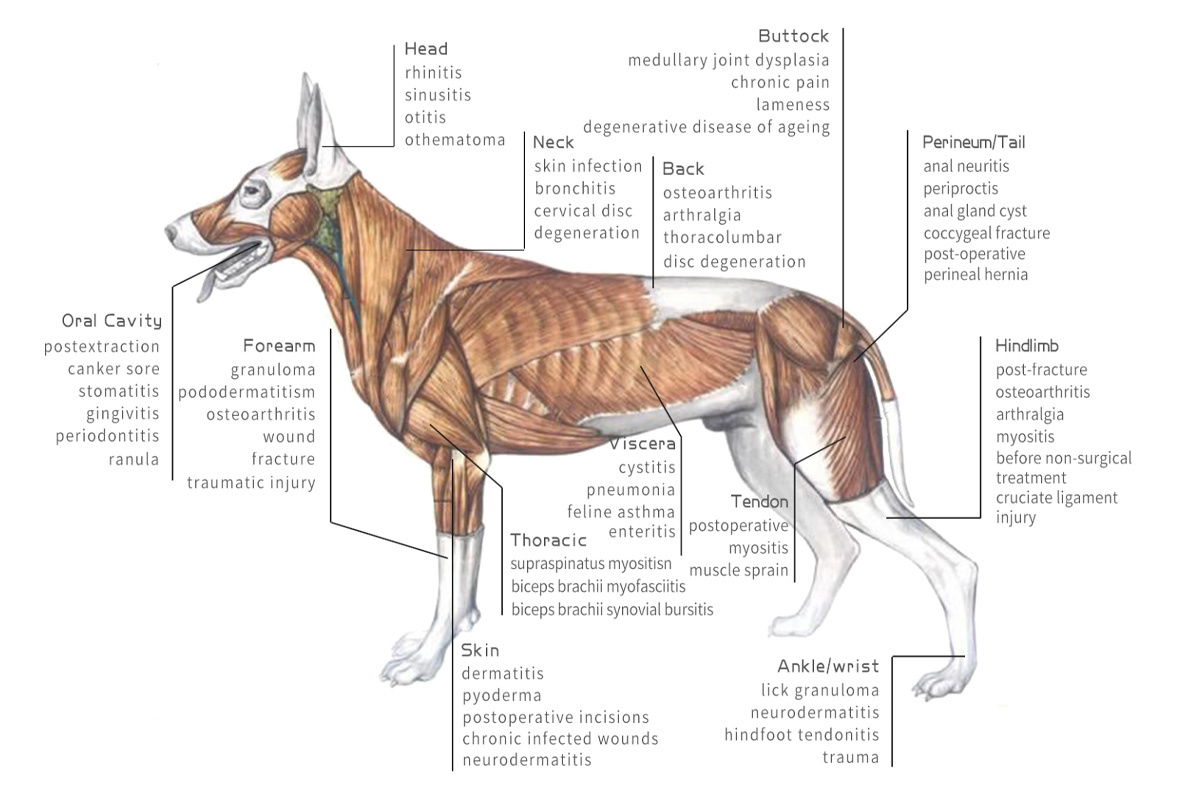

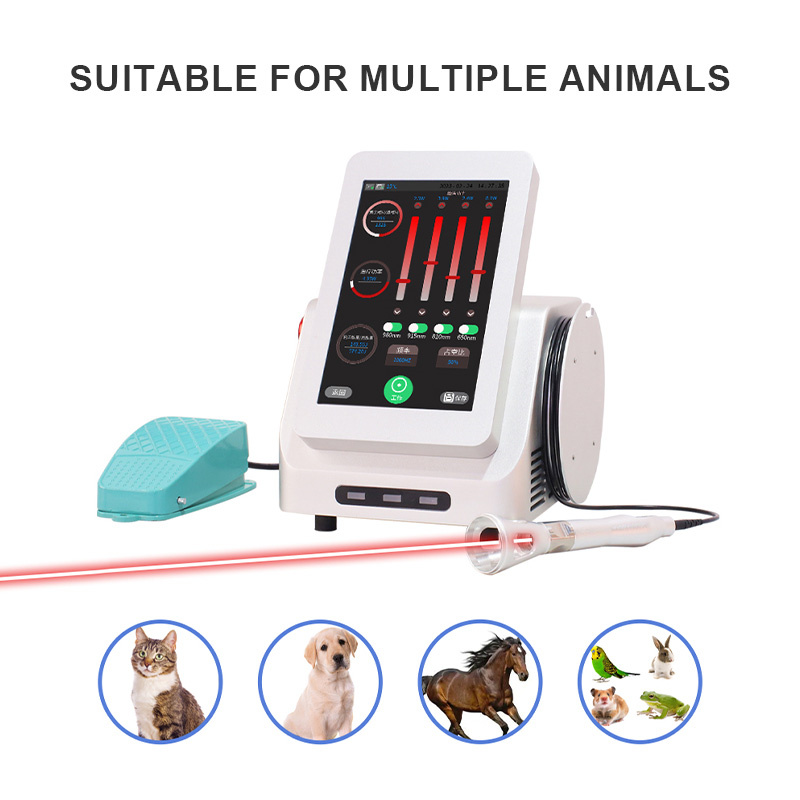

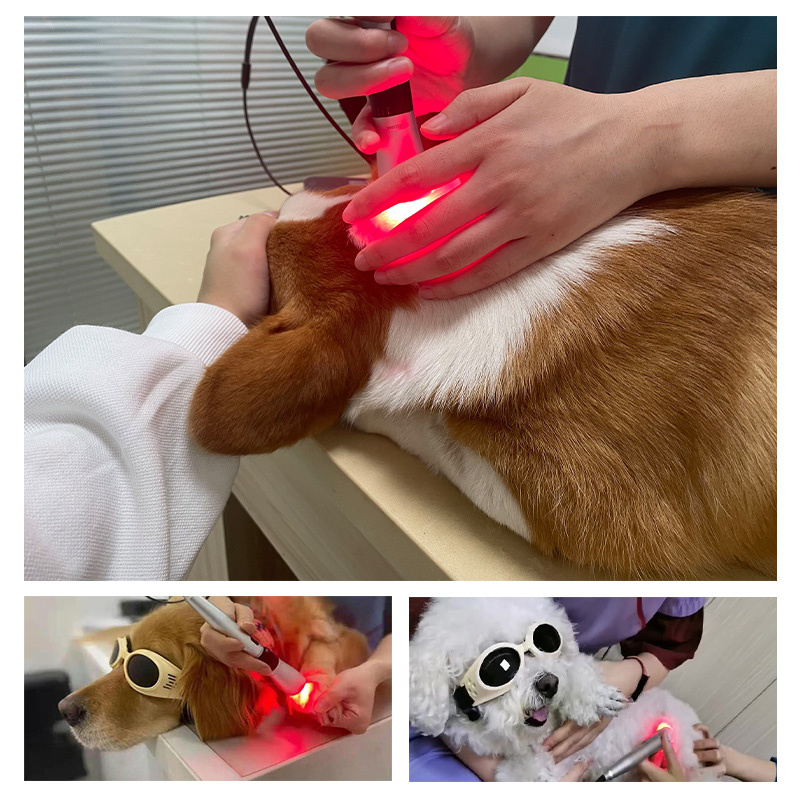

This product is suitable for laser surgery and physiotherapy for cats, dogs, horses and other livestock, helping to relieve pain, reduce inflammation and promote wound healing.
Parameter
|
Type |
ECI-L430 |
ECI-L230 |
|

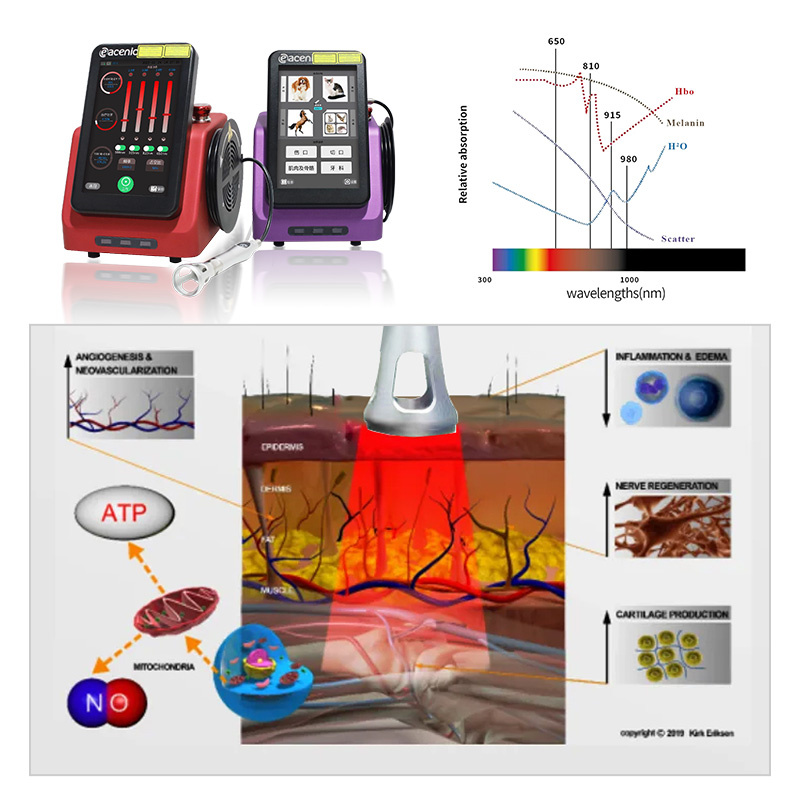

Wavelength |
650nm, 810nm, 915nm, 980nm |
810nm, 980nm |
|
Power |
10W+10W+9W+0.3W |
15W+15W |
|
Frequency |
1~2000Hz |
|
|
Indicator light |
650nm red laser, power≤5mW |
|
|

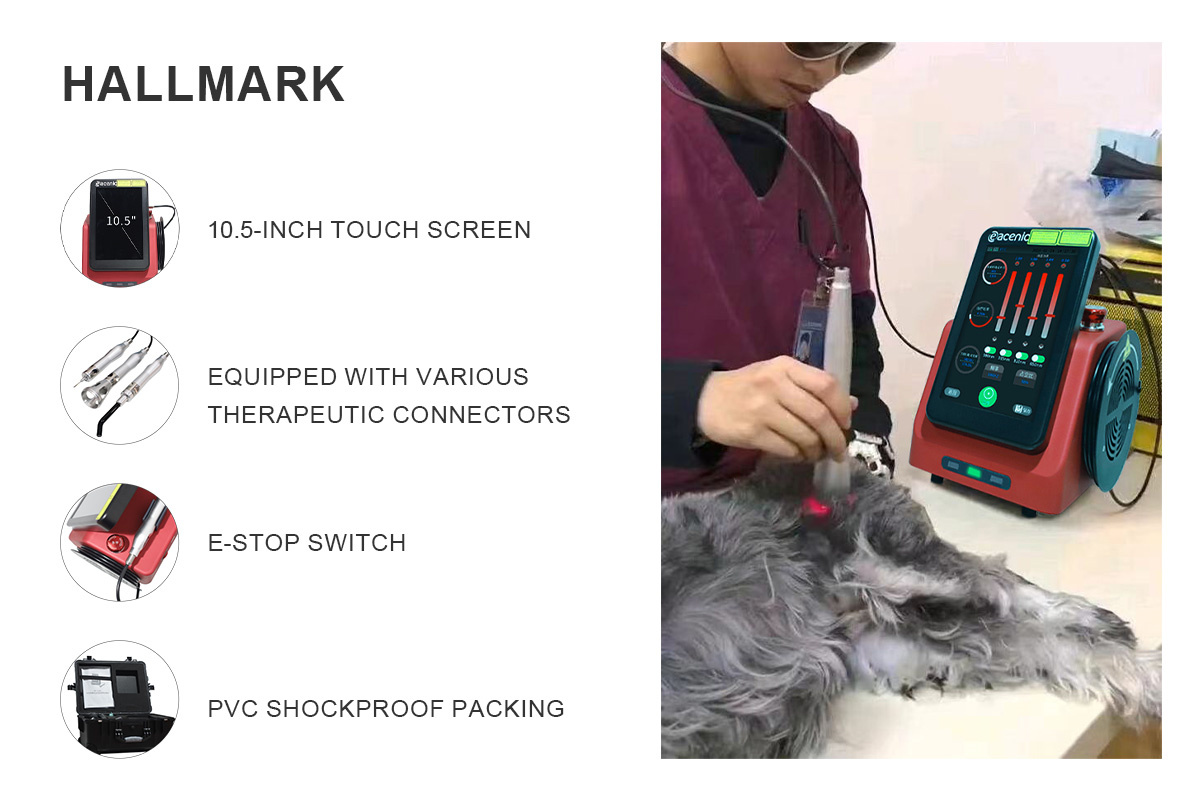

Screen |
10.5-inch |
|
|
Safety device |
Safety interlock, goggles |
|
|
Operating temp. |
10~40℃ |
|
|
Fiber diameter |
400hm |
|
|
Data storage |
1999 |
|
|

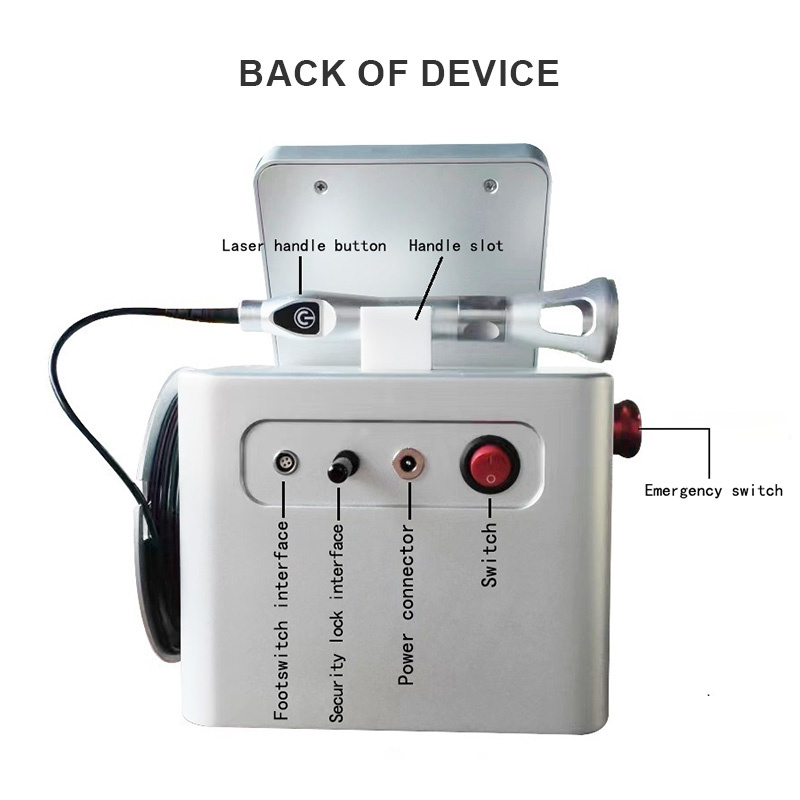

Operation |
handle switch, foot switch |
|
|
Power error |
±10% |
|
|
Power source |
DC 24V, 6A |
|
|
Size |
213*260*200mm |
|
|
N.W. |
4700g |
|
Main Features
● Low bleeding: Laser surgery can stop bleeding while cutting. It creates a uniform, well-bonded dry coagulation zone on the cut surface, making it suitable for use on vascularized tissues or organs, such as in the treatment of stomatitis pets.
● Avoiding Infection: The laser has the effect of directly killing bacteria, so the rate of postoperative infection is significantly reduced, and the effect of surgical cutting on infected wounds is also good.
● Less Painful: This is because the nerves in the area of the laser cut are thermally coagulated, which reduces the pain in the affected pet. At the same time, the laser is used to perform the procedure without the slightest mechanical impact, so laser cutting is less painful or even painless.
● Subtle Scarring: Laser resection surgery is less invasive compared to other surgical procedures. Some of the minor wounds do not require stitches due to its coagulation while cutting.
Product packaging
| S/N | Name | Quantity | Applications |

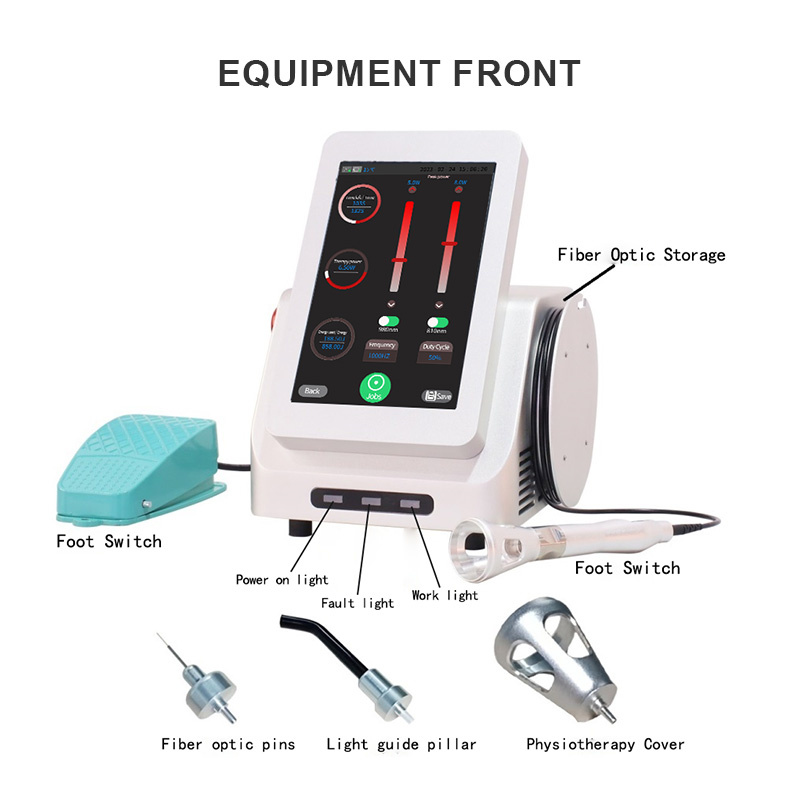

| 1 | Mainframe | 1 unit | Main components of the equipment, including the laser, laser power supply system, microcomputer control system and radiation protection device, heat sink. |
| 2 | Safety interlock connectors | 1pc | Connector to connect the external controller to the other components of the isolated laser product. |
| 3 | Foot switch | 1pc | Connected to the main unit to turn the laser emission on or off. |
| 4 | Adapter | 1pc | Conversion of mains voltage to 24V DC |
| 5 | Power cable | 1pc | Connecting the adapter to the host |

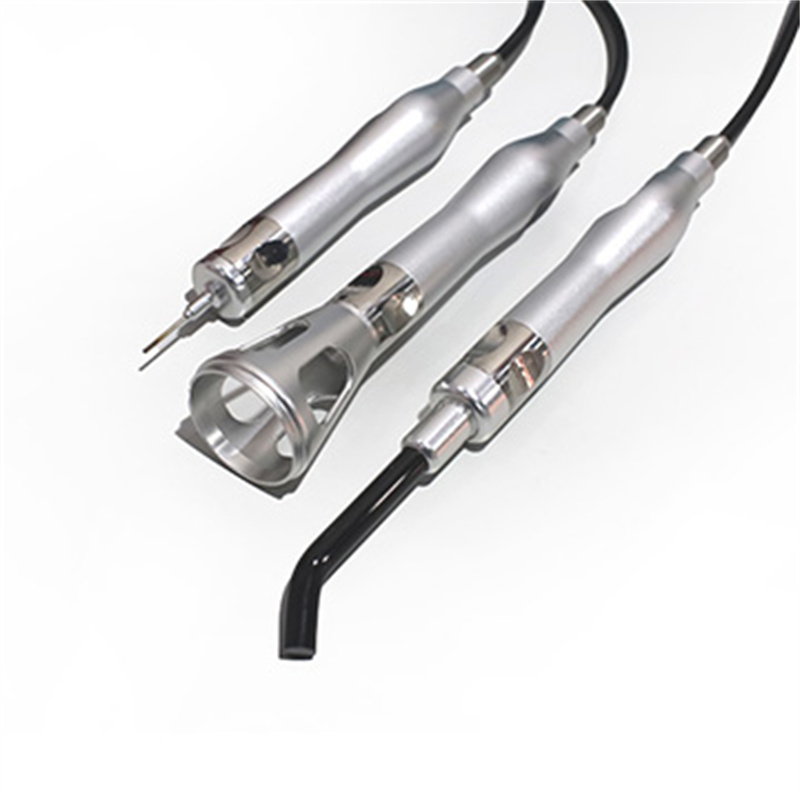

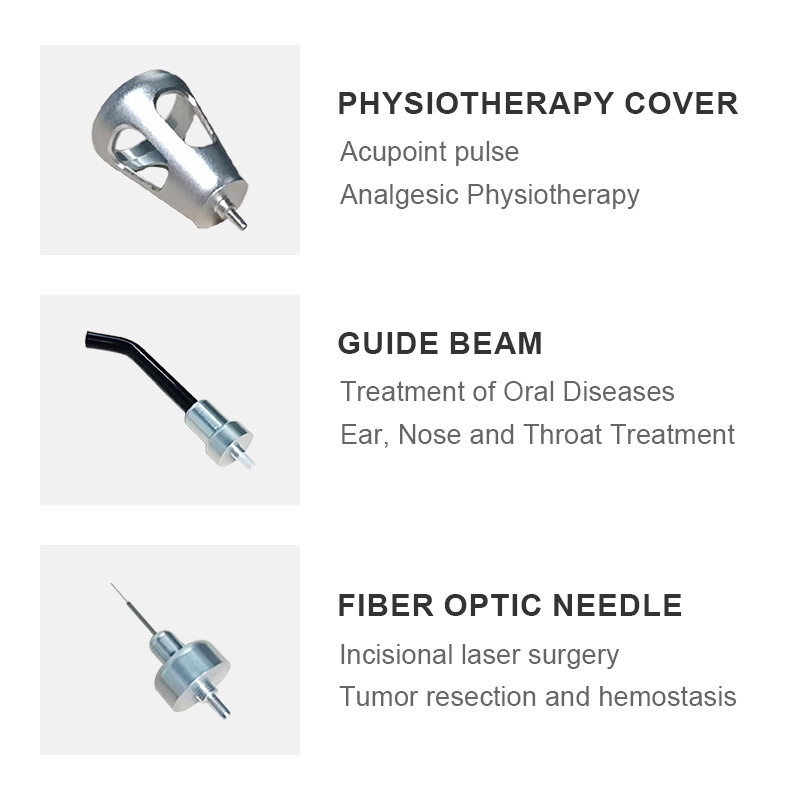

| 6 | Fiber optic needle | 1pc | Transmits laser energy for therapy |
| 7 | Physiotherapy Cover | 1pc | Transmits laser energy for therapy |
| 8 | Light Guide Colmn | 1pc | Transmits laser energy for therapy |
| 9 | Laser protection goggles | 4pcs (2 each for human and animal use) | Protecting your eyes from the dangers of laser radiation |
| 10 | Product brochures | 1pc | Operating instructions document |
| 11 | Certificate of Conformity& Warranty Card | 1set | Certificate of Conformity& Warranty Voucher |

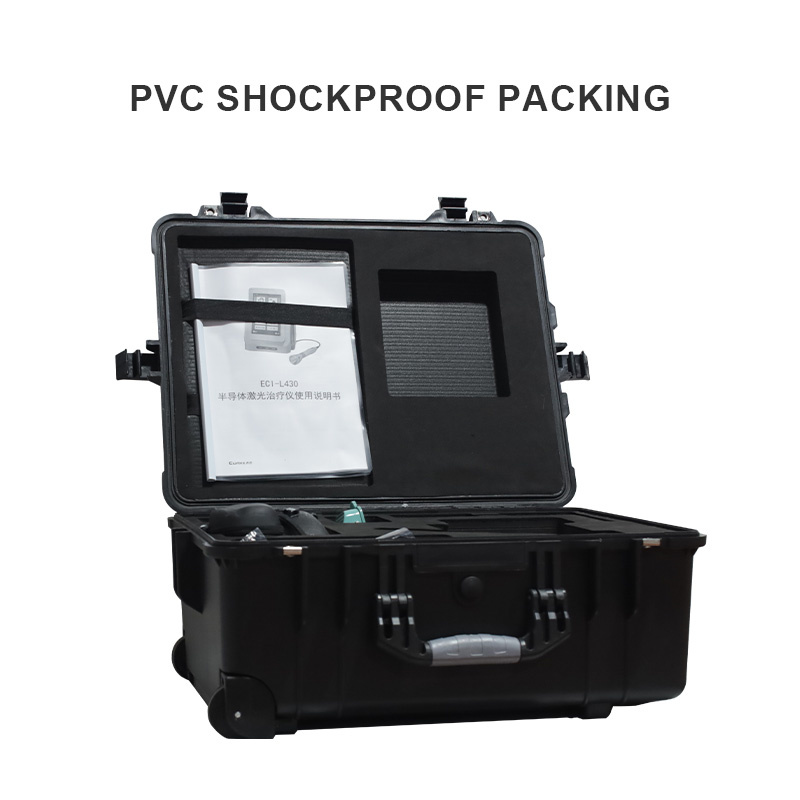

| 12 | Aluminium box | 1pc | Storage of device and all accessories |
