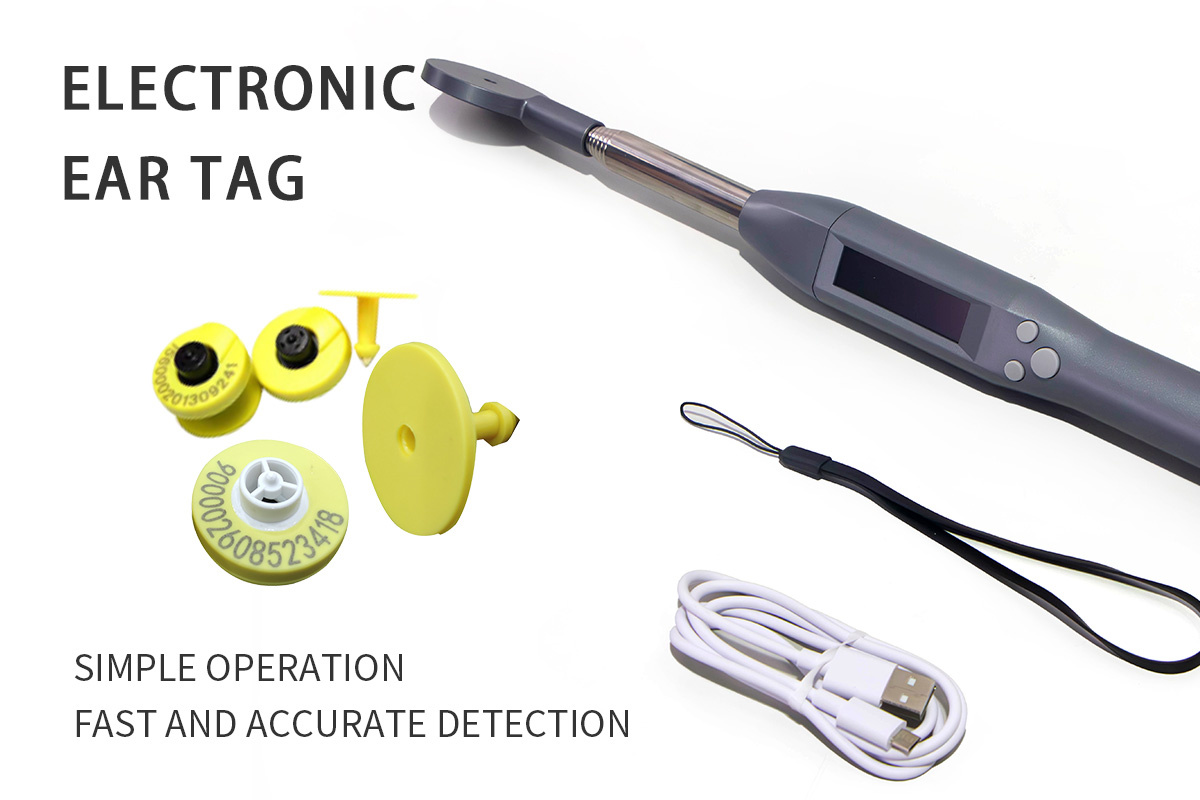

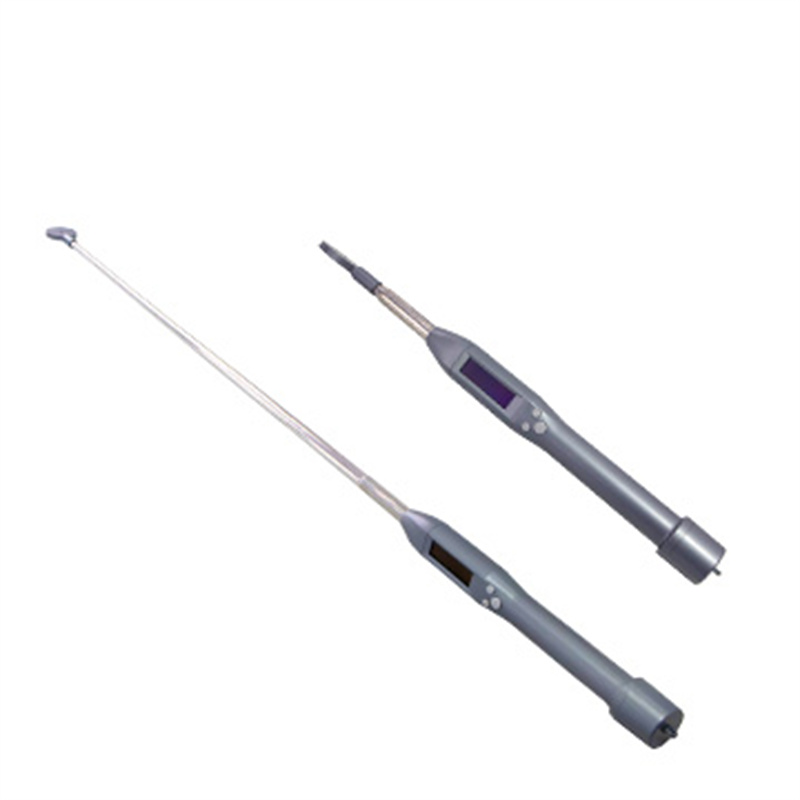

ECI-S9 Animal Electronic Ear Tag Reader with Microchip Ear Tag
Introduction

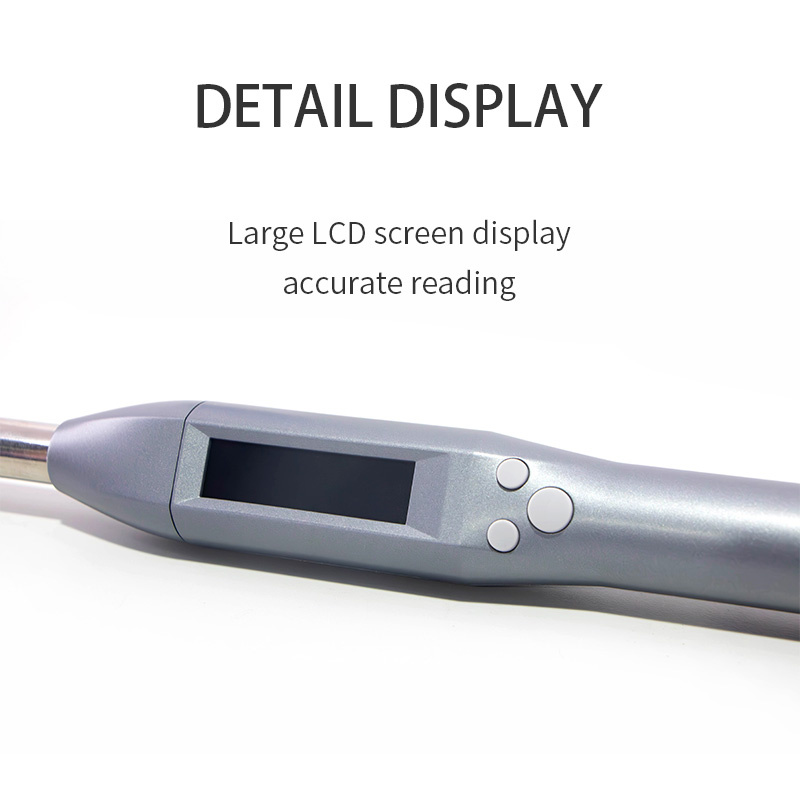

Electronic ear tag reader adopts wireless radio frequency technology, integrated reading, display and Bluetooth transmission data function, and the animal ear tag data transmission to the terminal equipment.

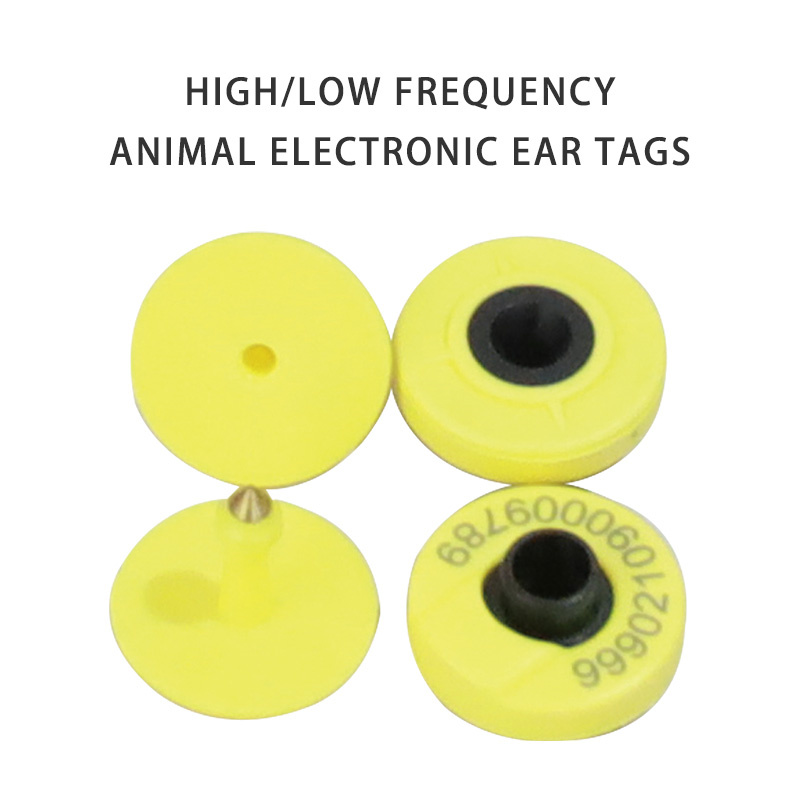

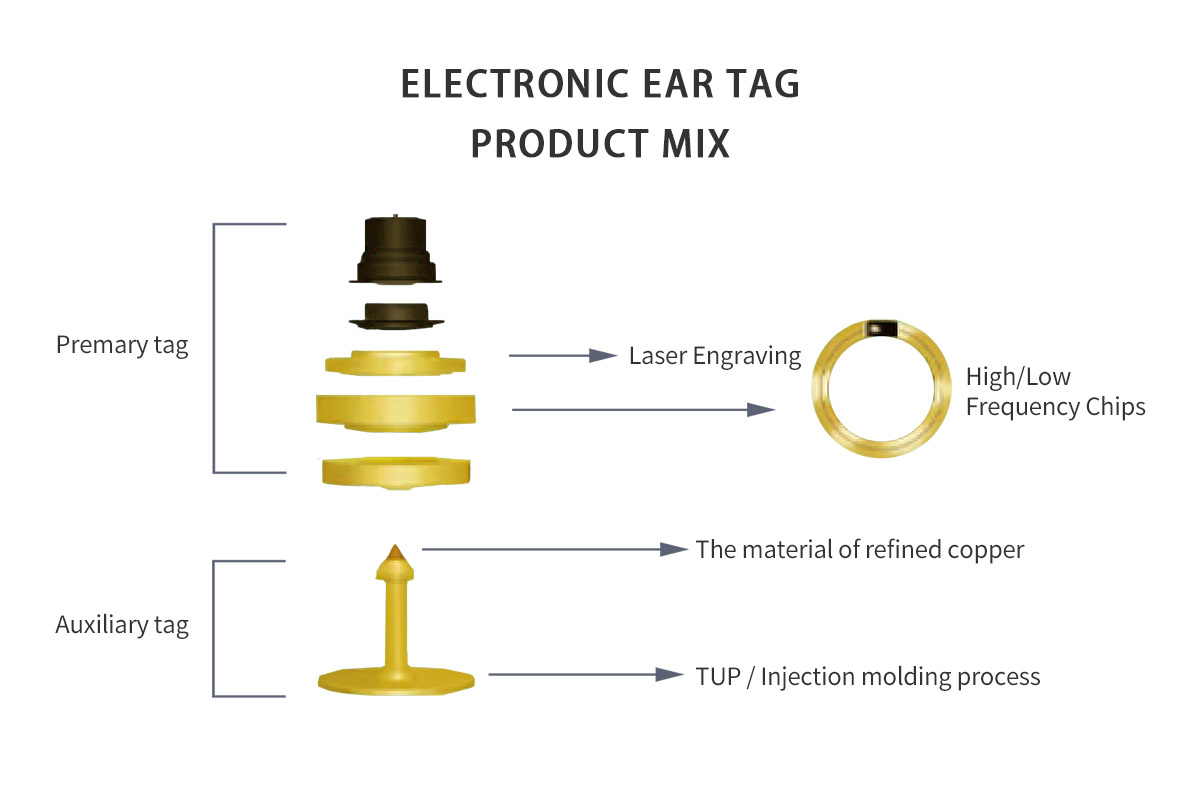

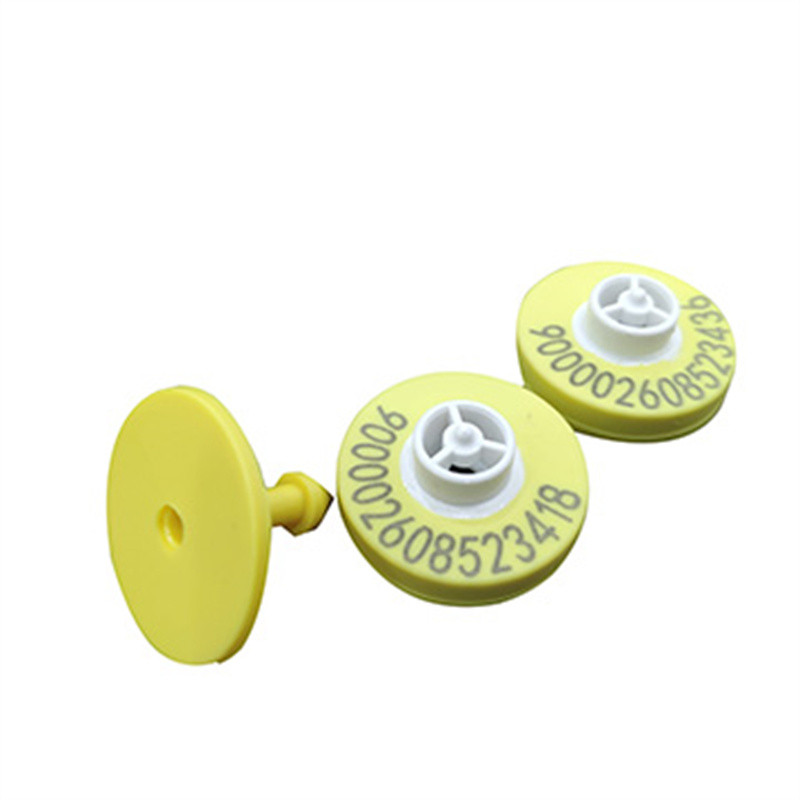

Animal electronic ear tag is a specially designed for animal breeding, slaughter management of animal electronic ear tag, in line with ISO11784/5 FDX-B international standards for animal identification, using imported original chip design and production, with read-write, and data security unique design. With the electronic ear tag reader can be easily used in animal breeding, slaughter management, tracking and identification of individual animals, and effectively carry out all-round management of the whole process of animal growth.

Technical Specification
| Type: ECI-S9 | |
| Electronic ear tag reader | Electronic ear tag |
| Scanning Distance: 5-30cm | Frequency: 134.2KHz/ 915MHz |
| Stored Record: 500 | Operating Temp.: -20℃~50℃ |
| No. of the ID Stored: 64000 | Readability:>10000 |
| Searching ID Quantity: 1000 | Storage: 128bitEEPROM |
| Loading Time: 100ms | Storage Type: Read-write |
| Standard: ISO -11784/5, FDX-B,HDX | Distance: 30cm |
| Battery: 3350mAh | Material: German BASF polyether TPU |
| Waterproof: IPX3/IPX5 | Waterproof: IPX7 |
| Screen size: 5.5*1.6 | Loading Time: 1ms |

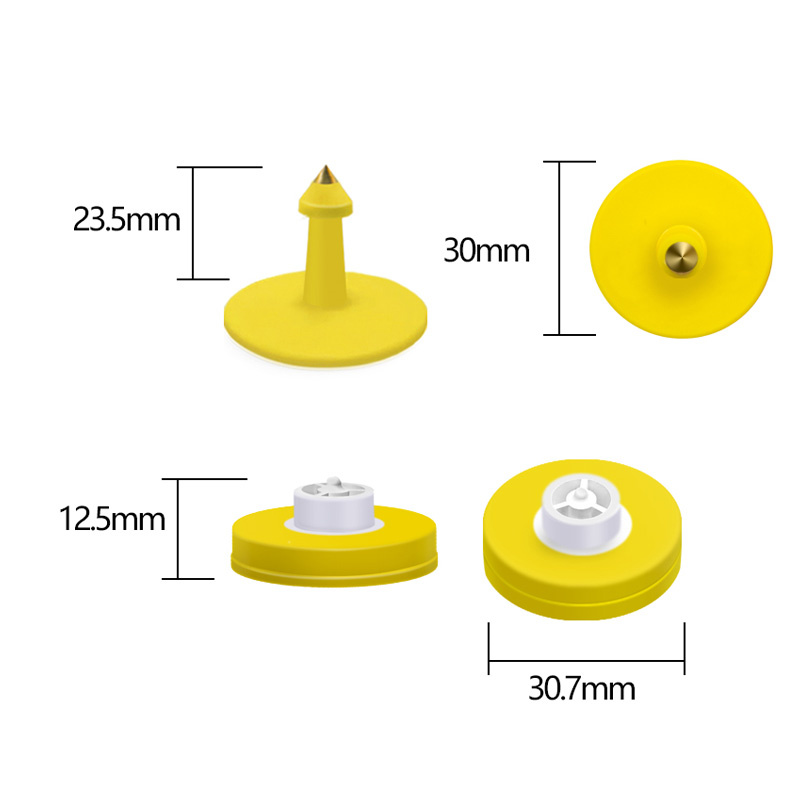

| N.W.:300g | Size: 30*15mm |
| Dimension: 52*10*8cm | N.W.: 10g |
| G.W.: 0.5kg | |


Product Advantages
Advanced Frequency Technology: With an operating frequency of 134.2 kHz, this handheld scanner ensures accurate and reliable identification of livestock such as sheep, cows, and goats, making it an ideal solution for farms and livestock operations.
High-speed Readability: The device's fast read speed allows it to scan animal microchips quickly and efficiently, reducing the time required for animal identification and tracking.

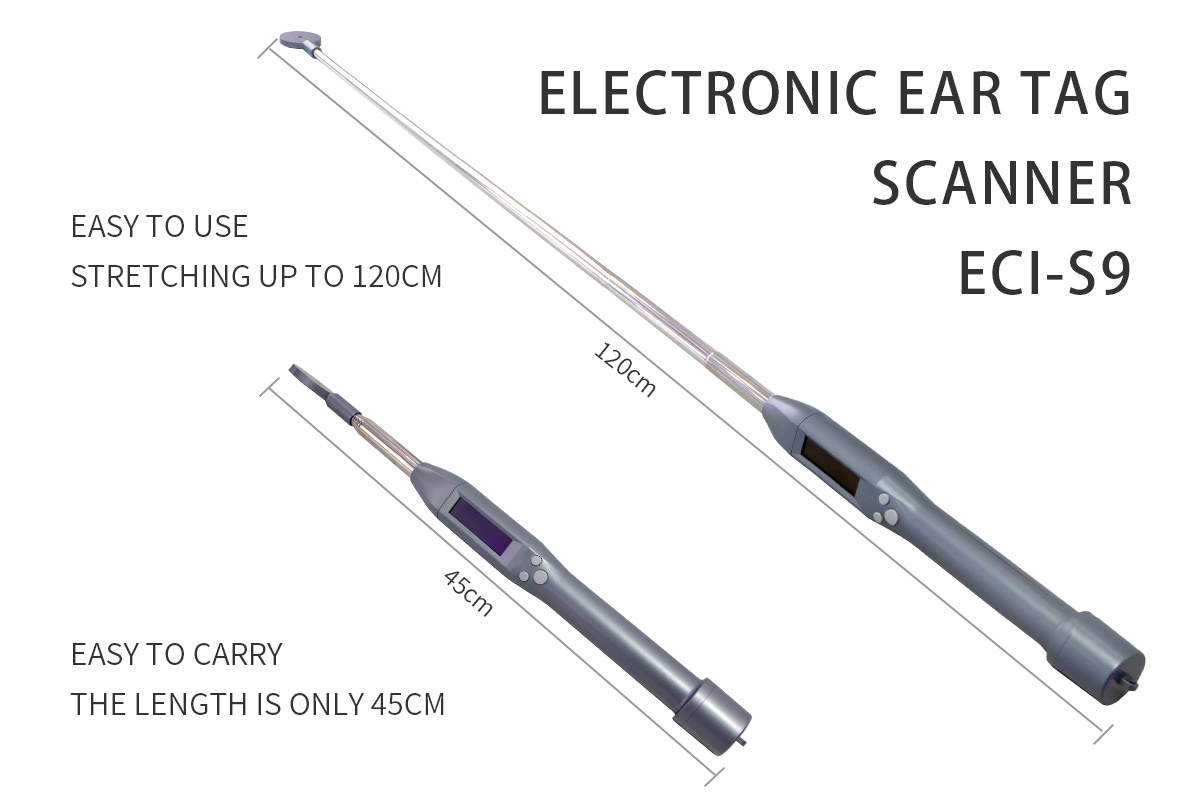

Compact and Portable Design: Weighing only 300 grams, this scanner is easy to carry and use in the field, making it ideal for on-site animal identification and monitoring.

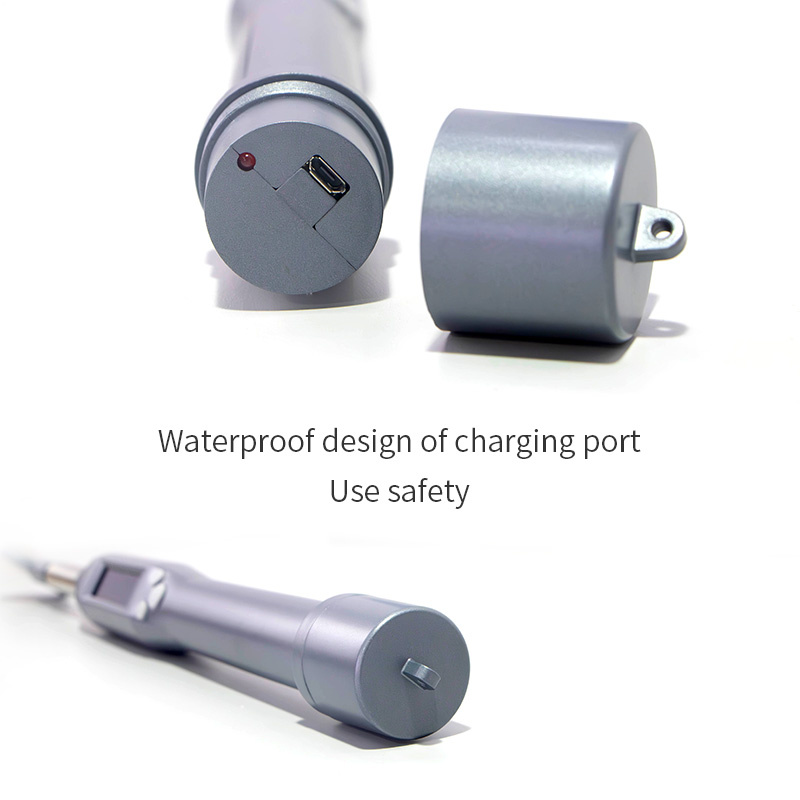

Long Battery Life: The scanner can be easily recharged through the USB port for convenient and efficient charging, ensuring long battery life, minimizing downtime and increasing productivity.
Compliance with International Standards: The scanner is compliant with ISO 11784/5, FDX-B and HDX standards, ensuring compatibility with a wide range of microchips and meeting the requirements of a variety of animal husbandry industries around the world.

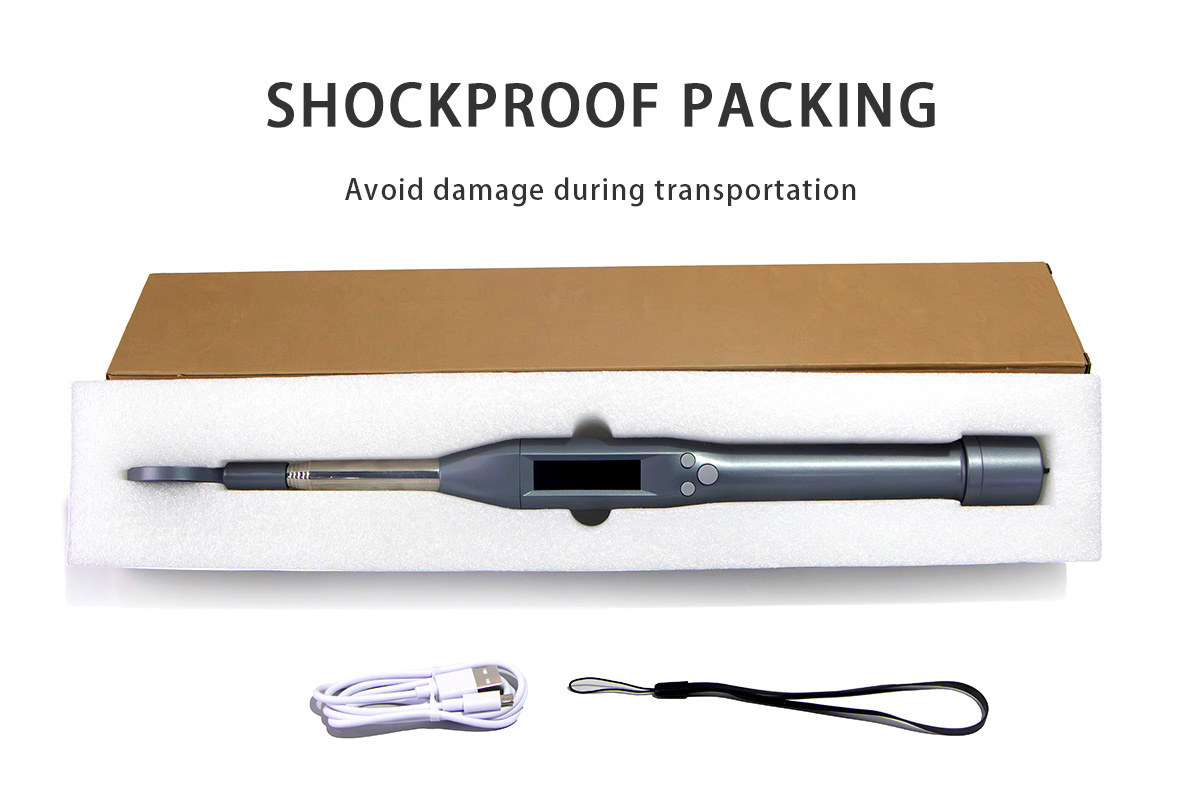

Packing List
● Electronic ear tag reader
● Charger
● User guide
● Lanyard
