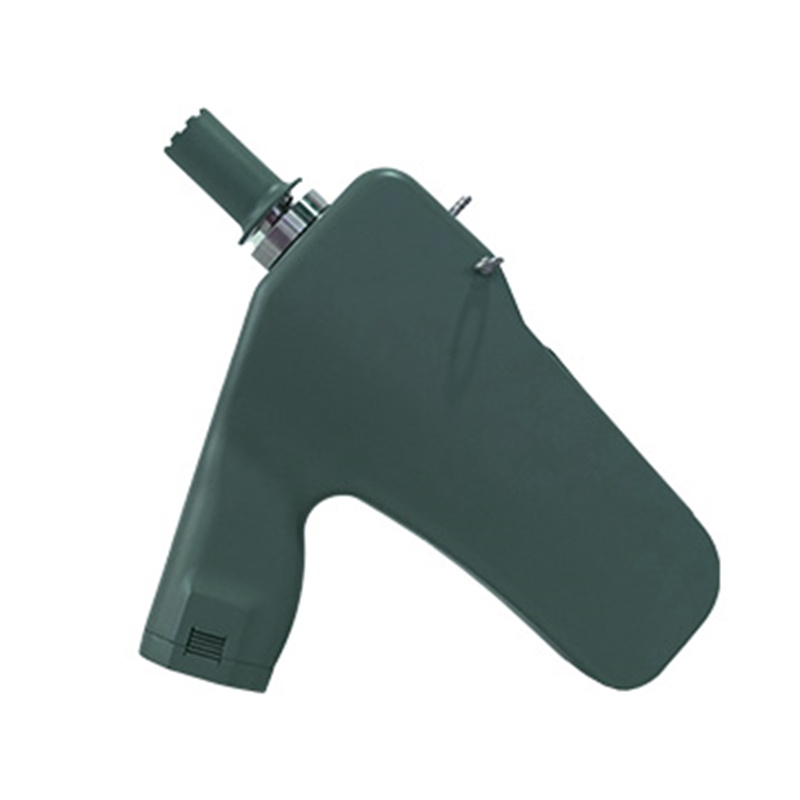

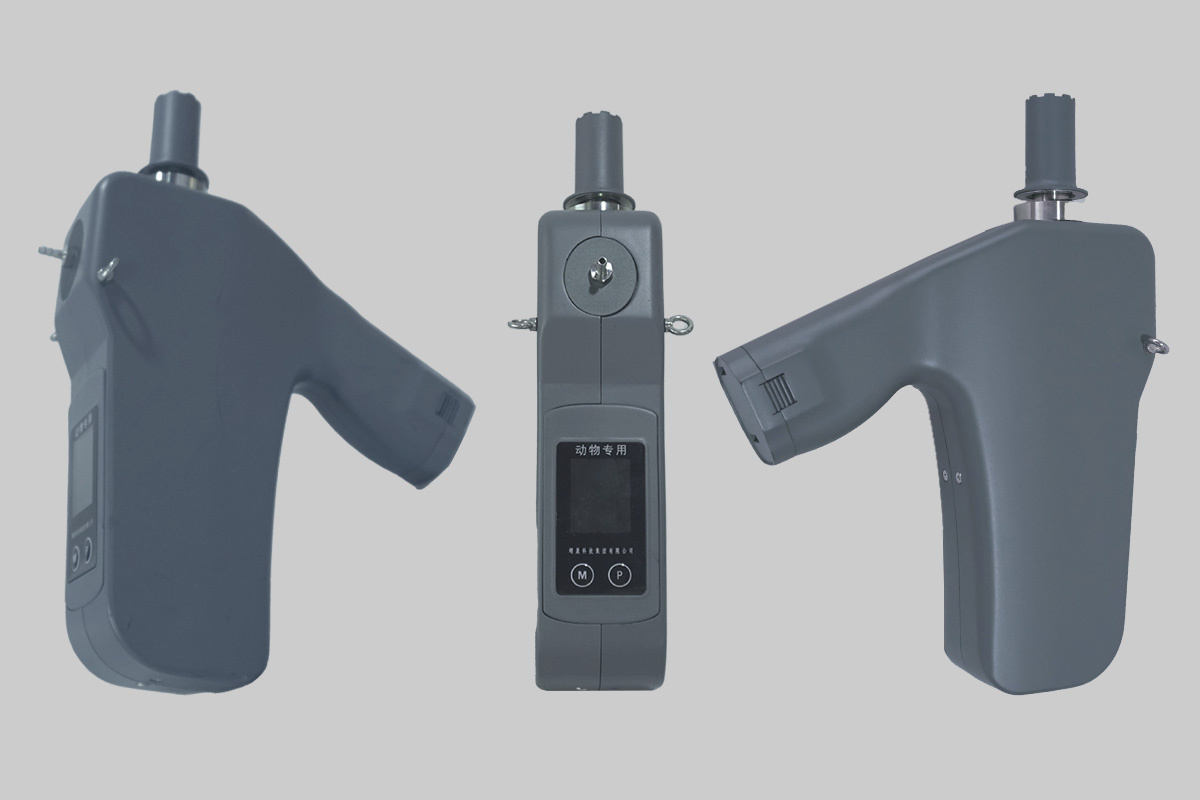

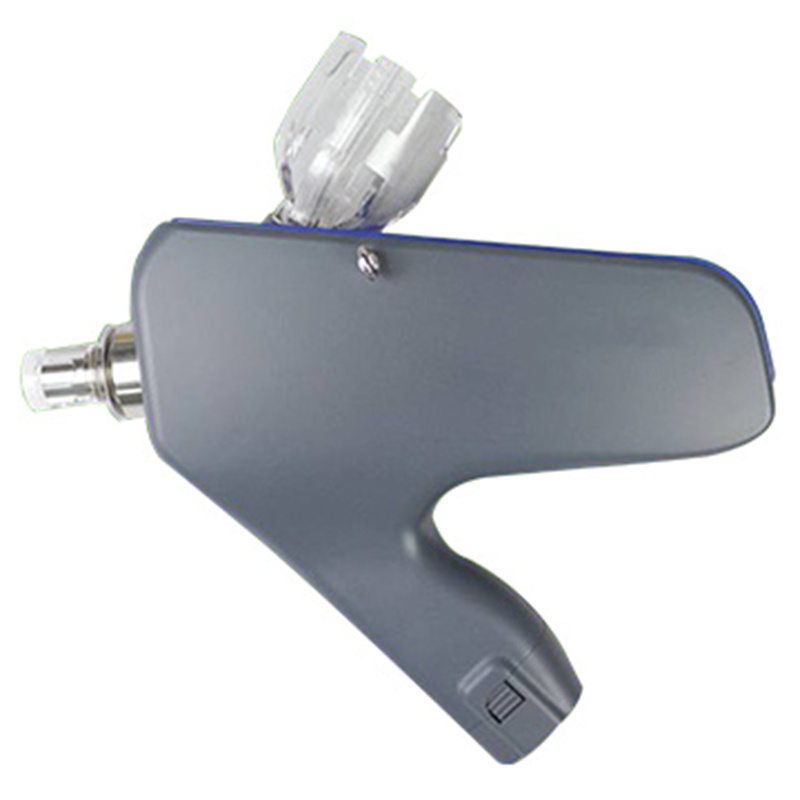

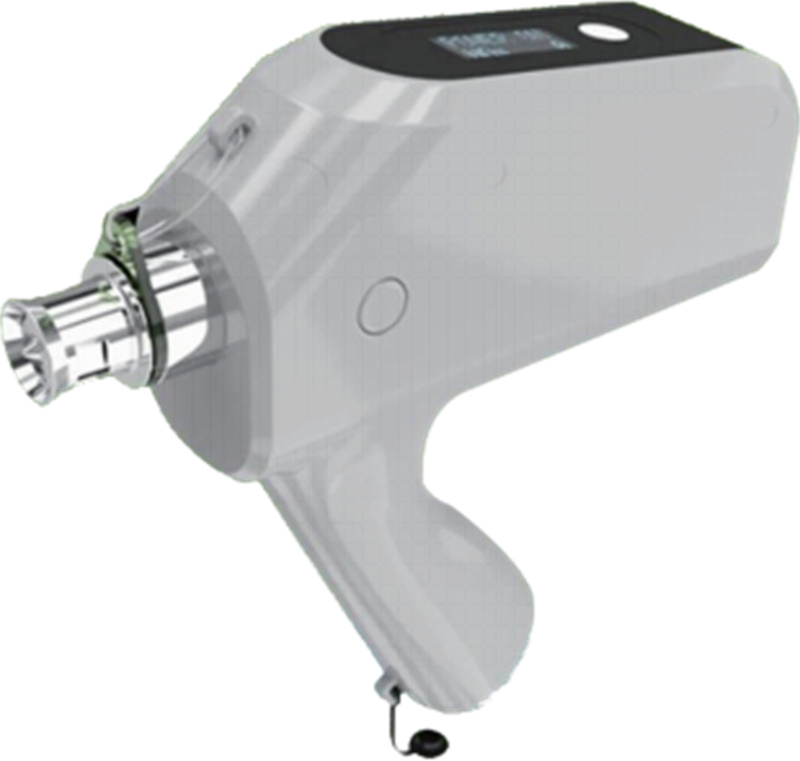

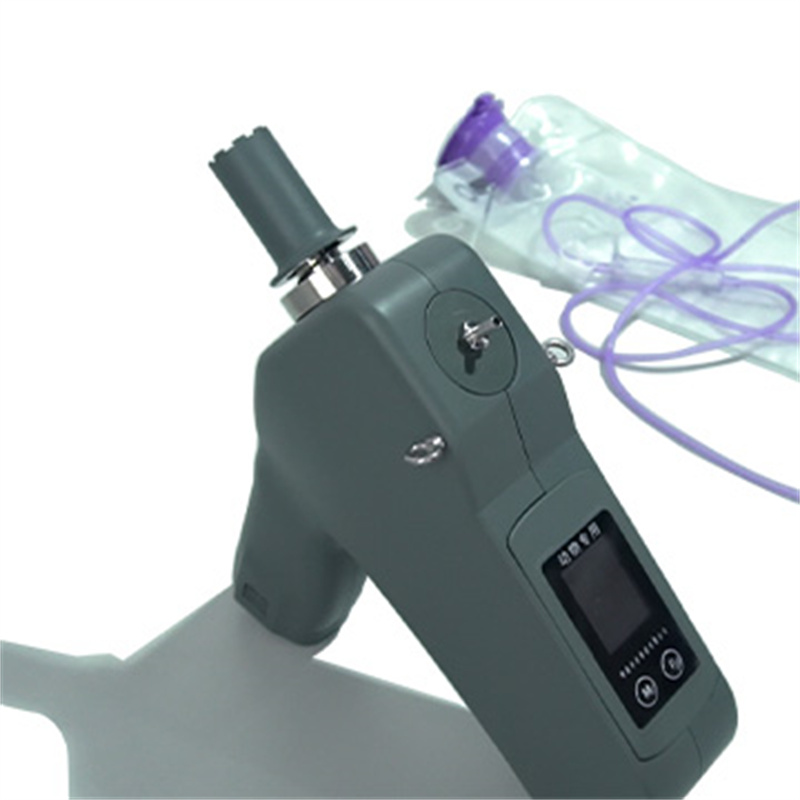

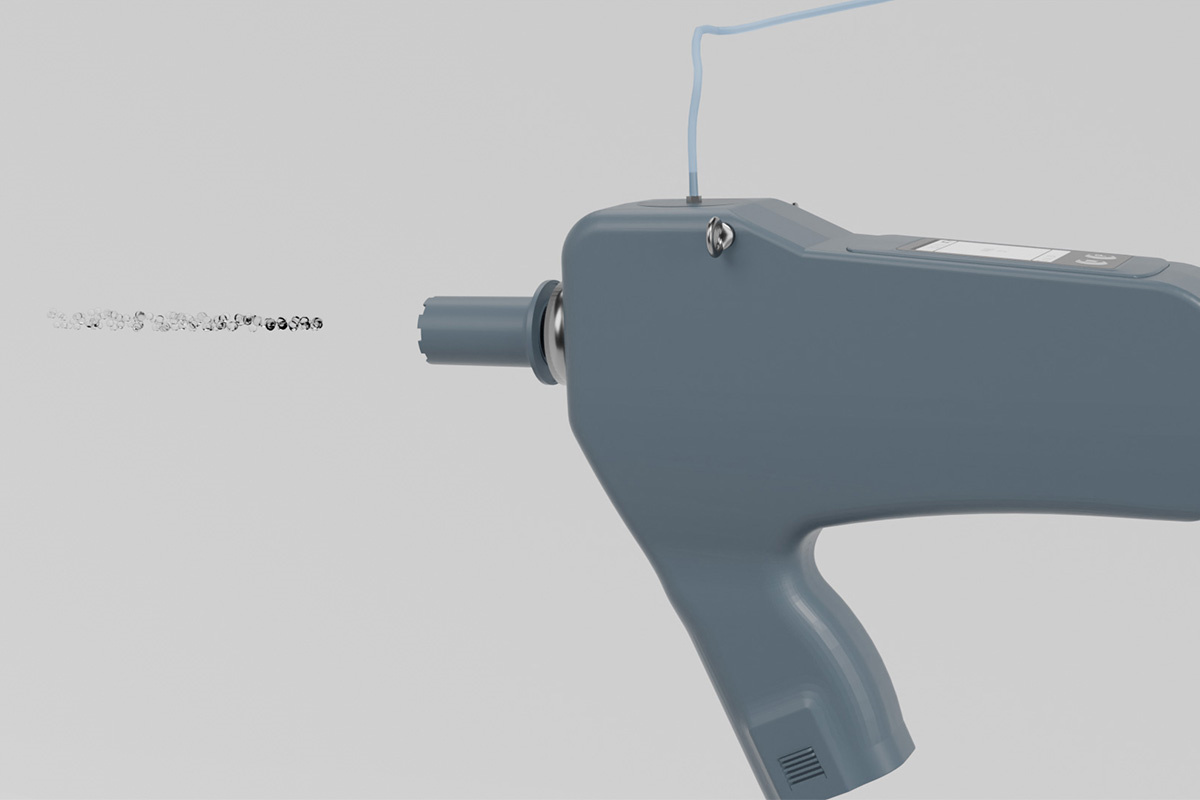

ECI-T2 Pig Needle-free Injector
Description Of Needle-free Injector
The ECI-T2 veterinary needle-free injector is a new type of vaccine delivery device. It offers the advantages of easy operation, fast injection time, no infection or cross-infection, and no stress response in animals. The system is handheld and can perform continuous rapid injections, with a single charge enabling over 1,000 injections. This type of veterinary needle-free injector is primarily suitable for vaccine injections in pigs.
Product Parameter
|
Type |
ECI-T2 |
|
Immunology |
Intradermal immunity |
|
Type of vaccine |
Oil solution |
|
Injection time |
1.5s/st |
|
Storage Temp. |
-20℃~65℃ |
|
No. of injections |
>1800 times |
|
Injection volume |
0.5ml |
|
injection speed |
1200 times/h |
|
Waterproof level |
IP54 |
|
Volume |
20/50/100ml |
|
N.W. |
1700g |
|
Size |
180*160*60mm |
Needle-free Injector Advantage
● High injection efficiency, with each injection taking only 1.5 seconds.
● Prevents cross-contamination, as there is no needle contact with the skin, effectively avoiding cross-contamination between vaccinated animals.
● Cost-effective, as there is no need to frequently replace needles, thereby saving on consumables.
● ECI-T2 Needle-free Injector has an injection volume of 0.5 ml, reducing drug residue and ensuring food safety.
● Long-lasting battery life, using a high-capacity lithium battery that can perform over 1,000 injections on a single charge.
How to use the Needle-free Injector?
1. Insert the battery into the needle-free syringe in the correct direction.
2. Insert the bottle holder from top to bottom and tighten it.
3. Insert the bottle into the needle and press down firmly.
4. Press and hold the P button for about 2 seconds, then press the M button to start the injection function. The number displayed on the screen indicates the number of injections. Turn on the machine.

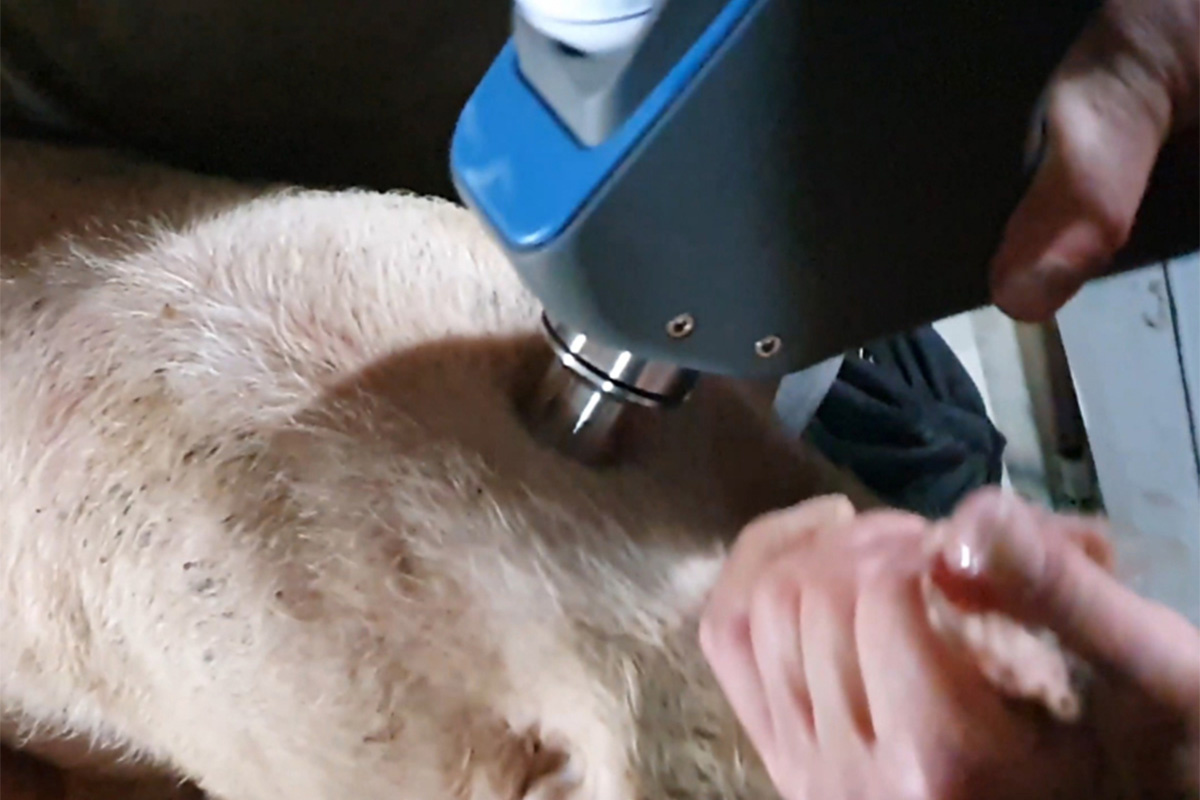

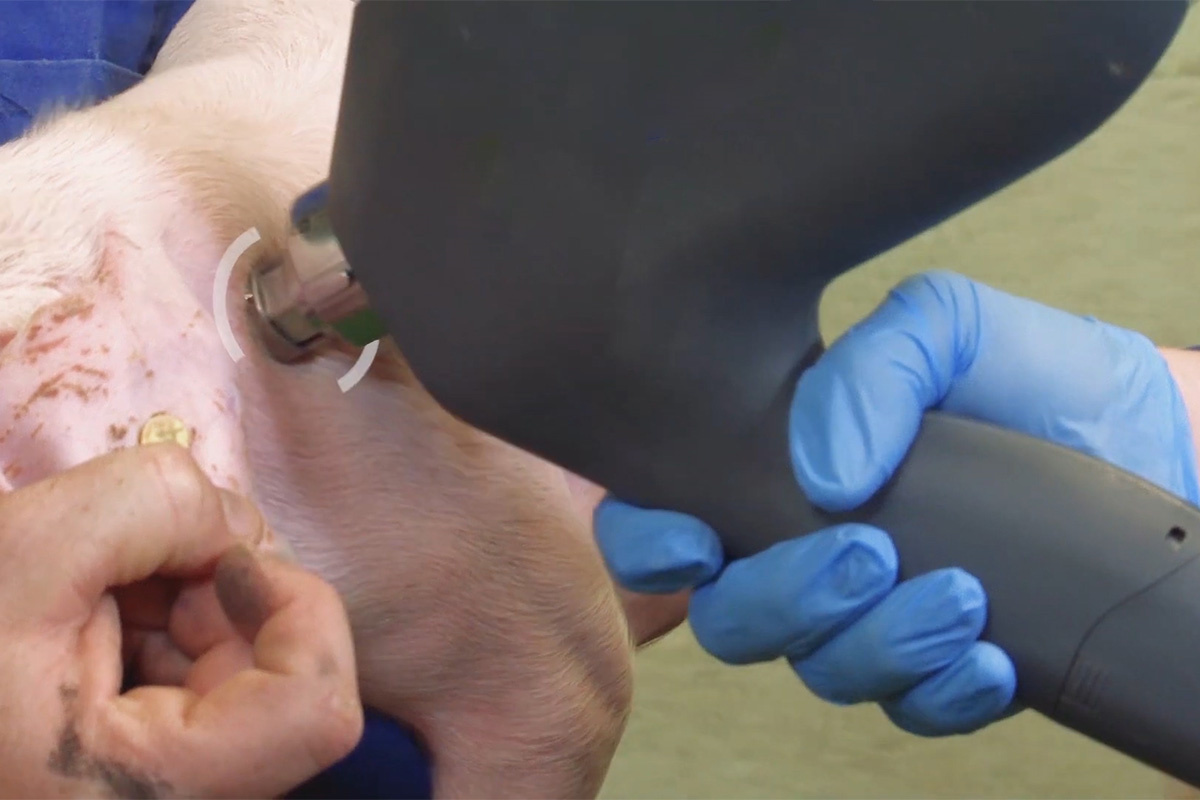

5. Start the injection. Generally, injections are given in the neck area. Find the correct position, press vertically against the skin, and complete one injection.
