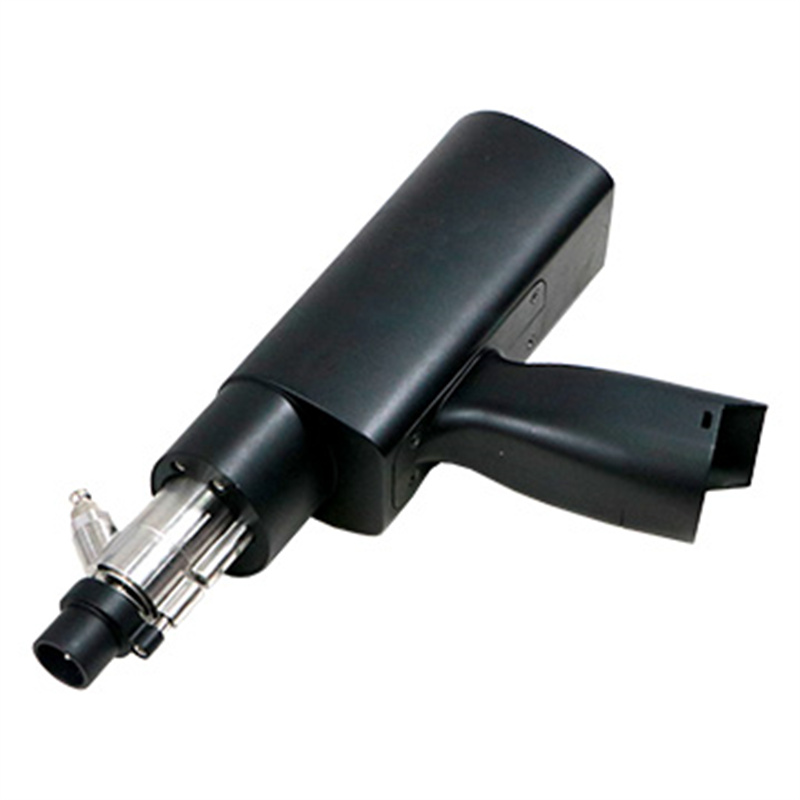

ECI-T4 Veterinary Intelligent Needle-Free Injector for Piglet Vaccination
Introduction of Needle-free Injector

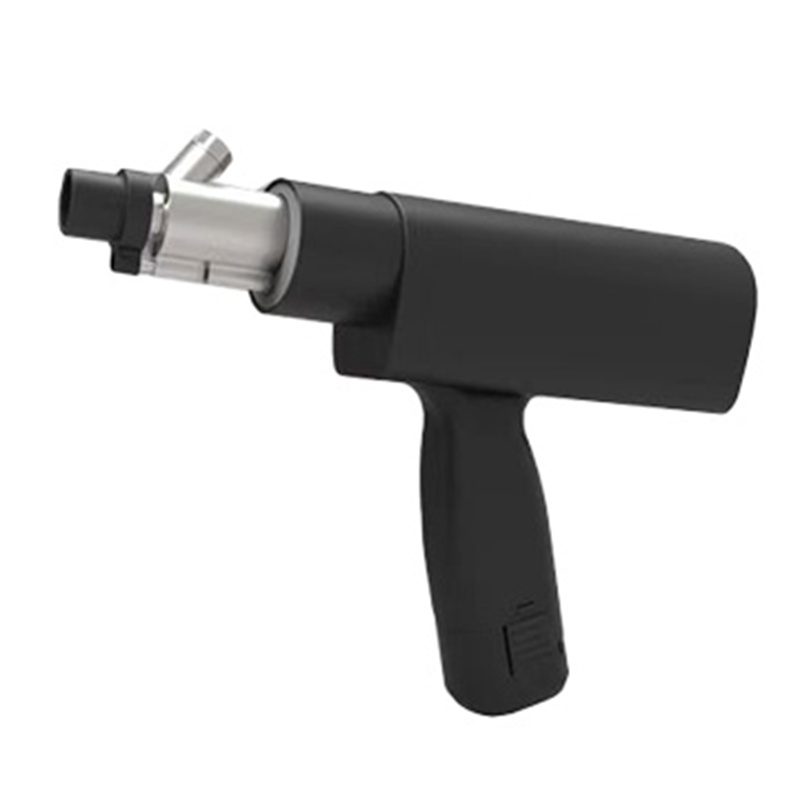

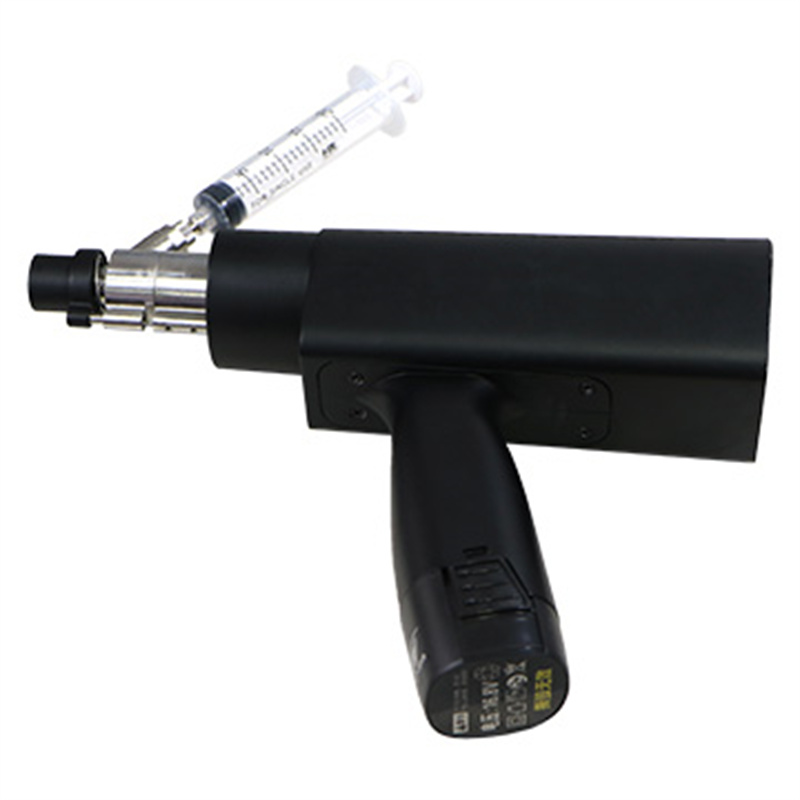

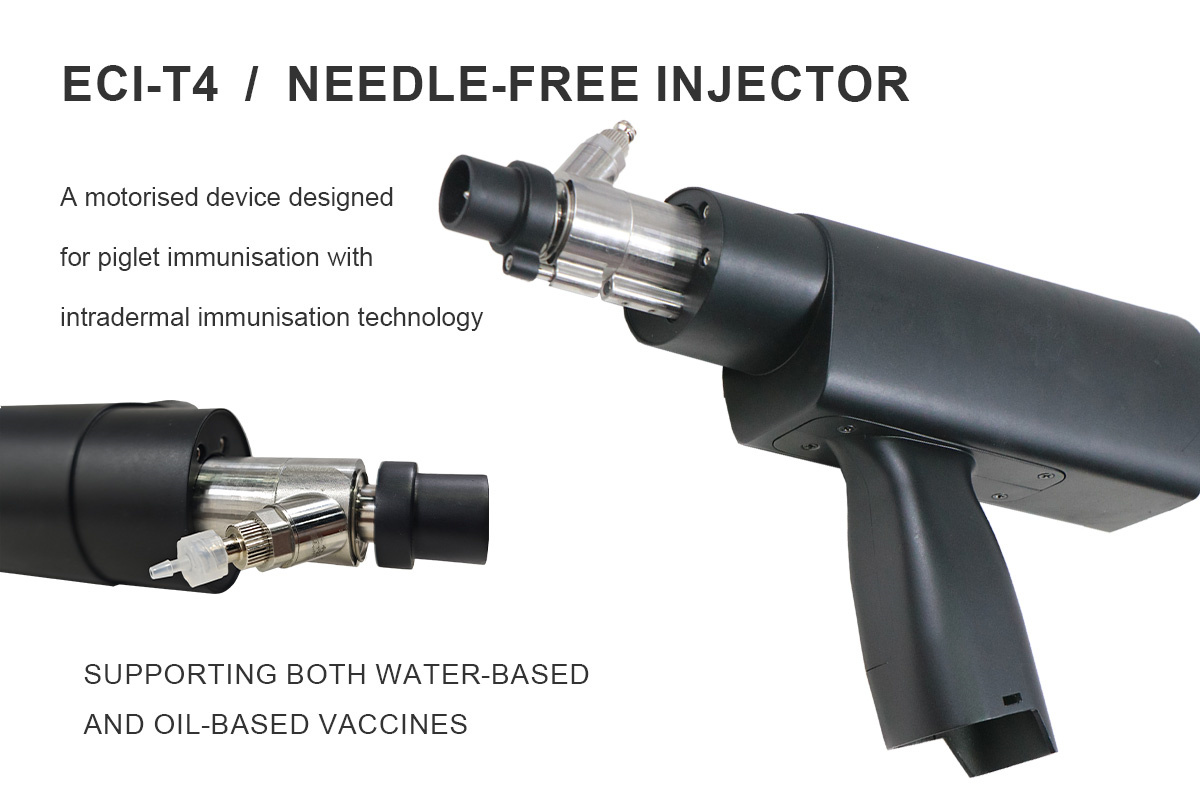

ECI-T4 Veterinary Needle-Free Injector is a motorised device designed for piglet immunisation with intradermal immunisation technology, supporting both water-based and oil-based vaccines. Needle-free injector injects vaccines into the superficial skin layer (not the muscle layer) in an atomised form by means of a high-pressure jet (0.1 seconds), avoiding tissue damage and abscesses caused by traditional needles. The single injection volume is 0.2ml or 0.5 ml, which is suitable for a wide range of vaccine types, e.g. swine fever aqueous vaccine or foot-and-mouth disease oil adjuvanted vaccine, and can be injected efficiently. The needle-free design eliminates cross-contamination, improves injection efficiency and safety, and reduces vaccine costs.
Using video of Needle-free Injector
Technical Specification
|
Type |
ECI-T4 Needle-free Injector |
|
Immunology |
Intradermal immunity |
|
Injection angle |
Horizontal down |
|
Injection time |
0.1s |
|
Diameter of injection port |
0.2mm |
|
Service life of the seal |
≥50000 |
|
Record of number of injections |
4.2bi |
|
Injection volume error |
≤1% |
|
Vaccine utilization rate |
≥95% |
|
Type of vaccine |
Aqueous &Oil solution |
|
No. of injections |
>5000 times/charge |
|
Injection volume |
0.5ml |
|
injection speed |
1200 times/h |
|
Body length |
280mm |
|
Battery weight |
200g |
|
Battery capacity |
3200mAh |
|
Vaccine bag volume |
3000ml |
|
N.W. |
1380g |
|
Size |
350*300*165mm |
Main Usage
Needle-free Injector is suitable for intramuscular inoculation of piglets without needles with an injection volume of 0.5 ml. The injection sites are the neck, behind the ears and buttocks.
Needle-free Injector Advantage
● Bio-security: blocking cross-infection caused by immunisation of pigs and cutting off the blood-borne transmission of pathogens.

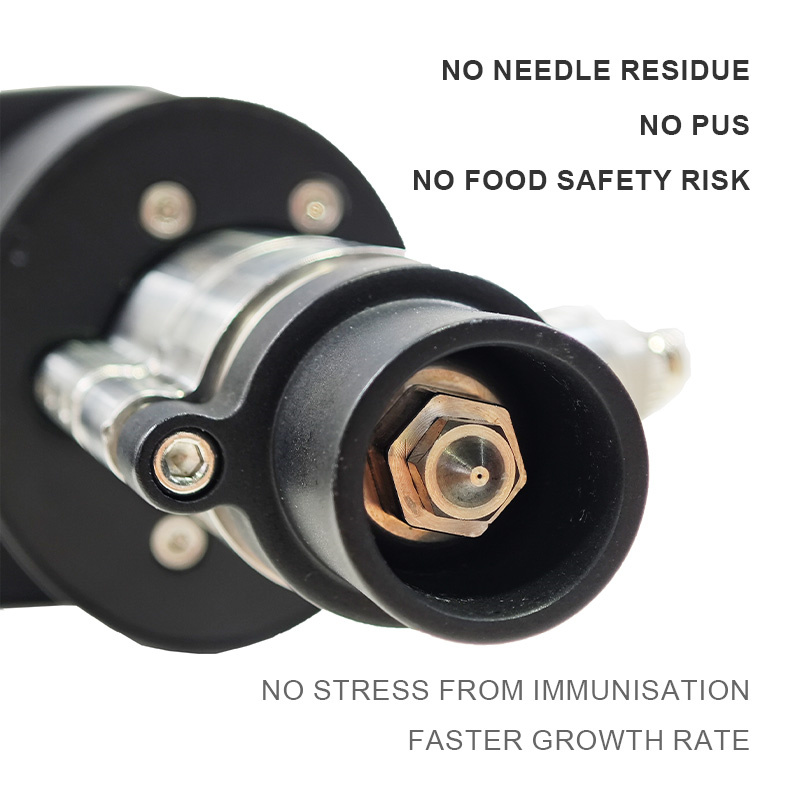

● Carcass quality: no needle residue, no pus, no food safety risk.
● Immunisation cost: longer and more efficient immune response, less vaccine consumption, lower immunisation cost.
● Simple operation: no need to change needles, automatic disinfection and marking, expanding the injection site, injection efficiency increased 2-3 times
● Growth rate: no stress from immunisation, faster growth rate.
Shipping and storage

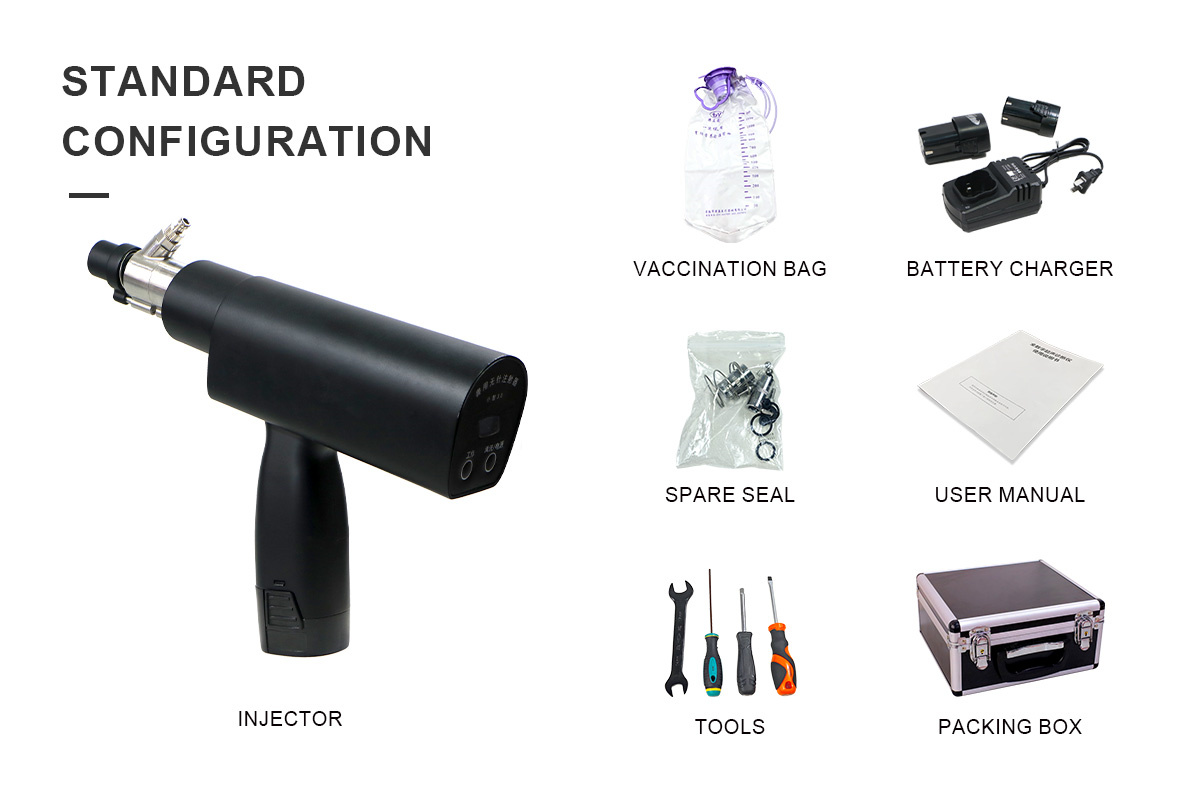

Packing list: Needle-free injector, User manual, Packing case, Battery charger, Vaccination bag, Syringe for cleaning, Spare seal, Tools
Dimension: 380*350*175mm
G.W.: 6kg
Note:
1. Protect the needle-free injector from external forces (e.g. bumps, shocks and knocks) during transport. Check the needle-free injector for any damage caused by transport before use.
2. Transport and store needle-free injector in their original packaging.
3. Store needle-free injector protected from sunlight.
4. Never store needle-free injector in a wet environment or under humid conditions (e.g., after cleaning).
