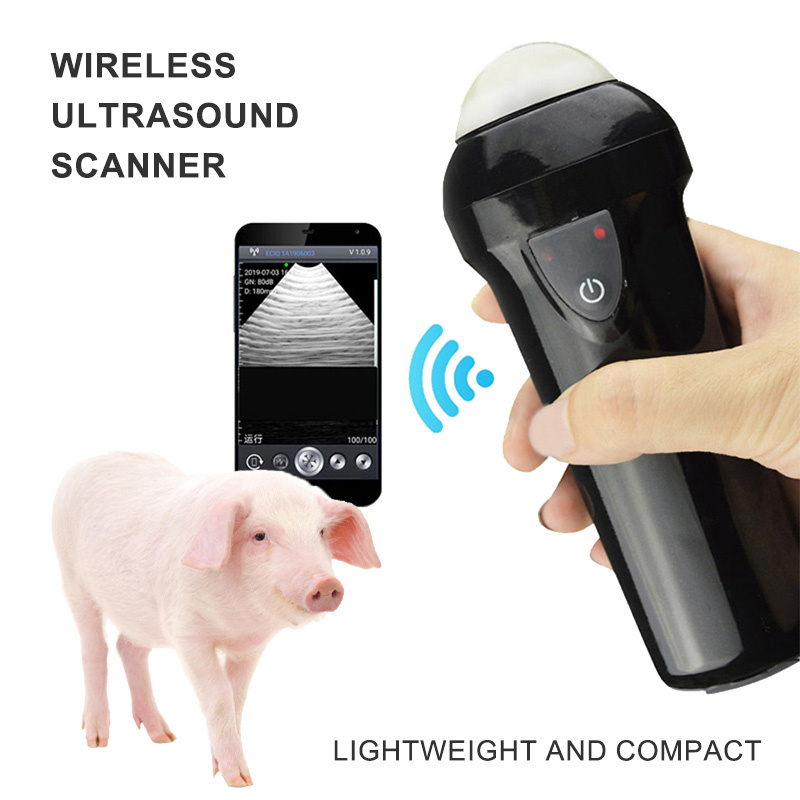

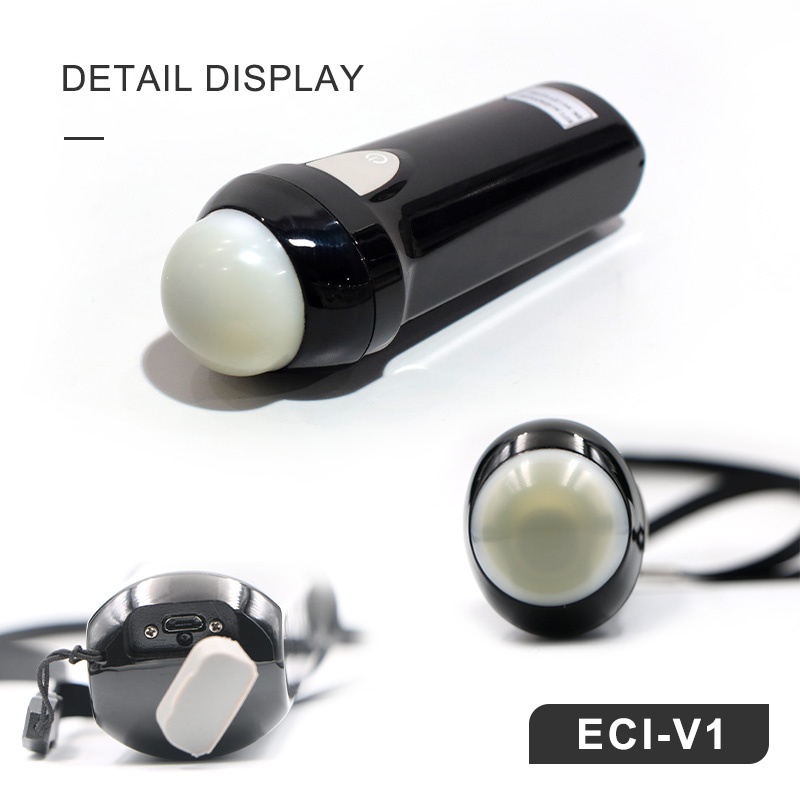

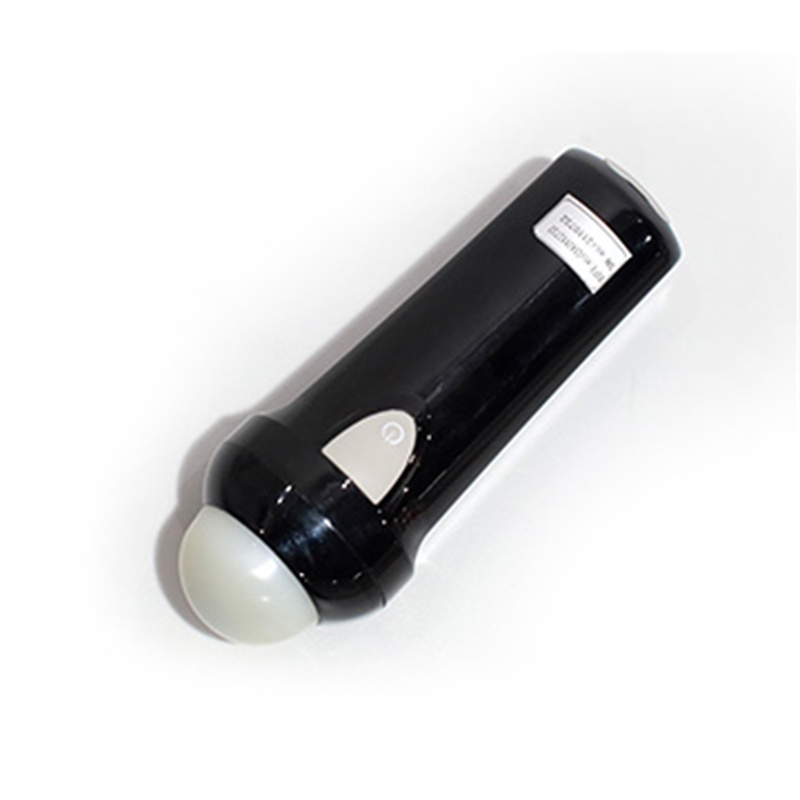

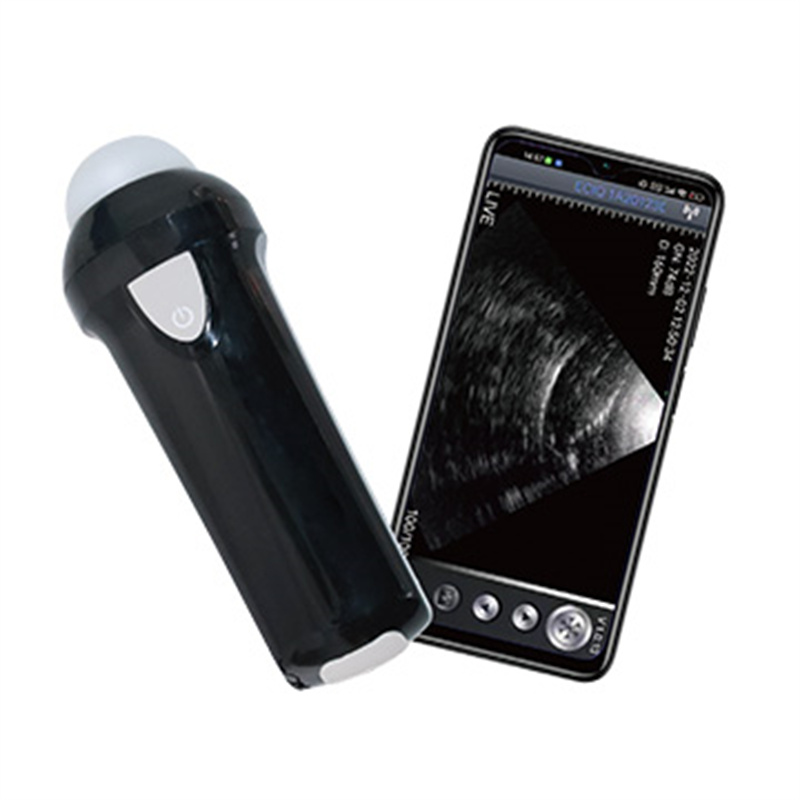

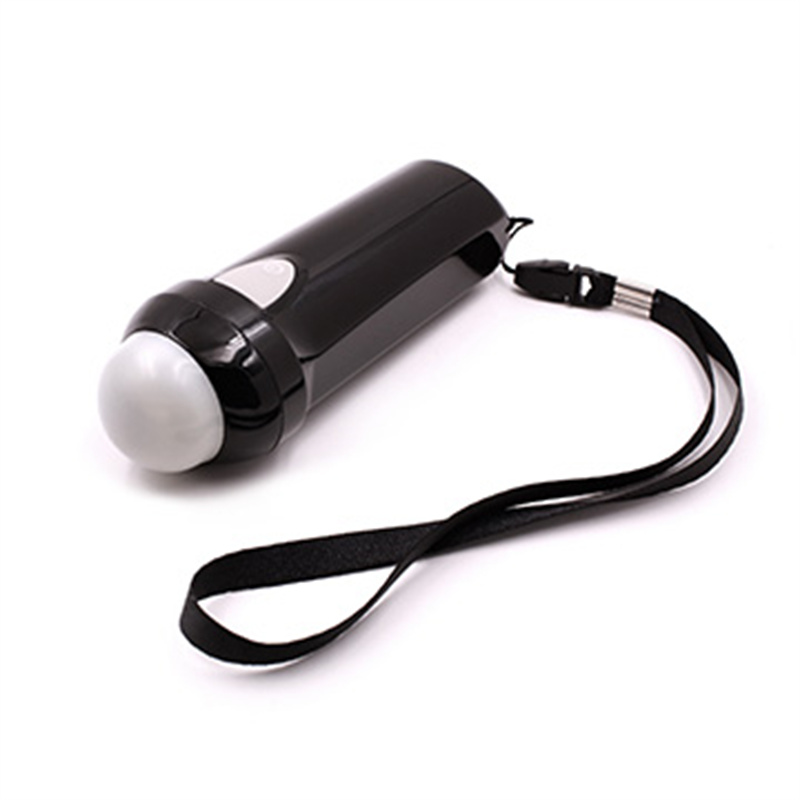

ECI-V1 Intelligent Wireless Animal Ultrasound Probe
Brief Introduction
● Suitable for pigs, sheep and other animals. Mechanical probe, 3.5 MHz mechanical sector scanning probe, scanning depth ≥140mm. The operation is simple and portable.
● Note—This equipment is two-dimensional imaging and requires professionals to use it. The APP interface is very friendly and has excellent synchronization.
● The high-definition image lag can freely display the patient's health status, helping you to better confirm the patient's health status.

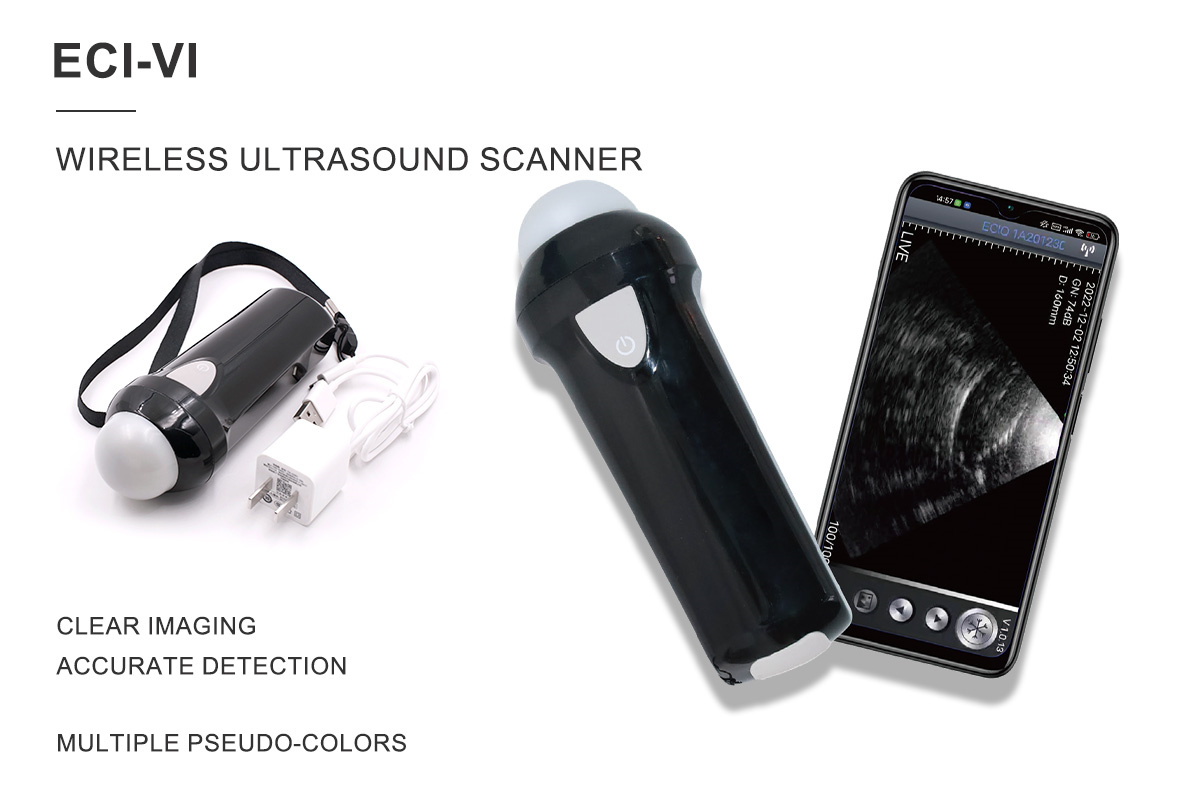

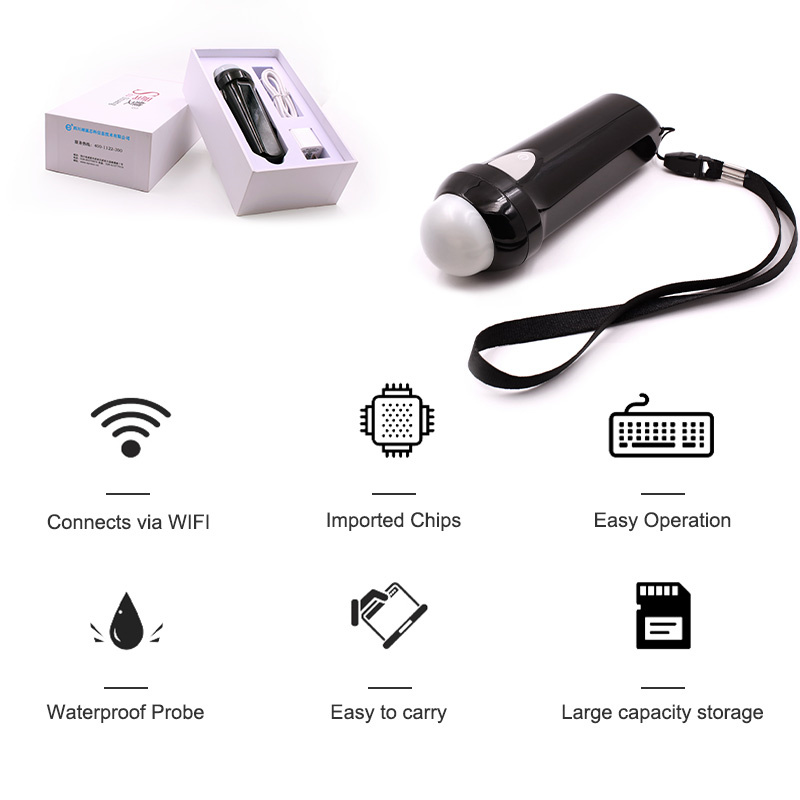

● Compatible with all versions of Android Wi-Fi devices, such as smartphones and tablets (please note that the screens of these devices should be touch screens).

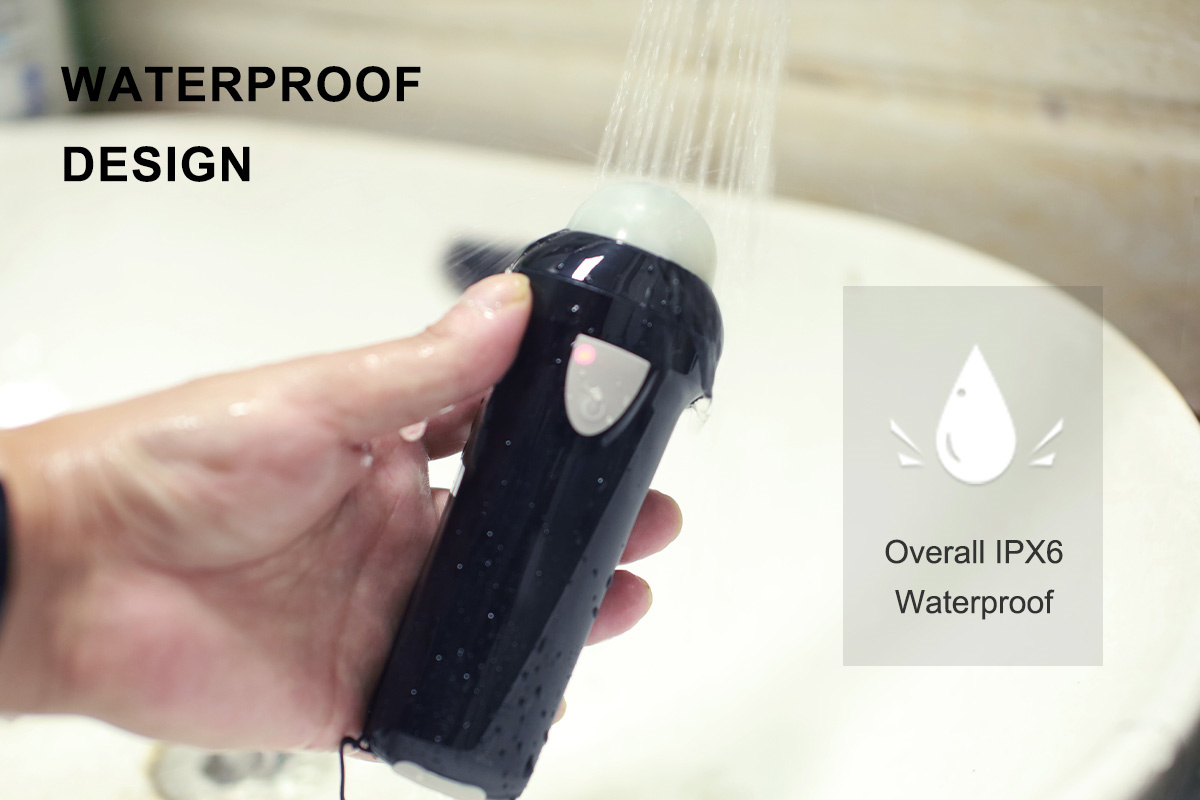

● The scanner is waterproof and easy to disinfect and clean. In addition, handheld and wireless design, whether indoors or outdoors, can be more easily carried and operated.
● Built-in large-capacity lithium-ion battery, can work continuously for 2 hours. In addition, it also has a battery power indicator, so you don’t need to worry about running out of power in the scanner during the diagnosis process. The best charging time for the host is 2 hours. Please remember to charge or discharge for a long time.
Using video
Product Parameters
| Type | ECI-V1 | |
| Probe | 3.5MHz maglev probe | |
| Detection depth (mm) | ≥140mm | |
| Resolution (mm) | Lateral | ≤4(depth≤80）≤5(depth≤130) |
| Axial | ≤2(depth≤80) | |
| Dead zone (mm) | ≤8 | |
| Geometric position accuracy (%) | Horizontal | ≤20 |
| Axial | ≤10 | |
| App | Android | |
| Scanning mode | B | |
| Storage | Depends on the Android phone and pad | |
| Depth | 60~190mm | |
| Pseudo-color | RGB | |
| Magnification | 4Lv. (1~2X) | |
| Gray scale | 256 | |
| Battery | 3400mAh | |
| Working time | ≥4.5h | |
| N.W. | 240g | |

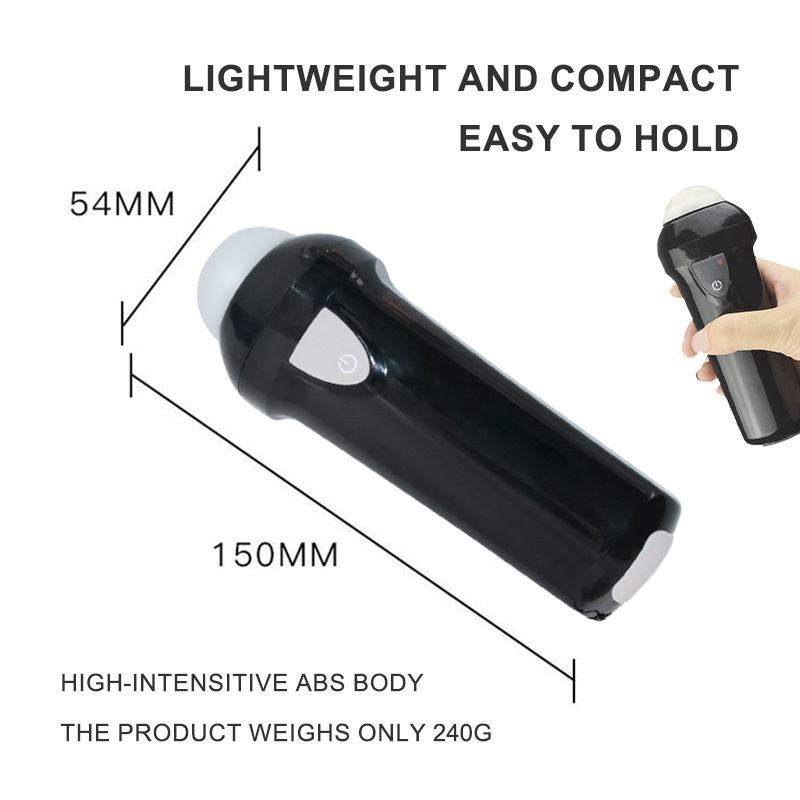

| Size | 150*54*45mm | |
Testing Position
1. The best place to test is 10-15 cm above the base of the second pair of nipples. Tilt the probe forward 45 degrees.
2. Apply gel to the top of the probe.
3. The test is performed 25 days after mating.
Note: when the skin is too dirty, clean the test position first, the effect will be better
Pregnancy diagnosis
After mating: the early stage is black gestational sac.
After mating: the bones are white in the late stage, The shape is a white arc.
The inflammation shows black and disordered small particles.
-

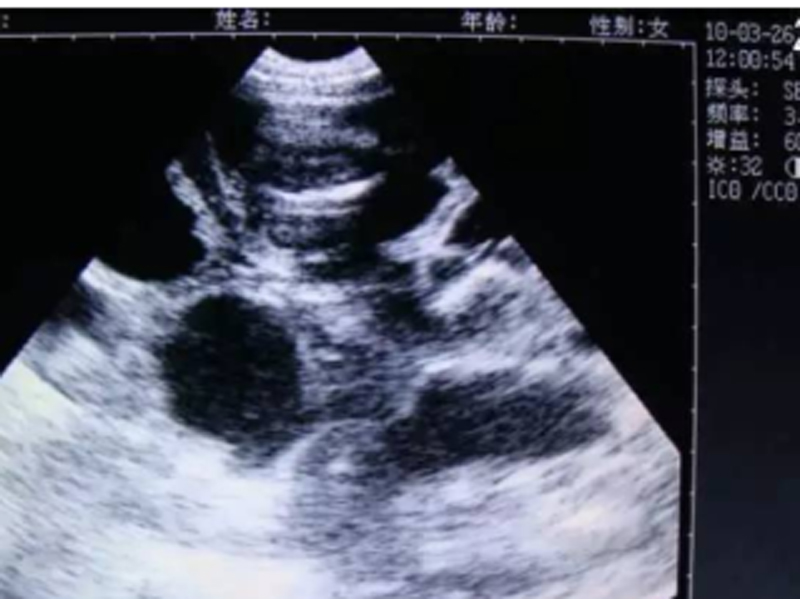

25 days after mating -

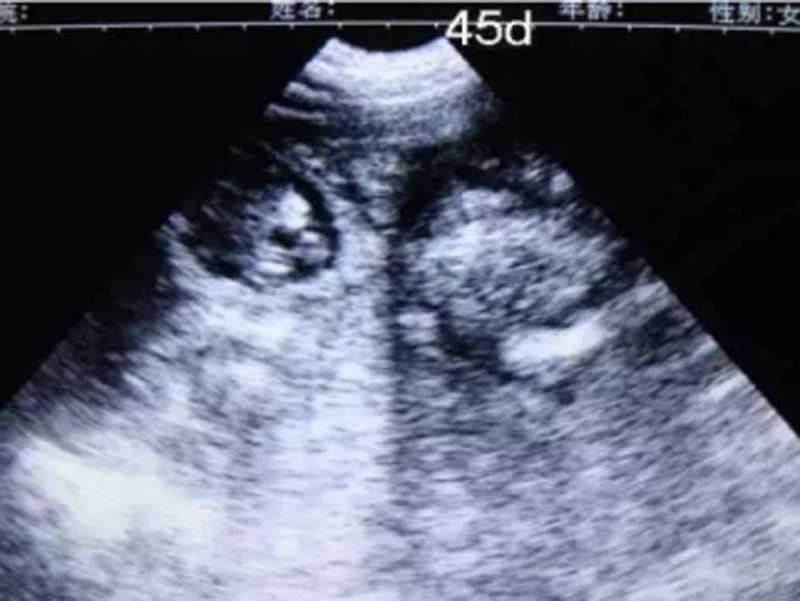

45 days after mating
-

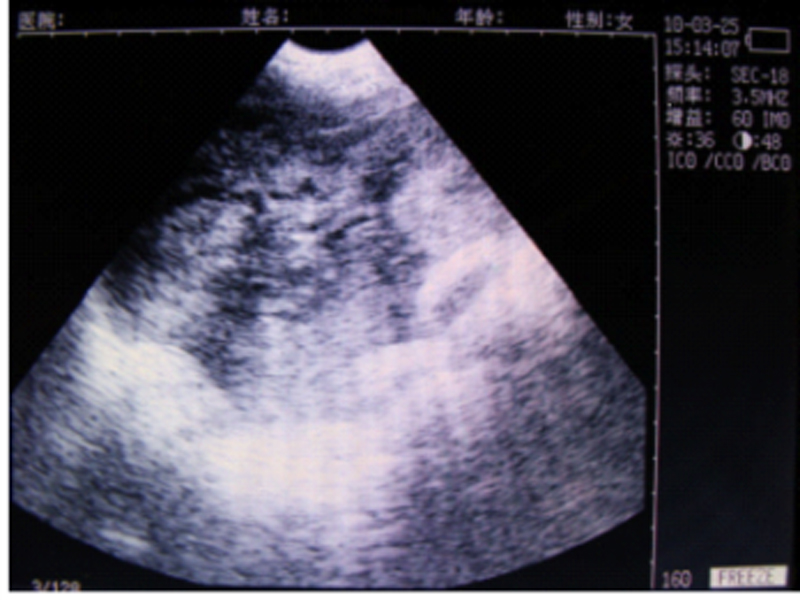

Non-pregnant -
Inflammation
