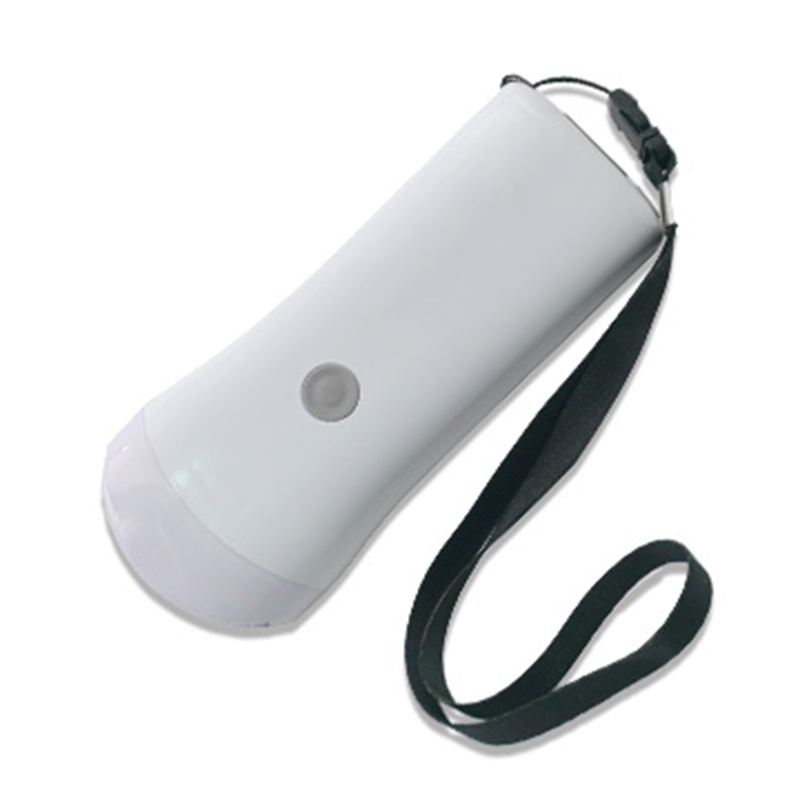

ECI-V80 WiFi Wireless Ultrasound Scanner for Pregnancy Detection
Description

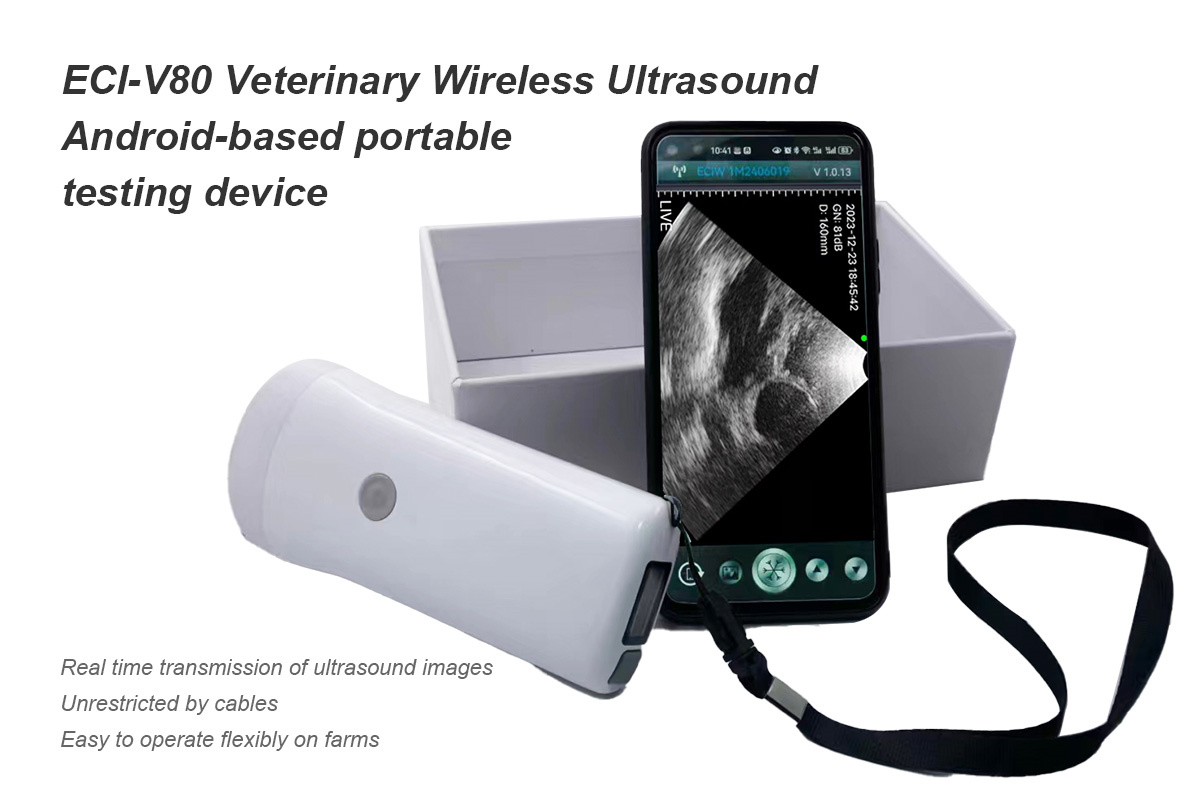

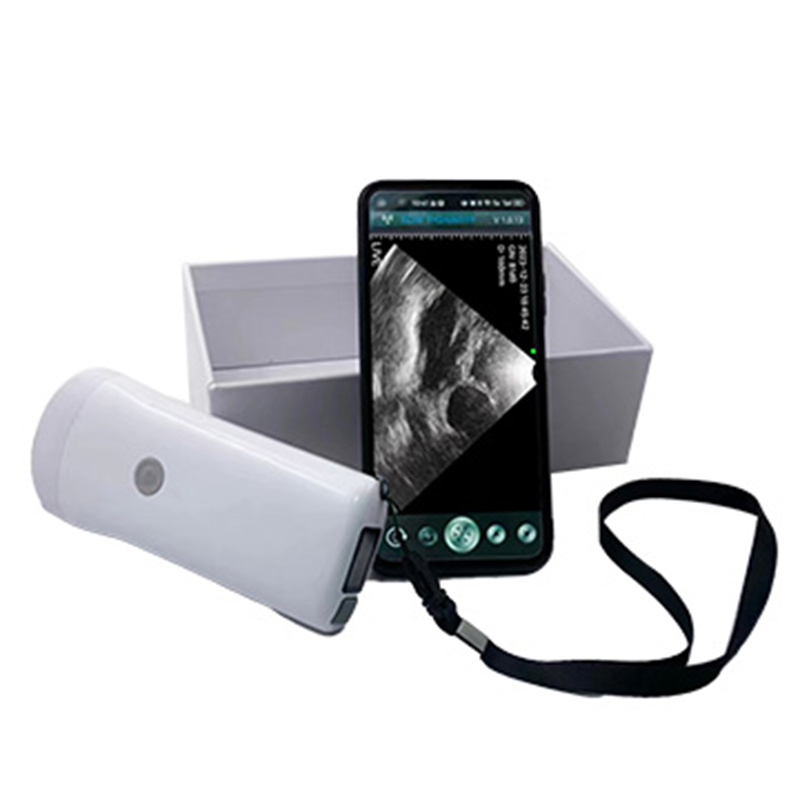

The device connects to Android mobile phones or tablets via WiFi (special app required), transmitting ultrasound images in real time, free from cable limitations, and easy to operate flexibly on the farm. 8-channel 80-elements probe technology enhances image resolution and, with a depth of detection of 90-200mm, it can clearly capture images of mid- and late-pregnancy embryos (e.g., pigs can be detected after 25 days of gestation). 16-colour pseudo-colour display enhances tissue contrast and helps distinguish embryos from surrounding tissues. 3000mAh battery provides all-day testing requirements. IPX6 waterproof design allows for direct rinsing and disinfection, and the lightweight body (approx. 450g) makes it easy to carry to the farm or pet hospital. Through the wireless and paperless testing process, it helps farmers to quickly screen for infertile individuals, optimise the breeding plan, reduce the loss of empty pregnancies, and improve the efficiency of large-scale breeding management.
Technical Specification
| Type | ECI-V80 | |
| Probe | 3.5MHz convex probe | |
| Detection depth (mm) | ≥140mm | |
| Resolution (mm) | Lateral | ≤1(depth≤60） |
| Axial | ≤1(depth≤80) | |
| Dead zone (mm) | ≤3 | |
| Geometric position accuracy (%) | Horizontal | ≤5 |
| Axial | ≤5 | |
| App | Android | |
| Element | 80 | |
| Channel | 8 | |
| Scanning mode | B | |
| Storage | Depends on the Android phone and pad | |
| Depth | 90~200mm | |
| Pseudo-color | 16 | |
| Magnification | 4Lv. (1~2X) | |
| Gray scale | 256 | |
| Battery | 3000mAh | |
| Working time | ≥3h | |
| N.W. | 200g | |
| Size | 165*68*26mm | |
Main Features

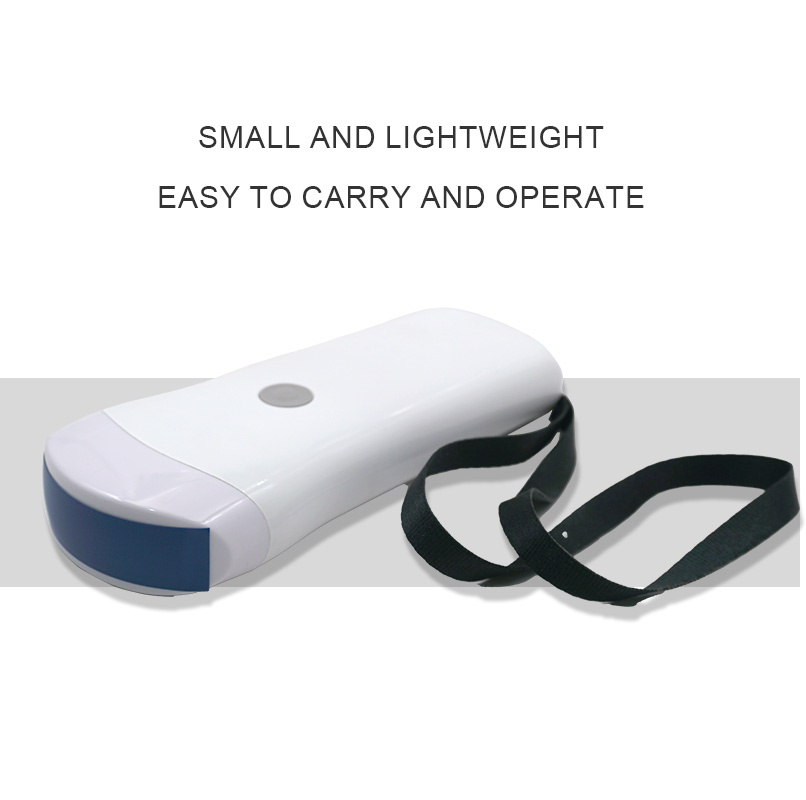

● Cost-effective. Small and lightweight, easy to carry and operate. Compatible with Android Wi-Fi enabled devices such as smartphones, tablets and laptops.

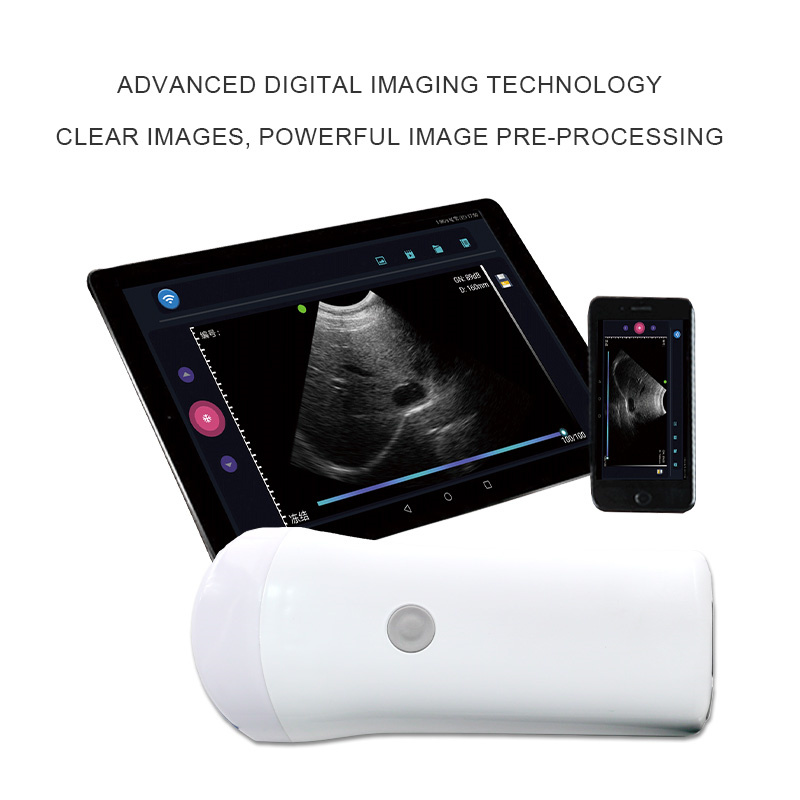

● Advanced digital imaging technology, clear images, powerful image pre-processing, image adjustment: gain, depth.
● Image and video storage: can save the pregnancy test records, know the pregnancy of all animals.
● 3.5 MHz electronic scanning probe, scanning depth 100-280mm.
● scanner is waterproof, easy to sterilise and clean. This portable wireless design makes it easier to carry and operate indoors and outdoors.
● Built-in high-capacity lithium-ion battery with 3.5 hours of continuous operation. Combined power supply mode of AC adapter and built-in rechargeable lithium-ion battery, power-saving mode makes the battery run longer.
Product Packing

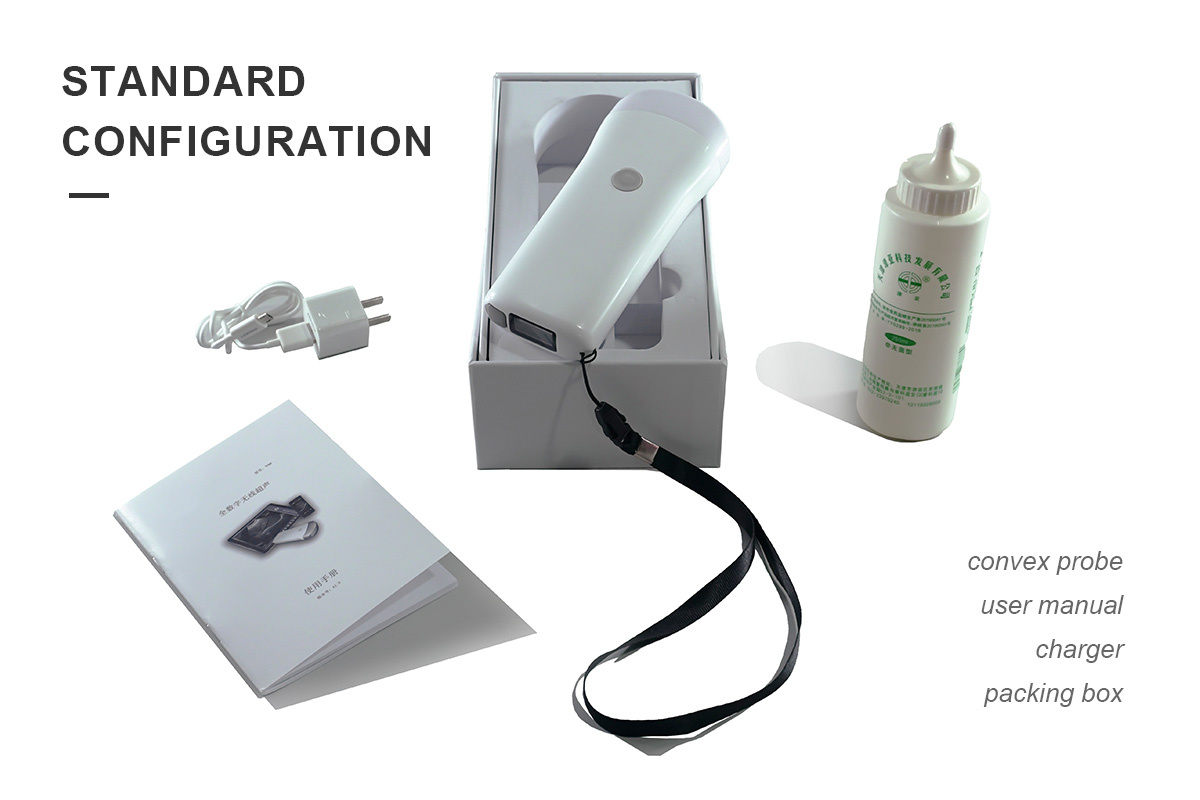

Standard configuration: convex probe, user manual, charger, packing box
Dimension: 190*110*60mm
Gross weight: 1kg
