ECI-V96 Wireless Color Doppler Ultrasound Scanner with a Variety of Replaceable Probes
Description

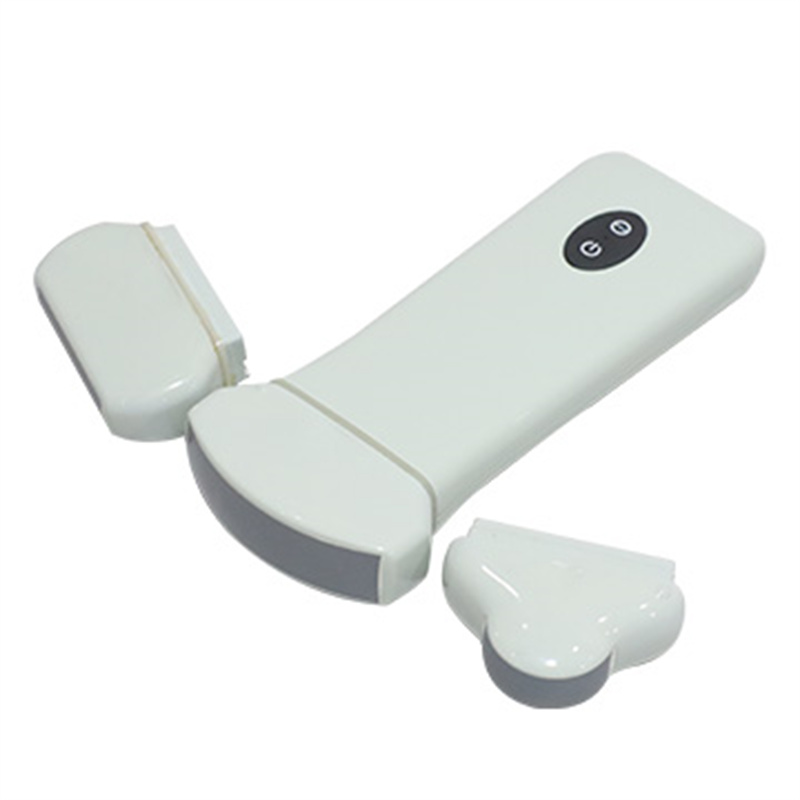

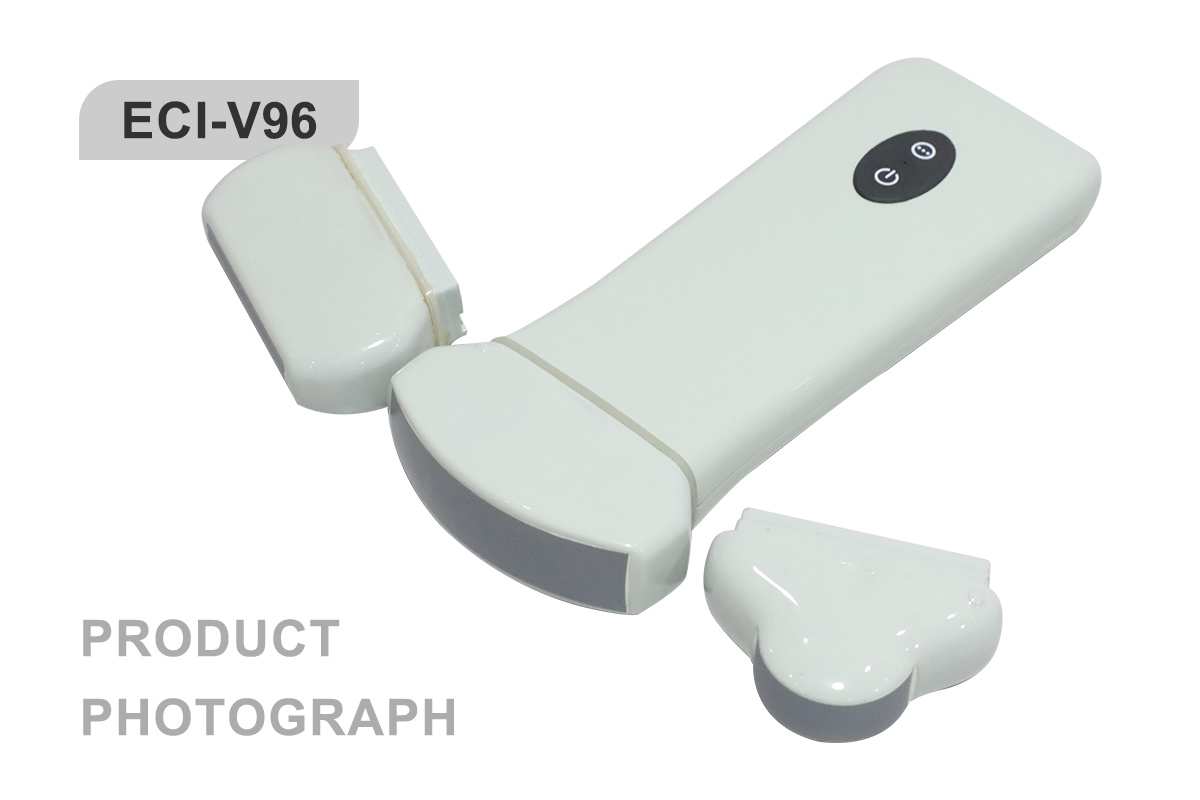

The ECI-V96 is a wireless ultrasound scanner for pregnancy detection in a variety of animals. The head of the device can be removed and replaced, and the probe types include linear, convex , micro-convex, and convex array rectal. A variety of probes are available to suit different animals. The WiFi connection is designed to facilitate the carrying of the probe on the go, and it can be used by connecting to a mobile phone. The use of this probe can effectively help farms to reduce costs and increase efficiency.
Specifications
| Type | ECI-V96 | |||

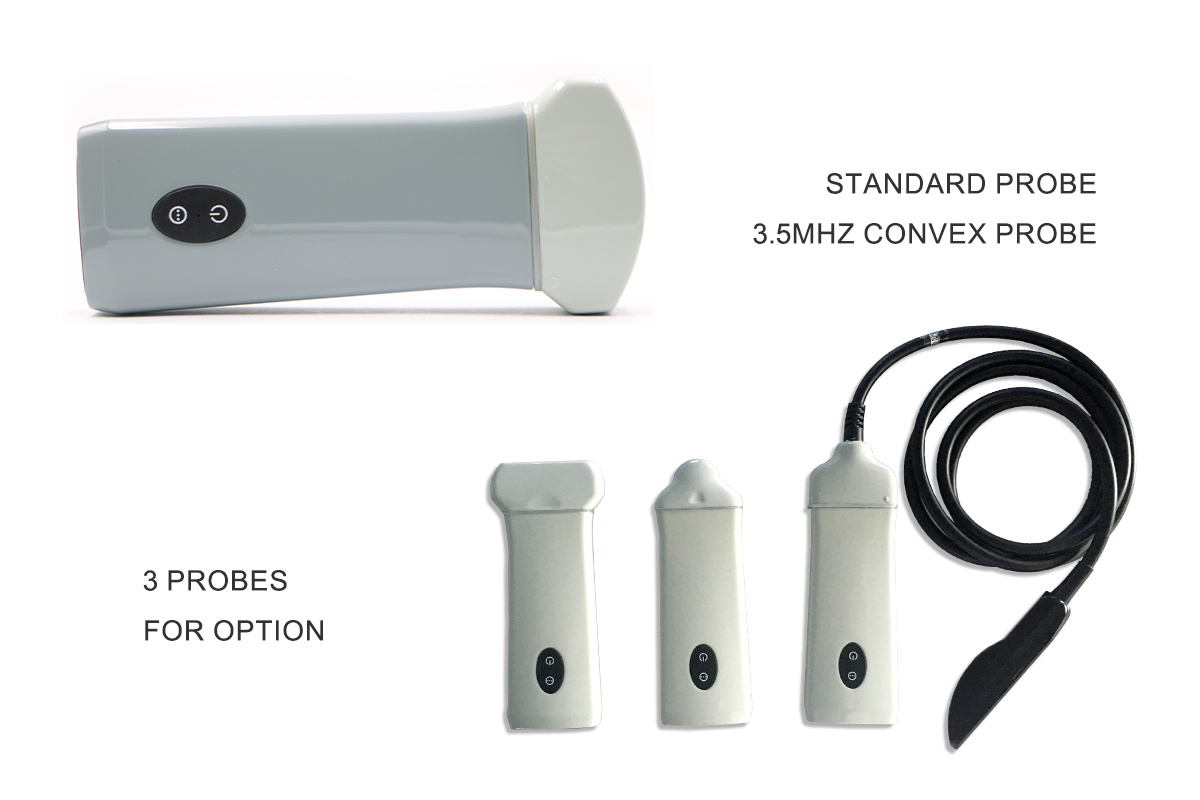

| Probe | 7.5MHz linear probe | 3.5MHz convex probe | 6.0MHz micro-convex | |
| Detection depth (mm) | ≥80mm | ≥140mm | ≥90mm | |
| Resolution (mm) | Lateral | ≤1(depth≤60) | ≤3(depth≤80) ≤5(depth≤130) | ≤3(depth≤60) |
| Axial | ≤1(depth≤80) | ≤1(depth≤80) | ≤1(depth≤60) | |
| Dead zone (mm) | ≤3 | ≤6 | ≤5 | |
| Geometric position accuracy (%) | Horizontal | ≤5 | ≤7.5 | ≤7.5 |
| Axial | ≤5 | ≤5 | ≤5 | |
| App | Android | |||
| Mode | B, C, PW | |||
| Storage | Depends on the Android phone and pad | |||
| Battery | 3000mAh | |||
| Depth | 2-320mm | |||
| Standby | ≥3h | |||
| Element | 80 | |||
| Channel | 32 | |||
| Gray scale | 256 | |||
| N.W. | 350g | |||
| Size | 167*70*20mm | |||

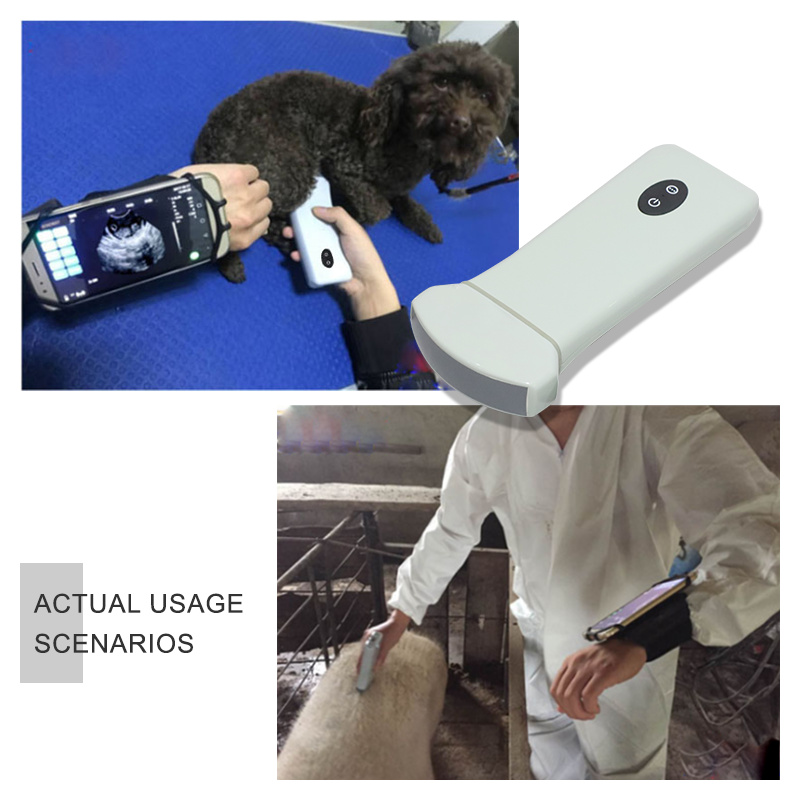

Scope of Application
Pet hospitals, cattle, sheep, horses, pigs, dogs and cats and many kinds of poultry, laboratory animals, wild animals, and some aquatic animals.
It is suitable for the examination of clinical abdomen, thorax, heart, tendon, small organs, eyeballs and reproductive system of various animals; liver, gallbladder, kidney, bladder, uterus and pregnancy of small and medium-sized animals.
Examination of various tissues and organs and diagnosis of lesions:
Pregnancy test and determination of back-fat thickness in large animals such as cattle, sheep, horses and pigs.
Warranty Service
1. Warranty scope
Warranty period: two years
Within two years from the date of purchase, our company is responsible for the maintenance and replacement of unqualified parts.
a. Assembly and use of the equipment in strict accordance with the user manual
b. Problems arising from the maintenance and assembly of the equipment by our maintenance personnel
2. Non-maintenance Scope:
a. Damage caused by the use or maintenance not in accordance with the user manual.
b. Damage caused by non-professional assembly or maintenance
c. Damage caused by force majeure
For advice or other services, please contact the dealer or service centre in your area. For the warranty period or over the warranty period of the problem, we will actively provide you with services.
