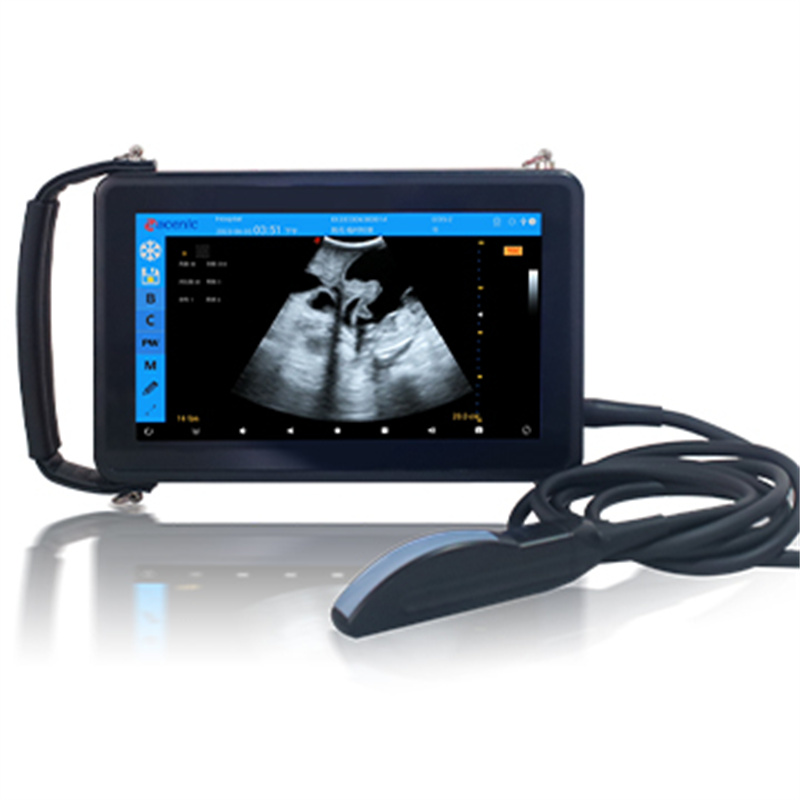

ECI-X5 Portable Animals Ultrasound Machine for Pregnancy Diagnosis
Description

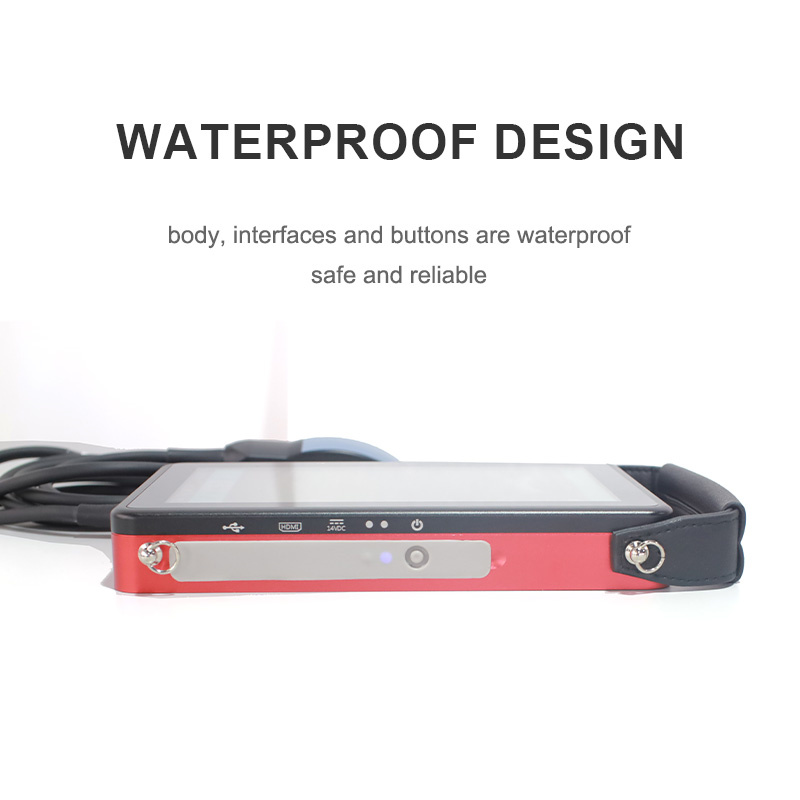

The ECI-X5 Veterinary Ultrasound Diagnostic Instrument is a multi-functional reproduction testing device designed for large and medium-sized animals such as pigs, cows, sheep, horses, donkeys, etc. It is equipped with an 8-inch high-definition touch screen and Doppler colour ultrasound technology. It is equipped with 8-inch HD touch screen with Doppler colour ultrasound technology. It supports pregnancy testing and back-fat measurement, and the IPX6 waterproof body is suitable for the wet working environment of the farm.
Using video
Technical Specification
| Type | ECI-X5 | |
| Element | 128 elements | |
| Channel | 64 | |
| Depth (mm) | 30-120mm | |
| Maximum detection depth (mm) | ≥100 | |
| Resolution(mm) | Lateral | ≤1(depth≤60) ; 5≤(8≤depth≤130) |
| Axial | ≤1(depth≤80) | |
| Dead Zone(mm) | ≤1 | |
| Geometric position accuracy | Horizontal | ≤5 |
| Axial | ≤5 | |

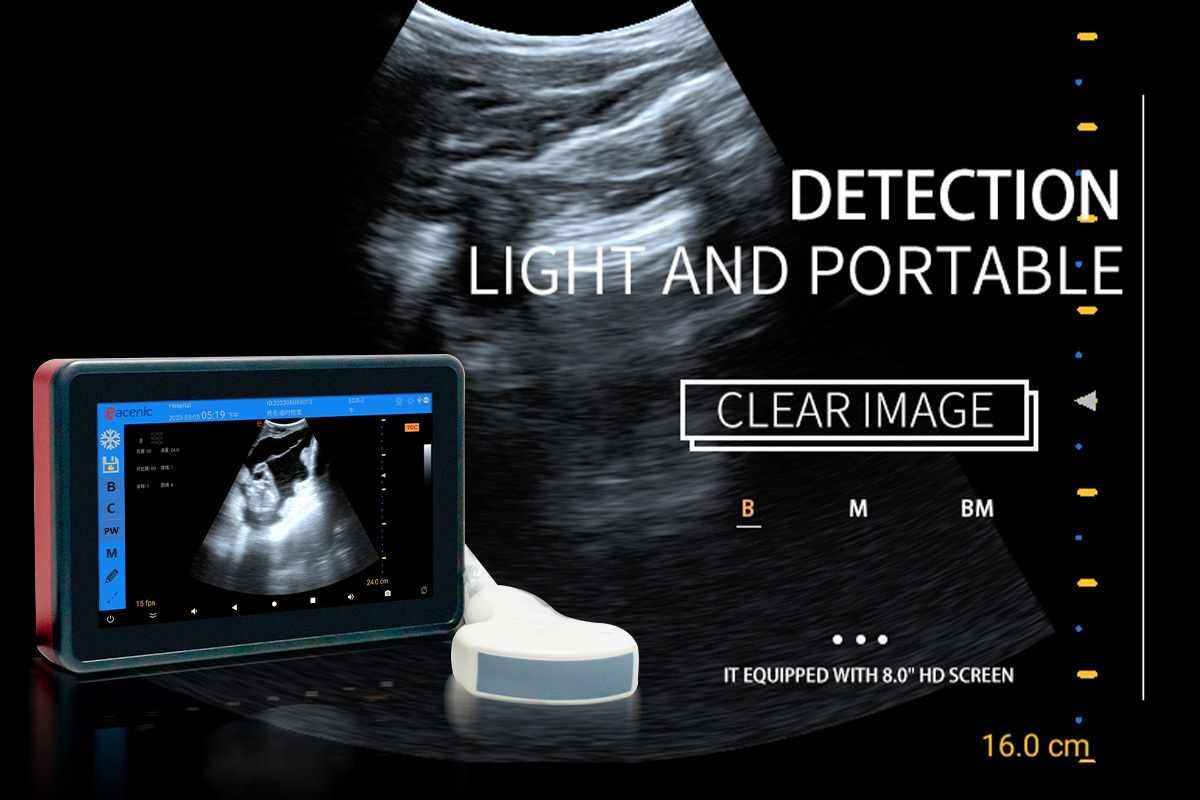

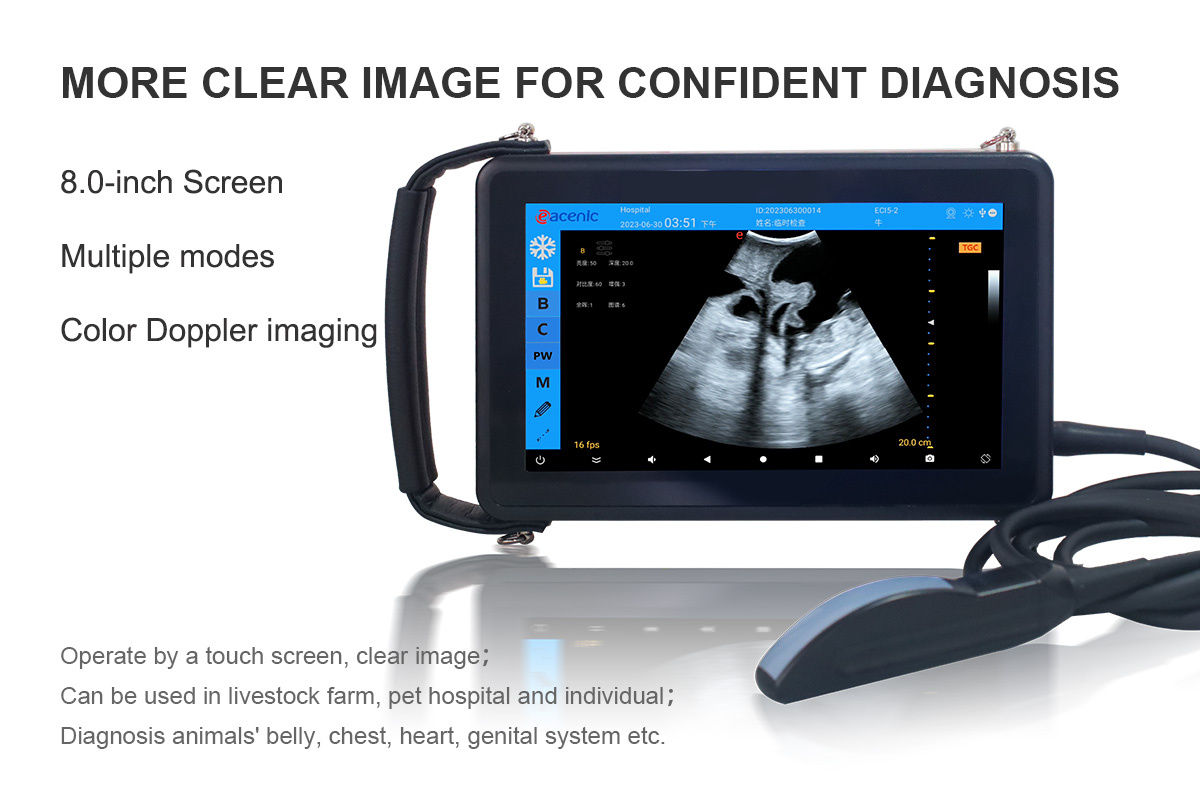

| Display | 8.0 inch | |
| Screen Resolution | 1024*720P | |
| Display Mode | B, BB, BM, M, C, PW | |
| Cine-loop | 30-300s | |
| Storage | 32G | |
| Video Saving | 5 minutes per recording | |
| Obstetrics | polyembryony, BPD, uterine diameter, TTD | |
| Back-fat | back-fat thickness, EMA, loin-eye muscle area | |
| Measurement | area, perimeter, diameter, angle | |
| Interface | HDMI, USB2.0 | |
| Working Time | 5 hours | |
| Size | 215*138*31mm | |
| N.W. | 1.6kg | |

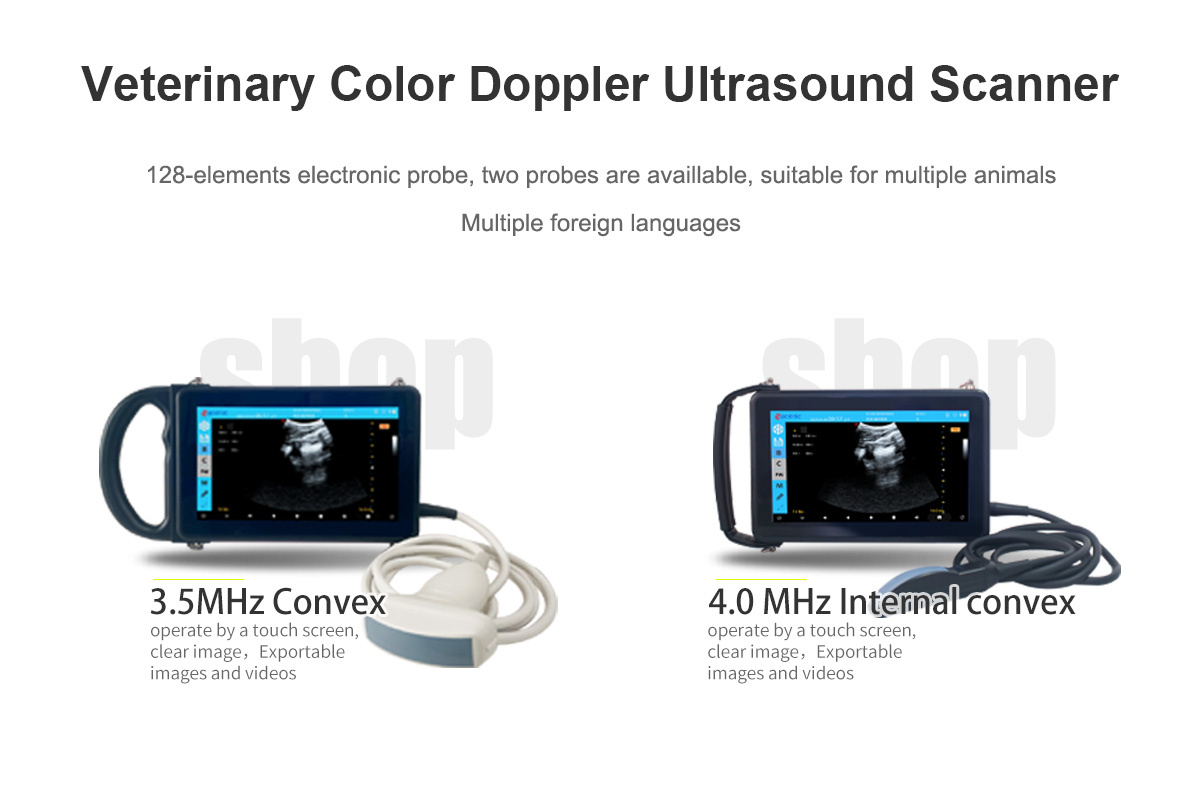

| Optional Probes | ||
| 3.5 MHz Convex Probe | 4.0 MHz Convex Rectal Probe | |
| R: 60mm Element: 128 Frequency: 2.0-5.0MHz Depth: 60-240mm | R: 60mm Element: 128 Frequency: 2.5-5.0MHz Depth: 30-120mm | |
Applicable Animals

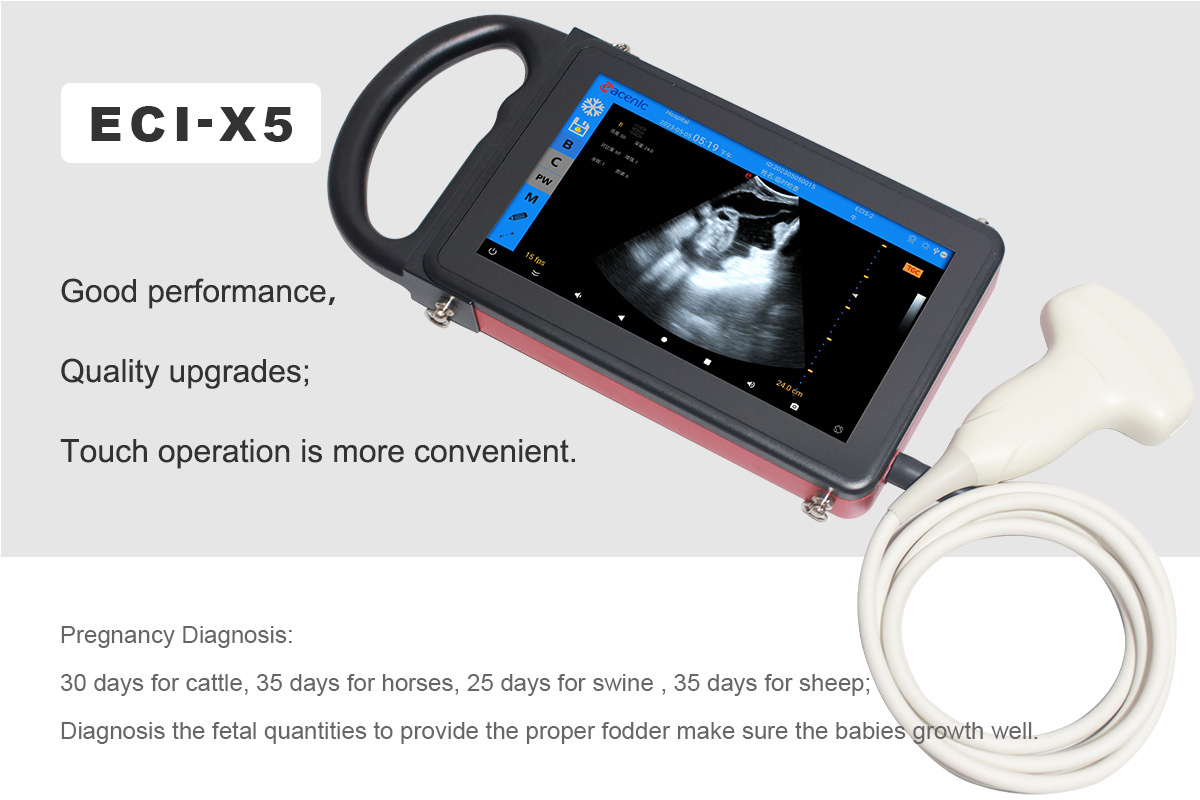

It is suitable for farms and veterinary hospitals to carry out pregnancy tests on cows, horses, dogs and cats.
It has a variety of measuring tools including area, circumference, diameter and angle. Based on the follicle size data measured by the tool, it determines whether the animal is at the proper time for fertilisation. The uterus and pregnancy status of the animal is determined by observing images from the ultrasound equipment, etc.
QC Process
Each product undergoes a series of rigorous extreme tests from raw material to shipment to ensure that every piece of equipment the consumer gets will work properly in a variety of harsh environments.
Environmental Tests:
● 24 hours high and low temperature cycle test.
● 40℃~85℃ 2 hours cycle rapid temperature change test.
● 2-hour vibration test.
Finished product operation test:
● 48 hours non-stop operation test
● Over 3 charge/discharge cycles
Package
The equipment is packed in a shockproof case made of PVC and packed in a matching cardboard box for transport. A wide range of courier options are available, with a time-frame of approximately 12-15 days. For larger quantities, air or sea freight is usually used.
Dimension:43.5*34.5*18.5cm
G.W.: 4.5kg
|

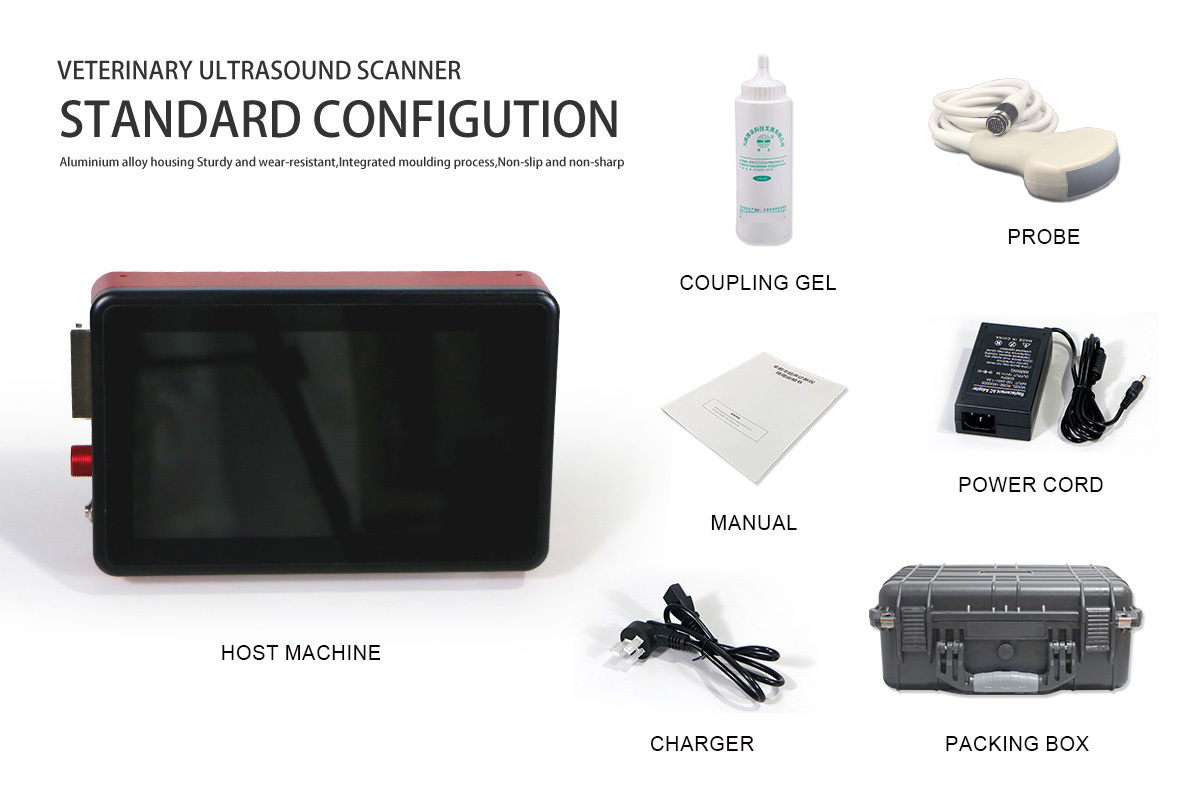

Packing list |
||
|
Configuration |
Item | Quantity |
| Mainframe | 1 | |
| Convex or convex rectal probe | 1 | |
| Power Cord | 1 | |
| Adapter | 1 | |
| User Guide | 1 | |
| product qualification certificate | 1 | |
| PVC box | 1 | |
