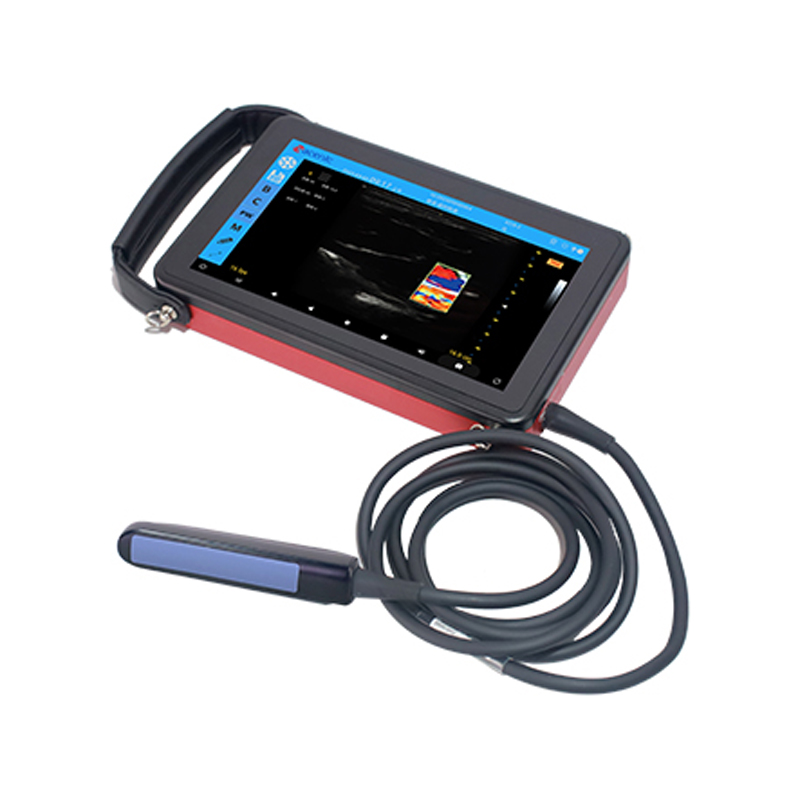

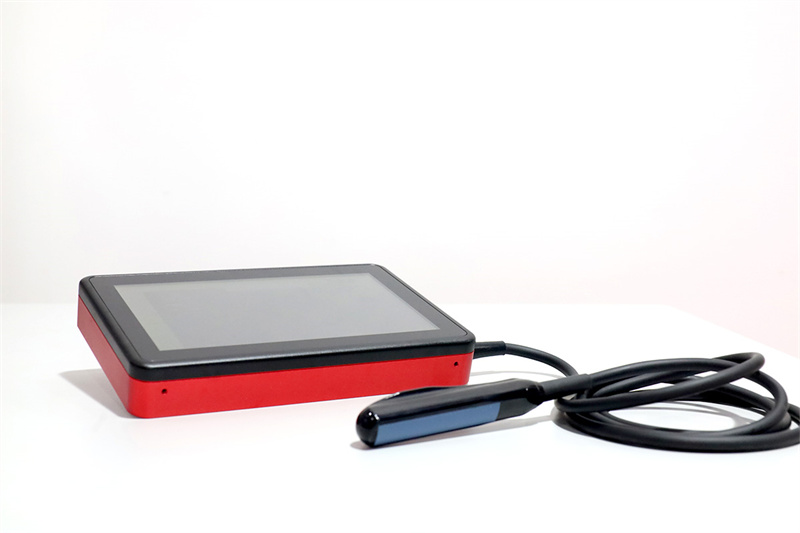

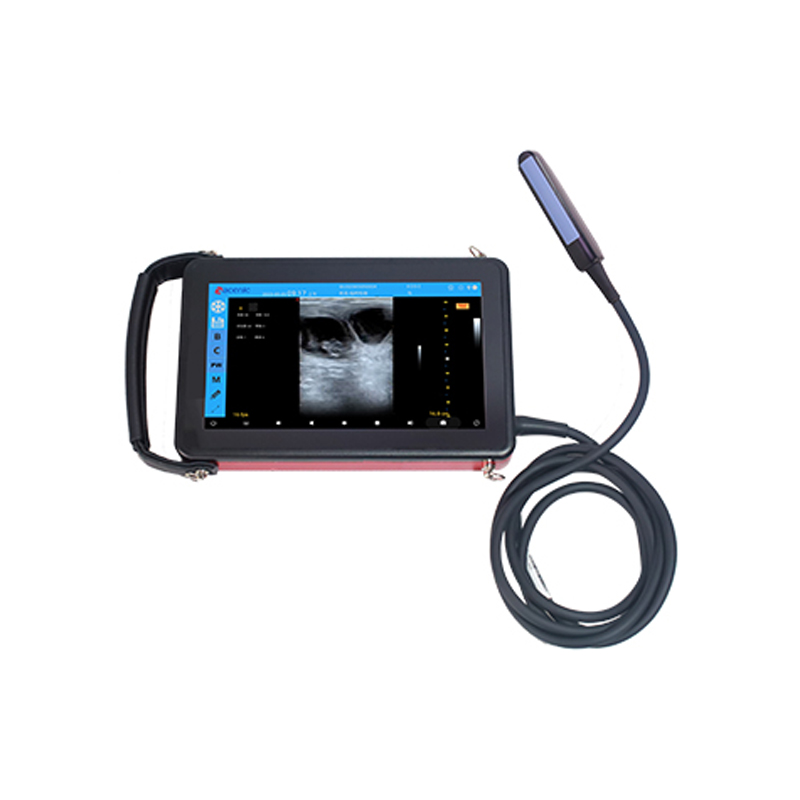

ECI-X5S 128 Elements Color Doppler Veterinary Ultrasound Machine
About ECI-X5S Veterinary Ultrasound

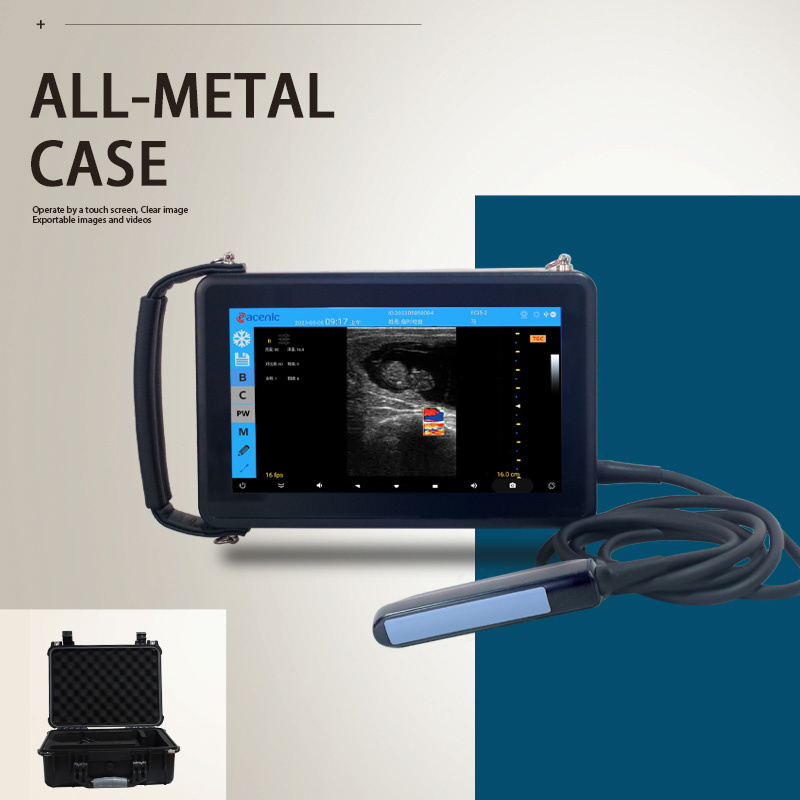

ECI-X5S Veterinary ultrasound machine is suitable for horses, cows, dogs, cats and other animals.The veterinary ultrasound machine is made of aluminum alloy, waterproof and corrosion resistant. ECI-X5S supports a variety of image modes and languages, which can be configured according to customer needs. 128-elements rectal probe, clear image, can measure follicles. Animal files can be created to facilitate the management of animal test information.
Product Parameters
| Type | ECI-X5S | |
| Probe | LNA64R/6.5MHz Rectal Probe | |
| Element | 128 elements | |
| Channel | 32 | |
| Depth (mm) | 30-120mm | |
| Maximum detection depth (mm) | ≥100 | |
| Resolution(mm) | Lateral | ≤1(depth≤60) ; 5≤(8≤depth≤130) |
| Axial | ≤1(depth≤80) | |
| Dead Zone(mm) | ≤2 | |
| Geometric position accuracy | Horizontal | ≤5 |
| Axial | ≤5 | |
| Display | 8.0 inch | |
| Screen Resolution | 1024*720P | |
| Display Mode | B, B+B, B+M, M, C, PW | |
| Cine-loop | 200 frame | |
| Storage | 32G | |
| Video Saving | 5 minutes per recording | |
| Obstetrics | Polyembryony, BPD, Uterine diameter, TTD | |
| Back-fat | Back-fat thickness, EMA, loin-eye thickness | |
| Measurement | Area, Perimeter, Diameter, Angle | |
| Interface | HDMI, USB2.0 | |
| Working Time | 5 hours | |
| Charge | 14V/2A | |
| Size | 215*138*31mm | |
| Weight | 1.5kg | |
ECI-X5S Features
1. ECI-X5S Veterinary ultrasound machine supports multiple languages and can be configured with different language systems as required
2. Animal file management, can establish, modify the measured animal information, can quickly retrieve animal files

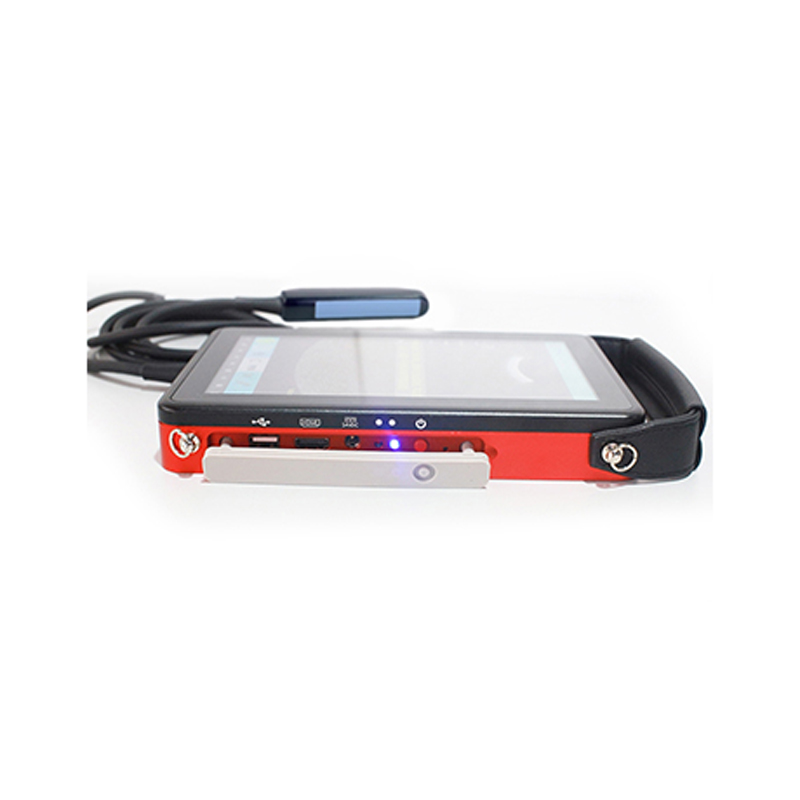

3. HDMI, USB2.0 two output interfaces are optional, supporting the export of pictures or videos
4. Testing Mode: B, B+B, B+M, M, C, PW.
5. Various measuring functions: distance measurement, pipe diameter measurement, area measurement, Angle measurement, volume measurement, animal measurement
6. 24 kinds of body mark: Click to display or hide the content of body mark Settings. Modify the list of default position markers for each inspection site, and the selected ICONS will be displayed first on the body marker page
7. 128 crsytal probe, imaging clear
8. The whole veterinary ultrasound machine waterproof design, waterproof grade IPX6
9. 8" touch display, resolution: 1024*720

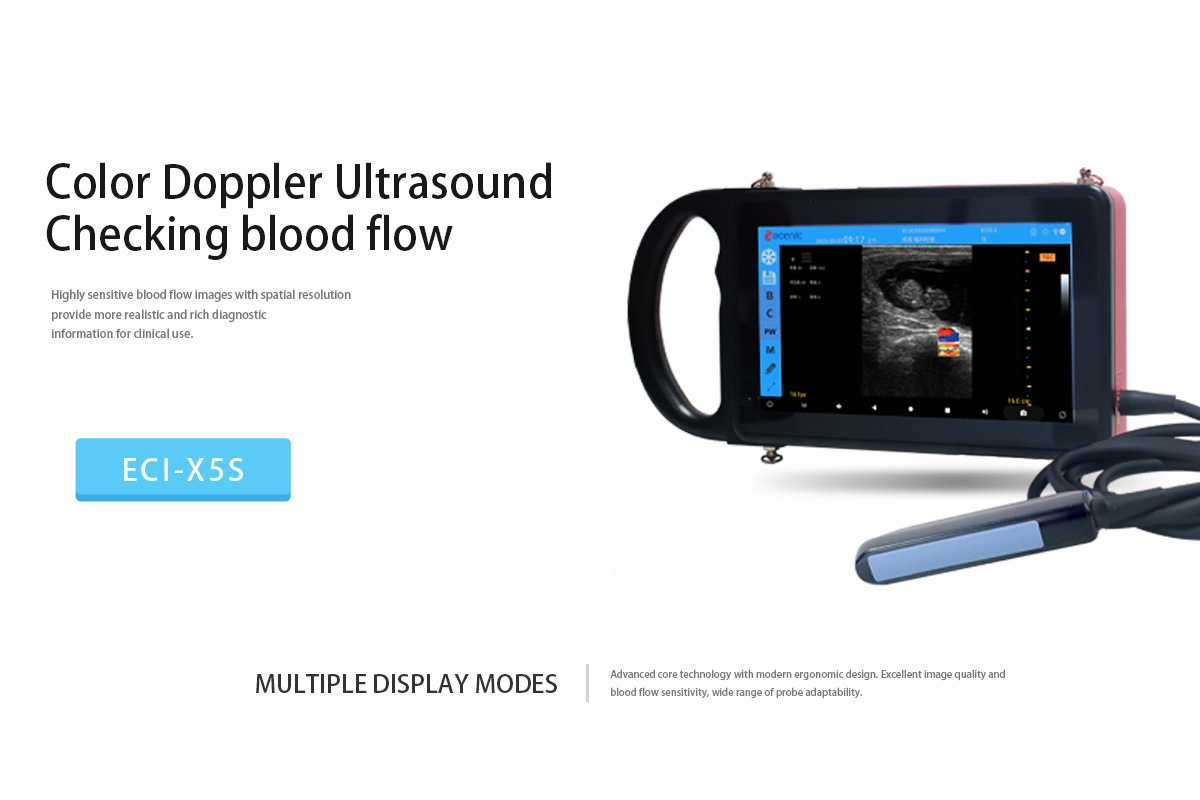

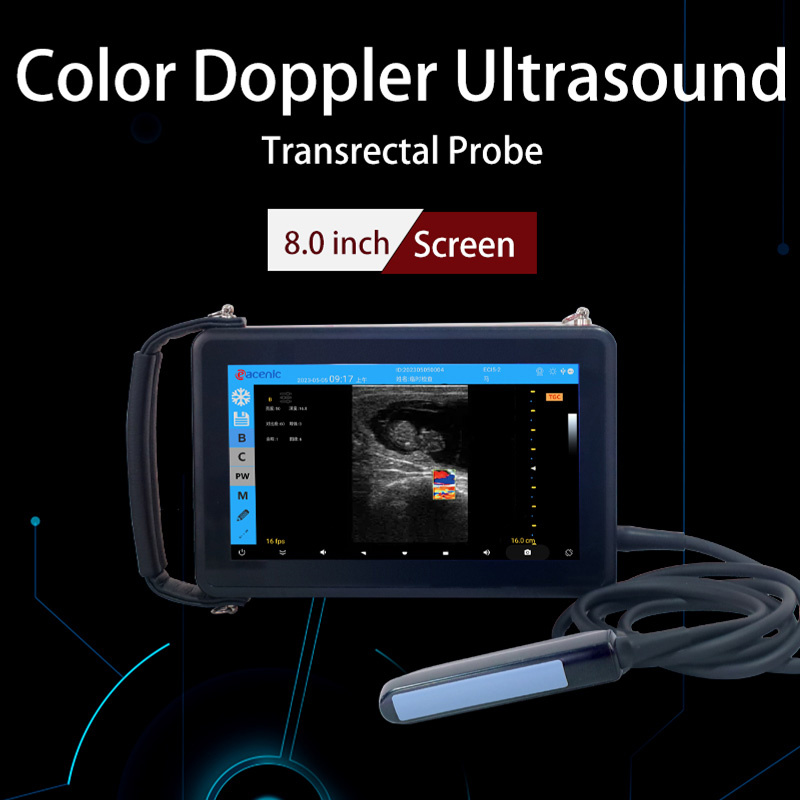

10. Color Doppler veterinary ultrasound, display real-time blood flow image.
11. Obstetrical measurement: used in horses, cattle, pigs, sheep, dogs, cats and other animals
12. Intelligent TGC adjustment: In the 6-section TGC adjustment window, click the "automatic" button and the system will automatically match the TGC gear to all areas according to the ultrasonic image.
What animals can the ECI-X5S Veterinary Ultrasound be used on?

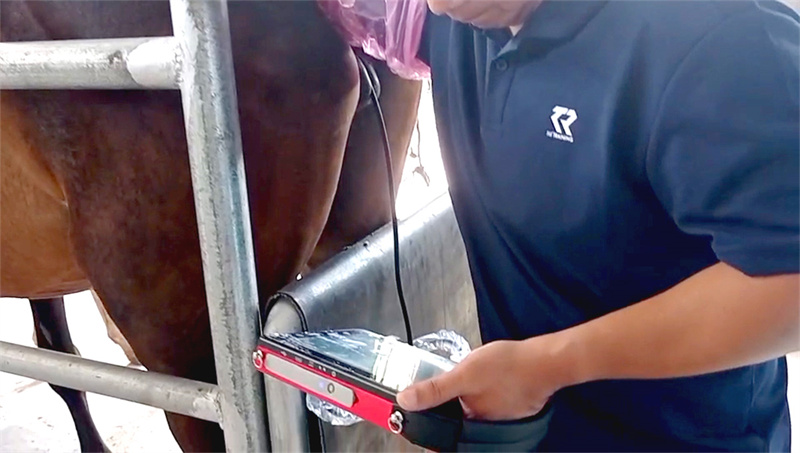

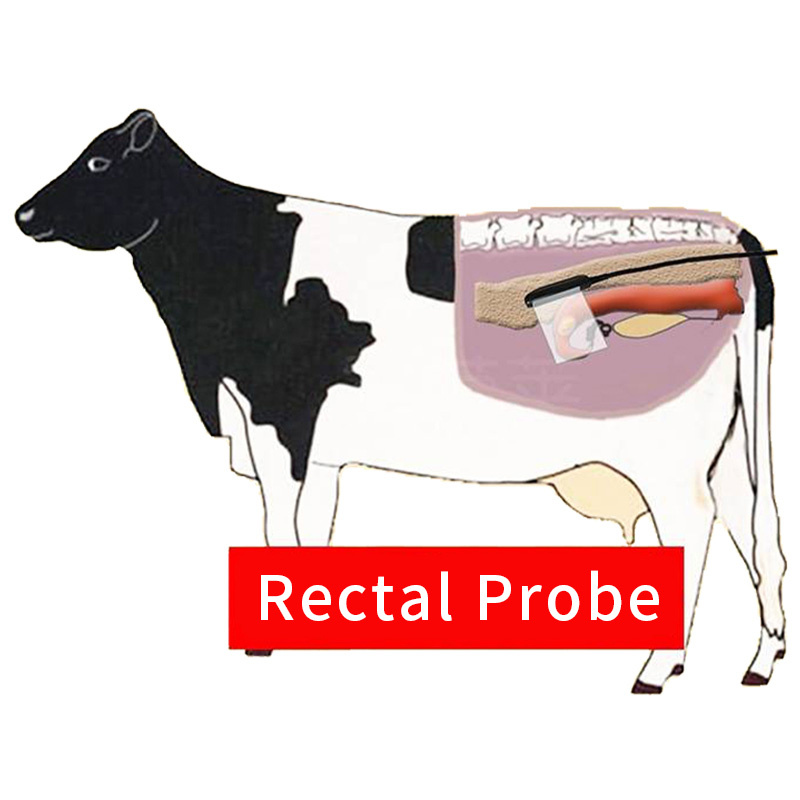

ECI-X5S animal ultrasound machine is suitable for pregnancy testing of large animals such as cattle and horses.
It has a variety of measuring tools including area, circumference, diameter, and angle. Based on the data of follicle size measured by this tool to determine whether the animal is at the right time for fertilization. Judge the animal's uterus and pregnancy status by observing the images from the ultrasound scanner, etc.
How do we ship the veterinary ultrasound?

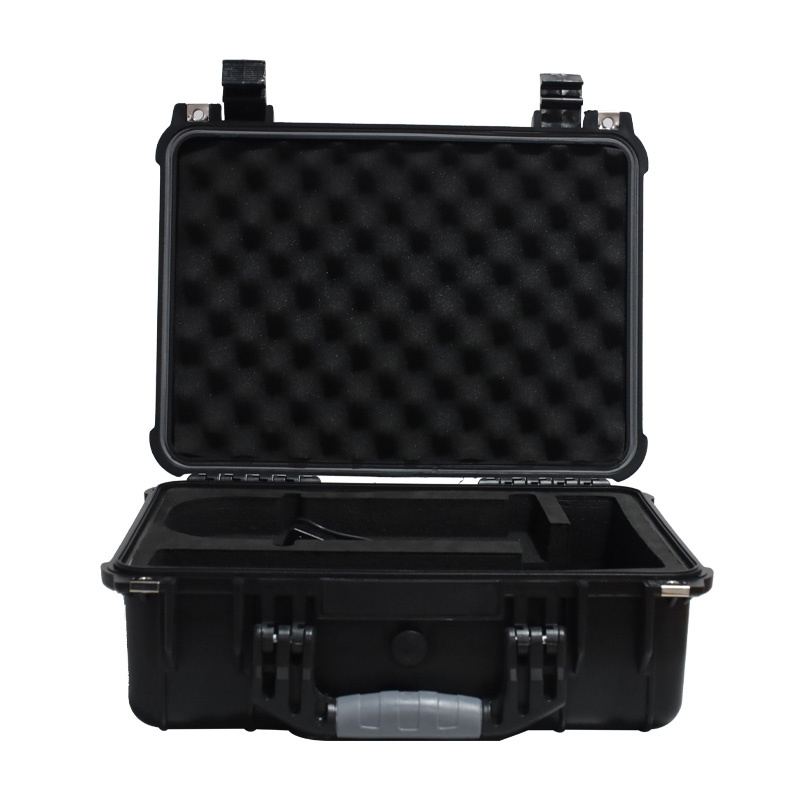

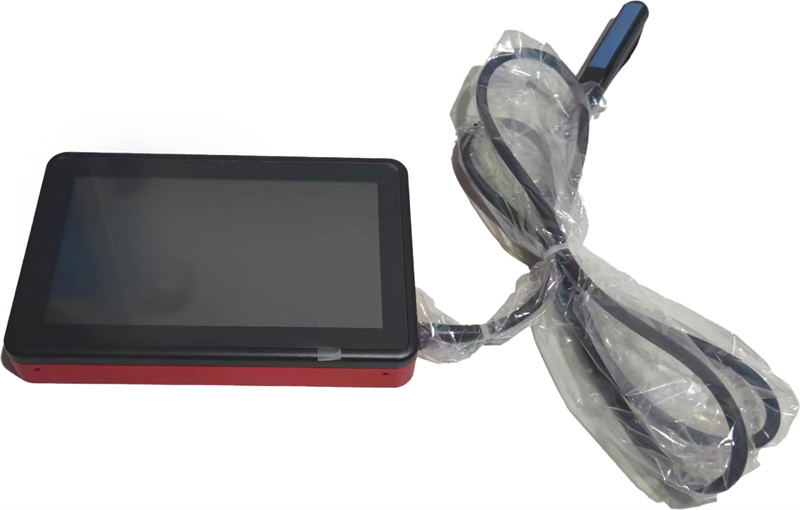

ECI-X5S veterinary ultrasound machine is packaged in shockproof boxes made of PVC and packed in formulated cartons for transportation. A variety of transportation channels can be selected, and the time limit is about 12-15 days.
Dimension:43.5*34.5*18.5cm
G.W.: 4.5kg
Configuration: main unit, rectal probe, power cord, adapter, user guide, certificate, PVC box
