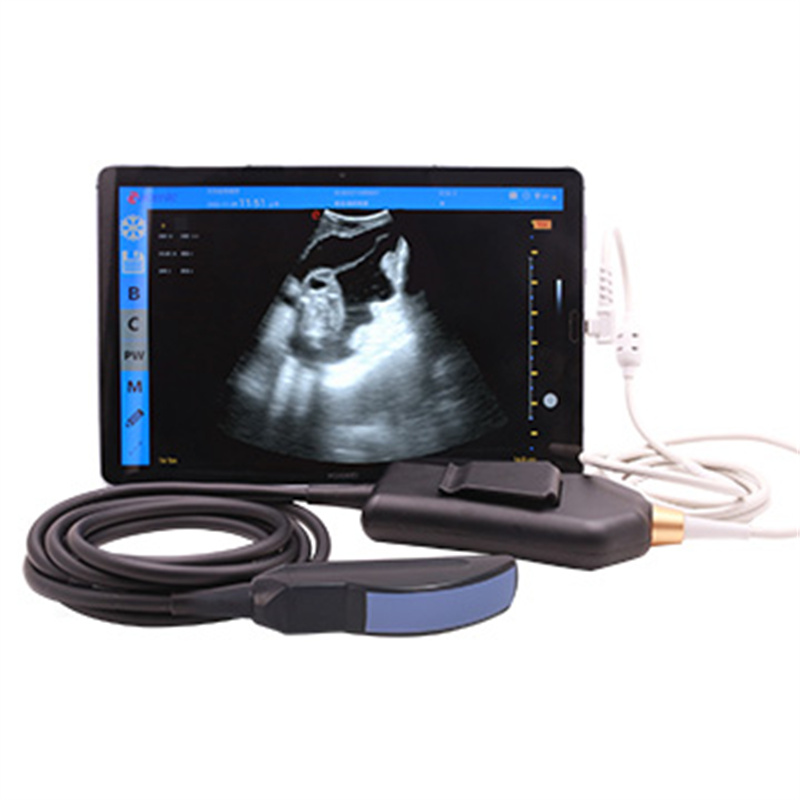

ECI-X6 Series Handheld Wired Veterinary Color Doppler Ultrasound Probe
Overview
The handheld color Doppler ultrasound diagnostic system consists of an application and an ultrasound probe. The system adopts advanced beam synthesis and image processing technology. The system software supports multi-mode imaging, measurement, image storage and management functions. Animal file management in the software system allows you to create and modify the information of the animal under test, and you can quickly retrieve the animal file. X6 series has color Doppler function, which displays real-time blood flow images. There are 4 different probes in this series, namely convex rectal, convex, linear rectal and linear probe, which can be adapted to different animals.
Product Specification
| Type | ECI-X6 | ECI-X6C | ECI-X6A | ECI-X6S |

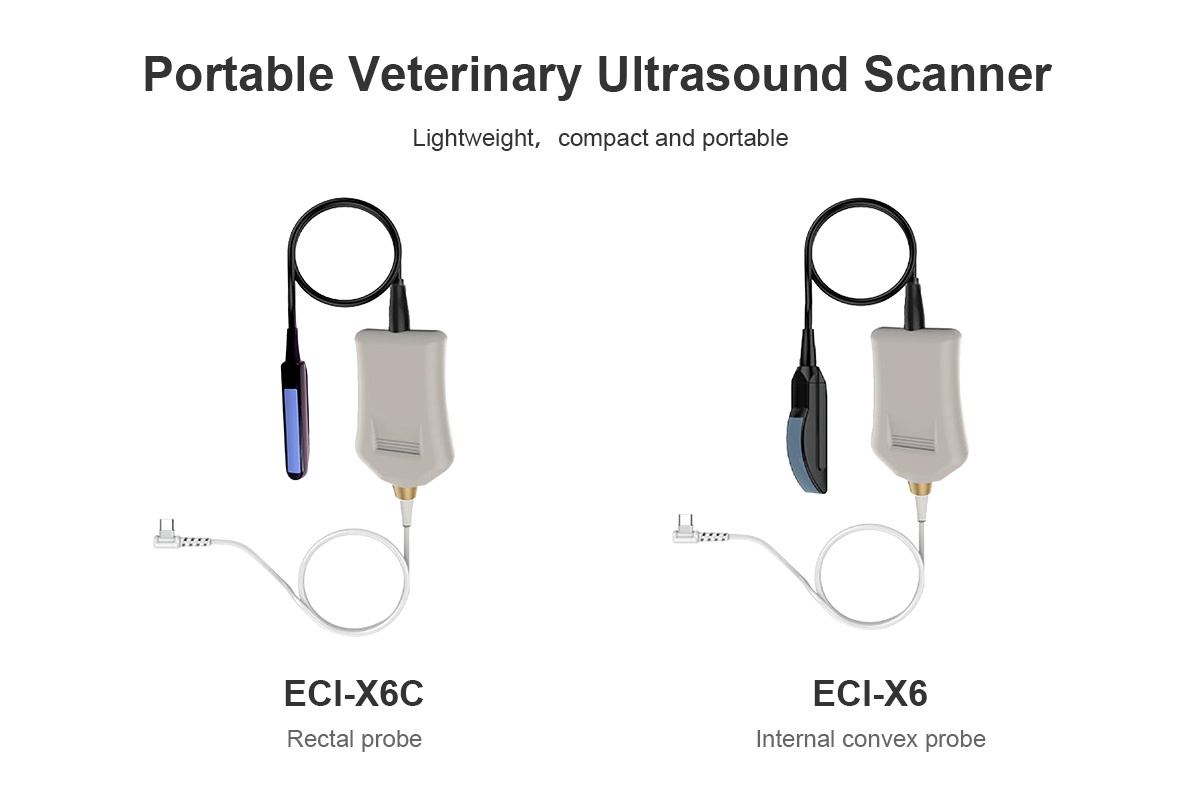

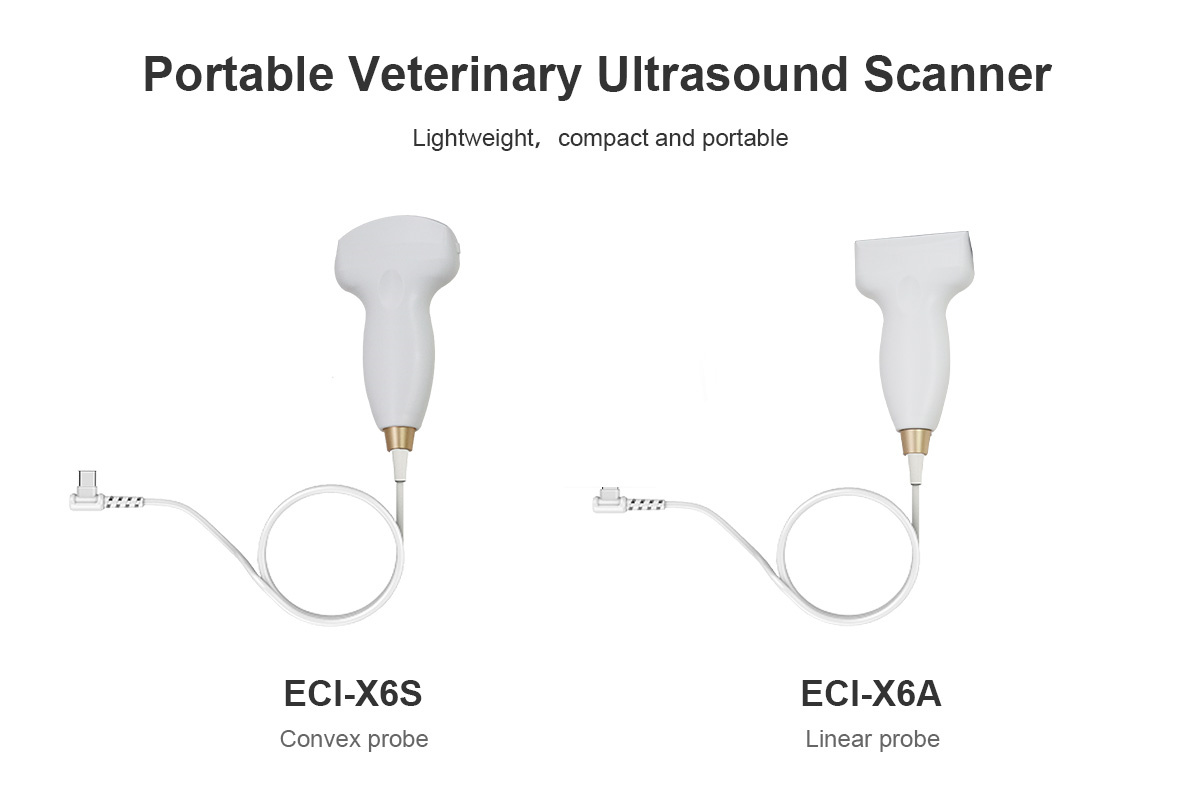

| Probe | convex rectal probe | Rectal probe | linear probe | convex probe |
| Frequency | 2.5~5.0MHz | 5.5~7.5MHz | 5.5~7.5MHz | 2.5~4.5MHz |
| Depth | 30~120mm | 30~120mm | 30~120mm | 60~240mm |
| N.W. | 400g | 400g | 250g | 250g |
| Size | 3660*70*24mm (probe wire length 3660mm = 3.66m) | |||
| Mode | B, C, PW, M | |||
| Display | Depends on the device to which the probe is connected | |||
| Persistence | 1~4 | |||
| APP. | Android system | |||
| Body Mark | 24 kinds | |||
| Cine-loop | 30~300s | |||
| Channel | 32 | |||
| Obstetrics | Polyembryony, CRL, Uterine diameter, TTD | |||
| Measurement | Back-fat thickness, loin-eye muscle area, Area, Perimeter, Diameter | |||
| Interface | Type-c | |||
Applicable Animals

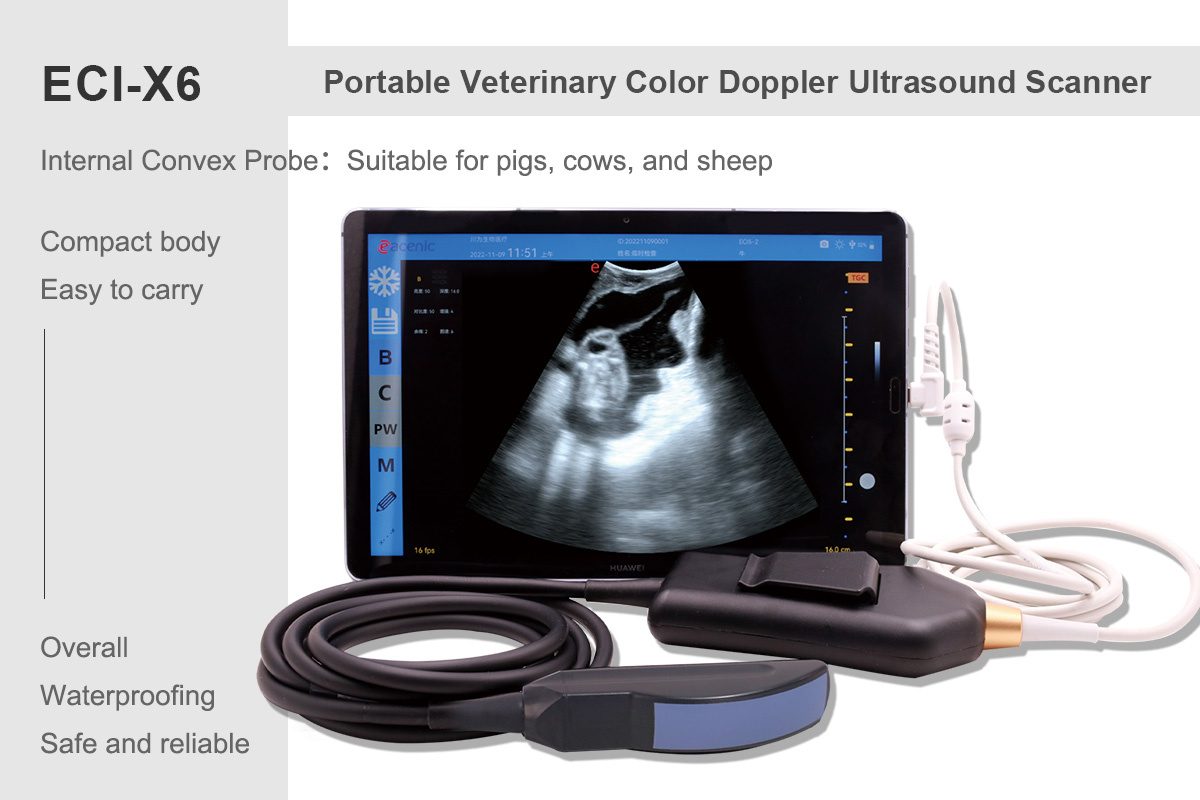

1. The convex rectal probe is mainly used in pigs, sheep, cattle and horses. For use on cattle and horses it needs to be applied in the rectum. For use on pigs and sheep, it is applied outside the body.

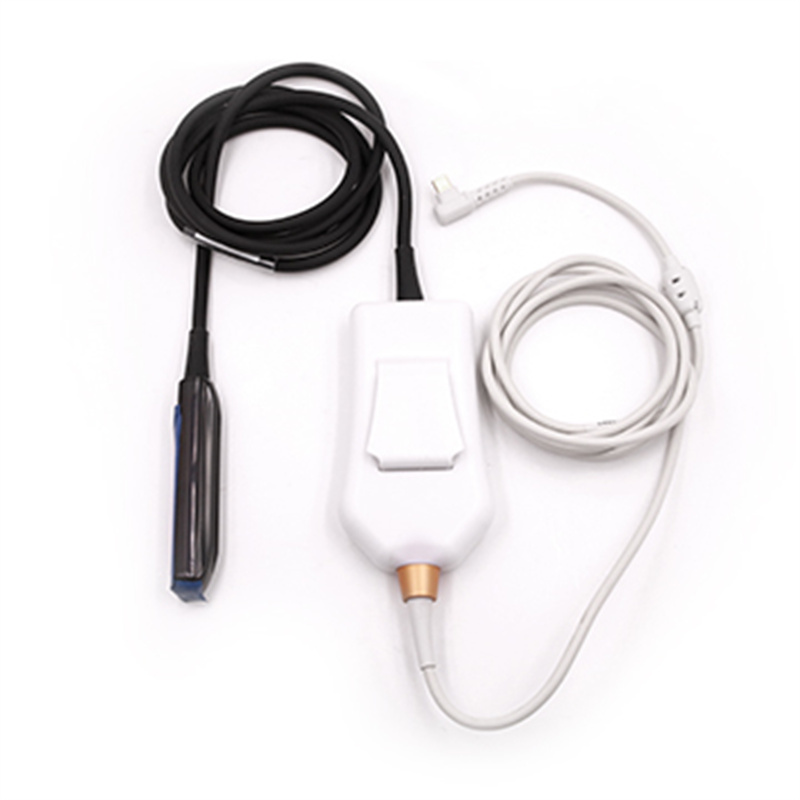

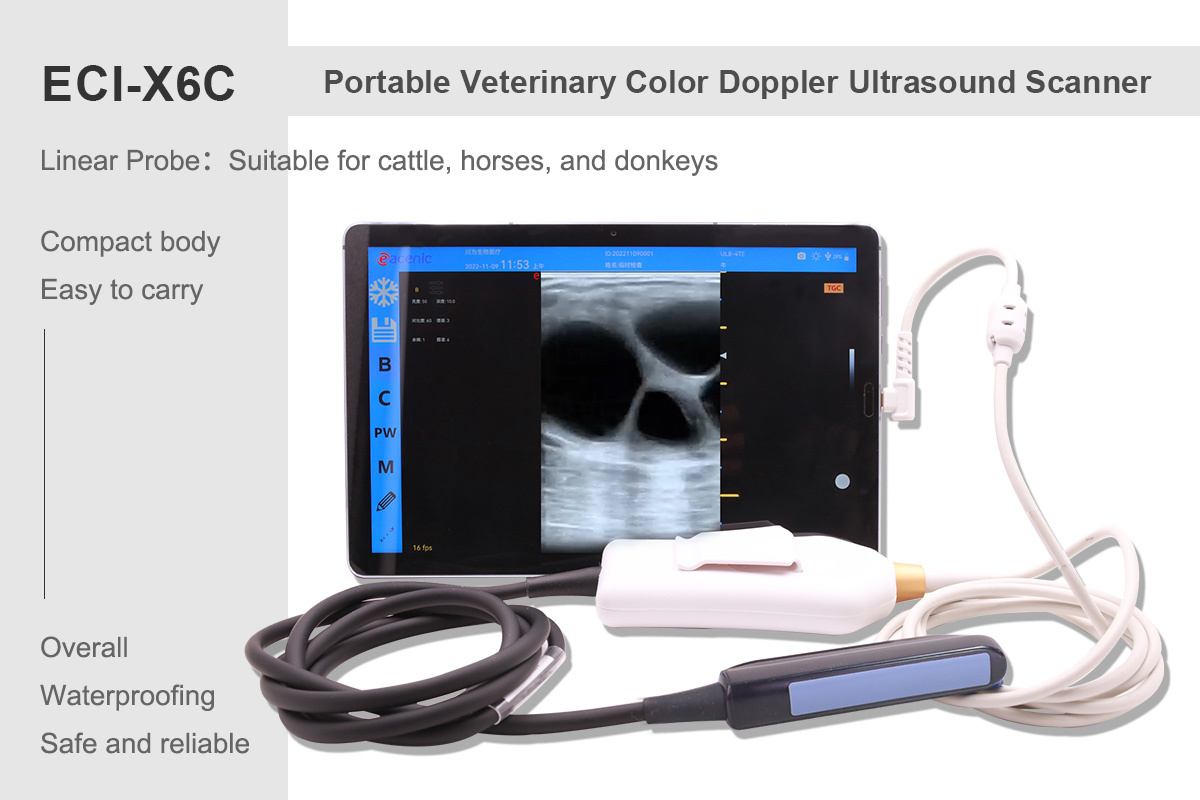

2. The rectal probe is suitable for pregnancy detection in cattle and horses.

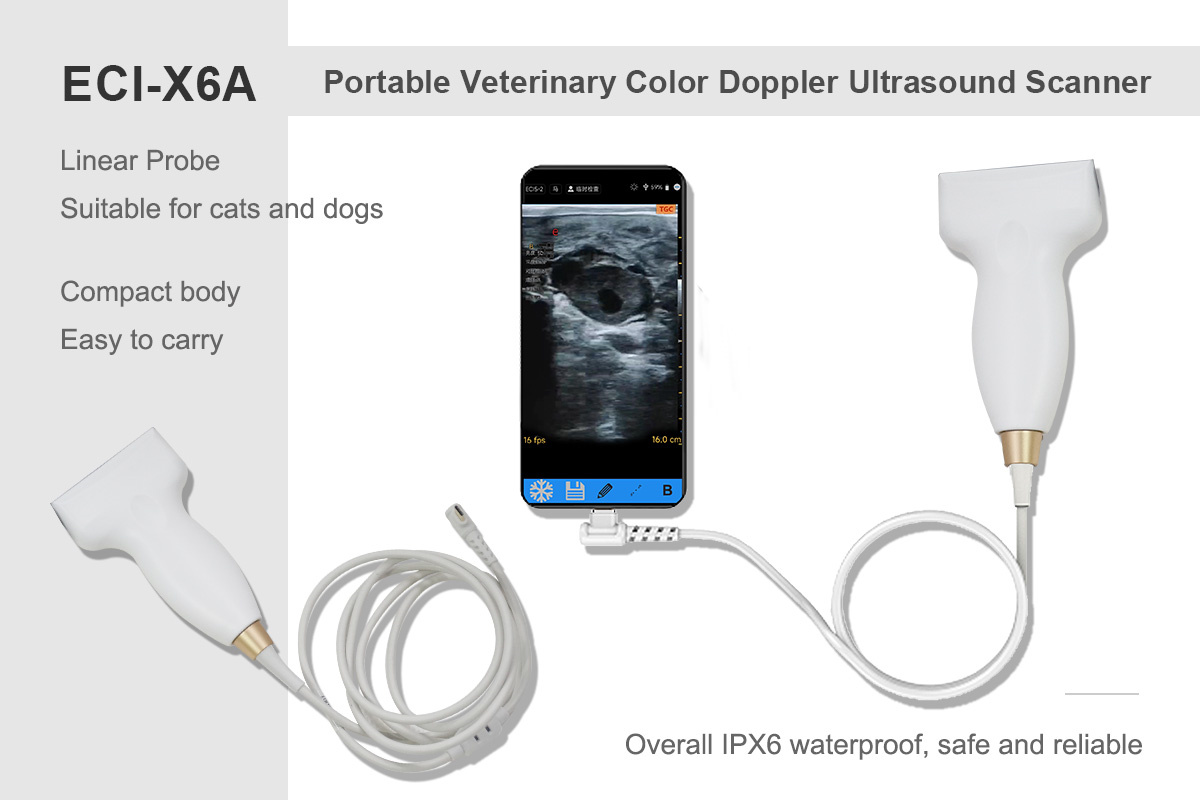

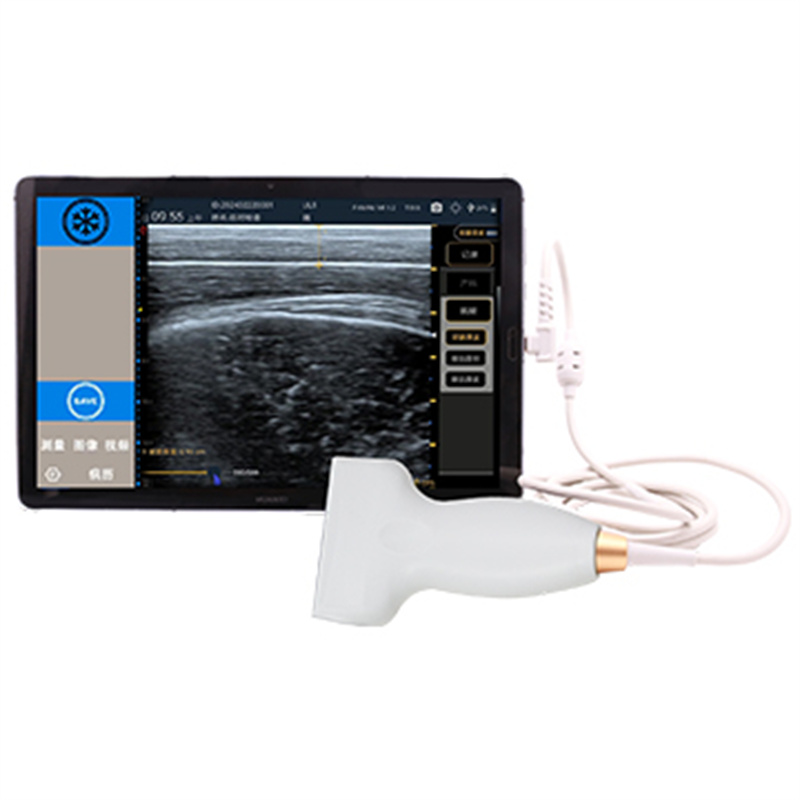

3. The linear probe is suitable for the diagnosis of small pets, such as cats, dogs, etc.

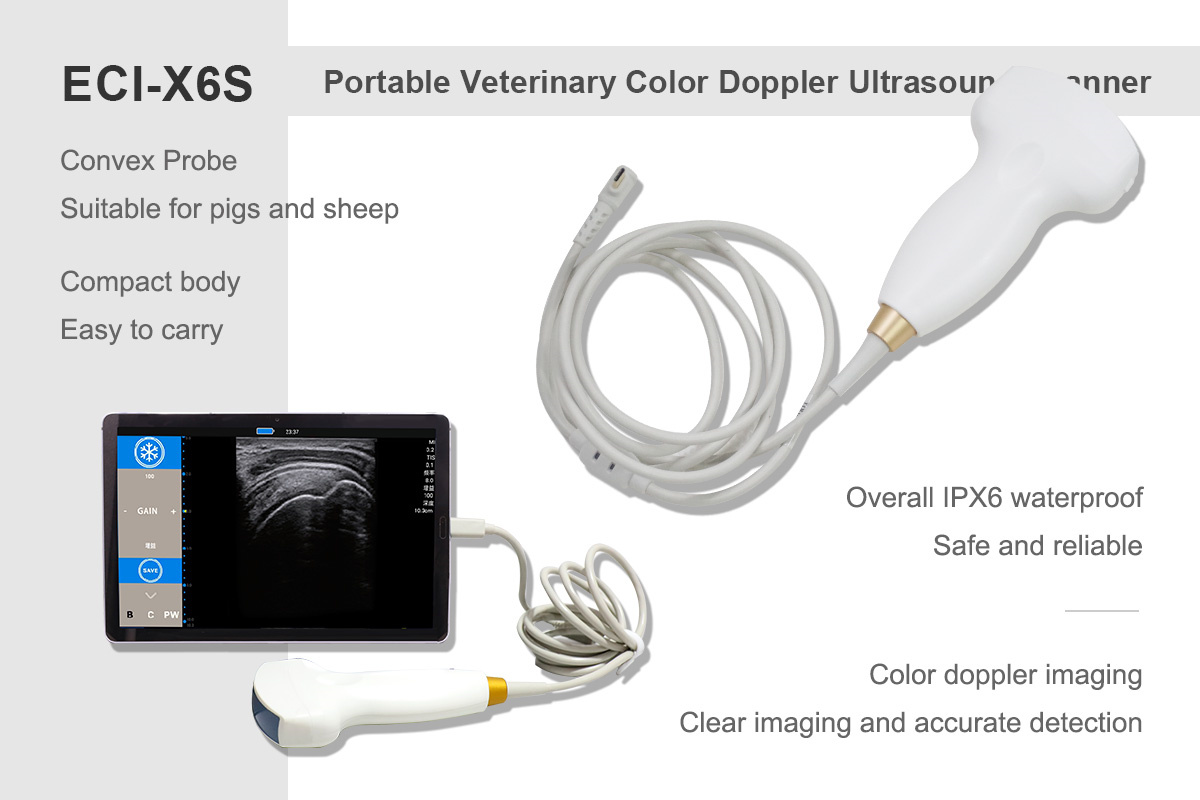

4. The convex probe is suitable for the detection of medium-sized animals and large dogs, such as pigs, sheep, large dogs, etc.
Functional features
1. Animal file management, can establish, modify the measured animal information, can quickly retrieve animal files.
2. ECI-X6C has color Doppler function to display real-time blood flow images.
3. The device has 24 body marking symbols to quickly mark images.
4. Intelligent TGC Adjustment: In the 6-segment TGC adjustment window, click the ‘Auto’ button, the system will automatically match the TGC gears to each region according to the ultrasound image.
5. For follicle measurement, freeze the appropriate image and then select the distance measurement tool to measure the diameter of the follicle. Use the cursor to locate the boundary of the follicle and the data is displayed in the lower left corner.
6. Saving of images and videos, after clicking on the save button, the corresponding images and videos are stored in the photo album of the phone or iPad.

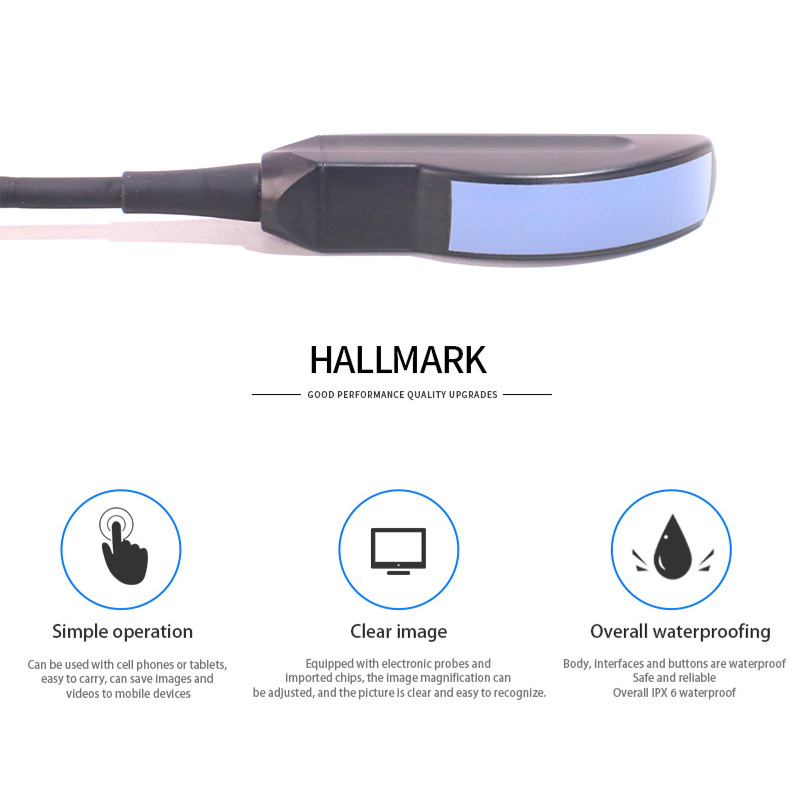

X6 Series
There are 4 models in the X6 series, so you can choose according to your needs.
