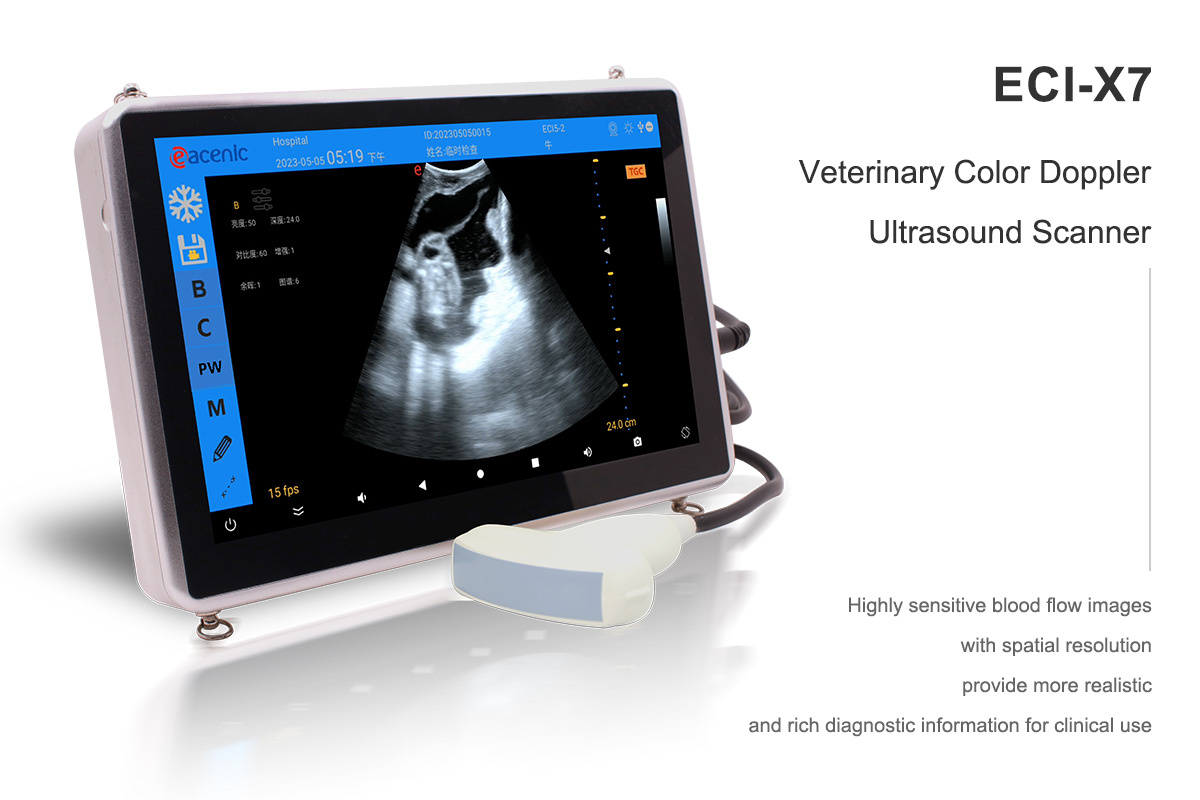

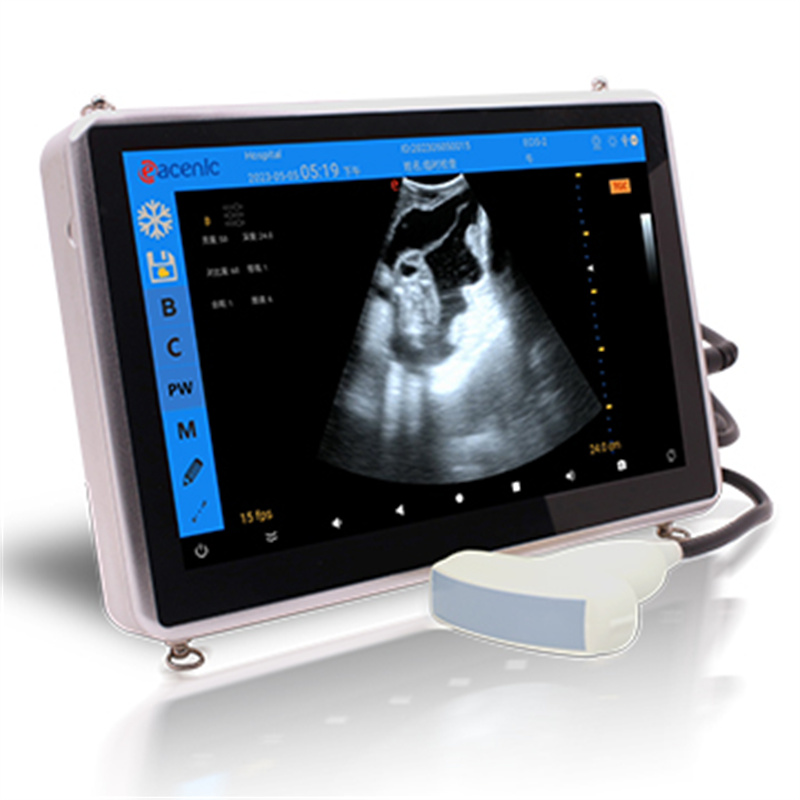

ECI-X7 Factory Supply Color Doppler Veterinary Ultrasound Scanner Machine
Description

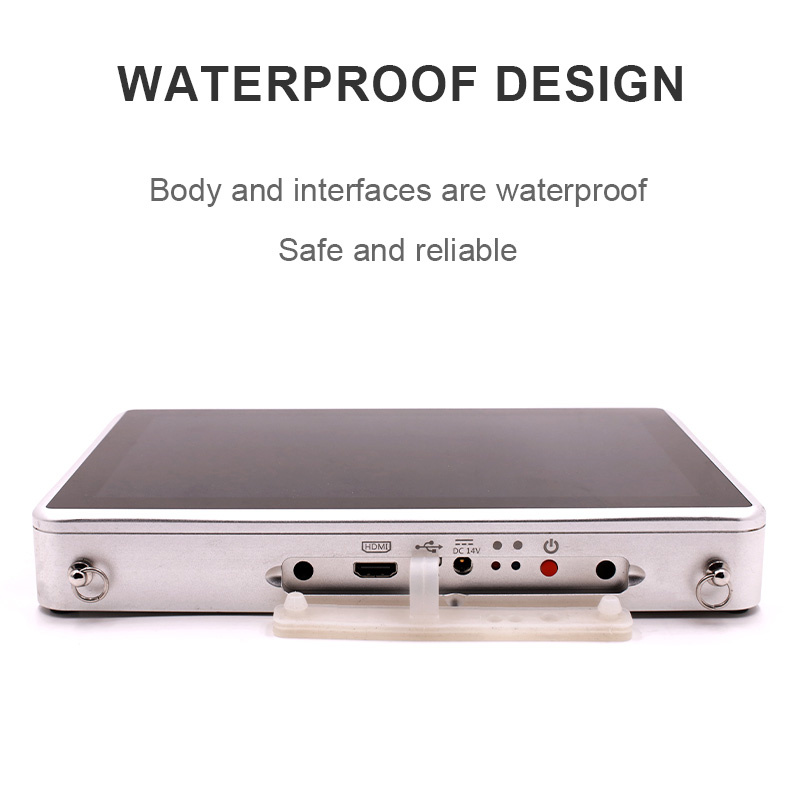

The ECI-X7 Veterinary Color Doppler Ultrasound Scanner is a multi-functional reproduction and meat quality assessment device for pigs, cattle, sheep and other animals. Equipped with a 10.1-inch touch screen and multi-frequency probes, the ECI-X7 supports accurate measurements of back-fat thickness, eye muscle area and gestational age, and its IPX6 waterproof design is suitable for complex working environments in farms. The instrument applies microcomputer control and digital scanning converter (DSC), adopts digital beam synthesis (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound speed tracing (DRA), real-time point-by-point dynamic receiver focusing (DRF), CNC dynamic frequency scanning (DFS), frame correlation and other technologies, and the whole machine has clear, stable and high resolution images.
Using video
Technical Specification
| Type | ECI-X7 | ||
| Display | 10-inch 1920*1080 | ||
| Frequency | 3.5~7.5MHz | ||
| Mode | B, M, C, PW, BB, BC | ||
| Depth | 60~240mm | ||
| Cine-loop | 30~300s | ||
| Storage | 64G | ||
| Channel | 32 | ||
| Measurement | Back-fat thickness, Loin-eye muscle area, Perimeter, Diameter, Angle | ||
| Interface | USB, HDMI | ||
| Dead zone | ≤1mm | ||
| Gain | adjustable | ||
| Size | 330*210*35mm | ||
| Weight | 3kg | ||
| Optional Probes | |||
| 6.5 MHz Rectal Probe | 3.5 MHz Convex Probe | 5.0 MHz Micro-convex Probe | 7.5 MHz Linear Probe |
| L: 64mm Pitch: 0.5mm Element: 128 Frequency: 5.5-7.5MHz Depth: 30-120mm | R: 60mm Element: 128 Frequency: 2.0-5.0MHz Depth: 60-240mm | R: 20mm Element: 128 Frequency: 3.0-8.0MHz Depth: 60-240mm | L: 40mm Pitch: 0.31mm Element: 128 Frequency: 6.5-10.0MHz Depth: 60-240mm |
Usage
Colour display shows the optimum state of the uterus to confirm if the animal is pregnant and the number of foetuses. (Pregnancy can be determined after 30 days for cattle and 35 days for horses).
◆ During the period of the pregnancy, through monitoring the baby animals’ heart to see whether the baby is alive or not. To provide the proper quantities of the fodder to make sure the baby growth well
◆ After the pups are born, it is important to check that all pups have been born to avoid foetal deaths in the womb or deaths due to neglect after birth.
◆ Control the amount of feed by checking the depth of back-fat of the animals to avoid feed wastage.
◆ You can monitor the internal organs of the animal to know whether the animal is healthy or not. Timely treatment of animals.
Applicable Animals
Pregnancy diagnosis, lesion monitoring, back-fat thickness measurement in pigs, cattle, sheep, horses, cats and dogs.
● 3.5MHz Convex Probe for pigs, sheep and large dogs.
● 6.5MHz Rectal Probe for large animals, such as cattle, horse etc.
● 5.0MHz Micro-convex Probe for small animals, such as cats, dogs.
● 7.5MHz Linear Probe for superficial diagnosis of medium animals, large animals and small animals.
