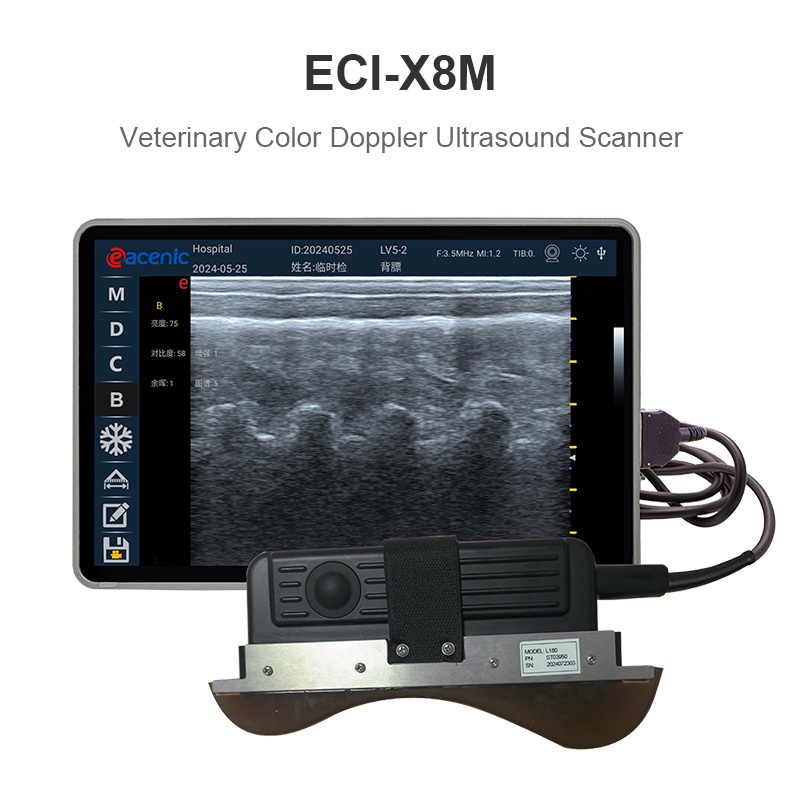

ECI-X8M Color Doppler Veterinary Ultrasound Machine with Multiple Probes
Veterinary Ultrasound Machine Description

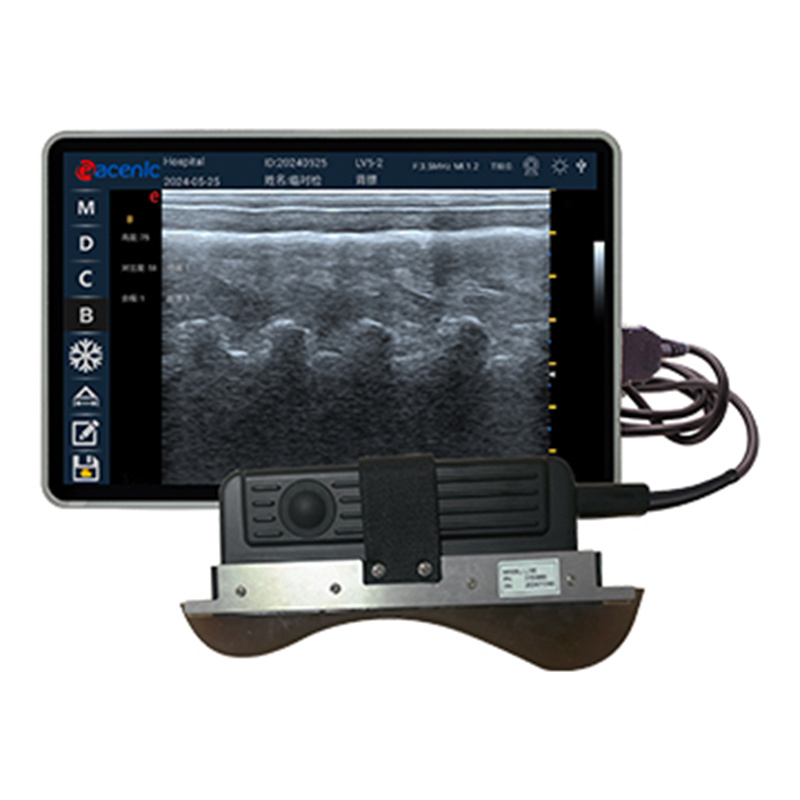

ECI-X8M Veterinary ultrasound machine can be equipped with 4.0-9.0MHz frequency probes. The high-frequency probe accurately measures superficial back-fat thickness and eye muscle area (error ±0.5mm), while the low-frequency probe penetrates to a depth of 240mm to detect embryonic development in mid- to late-gestation. Color Doppler technology (C/PW mode) displays the speed and direction of blood flow in real time to assist in the diagnosis of cardiac disorders, such as pericardial effusion or amniotic valve anomalies in cows. 96-channel 256-elements enhance the clarity of the images. B/BB mode clearly distinguishes between fat and muscle tissues. M-mode tracks dynamic changes. 13-inch touch screen simplifies the operation process. The veterinary ultrasound machine supports fast data entry and image analysis, and the breeding performance test function assesses the genetic potential of breeding stock. IPX6 waterproof body is suitable for farm environments. Ultrasound probe types cover back-fat, rectal probe, OPU and others. Through quantitative data to guide scientific feeding and breeding, reduce empty pregnancy rate, optimize carcass quality and breeding efficiency.
Using video
Veterinary ultrasound Machine Parameters
| Type | ECI-X8M | ||

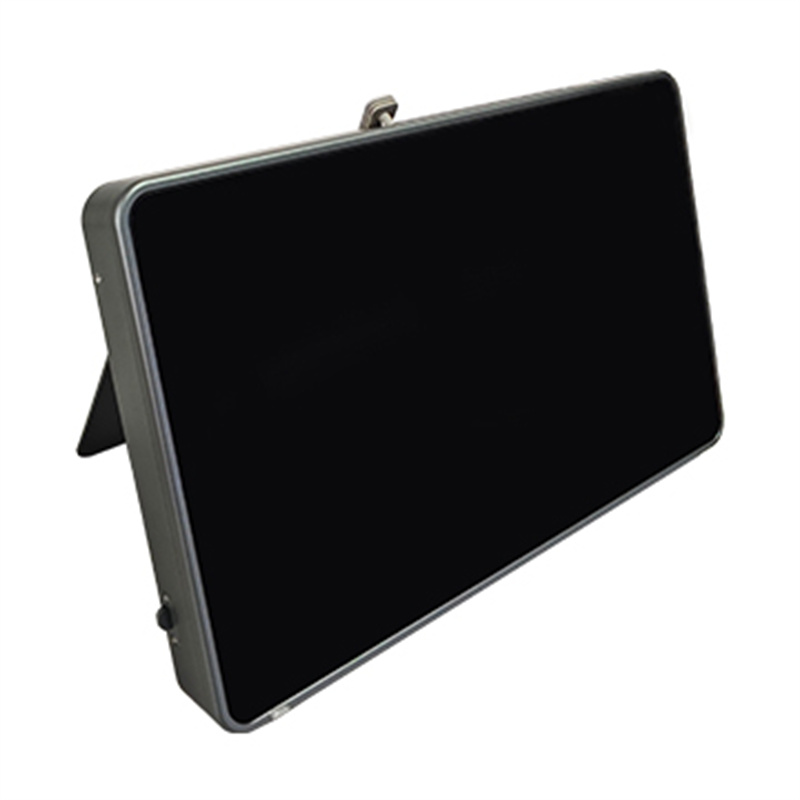

| Display | 13-inch 1920*1080 | ||
| Frequency | 4.0~9.0MHz | ||
| Mode | B, C, PW, M, BB | ||
| Body Mark | 24 kinds | ||
| Depth | 2~240mm | ||
| Cine-loop | 30~300s | ||
| Storage | 64G | ||
| Channel | 96 | ||
| Obstetrics | Polyembryony, BPD, Uterine diameter, TTD | ||
| Measurement | Back-fat thickness, EMA, loin-eye thickness, Area, Perimeter, Diameter, Angle | ||

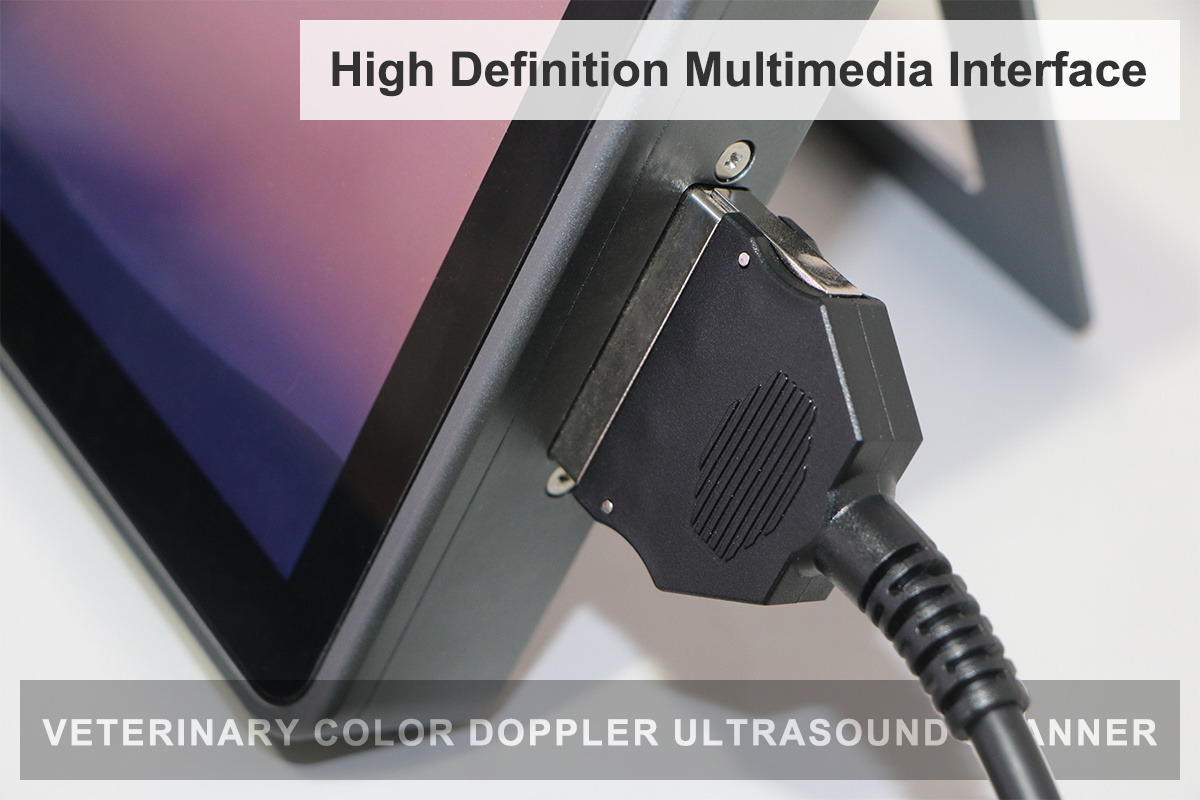

| Interface | USB, Type-c, HDMI | ||
| Working Time | 6 hours | ||
| Charge | 14V/2A | ||
| Size | 330*210*35mm | ||
| Weight | 3kg | ||

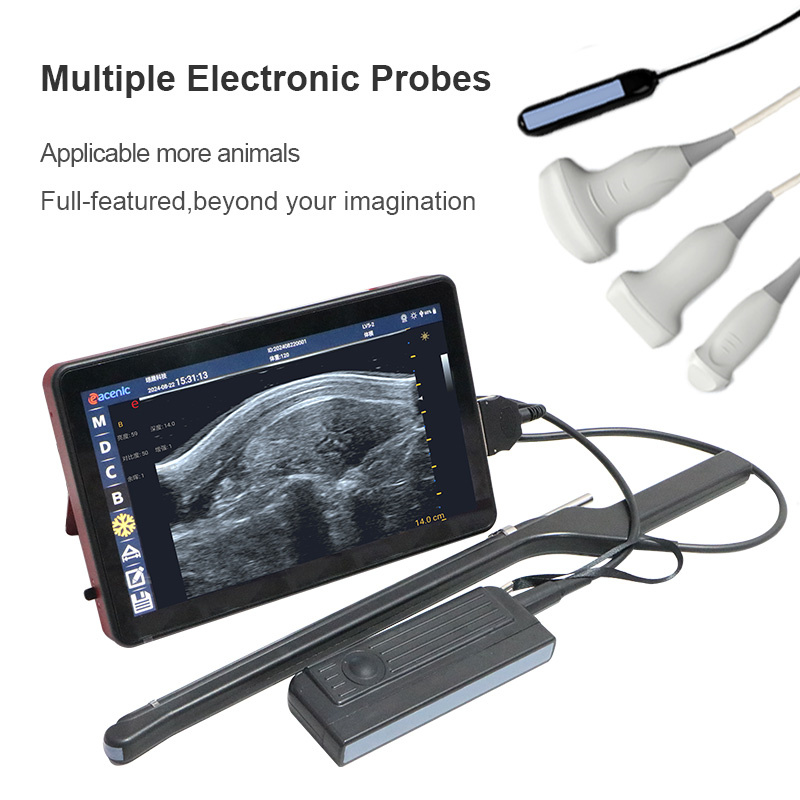

| Optional Probes | |||
| 3.5 MHz Back-fat Probe | 3.5 MHz Convex Probe | 5.0 MHz Micro-convex Probe | 7.5 MHz Linear Probe |
| L: 180mm Pitch: 0.7mm Element: 256 Frequency: 2.0-5.0MHz Depth: 60-240mm | R: 60mm Element: 128 Frequency: 2.0-5.0MHz Depth: 60-240mm | R: 20mm Element: 128 Frequency: 3.0-8.0MHz Depth: 20-100mm | L: 40mm Pitch: 0.31mm Element: 128 Frequency: 6.5-10.0MHz Depth: 20-80mm |
| 7.5 MHz Linear Probe | 6.5 MHz Rectal Probe | 6.5 MHz OPU Probe | 3.5MHz Cardiac Probe |
| L: 25mm Pitch: 0.19mm Element: 128 Frequency: 6.5-10.0MHz Depth: 20-60mm | L: 64mm Pitch: 0.5mm Element: 128 Frequency: 5.5-7.5MHz Depth: 30-120mm | R: 9mm Element: 256 Frequency: 5.0-8.0MHz Depth: 20-120mm | L: 25*15mm Pitch: 0.19mm Element: 128 Frequency: 2.0-3.5MHz Depth: 60-240mm |
What animals is veterinary Ultrasound Machine used for?
ECI-X8M Veterinary ultrasound machine is suitable for pig, cattle, sheep, horses, cats, dogs and other animals breeding test.
◆ Rectal probe for cattle and horses
◆ Convex probe for pig and sheep
◆ Micro-convex probe, linear probe mainly for pets
What are the functions of veterinary ultrasound?
● Color Doppler veterinary ultrasound: C-mode allows you to observe the speed and direction of blood flow.
● Specialized obstetric testing: information on multiple births can be recorded, CRL(crown-rump length), uterine diameter, TTD(transverse trunk diameter), etc.
● Specialized cardiac probe: The probe is mainly used in veterinary hospitals to check the heart condition of pets.
● Measuring function: with back-fat probe, it can measure back-fat thickness, eye muscle area, eye muscle thickness. The device comes with drawing measurement, measuring distance, area, volume and angle through touch screen.
● Embryo transfer assistance: using the OPU probe with the Thermostatic Negative Pressure Follicle Collection Instrument makes the embryo transfer process clear and accurate.
