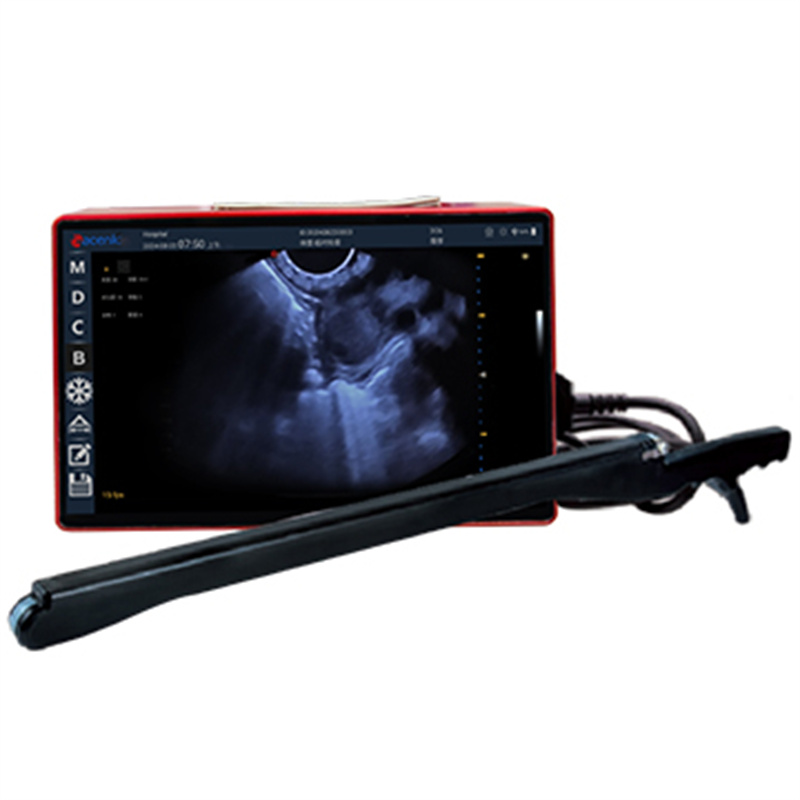

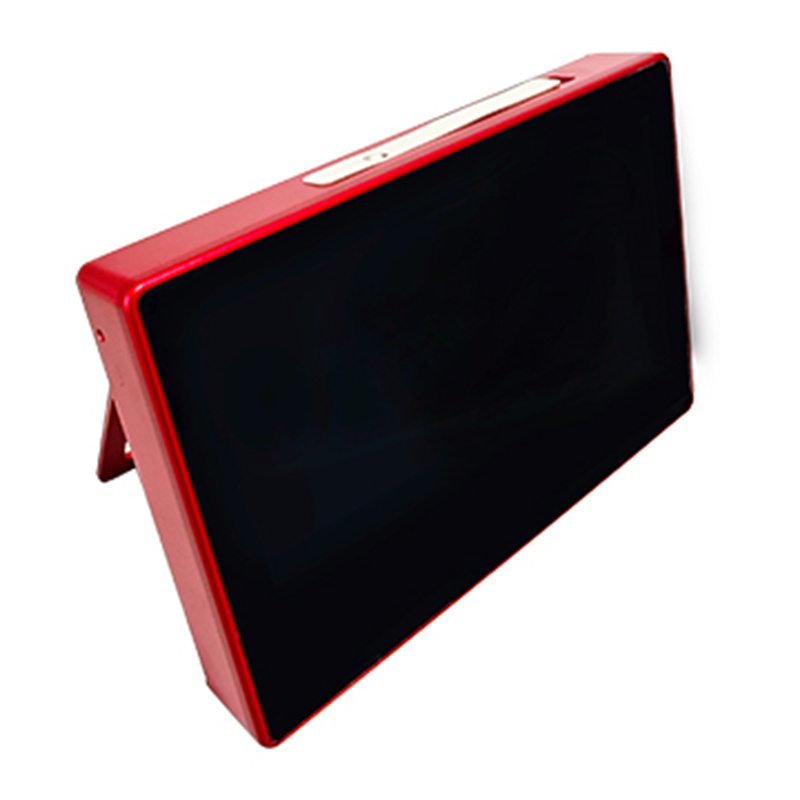

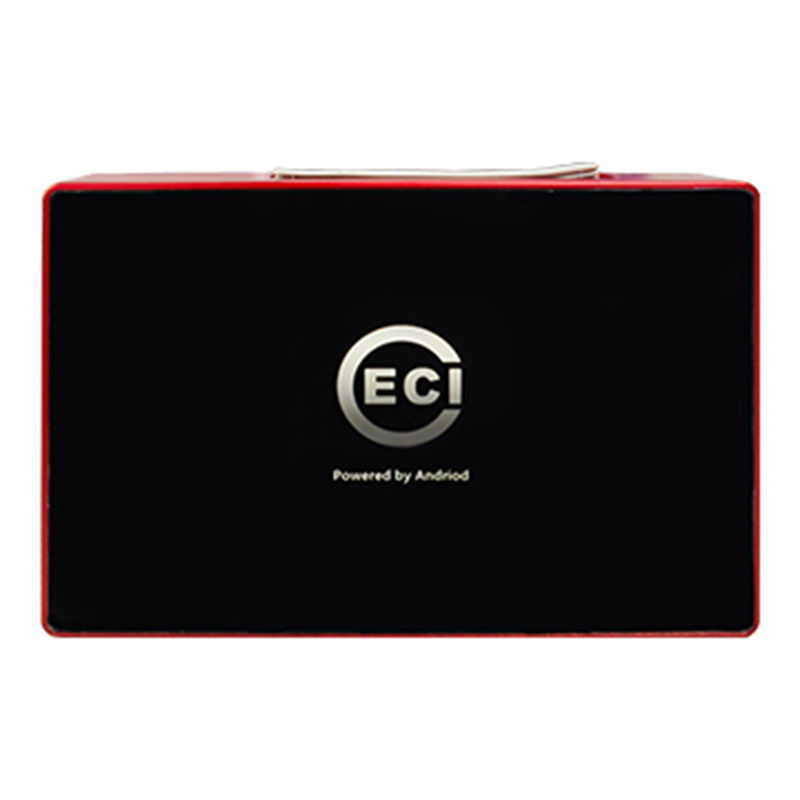

ECI-X8S 256 Elements Color Doppler Veterinary Ultrasound Machine
Description of ECI-X8S Veterinary Ultrasound Machine
ECI-X8S color Doppler veterinary ultrasound machine is composed of software and ultrasonic probe. The ultrasound machine adopts advanced beam synthesis and image processing technology. The device software supports multi-mode imaging, measurement, image storage and management functions.
Using video of the eCI-x8S veterinary ultrasound Machine
Parameters of The eCI-X8S veterinary Ultrasound Machine
| Type | ECI-X8S | ||

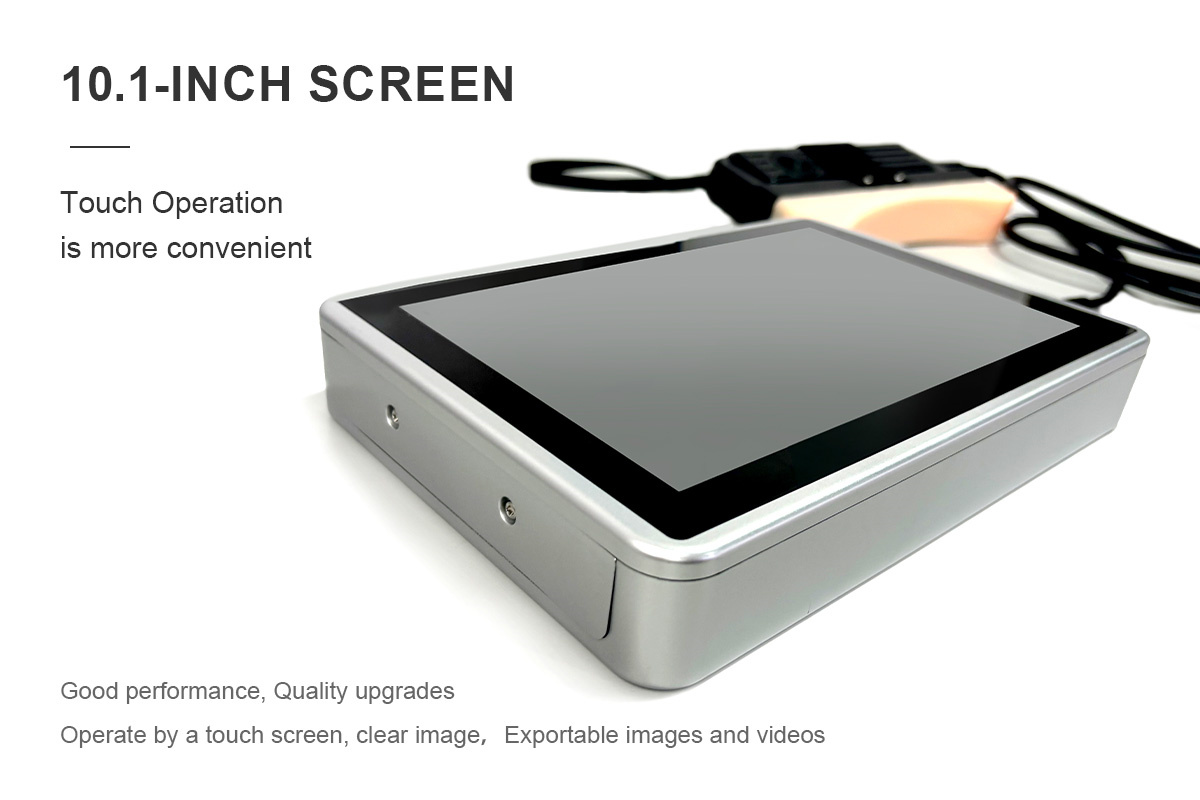

| Display | 10.1-inch 1920*1080 | ||
| Frequency | 3.0~6.0MHz | ||
| Mode | B, C, PW, M, BB | ||
| Image gray scale | 256 | ||
| Depth | 2~240mm | ||
| Cine-loop | 5 minutes | ||
| Storage | 64G | ||
| Channel | 64 | ||
| Obstetrics | Polyembryony, CRL, Uterine diameter, TTD | ||
| Measurement | Back-fat thickness, EMA, loin-eye thickness, Area, Perimeter, Diameter, Angle | ||
| Interface | USB, Type-c, HDMI | ||
| Working time | 6 hours | ||
| Charge | 14V/2A | ||
| Size | 255*175*35mm | ||
| N.W. | 1.8kg | ||
| Optional Probes | |||
| 3.5 MHz Back-fat Probe | 3.5 MHz Convex Probe | 5.0 MHz Micro-convex Probe | 7.5 MHz Linear Probe |
| L: 180mm Pitch: 0.7mm Element: 256 Frequency: 2.0-5.0MHz Depth: 60-240mm | R: 60mm Element: 128 Frequency: 2.0-5.0MHz Depth: 60-240mm | R: 20mm Element: 128 Frequency: 3.0-8.0MHz Depth: 20-100mm | L: 40mm Pitch: 0.31mm Element: 128 Frequency: 6.5-10.0MHz Depth: 20-80mm |
| 7.5 MHz Linear Probe | 6.5 MHz Rectal Probe | 6.5 MHz OPU Probe | |
| L: 25mm Pitch: 0.19mm Element: 128 Frequency: 6.5-10.0MHz Depth: 20-60mm | L: 64mm Pitch: 0.5mm Element: 128 Frequency: 5.5-7.5MHz Depth: 30-120mm | R: 9mm Element: 256 Frequency: 5.0-8.0MHz Depth: 20-120mm | |
Features of The ECI-X8S veterinary Ultrasound Machine

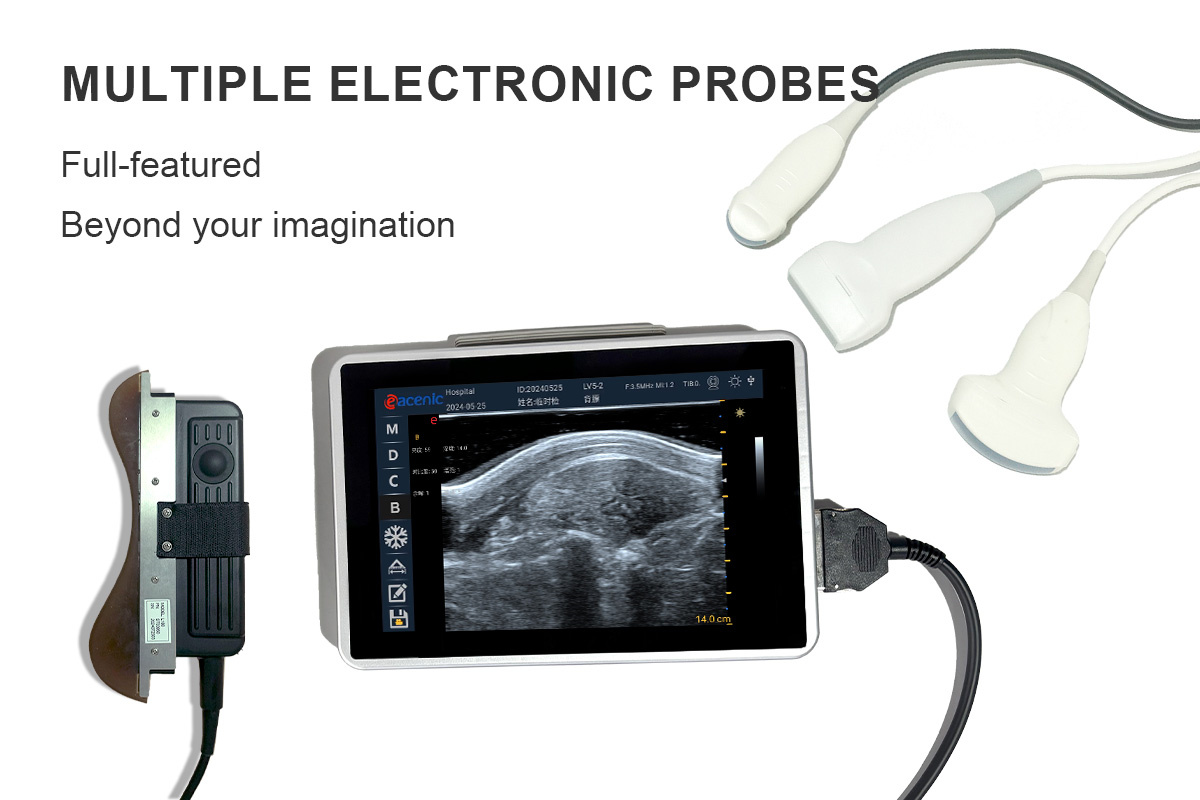

● The veterinary ultrasound Machine is equipped with 3.5MHz back-fat probe, 5.0MHz micro-convex probe and other types of probes to meet different testing needs.
● Color Doppler imaging real-time display of blood flow speed and direction, to assist the diagnosis of heart disease, such as canine heart valve regurgitation detection.
● Back-fat measurement function can output back-fat data in 3 seconds, freeze the image and then select the measurement tool to measure on the image.
● Cine-loop function for dynamic analysis of embryonic development or lesion characteristics.

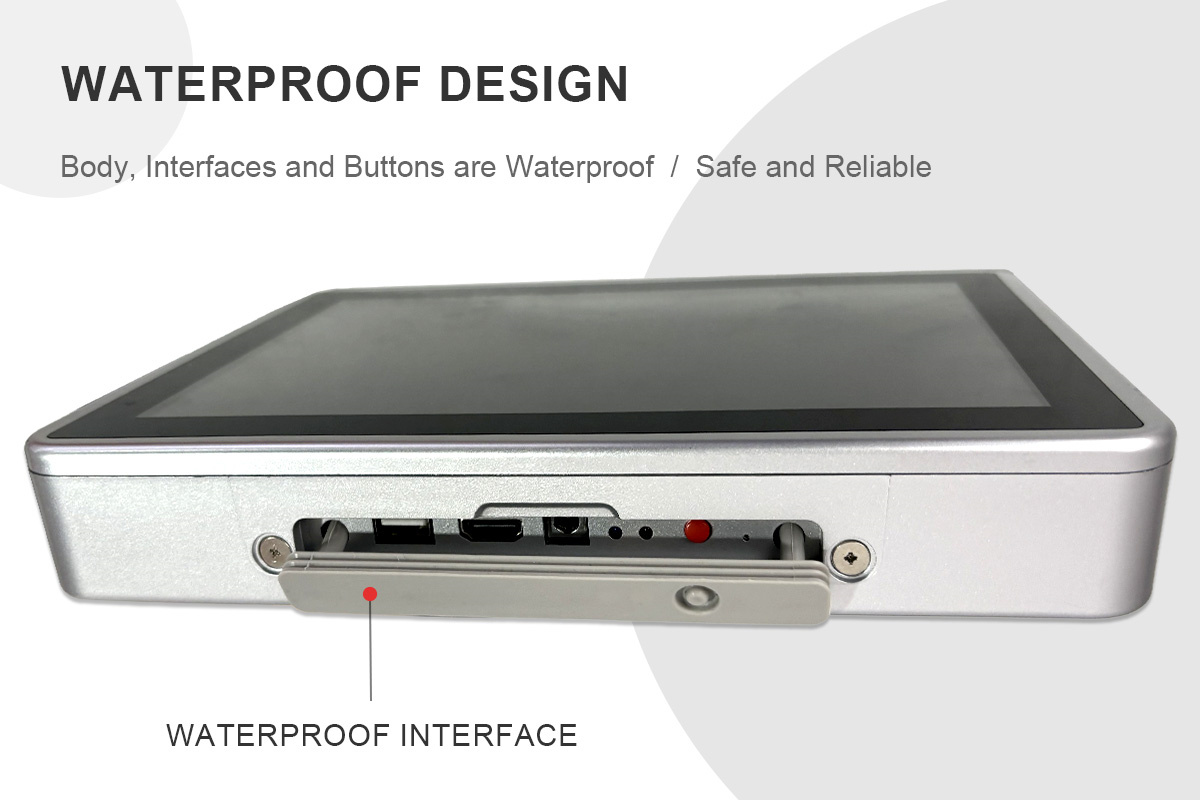

● IPX6 waterproof body can be directly rinsed and sterilized, suitable for the wet environment of farms.
● The veterinary can be connected to a printer via Bluetooth or network for printing.
Optimize feed ratios and mating plans through quantitative data to reduce empty pregnancy rates, improve breeding success and meat quality, and thus reduce breeding costs.
Package
The product uses a PVC box to contain the main unit, probe, and accessories together. The PVC box is packaged in a cardboard box for transportation and sent out.
Dimension: 43*33*18cm
G.W.: 5kg
|
Packing list |
||
|
Standard Configuration |
Item | Quantity |
| Veterinary ultrasound machine | 1 | |
| Convex probe | 1 | |
| Power Cord | 1 | |
| Adapter | 1 | |
| User Guide | 1 | |
| product qualification certificate | 1 | |
| PVC box | 1 | |
