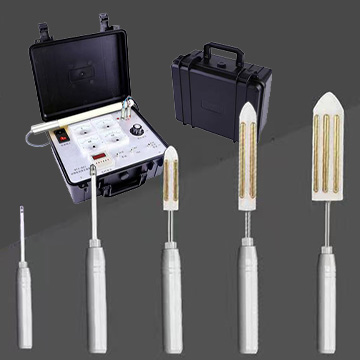

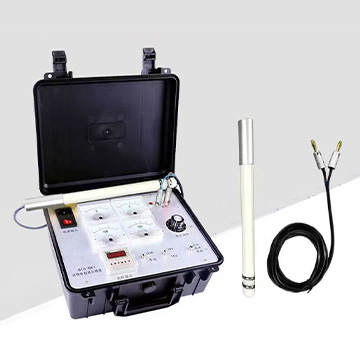

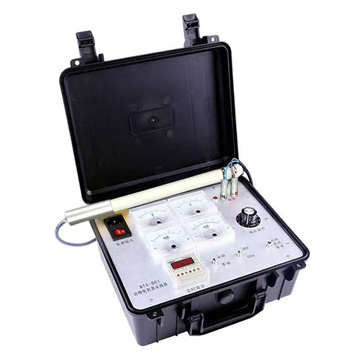

Electro Ejaculator with Multiple Probes
Introduction
The electro ejaculator consists of a rectal probe and a controller that progressively controls the voltage applied to it.
The probe is inserted into the rectum and placed over the prostate. Ejaculation is triggered by a series of short low voltage pulses.
Electro ejaculation is suitable for bulls with reduced libido or for animals where semen cannot be collected through an artificial vagina.
Product Features
● Equipped with a digital power control with microprocessor
● Manual adjustable pulse/pause ratio
● Power output can be equalised according to the size and sensitivity of the animal.
● In case of emergency the power can immediately be switched off.

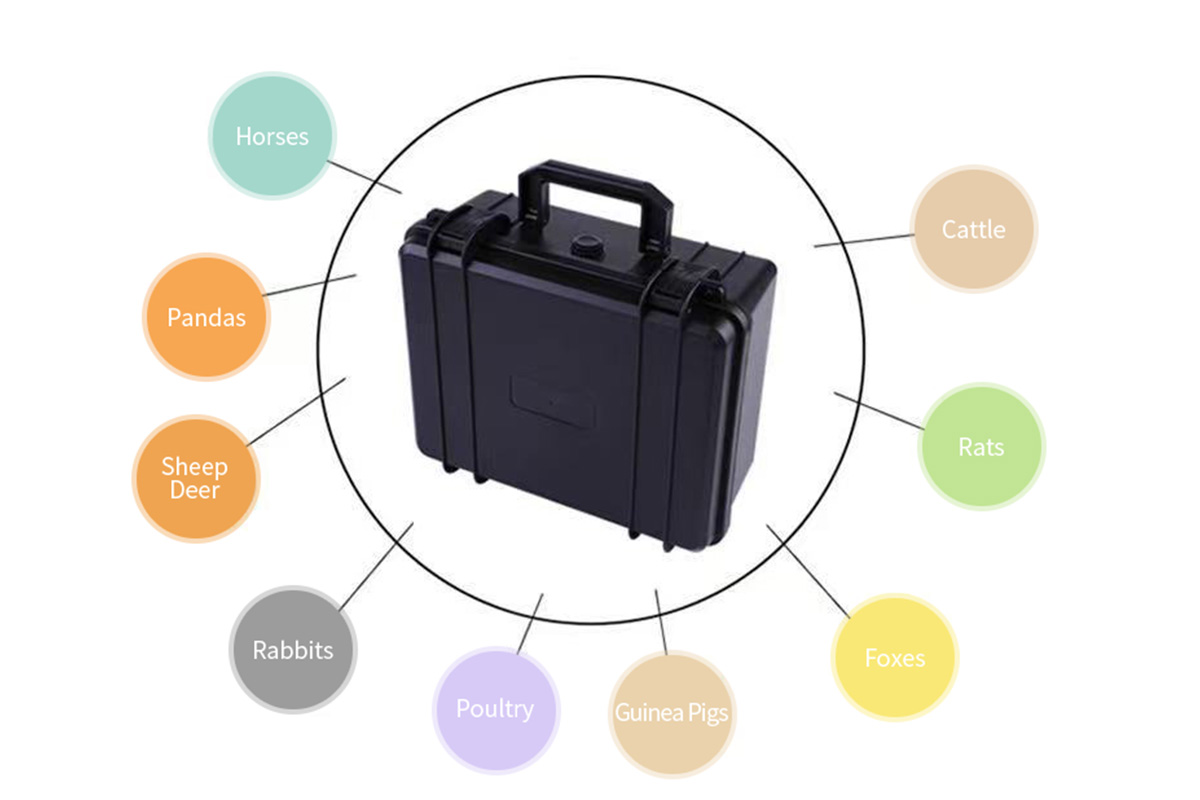

● Supplied in a stable robust plastic carry case.
● Availability of different probes allows to choose the best fitting probe depending on the animals size and age.

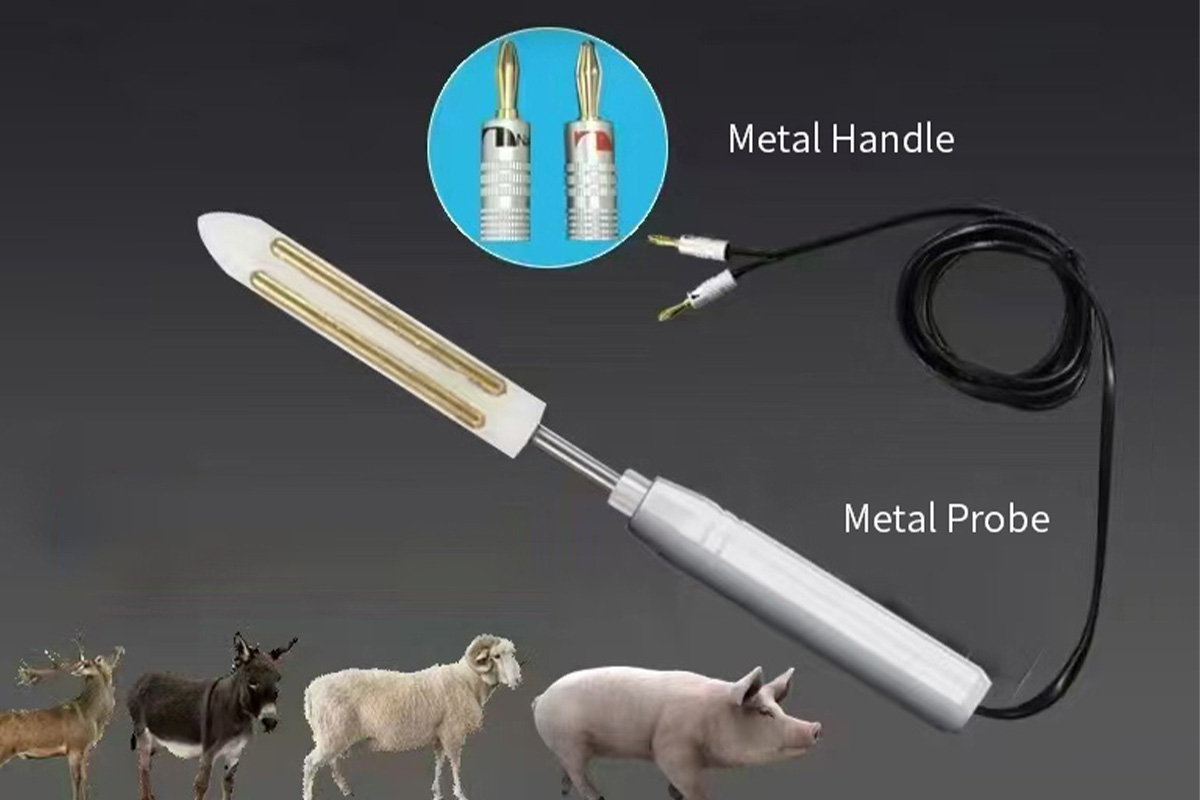

● The probes are optimally insulated, offering highest
Product Configuration
● 15V Voltmeter
● 50V Voltmeter
● 15V Ammeter
● 50V Ammeter
● Connector for probe
● Voltage Control Knob
● Timing Display
● Mode Selection
● Voltage Level Adjustment
● Control Switch
Options

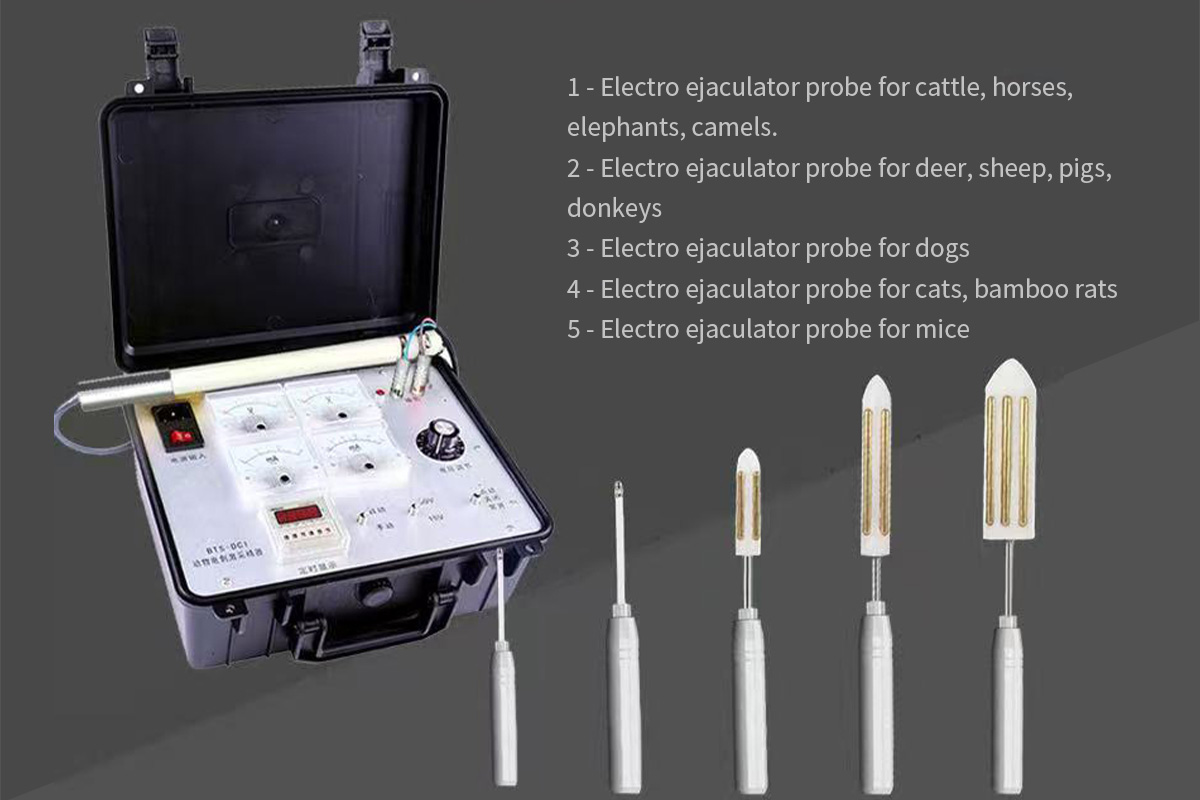

● Electro ejaculator probe for cattle, horses, elephants, camels.
● Electro ejaculator probe for deer, sheep, pigs, donkeys
● Electro ejaculator probe for dogs
● Electro ejaculator probe for cats, bamboo rats
● Electro ejaculator probe for mice
Parameters
| Size | 30*26*16 |
| G.W. | 3.5kg |
| Power supply | AC 220V |
| Output Current | <2A |
