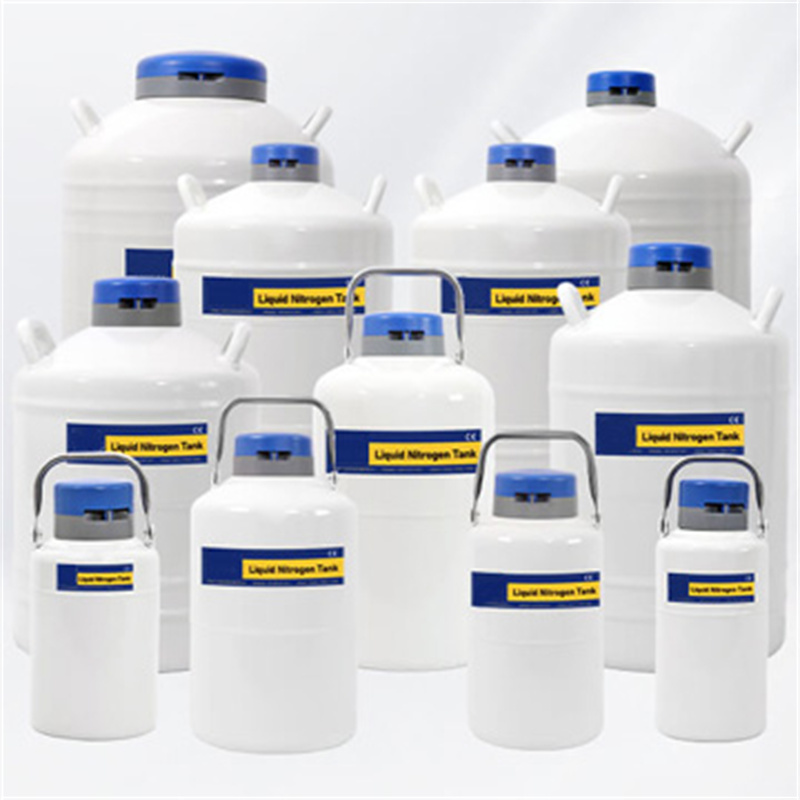

Liquid Nitrogen Tank for Semen Storage 01.jpg

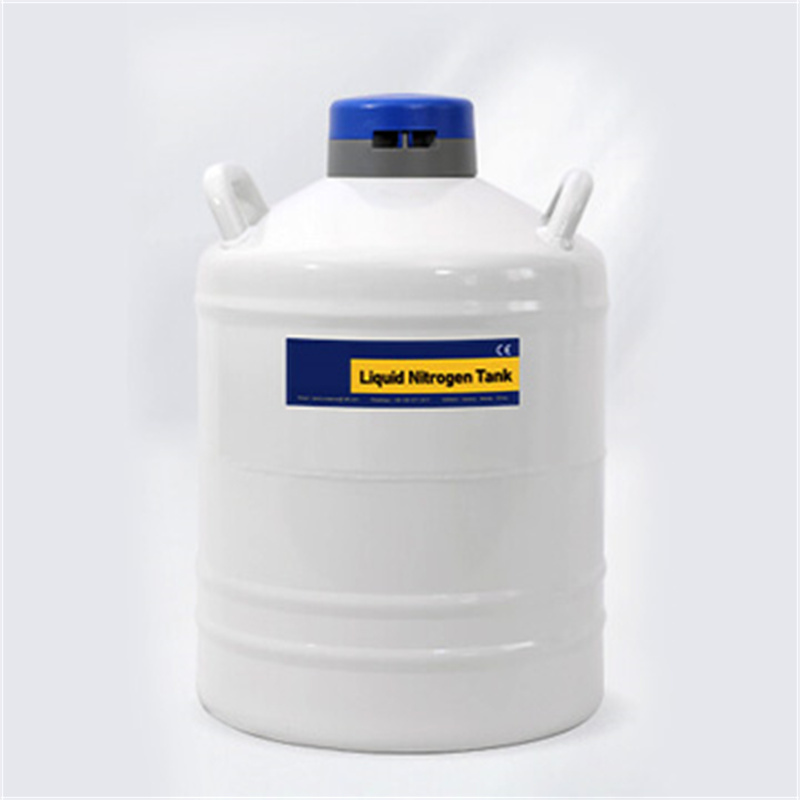

Liquid Nitrogen Tank for Semen Storage 02.jpg

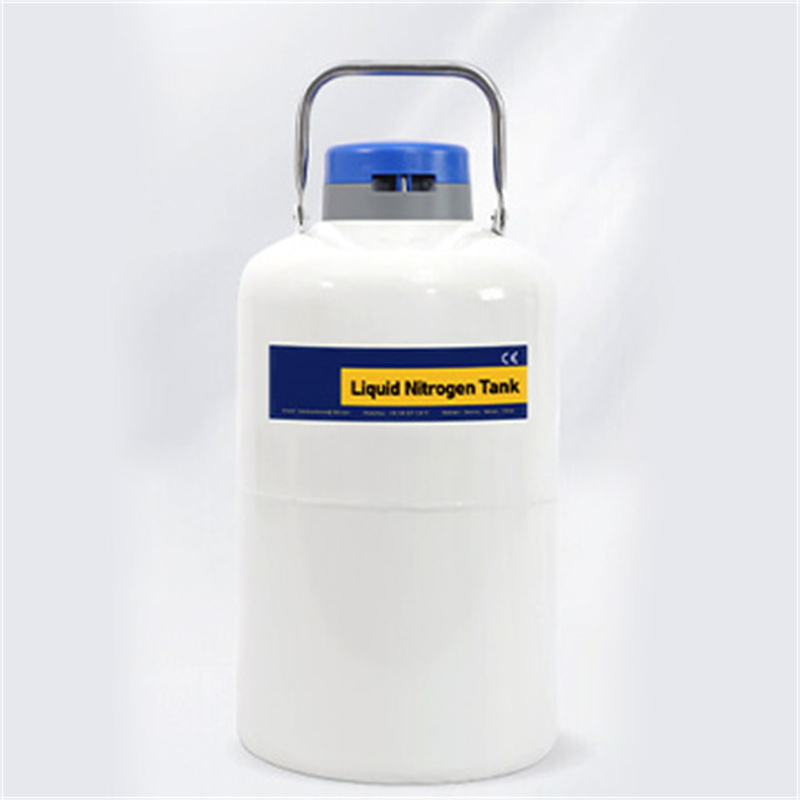

Liquid Nitrogen Tank for Semen Storage 03.jpg

Liquid Nitrogen Tank for Semen Storage

1. Made of high strength aviation aluminum
2. Equipped with a protective bag
3. high vacuum multi-layer insulation design

product details

Product Introduction

Storage type series liquid nitrogen tanks are made of high quality aviation aluminum. It is mainly suitable for users who need to store liquid nitrogen and biological samples in large capacity under static conditions, as well as users who need to transfer the stored samples manually frequently. It has the advantages of small volume, light weight, easy to carry, low daily evaporation of static liquid nitrogen, large storage capacity of biological samples, and economical and practical.

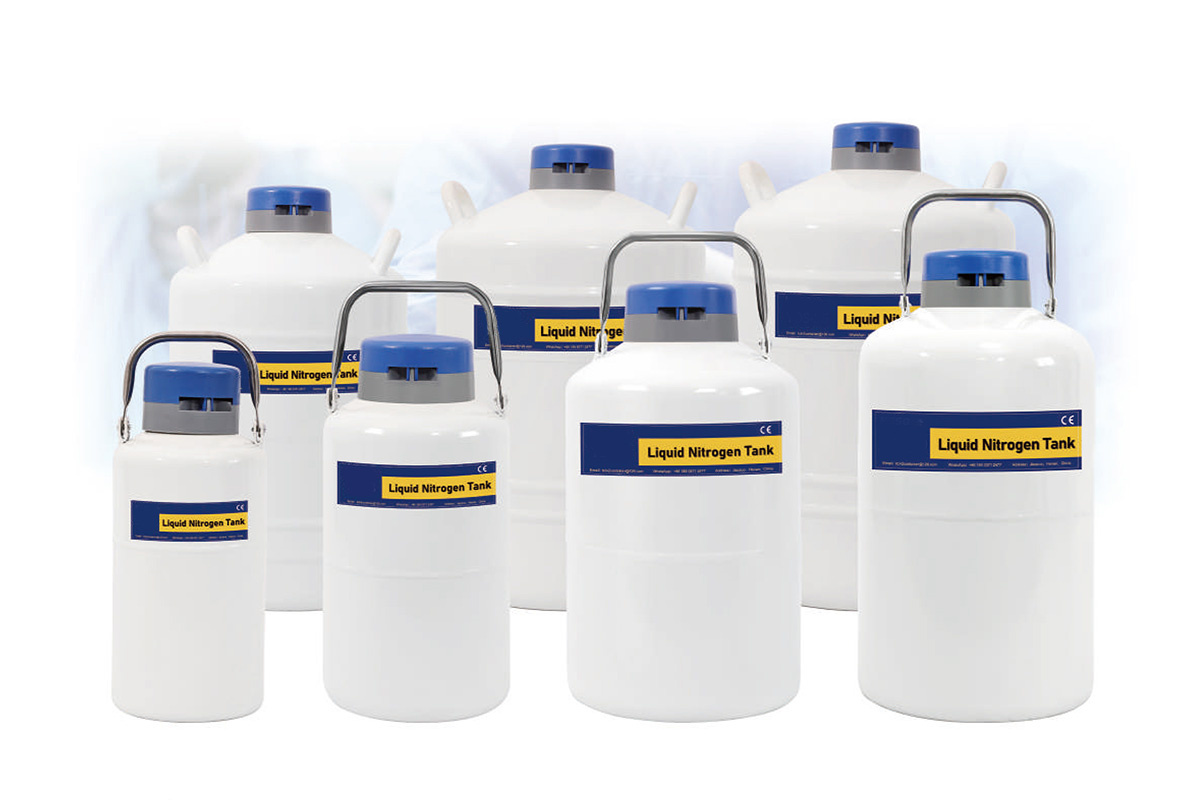

Liquid Nitrogen Tank for Semen Storage detail-01

Structure

Outer liner and inner liner are made of high-strength, corrosion-resistant special aluminum plate for durability.

The neck tube is made of special glass fiber reinforced plastic with high strength and low thermal conductivity.

● The insulating material is filled between the inner and outer liners and is laminated and wound using advanced technology.

● The neck plug is made of special material with the dual function of reducing liquid nitrogen evaporation and securing the lifting cylinder.

● The vacuum port is an important location for closing the vacuum and must be strictly protected.

● Protective bag can protect the container when moving or transporting, and has certain heat insulation effect to reduce evaporation.

Storage Series

Model	Volume (L)	Caliber (mm)	O.D (mm)	Height (mm)	Static Power Dissipation (D)	Static storage (L/day)
ECI-1-35	1.30	35	180	350	16	0.08
ECI-2-35	2.30	35	180	420	28	0.08
ECI-3	3.10	50	223	455	26	0.12
ECI-3-80	3.10	80	223	440	11	0.27
ECI-3-125	3.10	125	223	420	4	0.68
ECI-6	6.50	50	280	525	53	0.12
ECI-6-80	6.50	80	280	500	25	0.25
ECI-6-125	6.50	125	280	475	11	0.55
ECI-6-216	6.50	216	304	530	2	3.03
ECI-10	10.50	50	304	565	87	0.12
ECI-10-80	10.50	80	304	565	50	0.21
ECI-10-125	10.50	125	304	585	25	0.42
ECI-10-216	10.50	216	304	560	11	0.88
ECI-13	15.18	50	304	680	126	0.12
ECI-15	16.40	50	385	600	136	0.12
ECI-15-80	16.40	80	385	600	78	0.21
ECI-15-125	16.40	125	385	585	45	0.35
ECI-15-216	16.40	216	385	570	24	0.68
ECI-16	17.48	50	440	525	145	0.12
ECI-16-80	17.48	80	440	525	83	0.21
ECI-20	21.50	50	385	660	178	0.12
ECI-20-80	21.50	80	385	665	102	0.21
ECI-20-125	21.50	125	385	660	60	0.35
ECI-20-216	21.50	216	385	640	30	0.68
ECI-25	25.20	50	440	650	210	0.12
ECI-30	31.50	50	440	720	260	0.12
ECI-30-80	31.50	80	440	710	150	0.21
ECI-30-125	31.50	125	440	710	90	0.35
ECI-30-216	31.50	216	440	670	46	0.68
ECI-35	35.20	50	440	760	290	0.12
ECI-35-80	35.20	80	440	710	167	0.21
ECI-35-125	35.20	125	440	710	100	0.35
ECI-35-216	35.20	216	440	710	50	0.68
ECI-50	52.10	50	516	790	217	0.24
ECI-50-80	52.10	80	516	790	162	0.32
ECI-50-125	52.10	125	516	790	115	0.45
ECI-50-216	52.10	216	516	790	70	0.73

Features

1. Convenient for long-term preservation of biological samples, easy to carry out.

2. Equipped with a protective bag to avoid product knocking.

3. Numbered canisters for easy identification and independent access to samples.

4. Optional locking lid, to protect the safety of stored samples.

5. High vacuum multi-layer insulation design, provide not less than five years of vacuum guarantee.

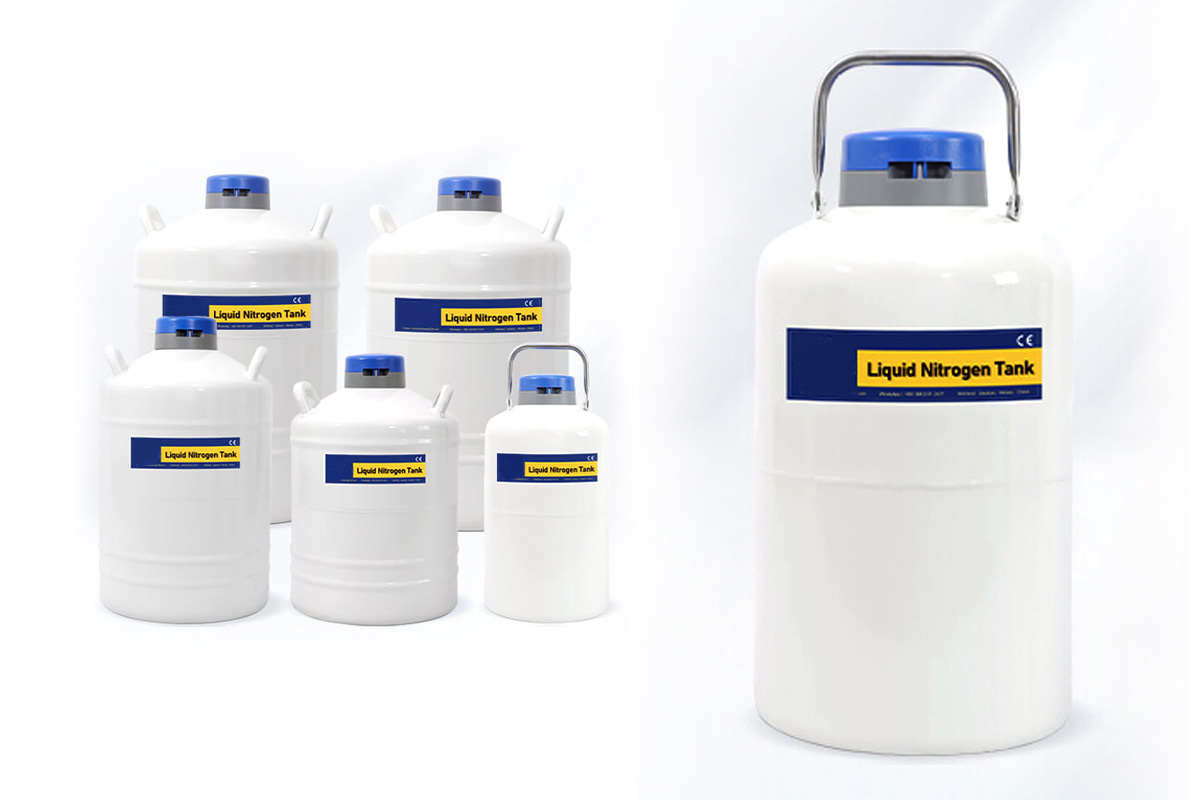

Liquid Nitrogen Tank for Semen Storage detail-02
