ECI‑X6S: Bring Color‑Doppler Ultrasound to Pig and Sheep Farms

As livestock farming shifts toward refined breeding management, ultrasound scanning has become an essential tool for large‑scale pig, sheep, cattle and horse farms. It is widely used for pregnancy checks, foetal viability assessment and uterine health screening. There is growing market demand for ultrasound equipment that offers good on‑site portability, reliable deep‑penetration imaging, Doppler diagnostic capability and practical data‑archiving functions.

To address these market demands, ECI Group has released the ECI‑X6S portable veterinary color Doppler ultrasound scanner, fitted with the  3.5 MHz convex probe. Designed for breeding examinations of pigs and  sheep , this device brings full‑feature color‑Doppler ultrasound capability right into livestock pens.

Key Features

Light‑weight probe with deep penetration for on‑farm examinations!

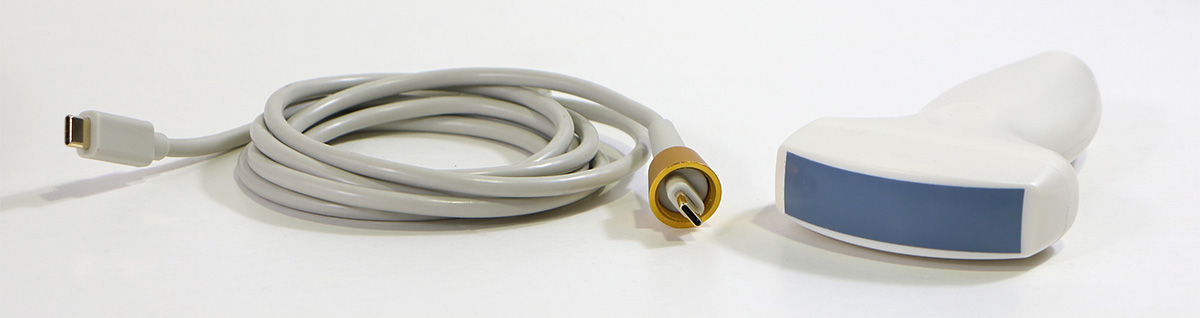

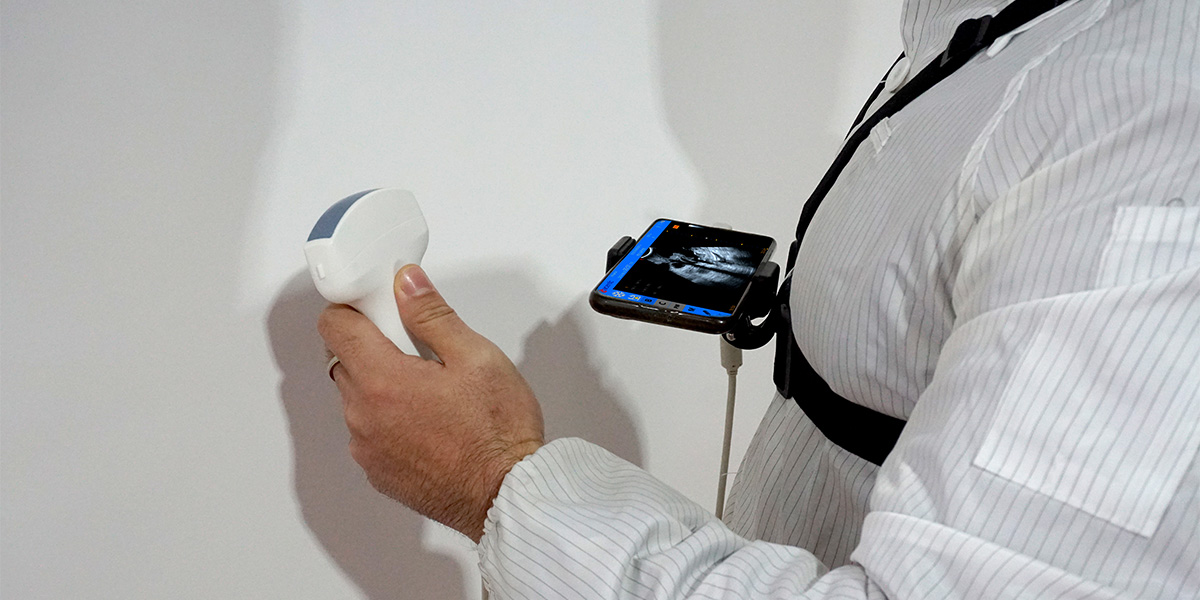

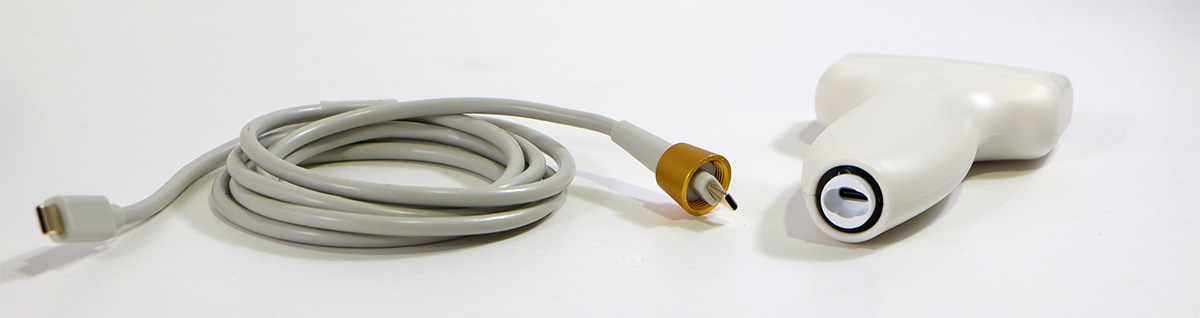

Weighing only 250 grams, the probe connects directly to Android smartphones or tablets via a Type‑C port, eliminating the need for a bulky main unit. The 3.5 MHz convex probe delivers scanning depth ranging from 60 mm to 240 mm, with a maximum detection depth of ≥140 mm. It supports deep scanning of abdominal and uterine structures in large animals. Farm staff can perform pregnancy examinations directly inside pens, without driving or relocating livestock.

1. Multi‑mode imaging for blood‑flow and foetal‑viability evaluation

It supports B‑mode, color C‑mode and PW pulsed‑wave Doppler modes, alongside B/B split‑screen and B‑C dual‑view imaging. Beyond standard B‑mode anatomical scanning, users can visualise blood‑flow signals and calculate heart rate, blood‑flow velocity, resistance index (RI) and pulsatility index (PI). This enables reliable assessment of foetal viability and uterine perfusion, overcoming a key limitation of basic grayscale B‑mode scanners that cannot confirm foetal life signs.

2.Species‑specific obstetric measurement suite to minimise human judgement errors

Pre‑loaded obstetric measurement presets for pigs and sheep include gestational‑sac diameter, crown‑rump length, uterine diameter, trunk transverse diameter (TTD) and biparietal diameter (BPD). A dedicated multiple‑foetus recording window lets operators log sex and clinical notes for each foetus individually, reducing inaccuracies caused by manual visual estimation.

3.Comprehensive breeding‑record management

Built‑in animal‑record functions allow users to create, search and edit animal case files, while storing ultrasound still images and cine‑loop video clips. DICOM server upload is supported to help farms organise breeding records and carry out breeding‑performance statistical analysis.

4.Primary Application Scenarios

ECI‑X6S portable veterinary color Doppler ultrasound scanner for pig and sheep herds; on‑call field services by mobile veterinarians; image archiving for livestock‑breeding research and teaching purposes.

Product Manager at ECI Group commented:

“Many farms recognise the value of color‑Doppler ultrasound for breeding evaluation. However, adoption has been limited by bulky hardware, high purchasing costs and poorly adapted software. Built around real‑world large‑animal farm requirements, the ECI‑X6S brings professional‑grade ultrasound diagnostics to on‑pen farm operations.”

Warranty Information: The unit comes 1 years manufacturer‑provided warranty. Do not disassemble or modify the device by yourself. Unauthorised disassembly will void your warranty coverage.
