How to Choose the Right Probe for Bovine Ultrasound Machine: Bovine rectal Linear probe vs. Bovine convex probe

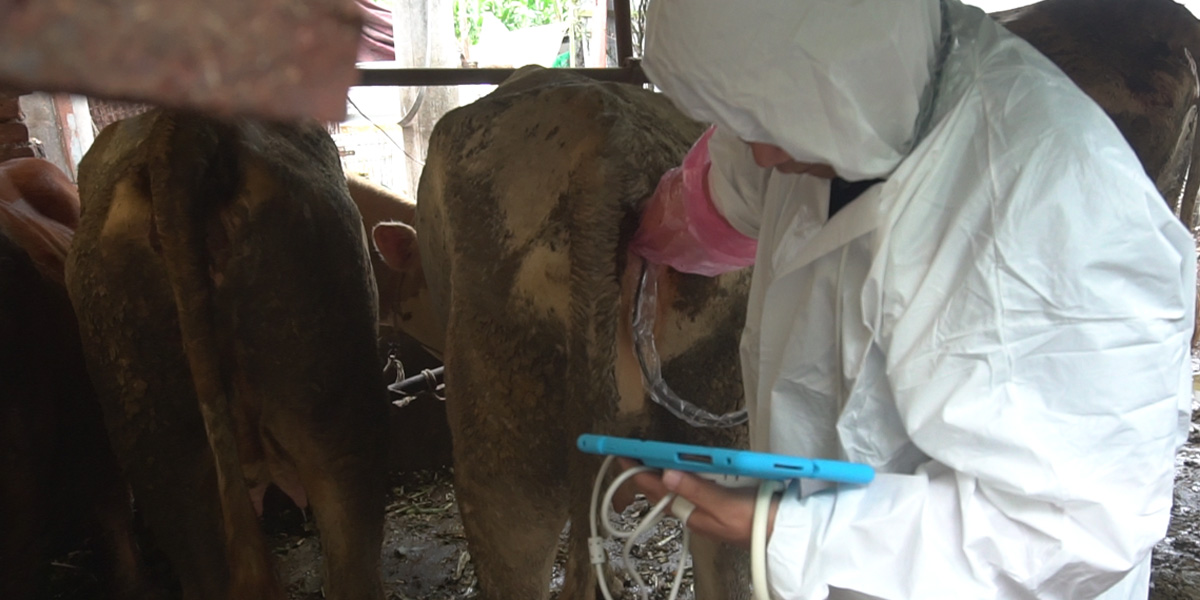

Bovine Ultrasound Machine has become an indispensable tool in modern cattle farming, offering advanced, accurate, and non-invasive solutions for pregnancy testing, reproductive health checks, and fetal monitoring.Selecting the right rectal probe is critical—after all, the probe directly impacts image clarity, detection range, and overall usability of the bovine ultrasound machine.

When it comes to probe with a bovine ultrasound machine, We often use two probes : the bovine rectal probe and the bovine rectal convex probe. Understanding their differences will help you choose suitable probe that maximize the use of your bovine ultrasound machine. Below is a guide to help you make the right choice for your farming or veterinary needs.

1. Key Differences & Advantages: Bovine Rectal Linear Probe vs. Bovine Rectal Convex Probe

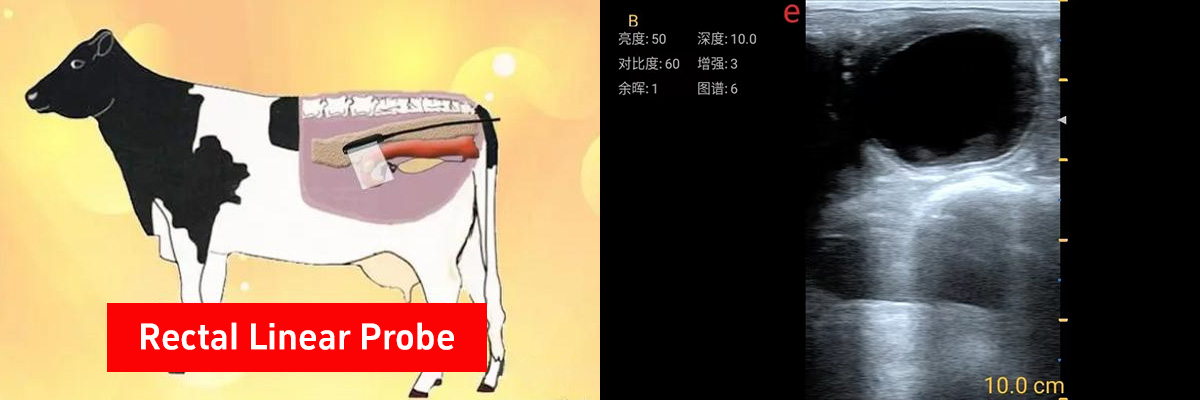

(1) Bovine Rectal Linear Probe:

The Bovine Rectal Linear Probe produces rectangular images with a frequency range of 5.5–7.5 MHz.The flat linear field of view of the bovine linear  rectal probe is smaller, making structures within the imaging plane appear larger on the screen.When reaching the far field, its images remain more consistent with less distortion.Additionally, the linear array rectal probe for cattle inherently produces higher-resolution images due to its broader frequency range.Therefore, it is well-suited for examining smaller, shallower structures—such as early pregnancy and ovaries—with the finest possible detail.

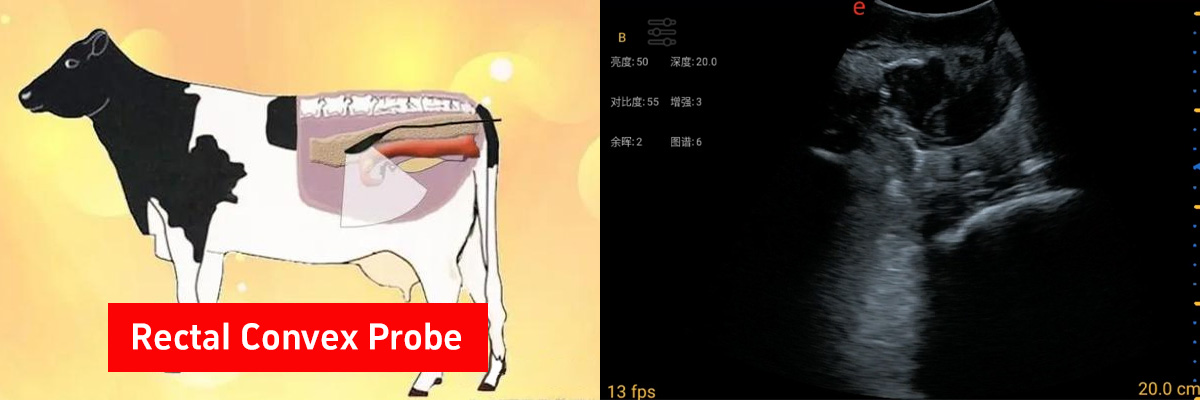

(2)Bovine Rectal Convex Probe:

The bovine rectal convex probe generates a fan-shaped planar image with a frequency range of 2.5–5.0 MHz. The bovine rectal convex probe was developed to meet the demands of late pregnancy examinations. Its wide field of view and low frequency enable broader observation of the reproductive tract, allowing visualization of larger fetuses. Furthermore, the curved surface itself achieves superior contact with the rectal mucosa, making it an excellent choice for armless devices. During examination, only minimal pressure or leverage is required to eliminate air and generate images.

2. How to Choose Between a Bovine Rectal Linear Probe and a Bovine Rectal Convex Probe?

Bovine Rectal Linear Rectal Probe:

• For high-quality imaging.
• Examines ovaries, early pregnancy, and fetal gender at 60-80 days.
• Typical applications: Dairy and equine reproduction, foal and calf lung screening.
• Includes diagnosis of uterine and ovarian lesions, as well as follicle and corpus luteum development.

Bovine Rectal Convex Probe:

• For bovine surgical procedures,and late-stage fetal assessment.
• Frequently used for pregnancy checks in cattle, sheep, horses, donkeys, camels, or pigs.
• A hybrid large animal veterinary probe for rectal and abdominal use.
