  The ultrasound probe is the core component of an ultrasound diagnostic device,serving as the “eyes” of the B-scan equipment. It sends ultrasonic signals and receives reflected echo signals from tissues to enable tissue imaging. Commonly encountered ultrasound probes include electronic and mechanical types. As individual livestock farmers or veterinarians, how should we choose Mechanical probes Vs. Electronic probes?

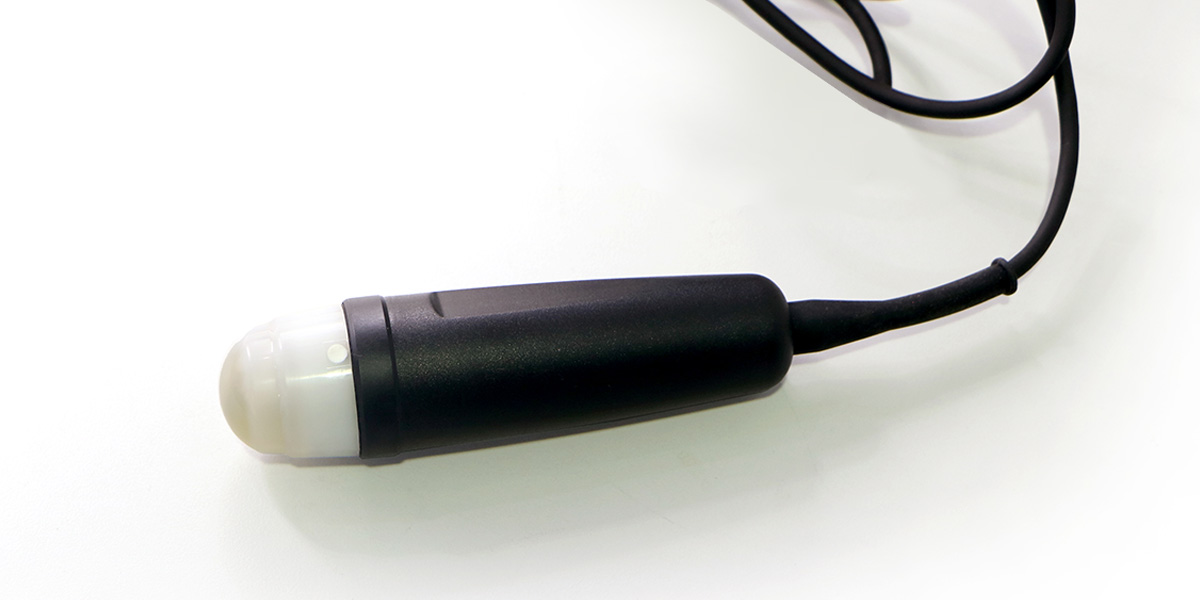

Mechanical Probe:

1. Principle of mechanical Probe: It uses mechanical movement (such as rotation or oscillation) to move one or more transducer wafers to achieve beam scanning.
2. features of mechanical probes :

• Simple structure and low cost, but there is a problem of mechanical wear;
• Slow scanning speed, suitable for early B-ultrasound equipment.

    3.Applications:

Early ultrasound diagnostic instruments, such as mechanical sector scanning probes.

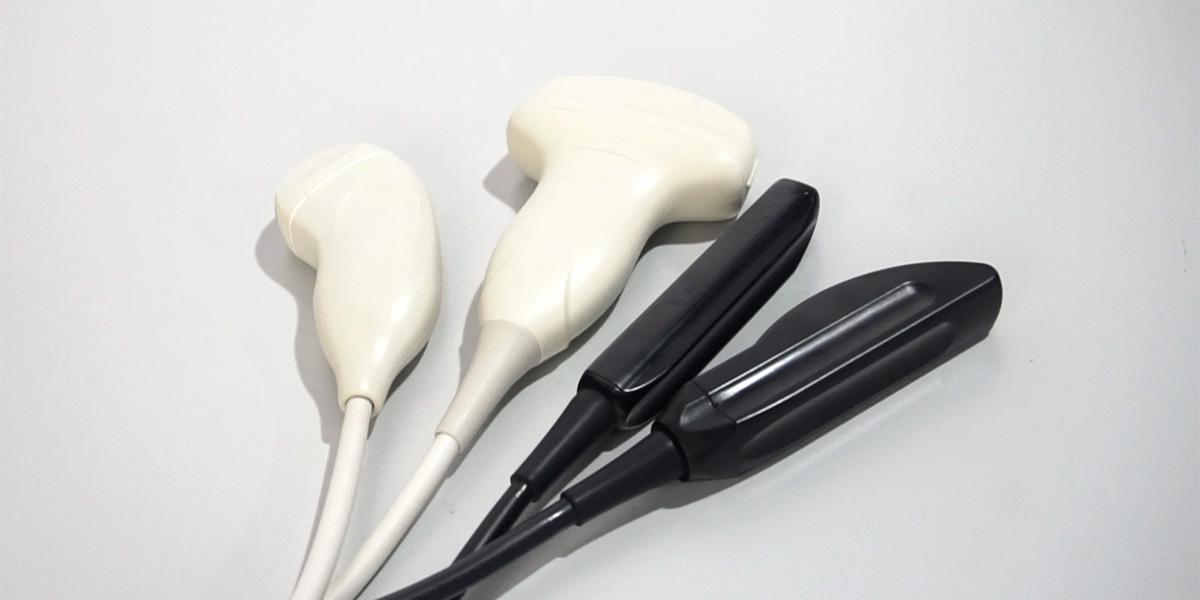

Electronic Probe:

1. Principle of Electronic Probe:

 It uses electronic control to adjust the transmission and reception sequence of multiple array elements (wafers) to realize electronic deflection and dynamic focusing of the sound beam.

2. Features of Electronic probes:

• fast scanning speed and stable imaging;
• Supports multiple imaging modes (B-mode, M-mode, Doppler, etc.).

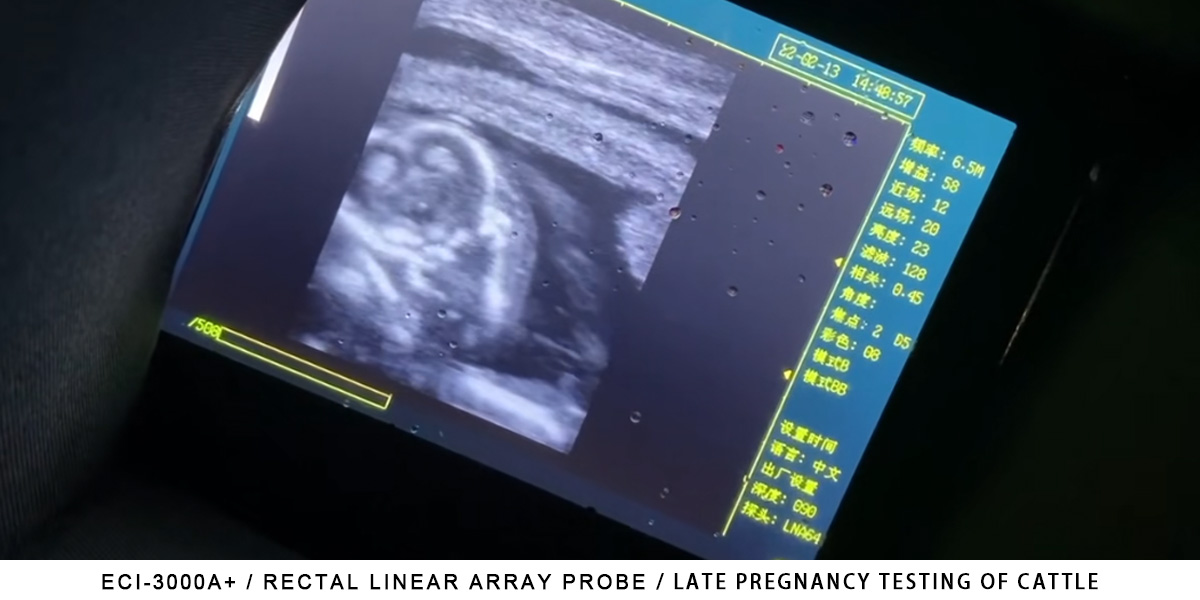

     3.Applications:

The mainstream probe type for modern ultrasound equipment, such as phased array probes and linear array probes.

  In summary, mechanical probes and electronic probes each have distinct advantages and suitable applications. The specific choice of probe should be determined based on actual application requirements and technical specifications.
