Veterinary Semen Microscope with Heated Stage, 400X Livestock Sperm Test

Livestock breeders and AI technicians often face the same field problem: inaccurate semen test results caused by unstable temperature. Ordinary microscopes have no heated stage. When fresh semen is placed on a slide at room temperature, sperm motility drops quickly. The observed sperm movement does not reflect the real quality, which easily causes misjudgment and reduces livestock conception rates. This is a common and practical issue for field farms in Southeast Asia, Africa and South America.

Built for real on-farm use, the ECI-400X veterinary semen microscope is designed for practical field inspection. It features standard veterinary parameters, simple operation and high stability, making it ideal for small and medium AI stations and international livestock breeding projects.

The ECI-400X veterinary semen microscope provides standard 40X–400X magnification for daily sperm motility and concentration screening. Equipped with 185mm achromatic objectives, NA1.25 Abbe condenser and 1W cold LED light source, the microscope delivers clear and uniform images. The cold light produces no extra heat, protecting live sperm samples and ensuring authentic test results.

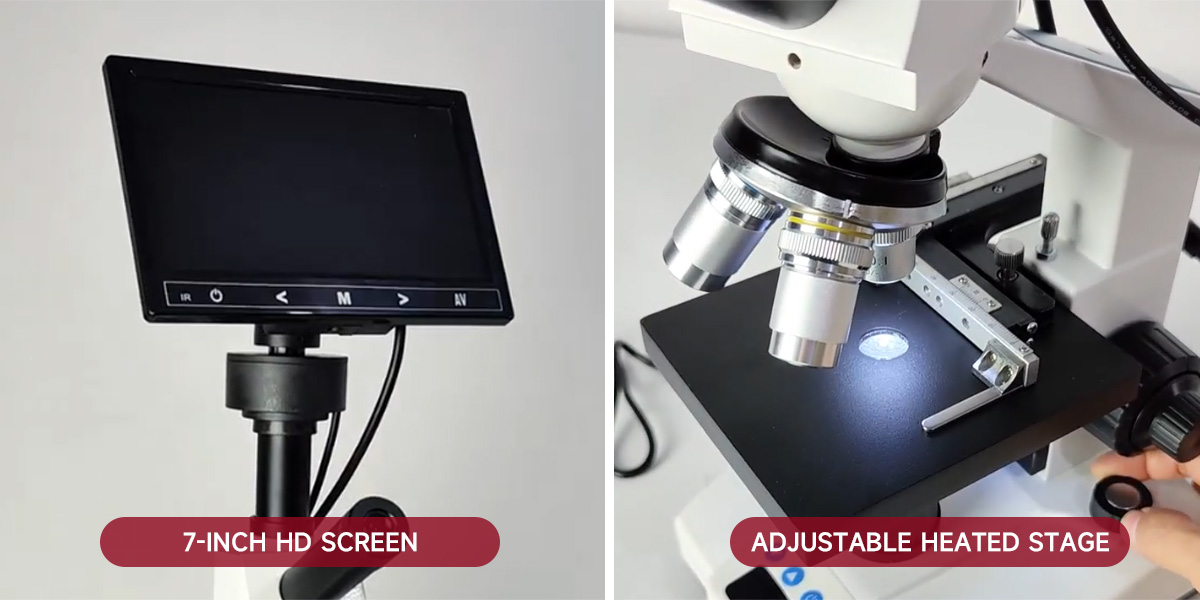

The core advantage is the 38–42℃ adjustable heated stage, a key feature missing from ordinary microscopes. It simulates livestock physiological temperature and prevents false low motility caused by temperature difference, bringing field inspection accuracy close to laboratory standards. The 115×125mm large stage fits slides and semen counting chambers perfectly. With coaxial coarse and fine focusing (0.004mm fine adjustment), the unit achieves precise focusing and is easy to operate for new and experienced technicians.

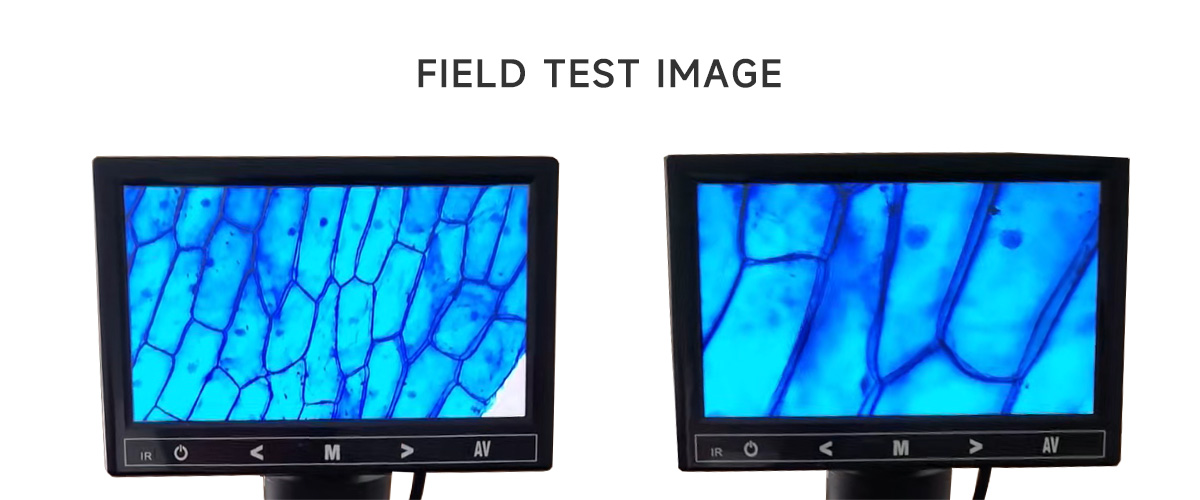

The built-in 7-inch HD screen avoids long-time eyepiece observation and allows multi-person viewing at the same time, which is perfect for farm training and technical promotion. It works for both fresh semen and thawed frozen semen, compatible with cattle, pigs, sheep, horses, dogs and more livestock species. It also supports basic microbiology and tissue observation, realizing multi-function use and saving farm equipment investment.

The ECI-400X veterinary semen microscope is a professional manual visual inspection microscope. Technicians evaluate sperm motility and density directly on screen. With simple structure, low failure rate and almost no maintenance cost, ECI-400X veterinary semen microscope is perfect for daily farm screening.

We offer one-year warranty, complete English manuals, operation videos and long-term online technical support, bringing reliable after-sales service for global distributors and end farms.

Compared with expensive and complex laboratory-grade devices, the ECI-400X veterinary semen microscope is more suitable for harsh field environments. With stable constant-temperature performance and excellent cost performance, ECI-400X veterinary semen microscope has become a trusted semen testing solution for small and medium livestock breeding facilities worldwide.
