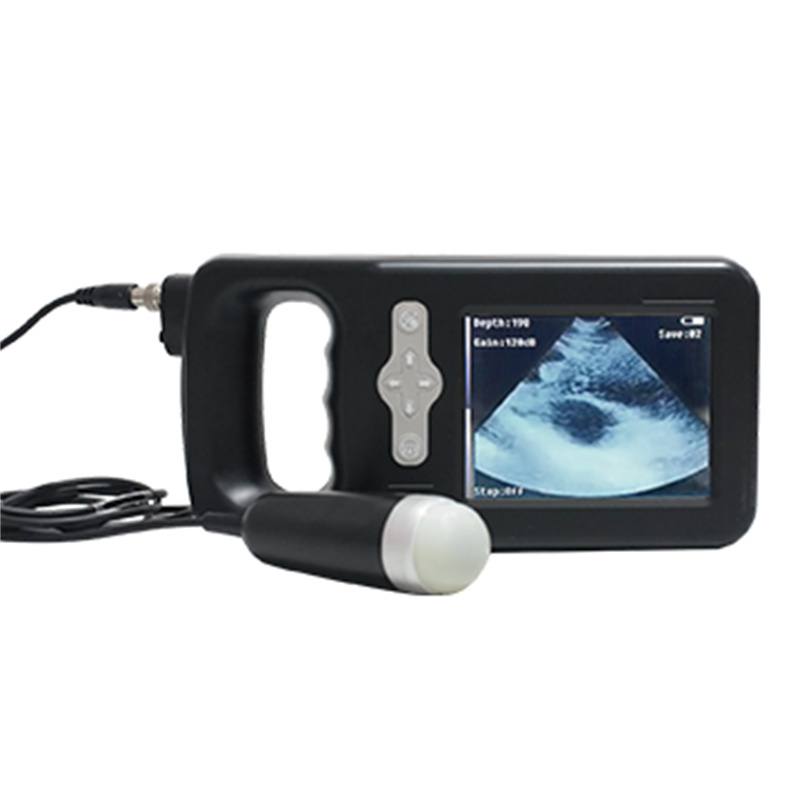

SUN-2300 Ultrasound Machine with 5.0 MHz Maglev Probe for Animals Detection
Description
The SUN-2300 waterproof veterinary ultrasound scanner is a gestation testing device designed for economical livestock breeds such as pigs and sheep. The overall design is compact and easy to hold. It utilizes innovative magnetic levitation technology and cold-proof design to provide breeding solutions for breeding enterprises in cold regions.
Using video
Product Parameters
| Type | SUN-2300 | |
| Maximum detection depth (mm) | ≥140 | |
| Resolution(mm) | Lateral | ≤4(depth≤80) ; 5≤(depth≤130) |
| Axial | ≤2(depth≤80) | |
| Dead Zone(mm) | ≤6 | |
| Geometric position accuracy | Horizontal | ≤20 |
| Axial | ≤10 | |
| Probe | 5.0MHz maglev probe | |

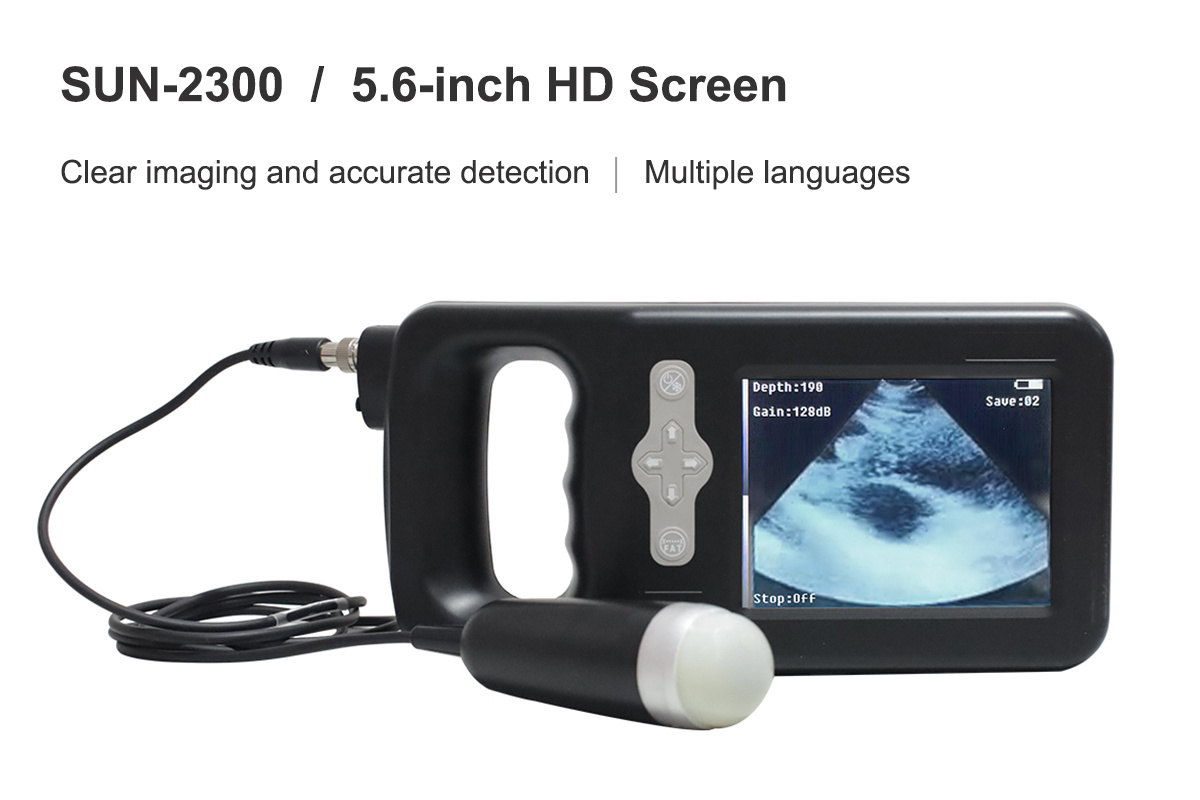

| Display | 5.6-inch HD screen | |
| Screen Resolution | 960*640 | |
| Mode | B | |
| Depth | 110~190mm | |
| Standby | ≥3.5 hours | |
| Storage | 12fps | |
| Waterproof | IPX6 | |
| Image Gray Scale | 256 | |
| Measurement | Back-fat thickness | |
| Battery | 3400mAh | |
| Image Magnification | adjustable (1-2x) | |
| Size | 290*137*46mm | |
| Weight | 820g | |
Main Features
● Four display modes: B;Realize real time image display, frozen, zoom, and image testing distance.
● Image gray scale: 256 levels.

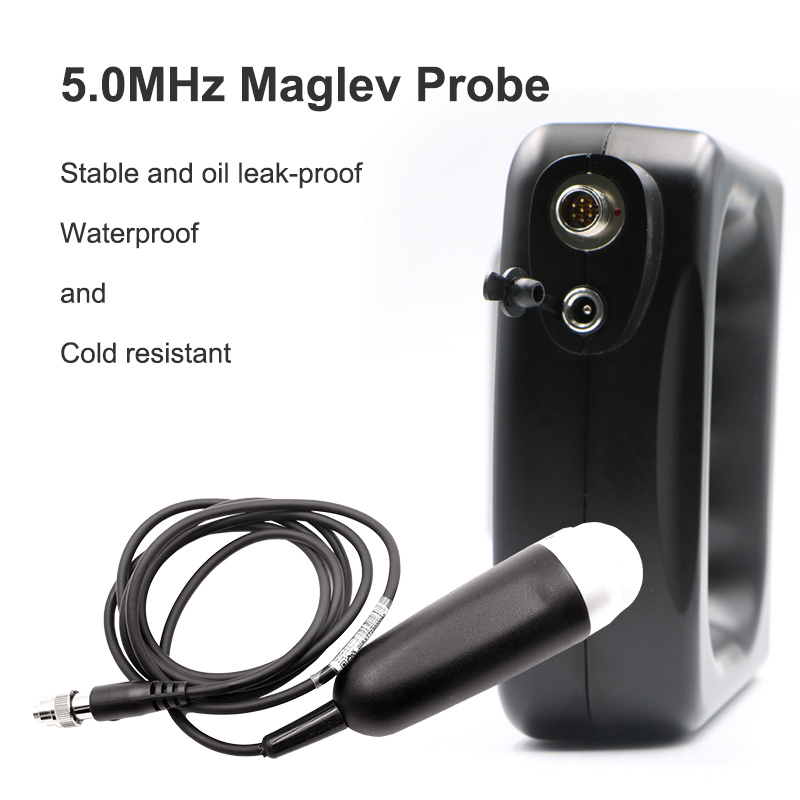

● 5.0 MHz magnetic levitation probe has higher frequency than normal mechanical probes.
● 5.6 inches HD display, programmable device (FPGA) and surface mounted technology (SMT) make this device compact and light in weight.
● Jet molding enclosure with hand-held structure makes it convenient for big and small animals diagnoses.

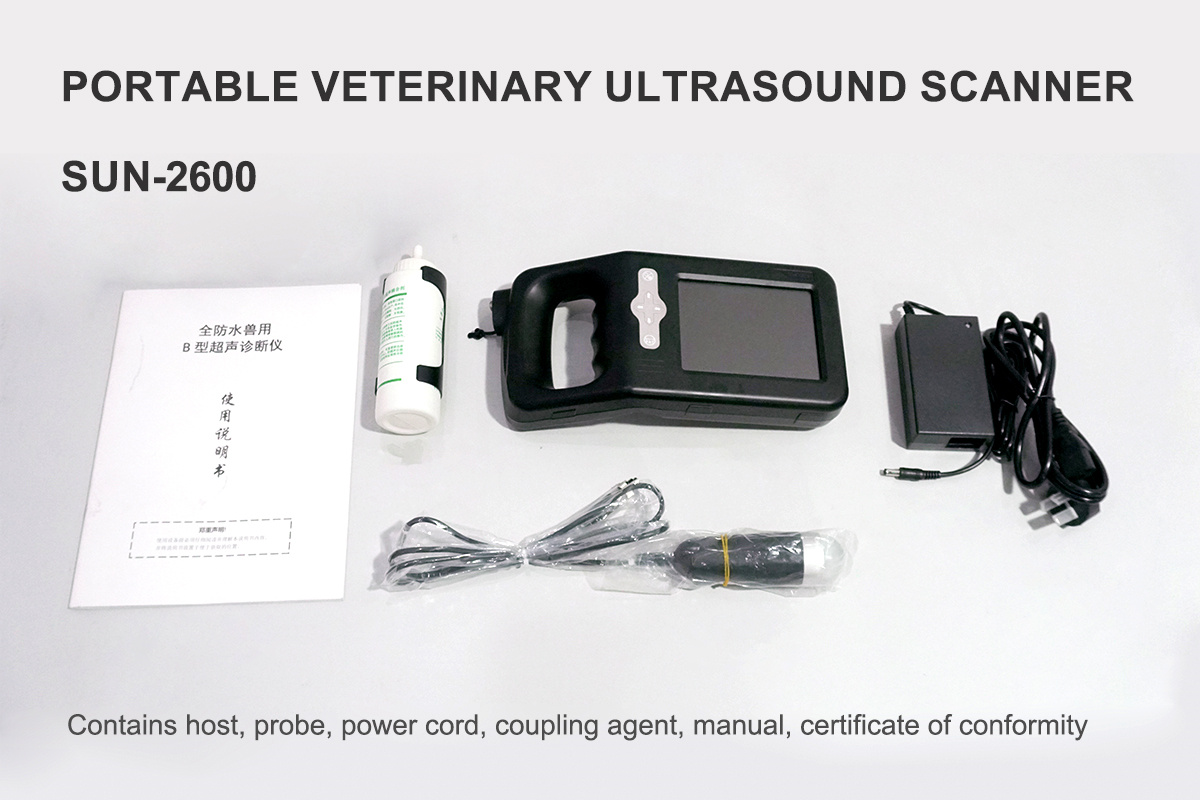

● The device consists of mainframe, probe and adapter. 5.0MHz waterproof maglev sector scanning probe is the standard configuration.
● The product supports Chinese, English, Japanese, Spanish, Russian and German. The basic language is Chinese, and the language interface to be preset can be selected from the above languages as required.
● This function key is specially designed for back-fat measurement, which is convenient for back-fat measurement.
● Anti-freeze and anti-oil leakage maglev probe, Avoid the problem of oil leakage from traditional mechanical probes. Works well in cold areas.
● The buttons are simplified and each button is configured with multiple roles for easy operation.
Applicable Animals
The maglev sector probe is mainly used on farms for pregnancy testing of pigs and sheep.
General tips for device operation
In operation:
1. Heat radiation holes are strictly prohibited to be covered.
2. After shutdown, do not restart the device within 2 - 3 minutes.
3. Scanning should be stopped immediately and the device be shut down if any abnormal case is found.
4. Do not touch any parts of the device excluding application part.
5. Touch the key softly.
After operation:
1. Power off the device.
2. Pull out the plug from power supply socket instead of pulling the cable.
3. Clean off the gel on the probe with soft medical sterilized cotton ball.
