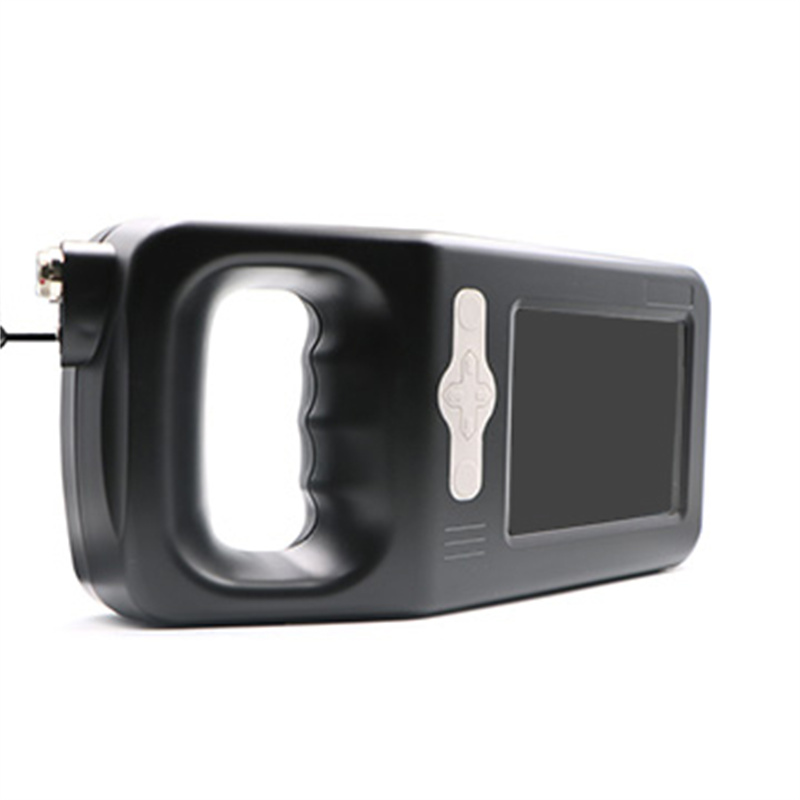

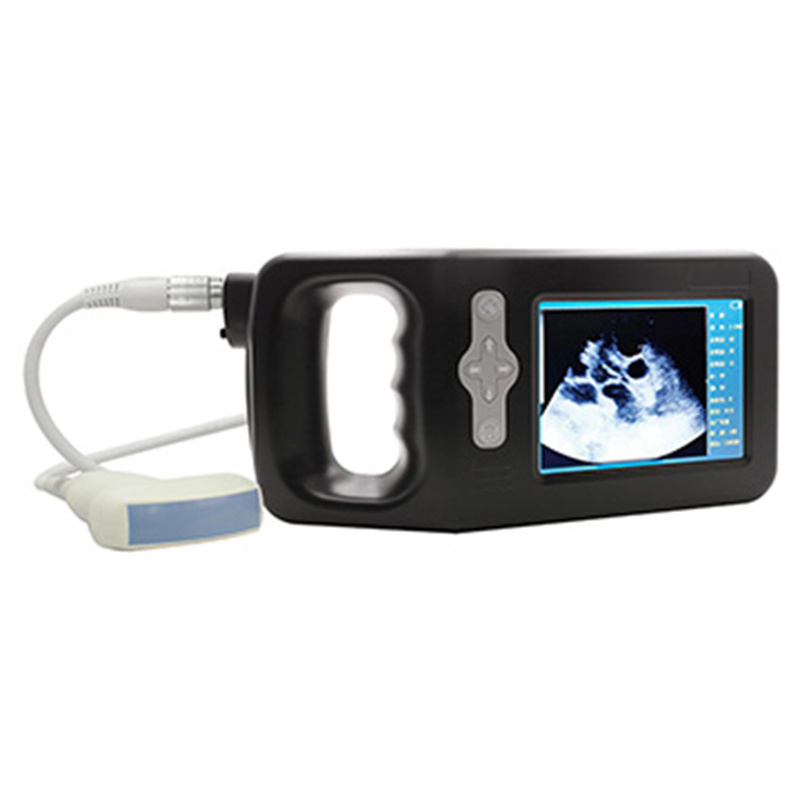

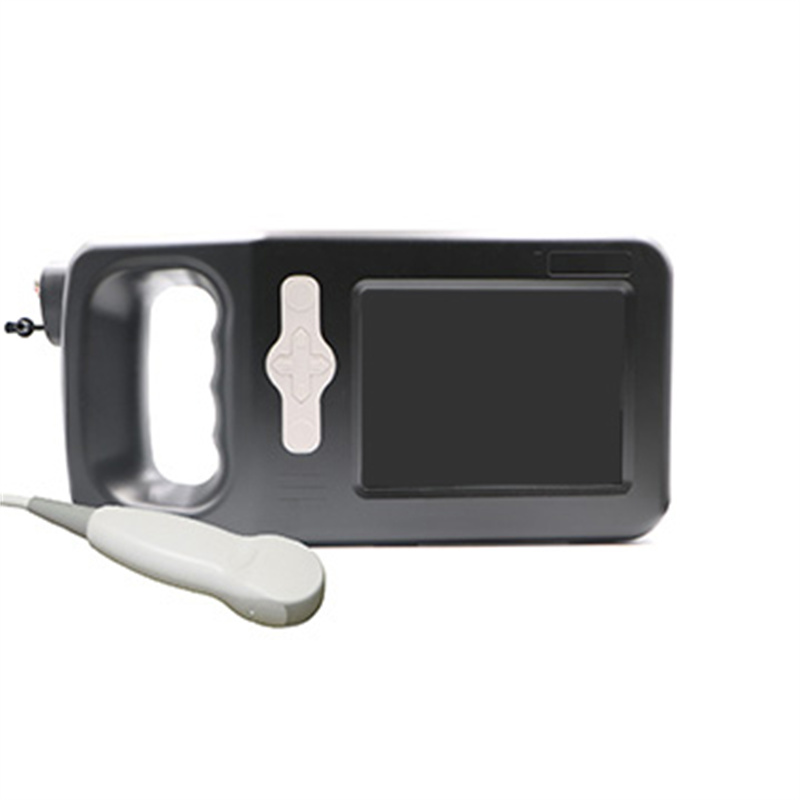

SUN-3000 Factory Supply Veterinary Ultrasound Scanner with Multiple Probes
Description

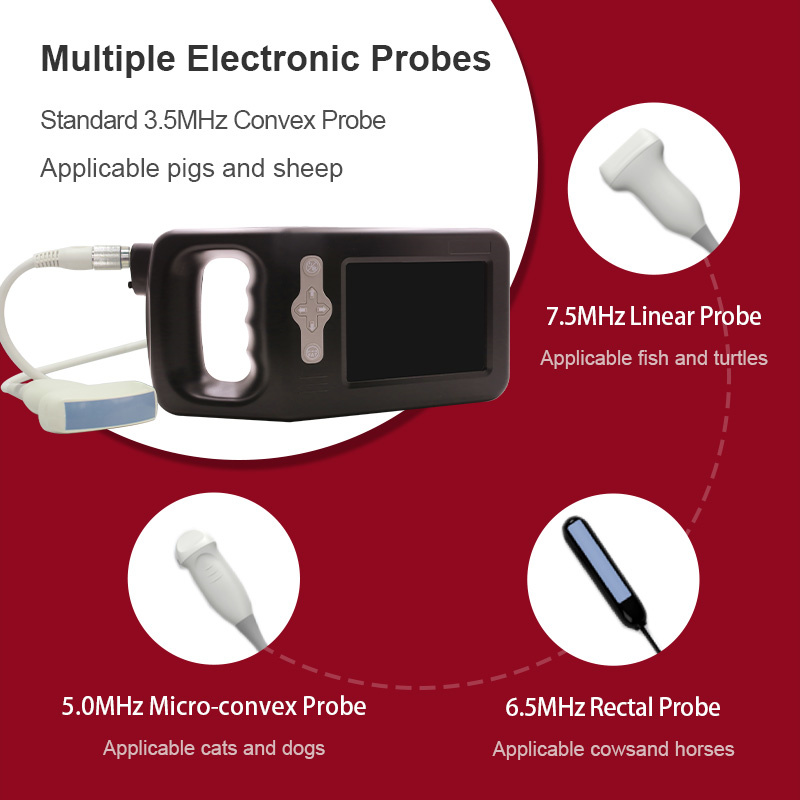

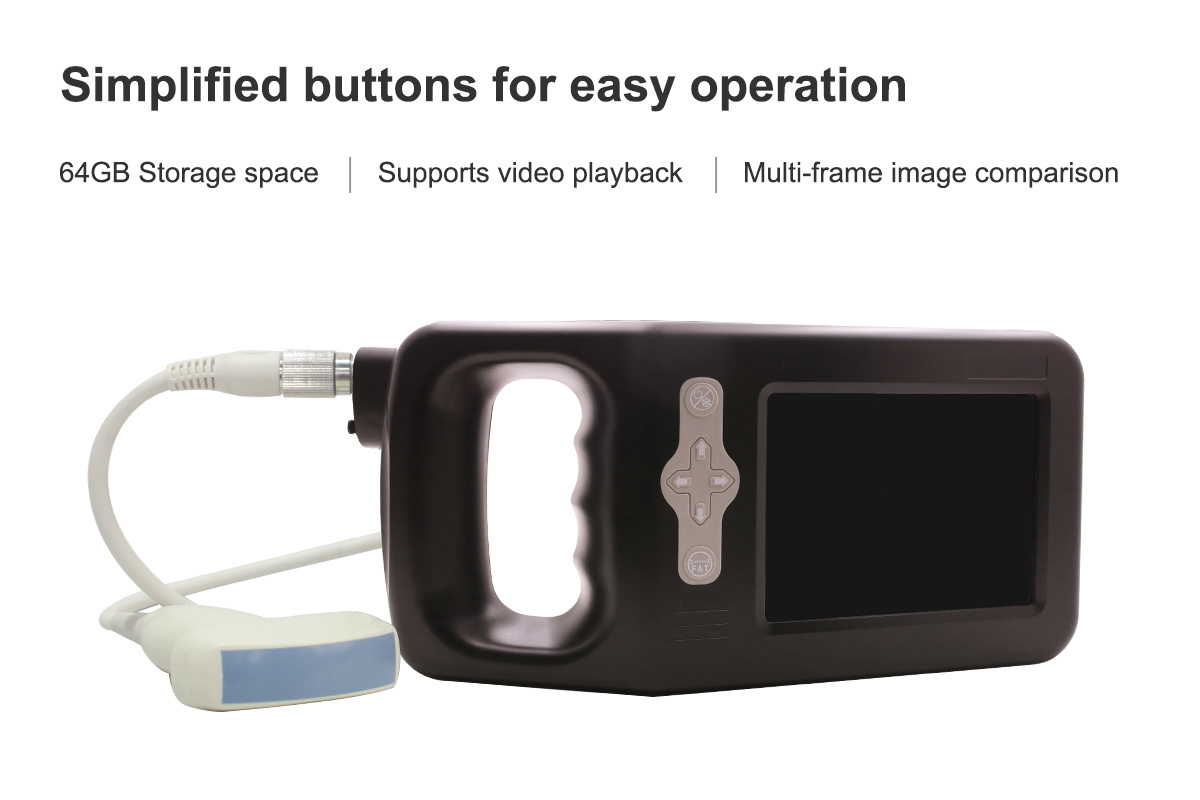

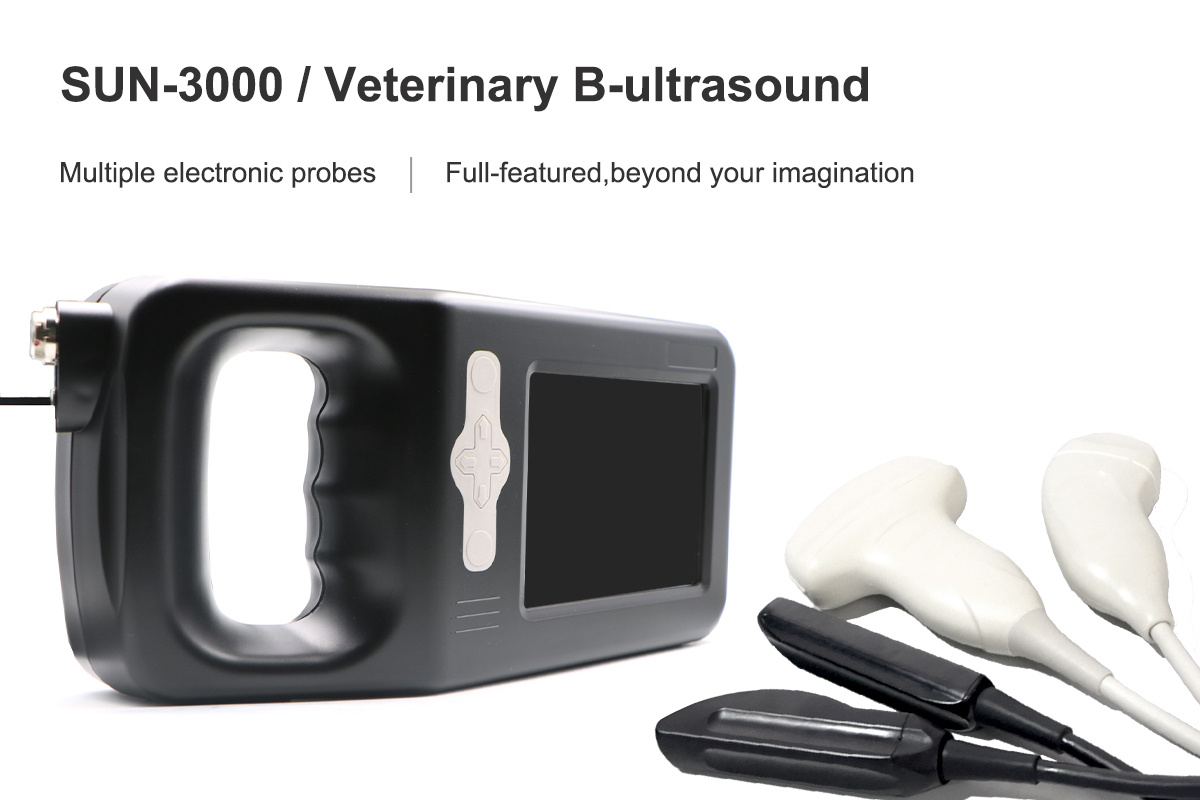

SUN-3000 Ultrasonic Diagnostic Instrument is mainly used for pregnancy detection of animals, such as pigs, cows, sheep and other large and medium-sized animals. The device is equipped with 5.6-inch HD screen and multi-frequency probe system (3.5MHz convex probe, 5.0MHz micro-convex probe, 6.5MHz rectal probe and 7.5MHz linear probe), supporting uterus detection and back-fat measurement. The device is waterproof at the interface, and 64GB storage space supports video playback and multi-frame image comparison, making it easy to trace the breeding cycle of individual animals.
Technical Specification
| Type | ECI-3000 | ||

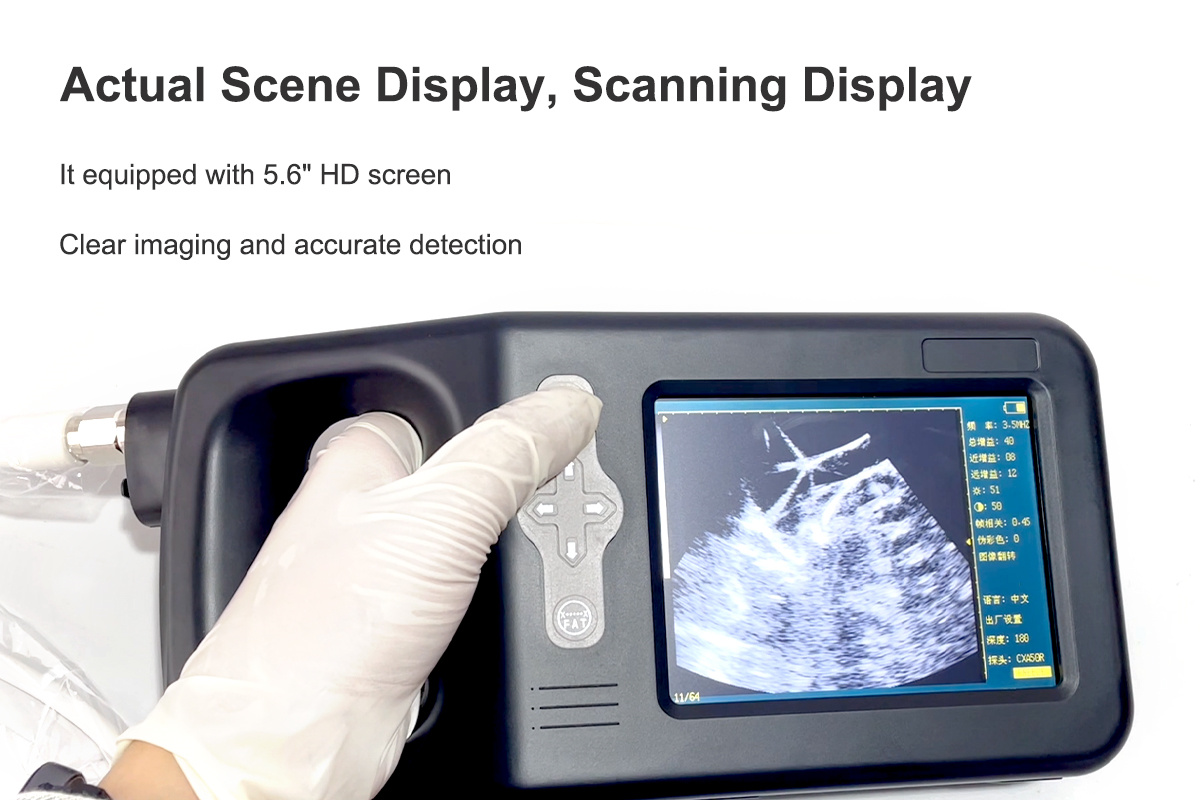

| Display | 5.6-inch HD screen | ||
| Screen resolution | 960*640 | ||
| Frequency | Adjustable (3Lv.) | ||
| Mode | B, BB | ||
| Image gray scale | 256 | ||
| Depth | 70~240mm | ||
| Cine-loop | 400fps | ||
| Storage | 64G | ||
| Element | 96 | ||
| Channel | 8 | ||
| Measurement | Back-fat thickness | ||

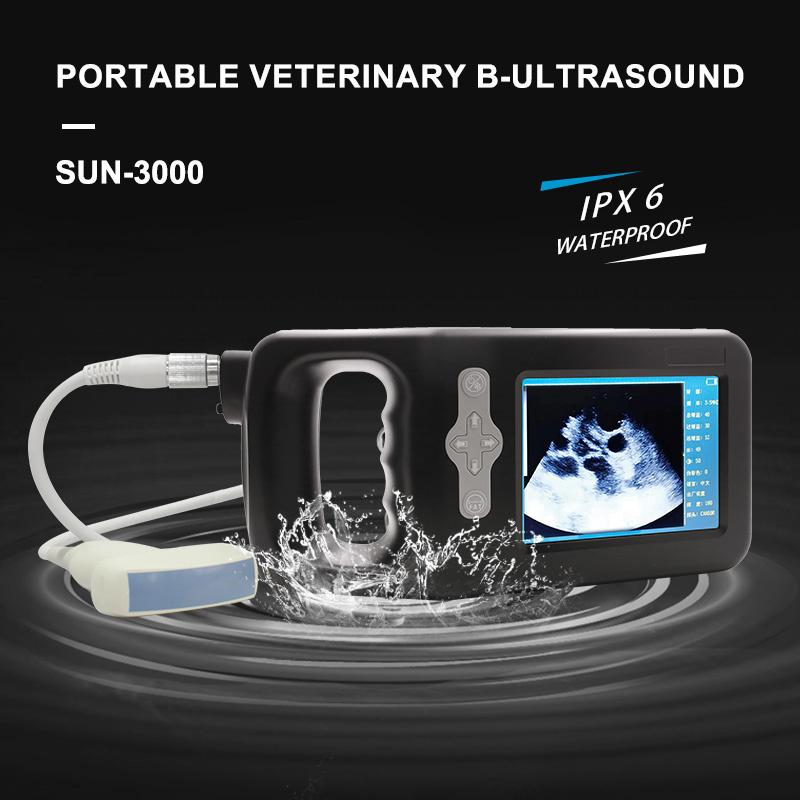

| Waterproof | IPX6 | ||
| Working time | 4 hours | ||
| Pseudo-colors | 16 | ||
| Size | 290*137*46mm | ||
| N.W. | 820g | ||
| Optional Probes | |||
| 7.5 MHz Linear Probe | 3.5 MHz Convex Probe | 5.0 MHz Micro-convex Probe | 6.5 MHz Rectal Probe |
| L: 40mm Pitch: 0.5mm Element: 96 Frequency: 6.5-10.0MHz Depth: 60-240mm | R: 60mm Element: 96 Frequency: 2.0-5.0MHz Depth: 60-240mm | R: 20mm Element: 96 Frequency: 3.0-8.0MHz Depth: 60-240mm | L: 64mm Pitch: 0.8mm Element: 96 Frequency: 4.0-8.0MHz Depth: 60-240mm |

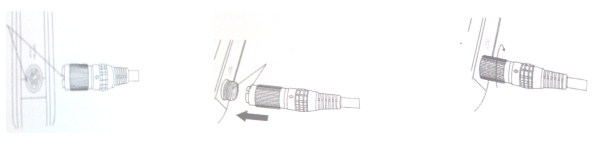

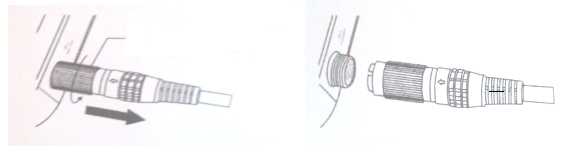

Probe Assembly and Disassembly

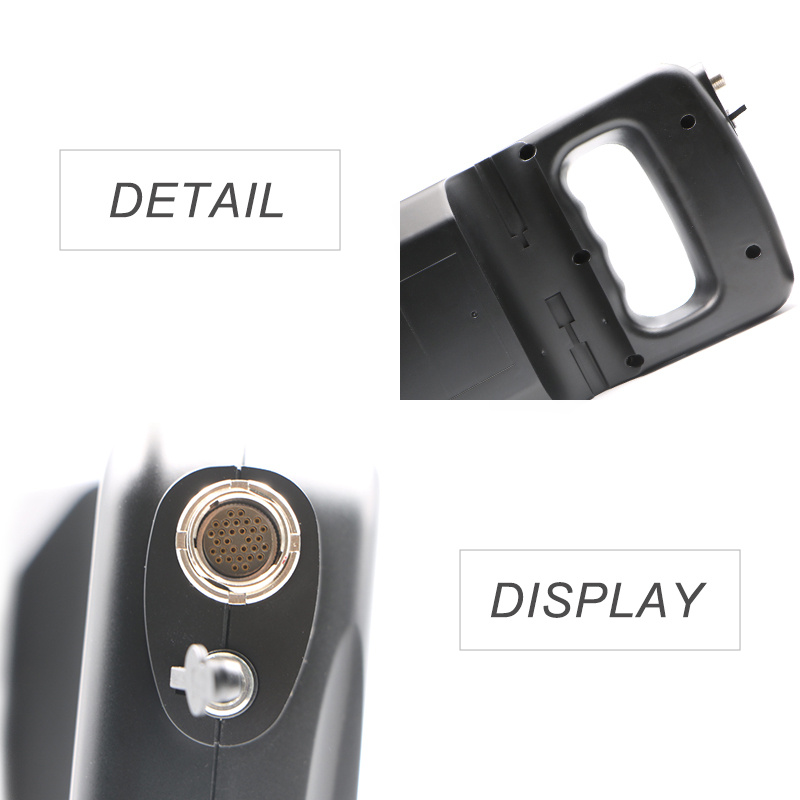

Probe Assembly: The instrument has only one probe socket, which can be connected to the optional probe supported by the instrument.
Probe Disassembly: the contrary procedure of Probe Assembly.
Safety Notes
1. Environmental requirements on normal operation:
a)Environment temperature range: +5℃～+40℃
b)Relative humidity range: 30%~80%
c) Atmosphere pressure range: 70KPa～106KPa
2. Environment requirements on device storage and transportation:
a)Environment temperature range: -5℃～+40℃
b)Relative humidity range: ≤80%(20℃)
c)Avoid sun shine and other erosive gas, aeration is good.
3. Do not hit the fragile TFT-LCD display. If it cracks, deal with it carefully in case the liquid crystal gets into eyes or mouths.
General vehicle transport. Avoid collide and rain or snow. Transport without erosive gas.
Product Packing
Standard Configurations:
1. Main unit
2. One probe
3. Adaptor
4. Instruction
5. Power cable
6. Certificate of the product
The package size of a single product is 430*320*160mm.The package weight is 4.5kg. The package size of the 5 units is 820*440*355mm
